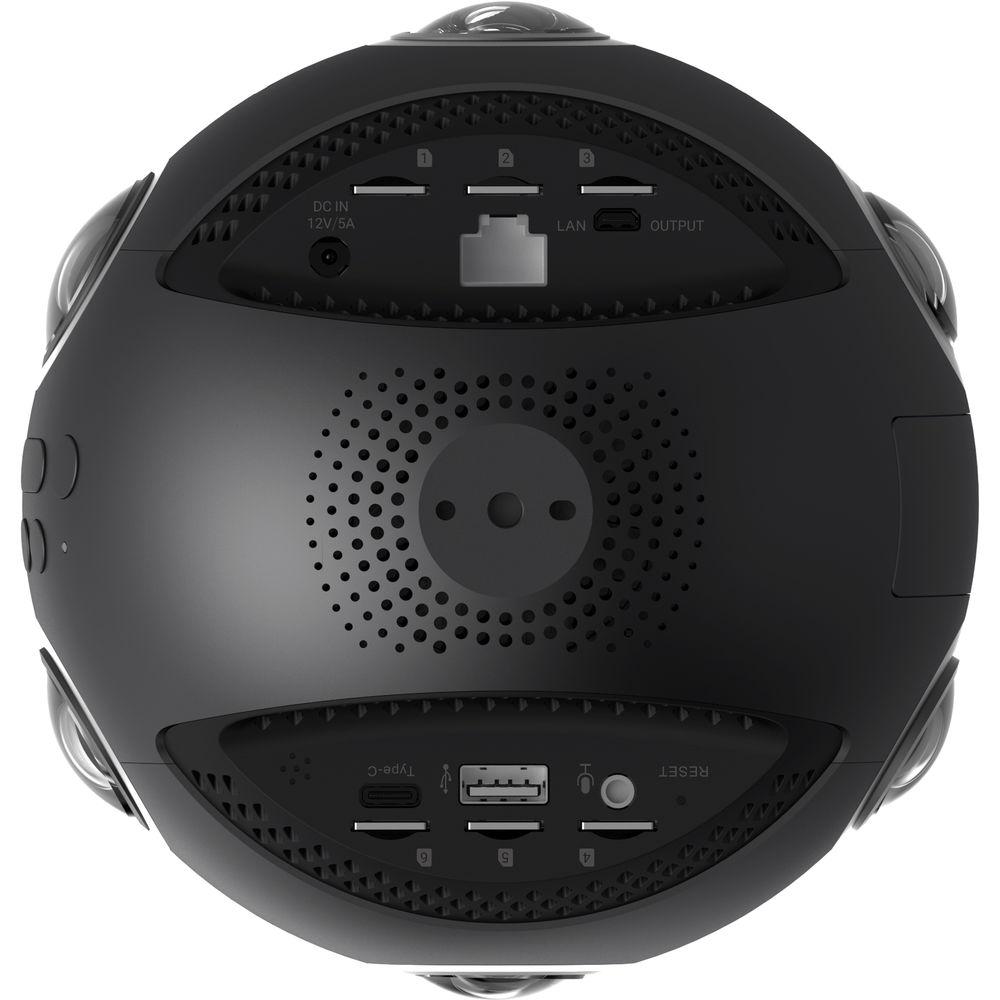

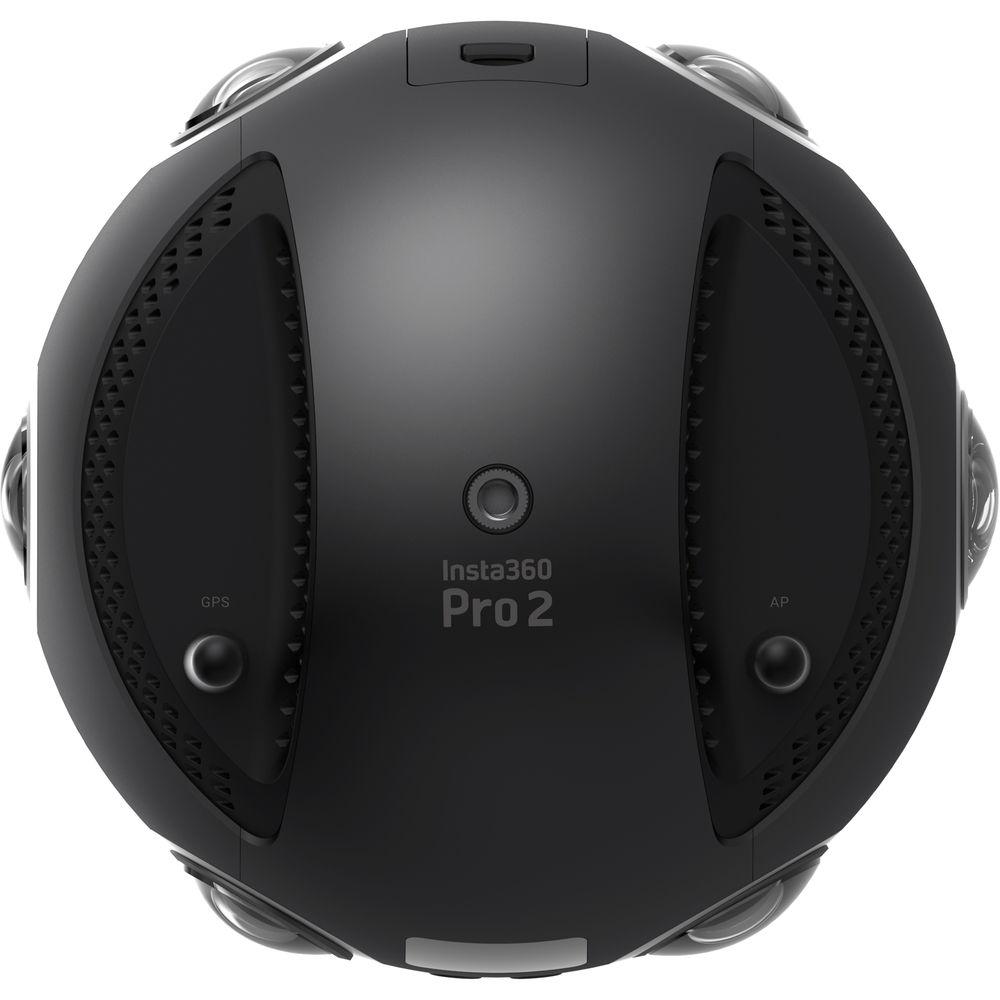

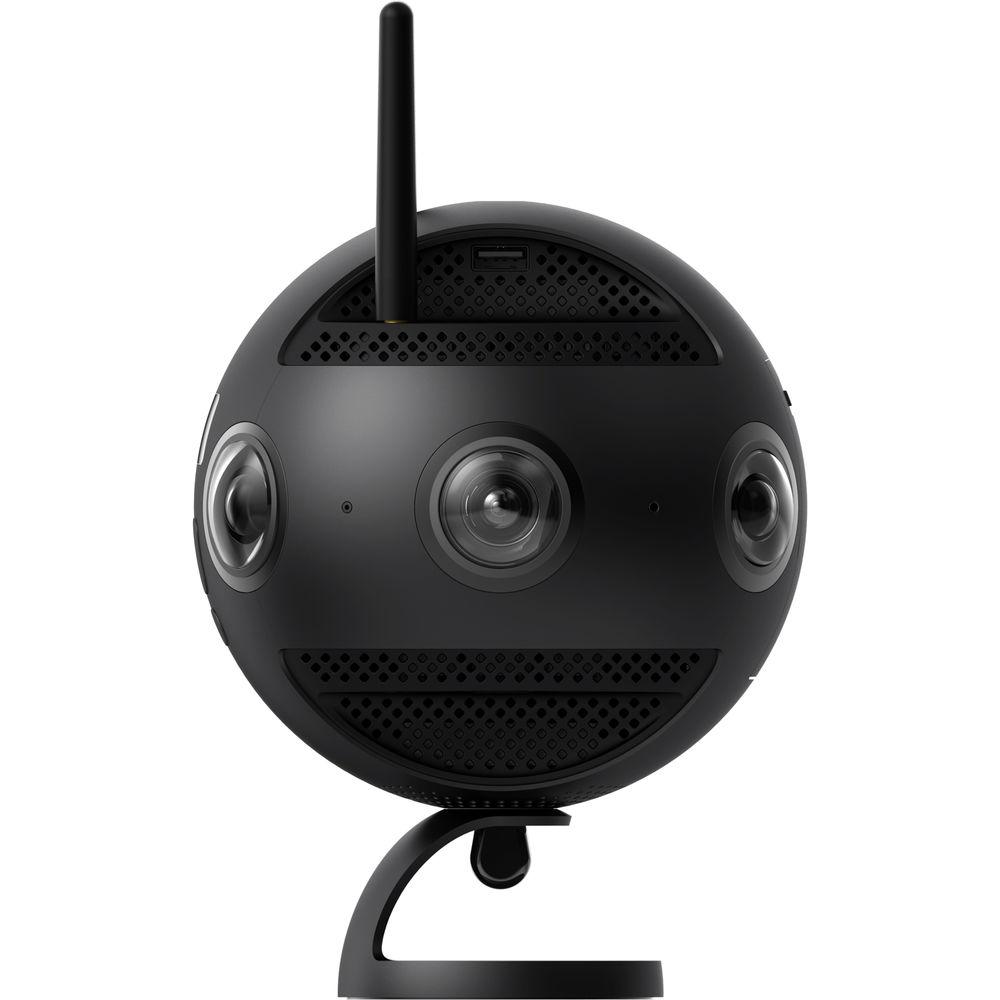

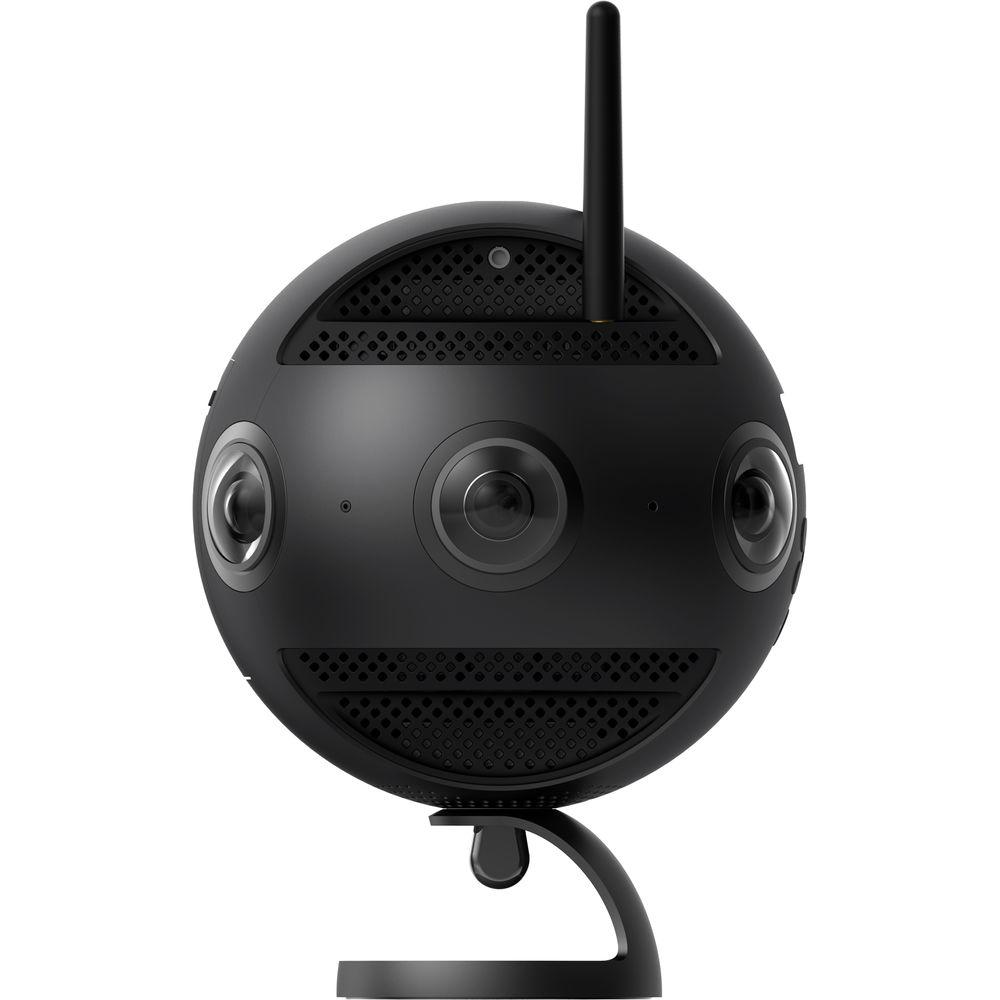

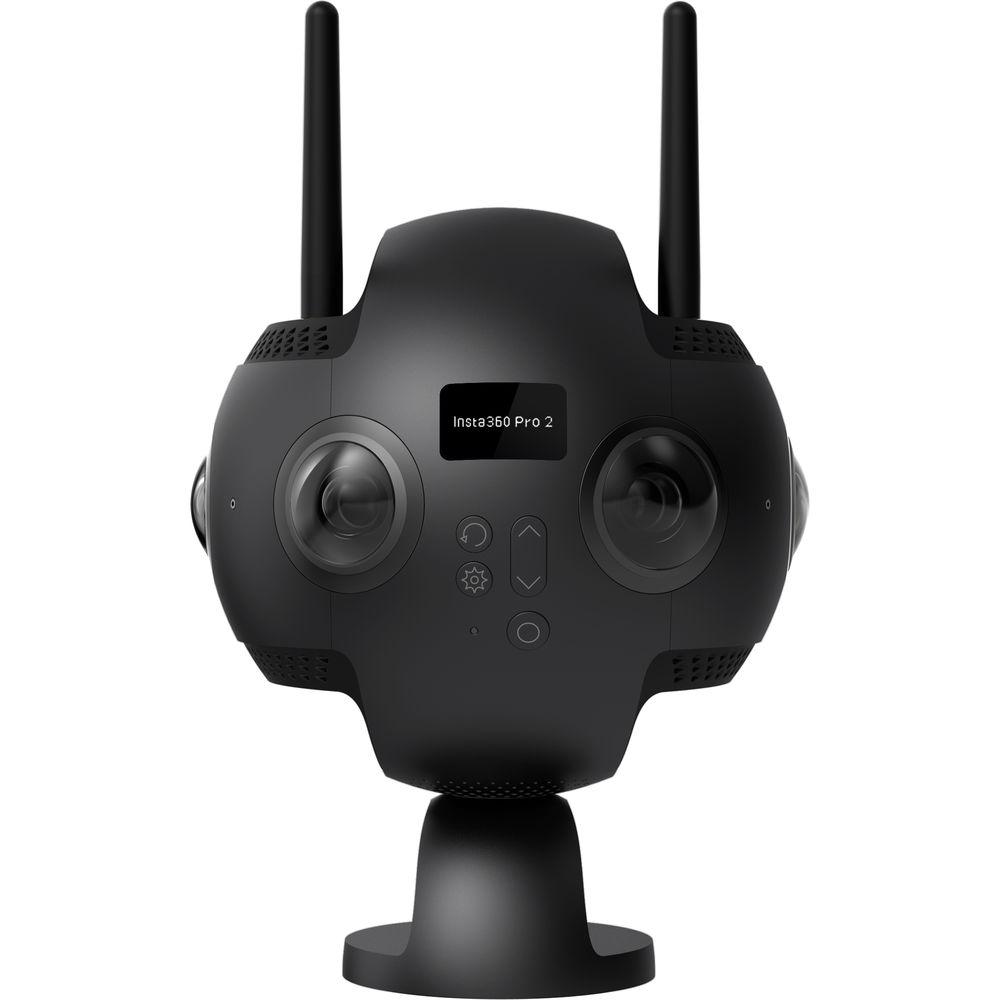

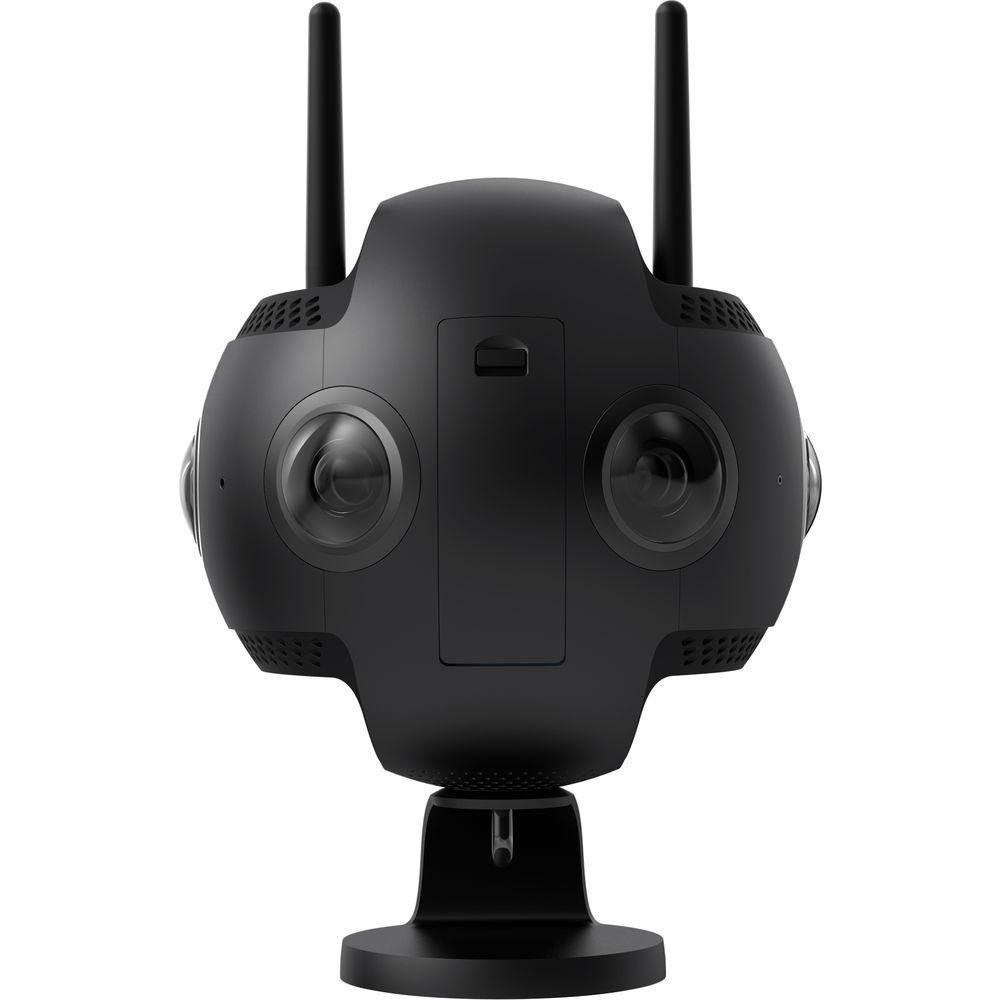

User Manual for Insta360 Pro II Spherical VR 360 8K Camera with FarSight Monitoring Click to enlarge the picture
Contents of the user manual for the Insta360 Pro II Spherical VR 360
- Product category: All 360 Video Cameras Insta360
- Brand: Insta360
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Insta360 All 360 Video Cameras
 |
User manual for the Insta360 Pro II Spherical VR 360 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Insta360 product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Insta360 user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Insta360 product will considerably shorten its lifespan!
|

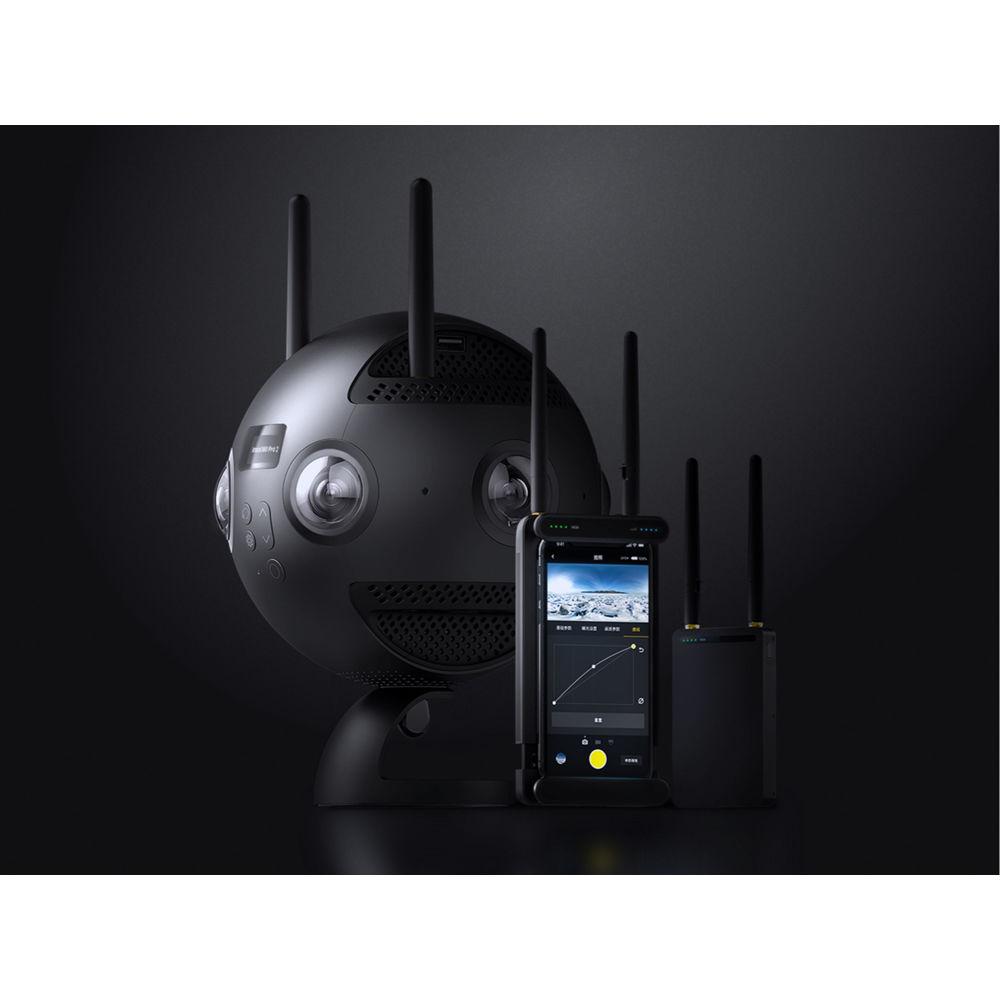

Product description The Insta360 Pro II VR Camera with FarSight bundle from Insta360 captures 360 spherical VR videos and stills in configurations up to 8K 3D. This successor to the Insta360 Pro can record immersive 8K video while streaming in 4K and includes the FarSight remote monitoring system. Insta360 Pro II features include precise 9-axis FlowState stabilization, CrystalView monitoring on standard devices, automatic proxy file creation, and stitch-free editing in Adobe Premiere Pro.The FarSight 360° long-range monitoring system includes a transmitter and receiver for live monitoring your capture from up to one mile away ground-to-ground, or two miles ground-to-air. Wi-Fi preview is available at 30 fps up to 15' without using FarSight. The CrystalView function converts 8K VR footage for viewing on popular 4K VR headsets and standard smartphones or monitors, expanding your potential audience.Save time and processing with the Insta360 Pro II's ability to create proxy files for instant stitching and real-time editing in Adobe Premiere Pro. When you have your final cut, the Insta360 algorithm stitches together a full-resolution version. Each camera records to a microSD card while proxy files and stabilization data are captured to a full SD card. The camera features bit rates up to 120 Mb/s, and records audio via four built-in mics and a 3.5mm mic input.The Insta360 Pro II's optical features include six selectable 200° fisheye lenses, adjustable shutter speed, and an ISO range of 100-6400. An HDR (high dynamic range) function provides natural-looking lighting even in unevenly lit settings. High-speed frame rates are available up to 120 fps and the still mode includes raw, JPEG, burst, and time-lapse options.Image stabilization is a vital VR component and the Insta360 Pro II combines a 9-axis gyro with the downloadable Insta360 software for precise, customizable stabilization. A built-in GPS module provides data for Google Maps Street View, and other precision-mapping applications. The Insta360 Pro II features a compact aluminum frame, two USB ports, and a hot swap battery dock. - Key Features
-
- Captures 8K 360 videos and stills in 3D up to 30 fps and 2D up to 60 fps.
- CrystalView for viewing 8K footage on standard VR headsets or smartphones

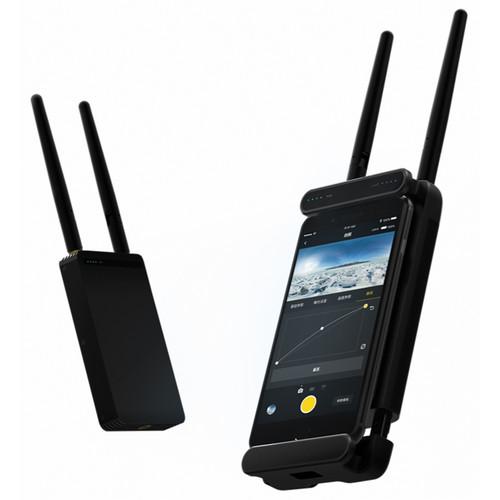

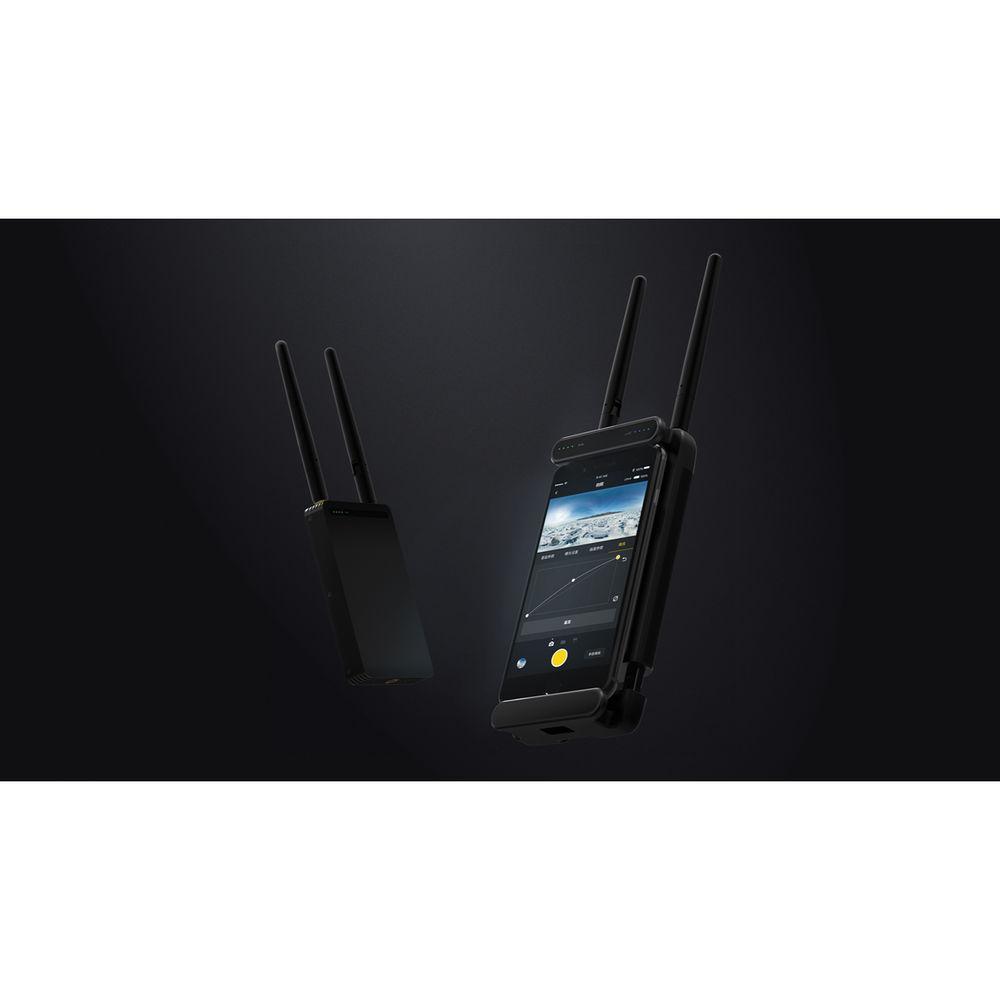

- FarSight 360° long-range monitoring system
- View 30 fps live preview up to 15' via Wi-Fi
- Live stream 4K video while recording 8K
- Pro-quality, nine-axis FlowState image stabilization
- Automatic proxy file creation for a quick editing flow
- Captures to six microSD and one SD card for flexible post options
- Integrated GPS module is Google Maps compatible
- Six 200° fisheye lenses (selectable—use all six or less)
- Adjustable shutter speed
- High-resolution 120 fps slow motion
- Four built-in mics, one 3.5mm external mic input, two USB ports
- Optical-flow stitching
- Hot-swappable 5000mAh rechargeable battery
UPC: 842126100802 In the Box Insta360 Pro II Spherical VR 360 8K Camera with FarSight Monitoring FarSight 360° Transmitter FarSight 360° Receiver 5000mAh Battery 12 VDC 5A Power Adapter USB Type-C Data Cable Ethernet Cable (3.2') USB Ethernet Network Adapter Cleaning Cloth Protective Lens Cover Tripod Mount Base Stand Limited 1-Year Warranty (Camera) Limited 30-Day Warranty (Accessories) Table of Contents
|
Upload User Manual
Have you got an user manual for the Insta360 Pro II Spherical VR 360 8K Camera with FarSight Monitoring in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersInsta360 PRO II Specs | | | Stitching Resolution | 8K
6K
4K | | Internal/External Stitching | Internal, External Stitching | | 360 Stitched Video Format | External 3D:
7680 x 7680 at 30 fps (MP4 via H.265)
External 2D:
7680 x 3840 at 30, 60 fps (MP4 via H.265)
External 3D:
6400 x 6400 at 60 fps (MP4 via H.265)
External 2D:
6400 x 6400 at 60 fps (MP4 via H.265)
Internal 3D:
3840 x 3840 at 120 fps (MP4 via H.264)
Internal 2D:
3840 x 3840 at 120 fps (MP4 via H.264)
Internal 3D:
3840 x 3840 at 30 fps (MP4 via H.264)
Internal 2D:
3840 x 1920 at 30 fps (MP4 via H.264) 3840 x 3840 120 fps binning. | | Still Image Resolution | Raw: 12,000 x 12,000
JPEG: 12,000 x 12,000
Raw: 7680 x 7680
JPEG: 7680 x 7680
Raw: 7680 x 3840
JPEG: 7680 x 3840 | | Number of Lenses | 6 | | | | Maximum Aperture | f/2.4 | | Angle of View | 200° | | | | Recording Media | 6 x microSD/HC/XC
1 x SD/SDHC/SDXC | | Built-In Mic | Yes 4 x mono mics | | Audio Format | AAC | | | | Photo ISO Range | 100 - 6400 (Manual) | | Video ISO Range | 100 - 6400 (Auto) | | Burst Photo | 10 | | | | Wi-Fi | Yes, Wi-Fi 4 (802.11n) | | | | Inputs | None | | Outputs | 1 x HDMI
1 x RJ45
2 x USB 2.0 | | Microphone Input | Yes | | Headphone Jack | None | | | | Battery | Rechargeable Battery Pack, 5100 mAh | | Power Adapter | 12 VDC | | | | Package Weight | 18.4 lb | | Box Dimensions (LxWxH) | 19.5 x 17.0 x 9.0" |
