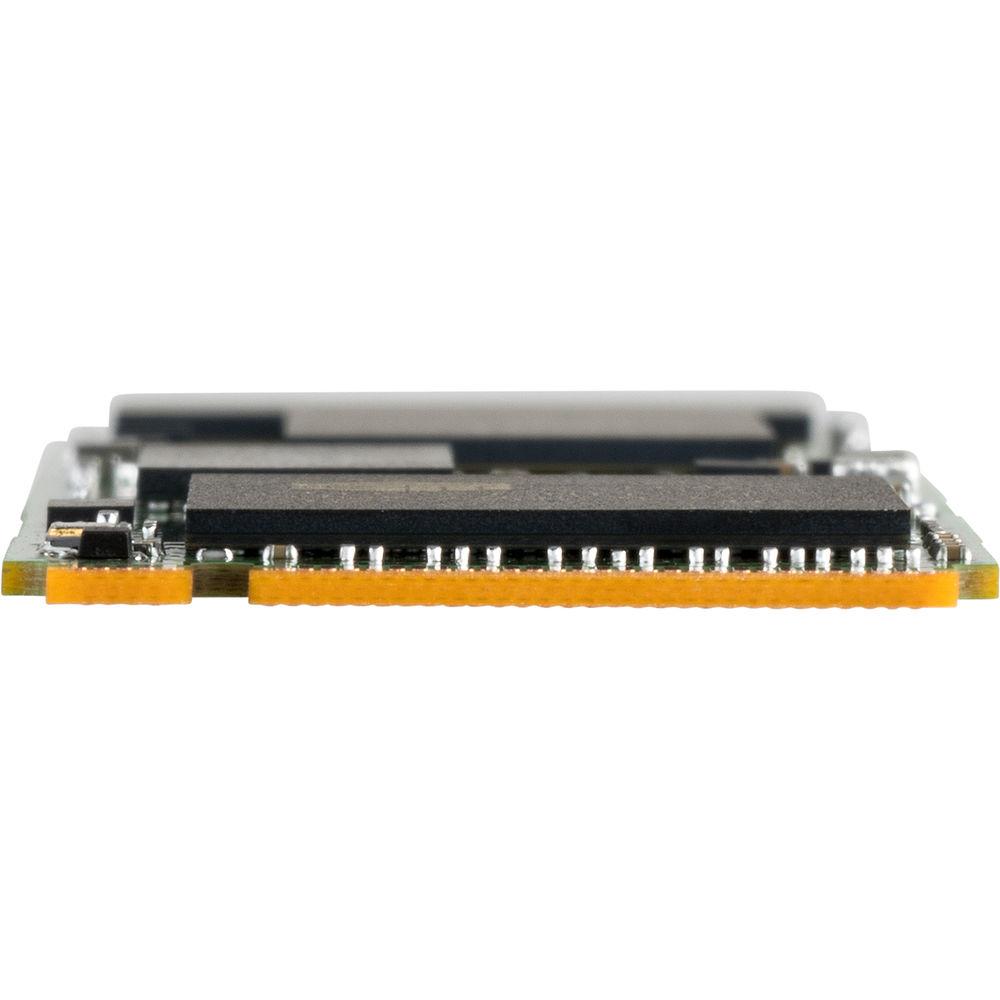

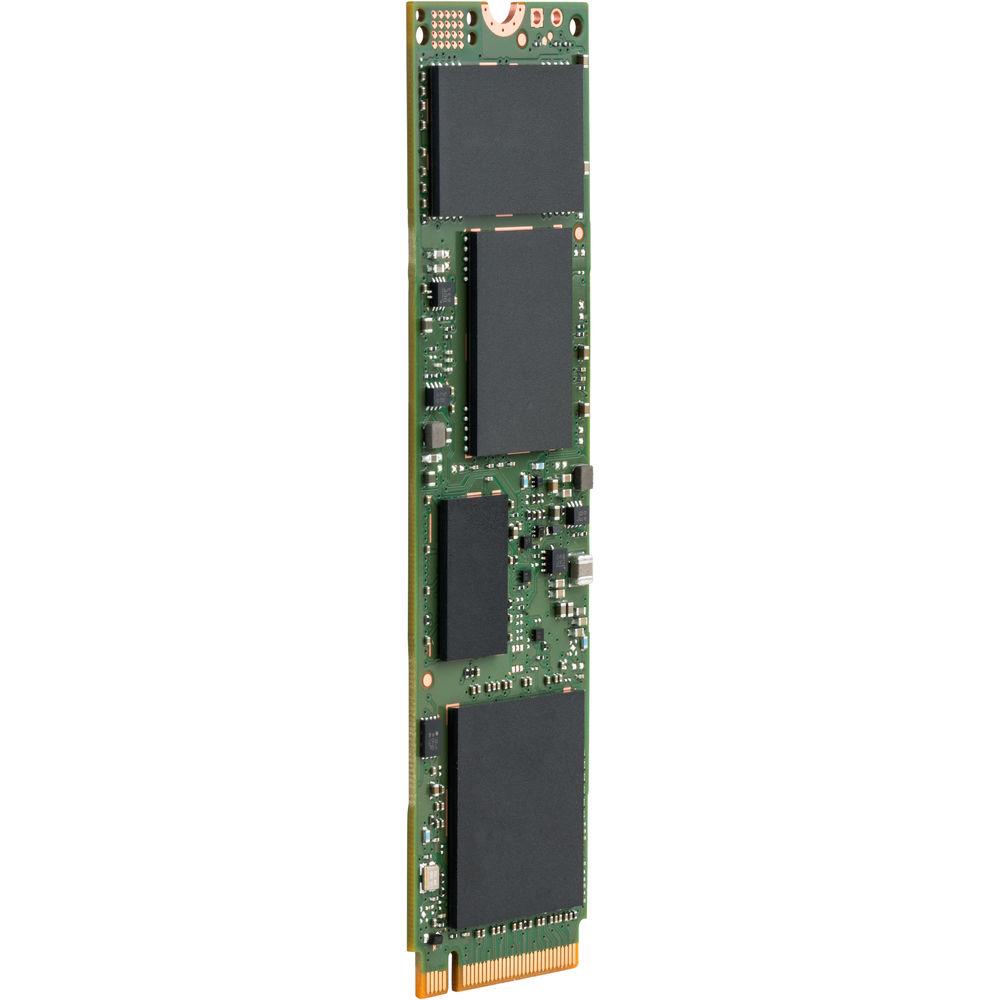

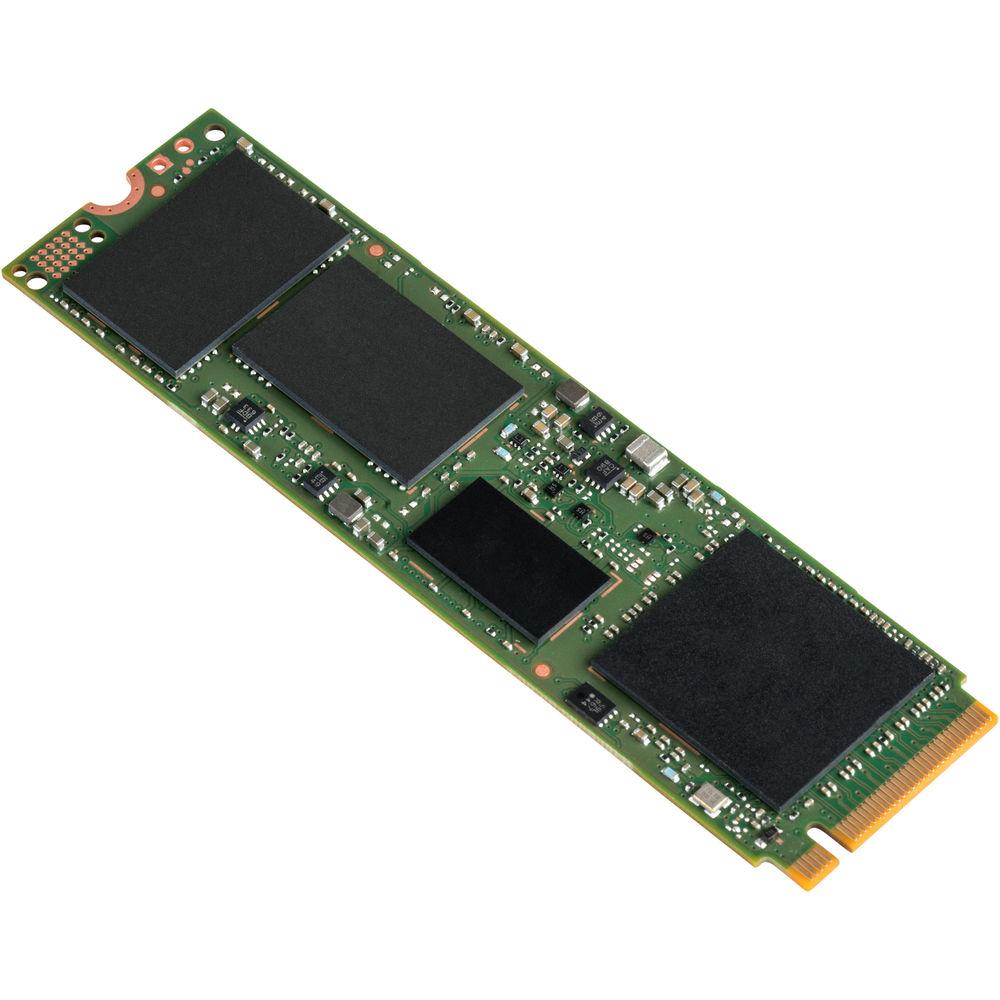

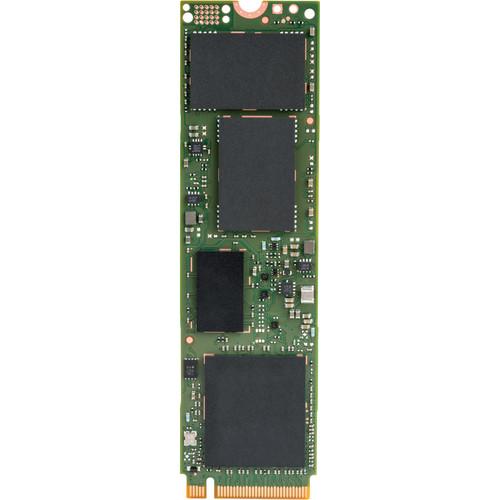

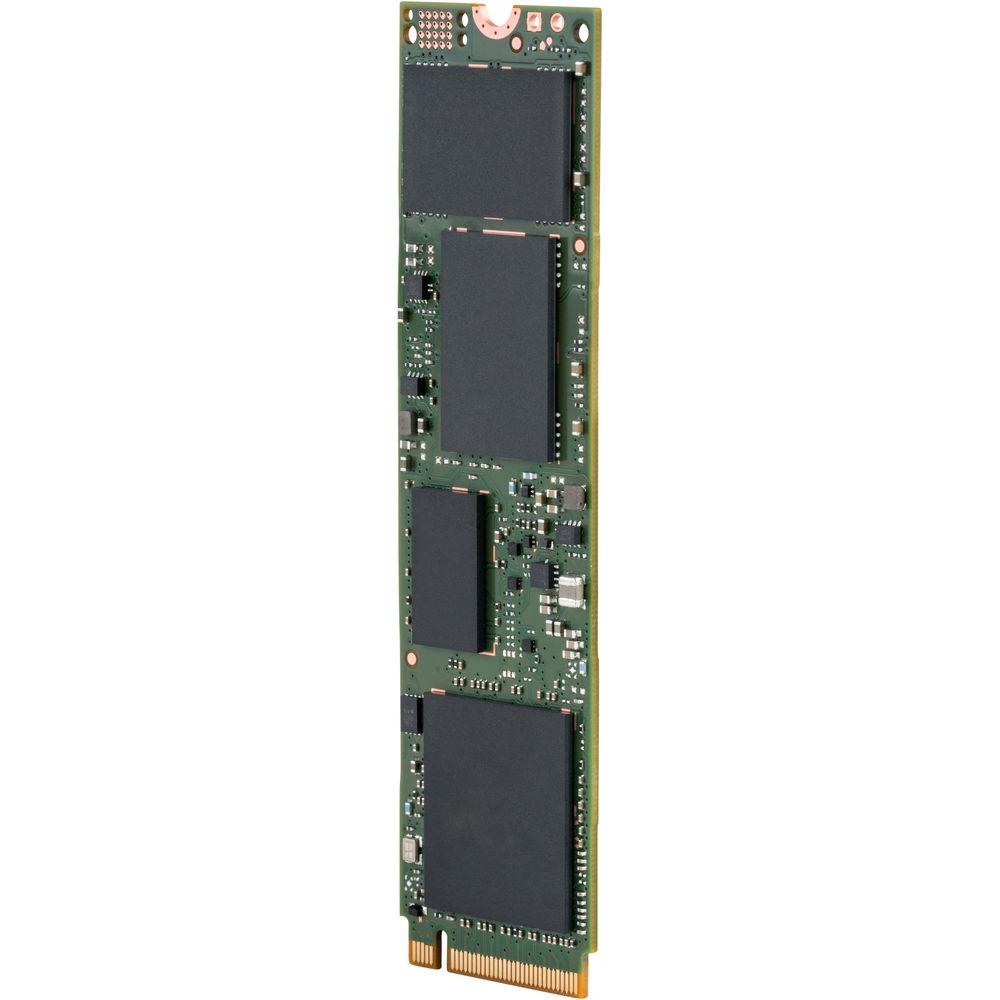

User Manual for Intel 256GB 760p M.2 Internal SSD Click to enlarge the picture
Contents of the user manual for the Intel 256GB 760p M.2 Internal SSD
- Product category: Internal Drives Intel
- Brand: Intel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intel Internal Drives
 |
User manual for the Intel 256GB 760p M.2 Internal SSD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intel product will considerably shorten its lifespan!
|
Product description Hard Drives by Application: Which Is Best for You? Read More rbsyrfdref Designed to manage demanding consumer client applications and handle intense multitasking, the 256GB 760p M.2 Internal SSD from Intel delivers improved performance with less power consumption when compared to the previous generation 600p Series. This SSD has a capacity of up to 256GB, is equipped with an NVMe PCIe 3.0 x4 interface, and an M.2 2280 (80mm) form factor, which allows it to be used in compatible desktops and notebook systems. In terms of speed, this drive offers sequential write speeds of up to 1315 MB/s, sequential read speeds of up to 3210 MB/s, random writes of up to 265,000 IOPS and random reads of up to 205,000 IOPS. Also employed is 3D2 TLC lithography, 1.6 million hours mean time between failures (MTBF), an endurance rating (lifetime writes) of 144 TBW, AES 256-bit hardware encryption, an uncorrectable bit error rate of <1 sector per 1015 bits read, and more.
With solid-state drive technology, you benefit from load and access times for your files and programs that are faster than a conventional 7200 rpm hard drive. As SSDs have no moving parts, they are also more durable than traditional hard drives and are better protected against damage from drops and bumps. Having no moving parts also means that SSDs receive less wear and tear, as there are no read or write heads for the drive media to come into contact with. SSDs also help to deliver improved battery life and cooler operating temperatures. Protection is provided by a limited 5-year warranty. General Features - Performance to Handle Multiple Tasks
- Accelerate your system with PCIe 3.0 x4 bandwidth, 64-layer Intel 3D NAND technology, sequential read speeds of up to 3210 MB/s, sequential write speeds of up to 1315 MB/s, and random read and write input/output operations per second (IOPS) of up to 205,000 and 265,000, respectively. All of this helps to deliver enhanced efficiency for applications that have greater performance requirements with improved speeds when compared to SATA SSDs.
- 3D NAND Delivers Capacity
- The 760p Series SSD is part of Intel's 3D NAND SSD family of products. Built on Intel 3D NAND technology, this SSD is designed to helps transform the economics of storage with a 256GB capacity on single-sided M.2 2280 (80mm), enable system designed with the flexibility to design for thin/light systems or provide space for other components. The combination of Intel 3D NAND technology and PCIe enables Intel SSDs to push the limits of performance and value.
- Performance at Low Power
- The 760p Series SSD provided extended battery life through low power modes. It reduces idle consumption when compared to traditional hard disk drives, reducing power consumption from watts to milliwatts. When coupled with an 8th generation Intel Core processor-based platform, the power mode settings help to reduce active and idle power consumption when compared to the 600p Series SSDs.
- Quality & Reliability
- The 760p Series SSD is backed by Intel's limited 5-year warranty, including post-sales customer support. Also supported is AES 256-bit self-encryption to help provide protection for critical data.
UPC: 735858365871 In the Box Intel 256GB 760p M.2 Internal SSD Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel 256GB 760p M.2 Internal SSD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntel 760p Specs | | | Interface | PCIe 3.0 x4 | | Random Read Speed | 205,000 IOPS (8 GB SPAN) | | Random Write Speed | 265,000 IOPS (8 GB SPAN) | | Sequential Read Speed | 3210 MB/s | | Sequential Write Speed | 1315 MB/s | | | | Drive Type | SSD | | Form Factor | M.2 2280 | | | | Flash Memory Type | Tri-Level Cell (TLC) | | | | Encryption | 256-Bit AES Hardware Encryption | | Endurance (Total Bytes Written) | 144 TB | | Mean Time Between Failures (MTBF) | 1.6 Million Hours | | Non-Recoverable Read Errors per Bits Read | < 1 in 1015 | | | | Power Draw | 50.00 mW (Active)
25.00 mW (Idle)
3.0 mW (Standby) | | | | Operating Shock | 1000 G | | Storage Shock | 1000 G | | Operating Vibration | 2.17 G | | Storage Vibration | 3.13 G | | Operating Temperature | 32 to 158°F / 0 to 70°C | | | | Package Weight | 0.05 lb | | Box Dimensions (LxWxH) | 4.5 x 3.5 x 0.75" |
