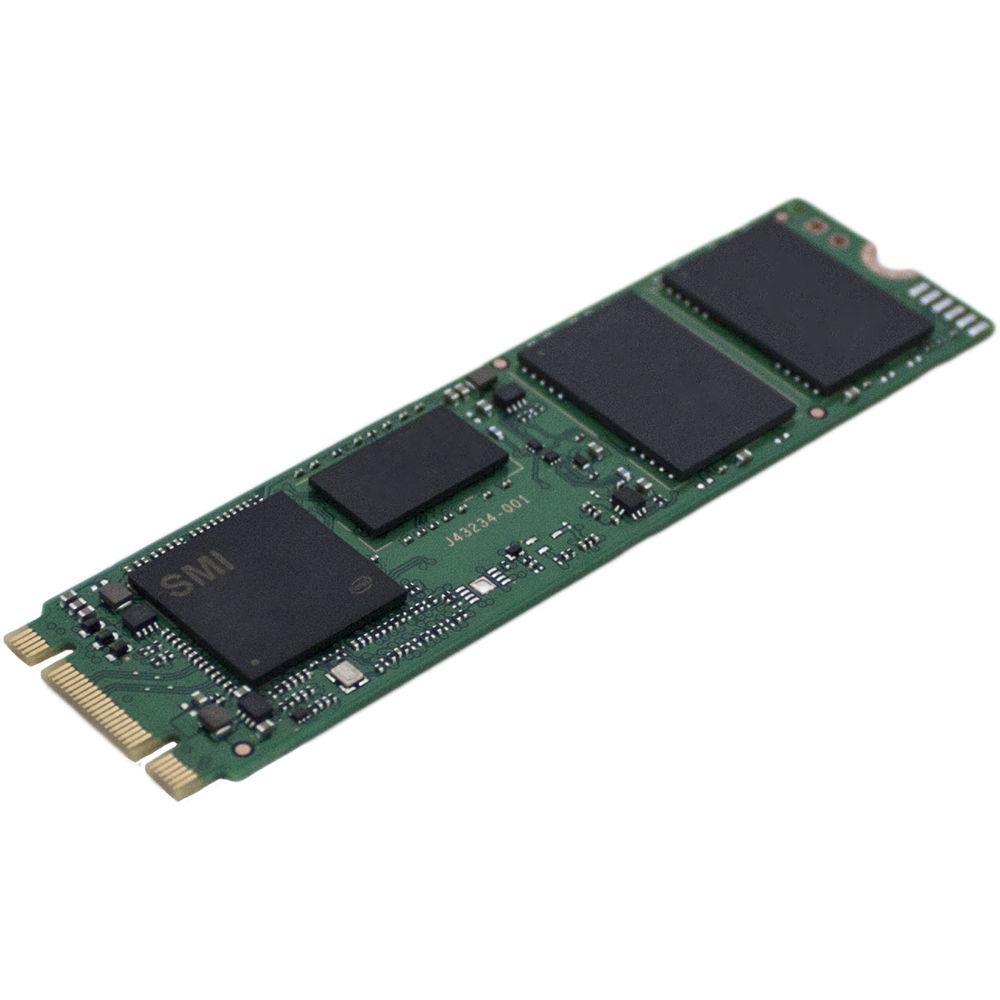

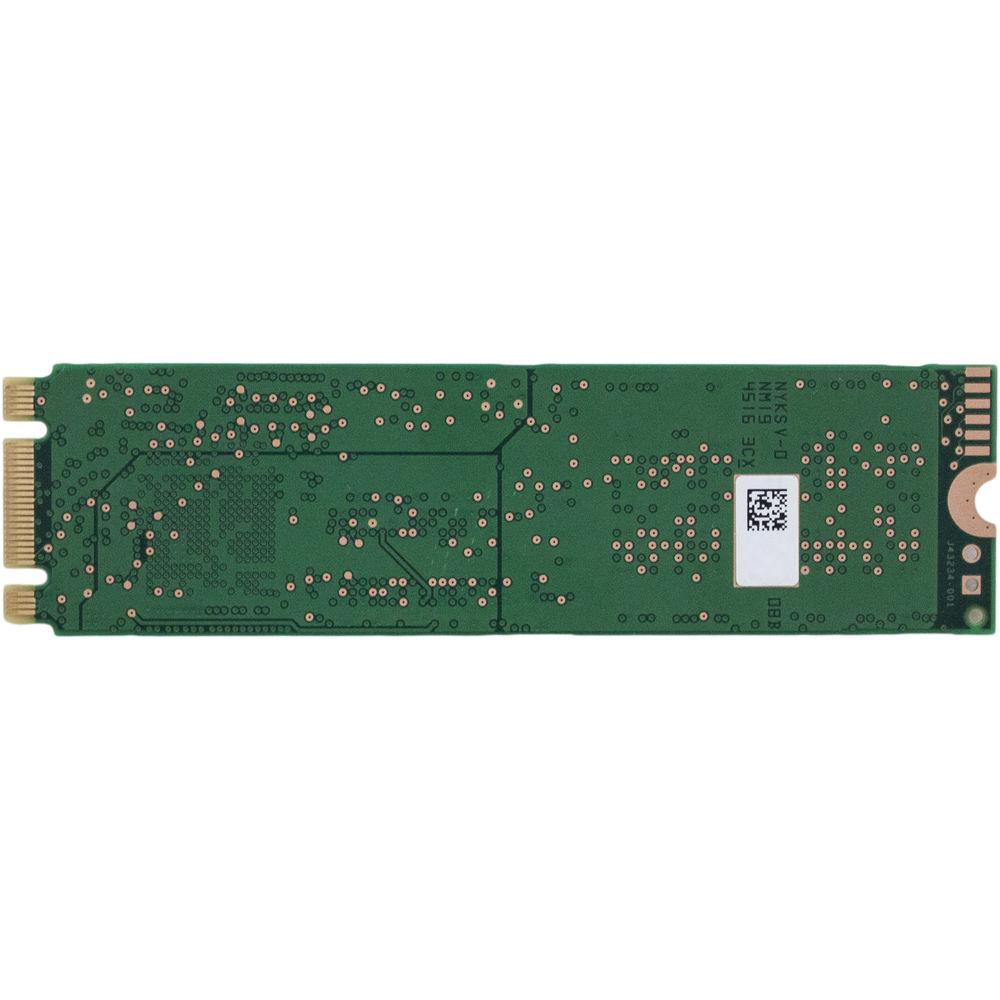

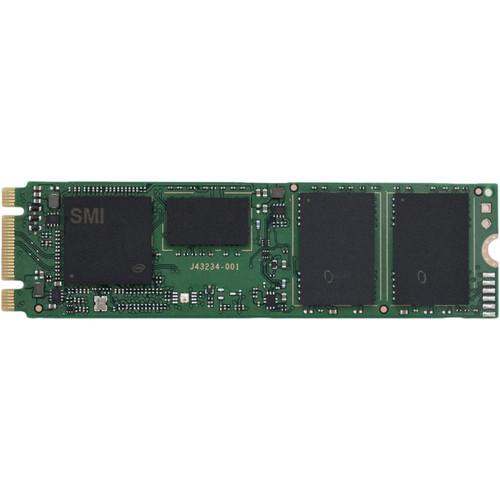

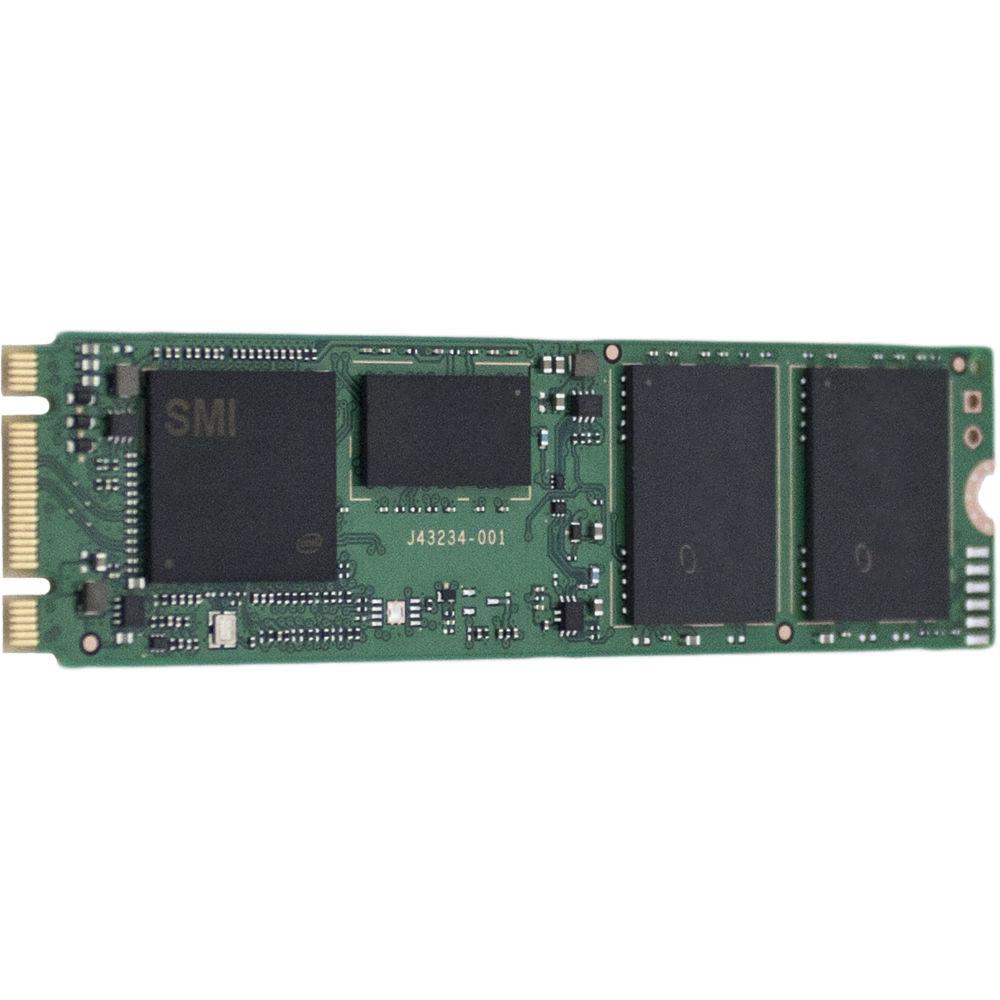

User Manual for Intel 256GB Intel 545s Series SATA III M.2 Internal SSD Click to enlarge the picture
Contents of the user manual for the Intel 256GB Intel 545s Series SATA
- Product category: Internal Drives Intel
- Brand: Intel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intel Internal Drives
 |
User manual for the Intel 256GB Intel 545s Series SATA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intel product will considerably shorten its lifespan!
|
Product description Hard Drives by Application: Which Is Best for You? Read More The highly reliable 256GB Intel 545s Series SATA III M.2 Internal SSD from Intel is designed to operate in a variety of environments thanks to temperature sensors, thermal throttling, temperature monitoring and logging, and more.
This SATA III solid-state drive features an M.2 form factor and measures in at 1.3 mm thick making for easy installation. Once installed, users benefit from a sequential read speed of up to 550 MB/s and a sequential write speed of up to 500 MB/s, making it easy to transfer even large files quickly and efficiently. Additionally, this Intel 545s SSD comes equipped with a variety of power management features including 3.3 V SATA Supply Rail, SATA Link Power Management, Device Sleep, and Advanced Power Management to help reduce power consumption as well as support for 256-bit AES encryption to ensure files remain secure. -
- Standard Endurance Technology
- High I/O and throughput performance
- Consistent I/O latency
- Internal end-to-end data protection
- Thermal throttling
- Temperature sensor
- Inrush current management
- Low power
- High reliability
- Temperature monitor and logging
- <5% performance degradation over product life

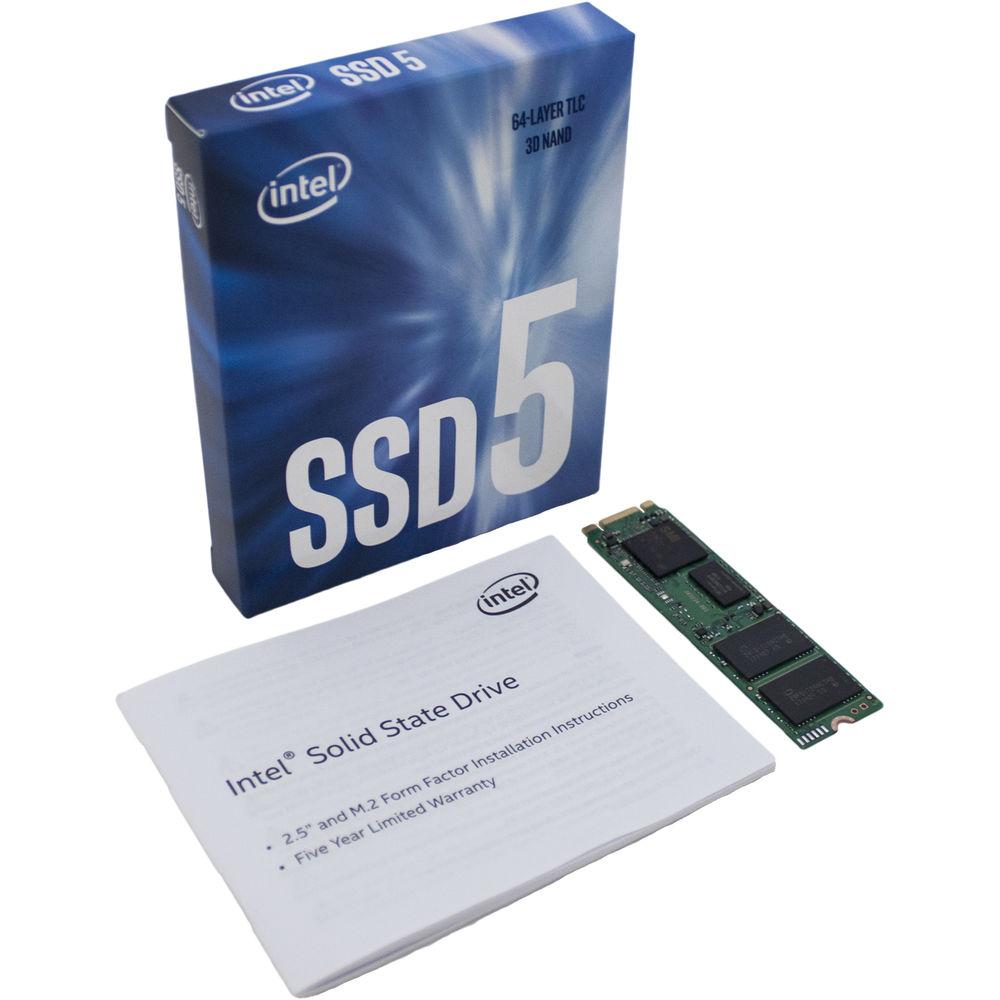

UPC: 735858342650 In the Box Intel 256GB Intel 545s Series SATA III M.2 Internal SSD Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel 256GB Intel 545s Series SATA III M.2 Internal SSD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntel SSD 545s Specs | Capacity | 256 GB | | Form Factor | M.2 | | NAND Type | 64-layer Intel 3D NAND technology | | Thickness | 1.3 mm | | Read / Write Speeds | SATA 6 Gb/s Bandwidth Performance
(IOMeter Queue Depth 32)
Sequential Read: Up to 550 MB/s
Sequential Write: Up to 500 MB/s
Read & Write IOPS
(IOMeter Queue Depth 32)
Random 4 KB Reads: Up to 75,000 IOPS
Random 4 KB Writes: Up to 85,000 IOPS | | Encryption | AES 256-bit | | Power Management | 5.0 V SATA supply rail
SATA Link Power Management (LPM)
Device Sleep (DevSleep)
Advanced Power Management (APM) | | Power | Active: <4.5 W
Active (BAPCo MobileMark 2014): <90 mw
Idle: <50 mw
DevSleep: <2.5 mW | | Temperature & Humidity | Operating Temperature
32 to 158°F / 0 to 70°C
Non-Operating Temperature
-67 to 203°F / -55 to 95°C | | Reliability | Uncorrectable Bit Error Rate (UBER)
<1 sector per 1015 bits read
Mean Time Between Failure (MTBF)
1.6 million hours | | Shock | Operating
1500 G @ 0.5 ms
Non-Operating
1500 G @ 0.5 ms | | Vibration | Operating
2.17 GRMS (5-700 Hz)
Non-Operating
3.13 GRMS (5-800 Hz) | | Certifications | UL, CE, RCM, BSMI, KCC, Microsoft WHCK / WHLK, VCCI, SATA-IO | | RoHS Certified | RoHS | | Compatibility | OS Compatibility
Windows 7, 8.1, 10
RedHat Linux version 7.2
Ubuntu 16.4
Additional Compatibility
Intel SSD Toolbox with Intel SSD Optimizer
Intel Data Migration Software
Intel Rapid Storage Technology
SATA Revision 3.2
ACS-3 (ATA/ATAPI Command Set 3)
SSD Enhanced SMART ATA feature set | | Dimensions | 4.00 x 2.75 x 0.28" / 100.45 x 69.85 x 7.00 mm | | Weight | 0.32 oz / 9 g | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 5.1 x 3.9 x 0.9" |
