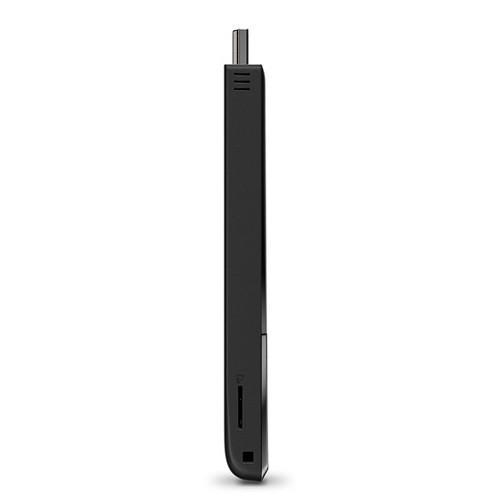

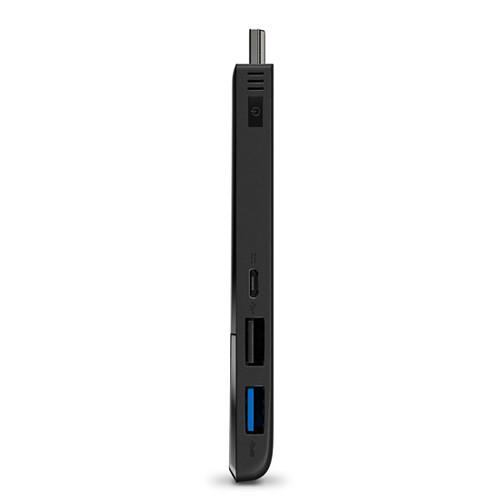

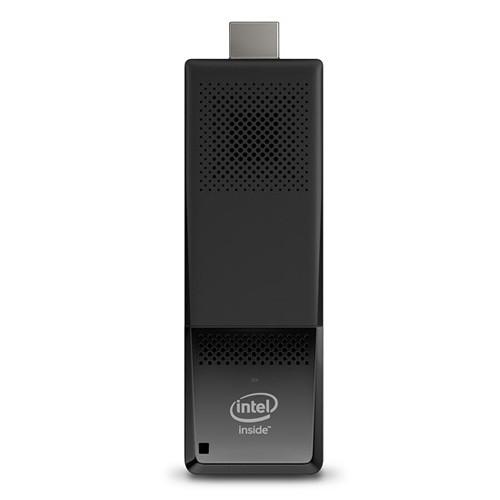

User Manual for Intel Compute Stick Click to enlarge the picture
Contents of the user manual for the Intel Compute Stick
- Product category: PC Sticks Intel
- Brand: Intel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intel PC Sticks
 |
User manual for the Intel Compute Stick contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intel product will considerably shorten its lifespan!
|
Product description Transform your display into a fully functional computer with the Intel Compute Stick. With a similar form factor to a USB flash drive, the Compute Stick offers the performance you need to stream videos, play games, work on projects, and more. The system is powered by an Intel Core m5-6Y57 dual-core processor along with 4GB of LPDDR3 RAM so you can simultaneously run multiple software programs. It connects to any HDMI-equipped monitor or TV and delivers high-resolution images utilizing integrated Intel HD Graphics. Additionally, it supports multi-channel audio through the same HDMI connection. For long-term storage, it is outfitted with 64GB eMMC flash storage that provides quick access to your programs and data. You can expand its storage capacity by inserting an optional microSDXC card into the memory card slot, which supports up to 128GB. This Compute Stick does not come with an operating system installed. - Dual-Core Intel Core m5-6Y57 Performance
- The Compute Stick houses an Intel Core m5-6Y57 processor. Its dual cores have a base speed of 1.1 GHz. The processor can also be boosted up to 2.8 GHz when needed.
- HDMI
- The Compute Stick connects to your HDMI-enabled TV or monitor to provide you with the storage and performance needed for light productivity and gaming as well as social networking, web browsing, and streaming online media.
- Business Ready
- For small- to medium-sized businesses, this Stick PC can be utilized as a thin-client solution for delivering ultra portability and reliable plug-and-play simplicity with access for on-the-fly support.
- Digital Signage
- You can use the Intel Compute Stick to create digital signage kiosks with no-effort installation and deliver streaming or static HD content on displays located anywhere.
UPC: 735858304542 In the Box Intel Compute Stick HDMI Extension Cable Power Adapter with 2 USB Ports & USB Type-C Cable Limited 3-Year Warranty Specification PDF 1.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel Compute Stick in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntel BLKSTK2MV64CC Specs | | | Processor | Intel Core m5-6Y57 Dual-Core | | Base Clock Speed | 1.1 GHz | | Max Boost Speed | 2.8 GHz | | Cache | 4 MB | | Memory | Installed: 4 GB | | Memory Type | 1866 MHz LPDDR3 RAM | | Graphics | Integrated | | Graphics Card | Intel HD Graphics | | | | Hard Drive | Installed: 64 GB eMMC | | | | Ports | 1 x USB 3.0 Type-C
1 x USB 3.0 Type-A | | Display | 1 x HDMI 1.4b | | Memory Card Slot | 1 x SDXC v3.0 with UHS-I support (up to 128GB) | | | | Wi-Fi | 802.11ac | | Bluetooth | 4.2 | | | | Operating System | None | | Dimensions (W × H × D) | 4.5 x 1.5 x 0.5" / 114 x 38 x 12 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 6.1 x 5.3 x 2.8" |
