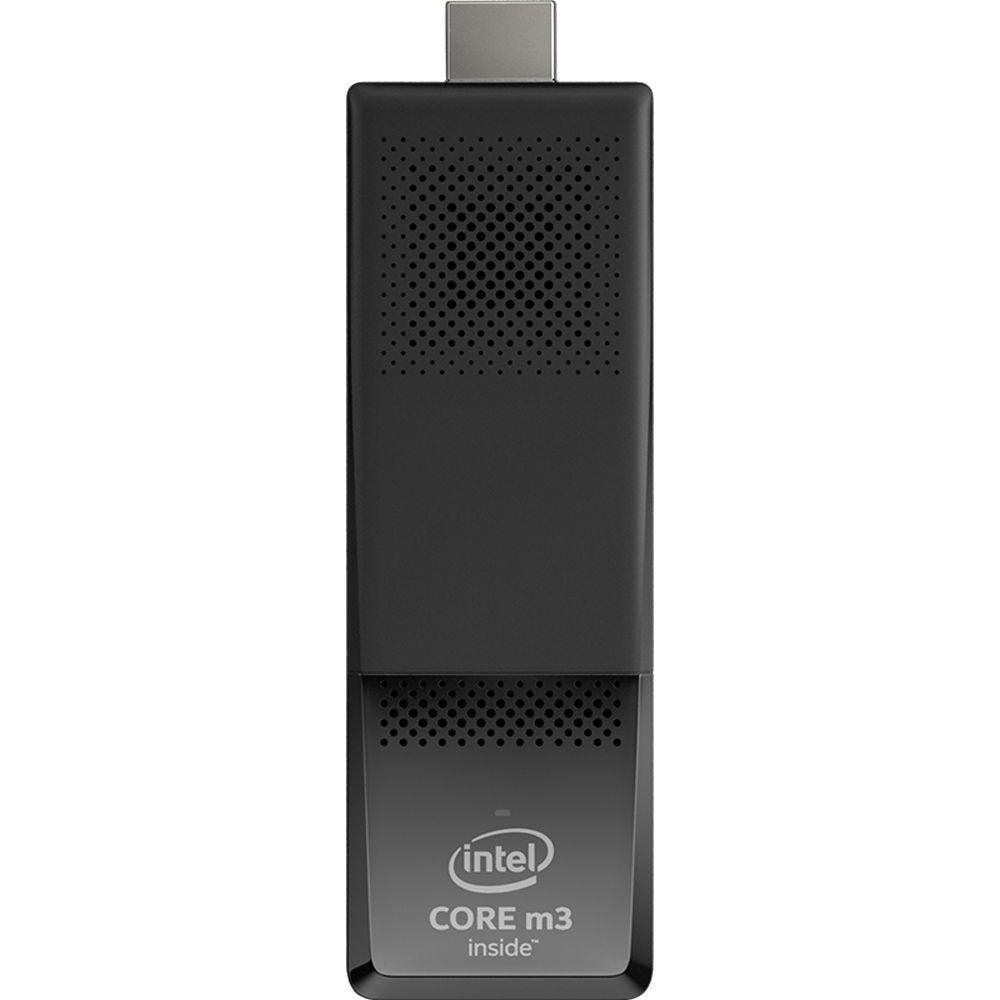

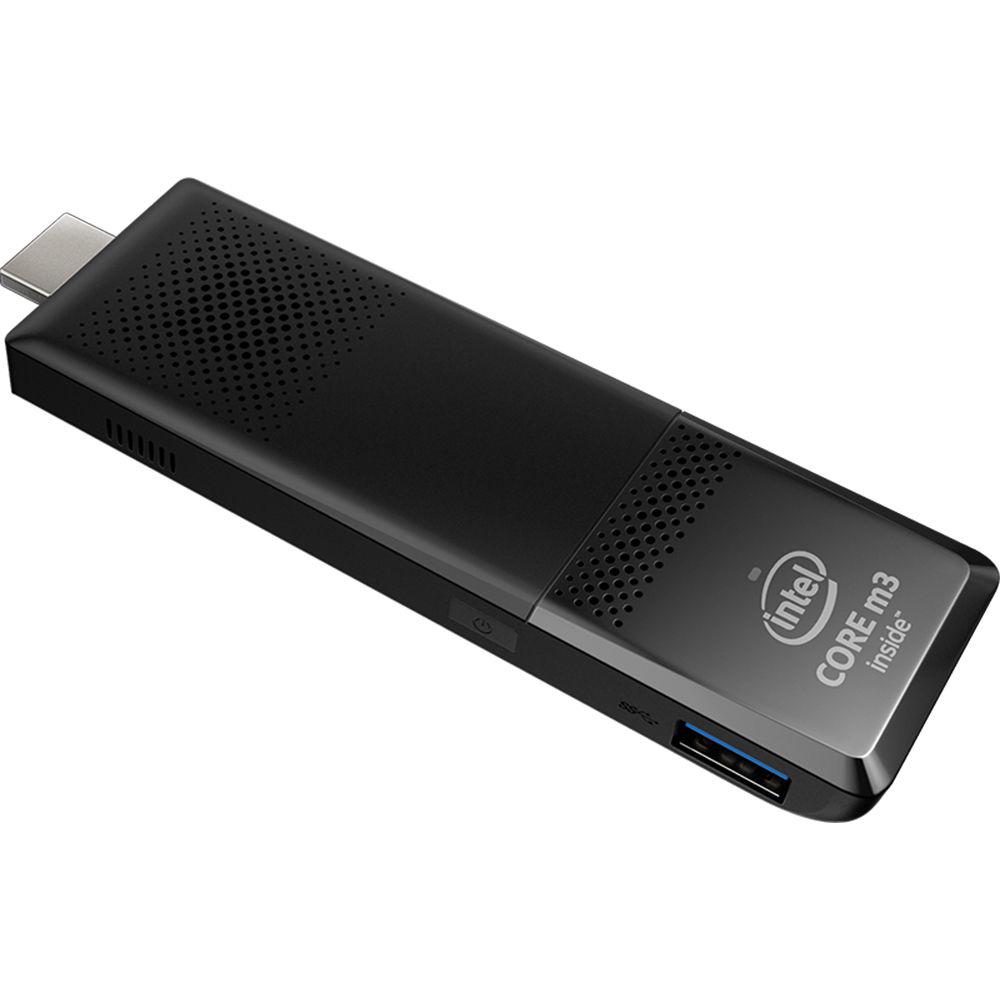

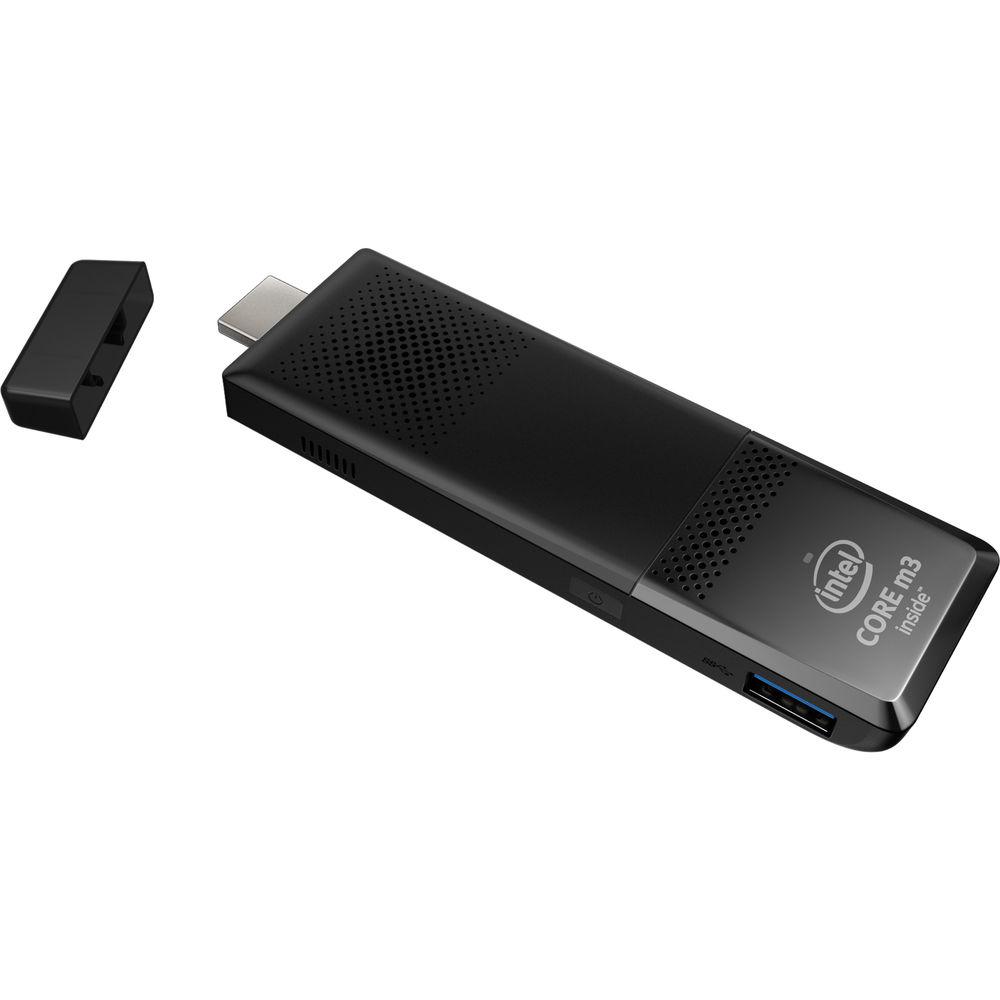

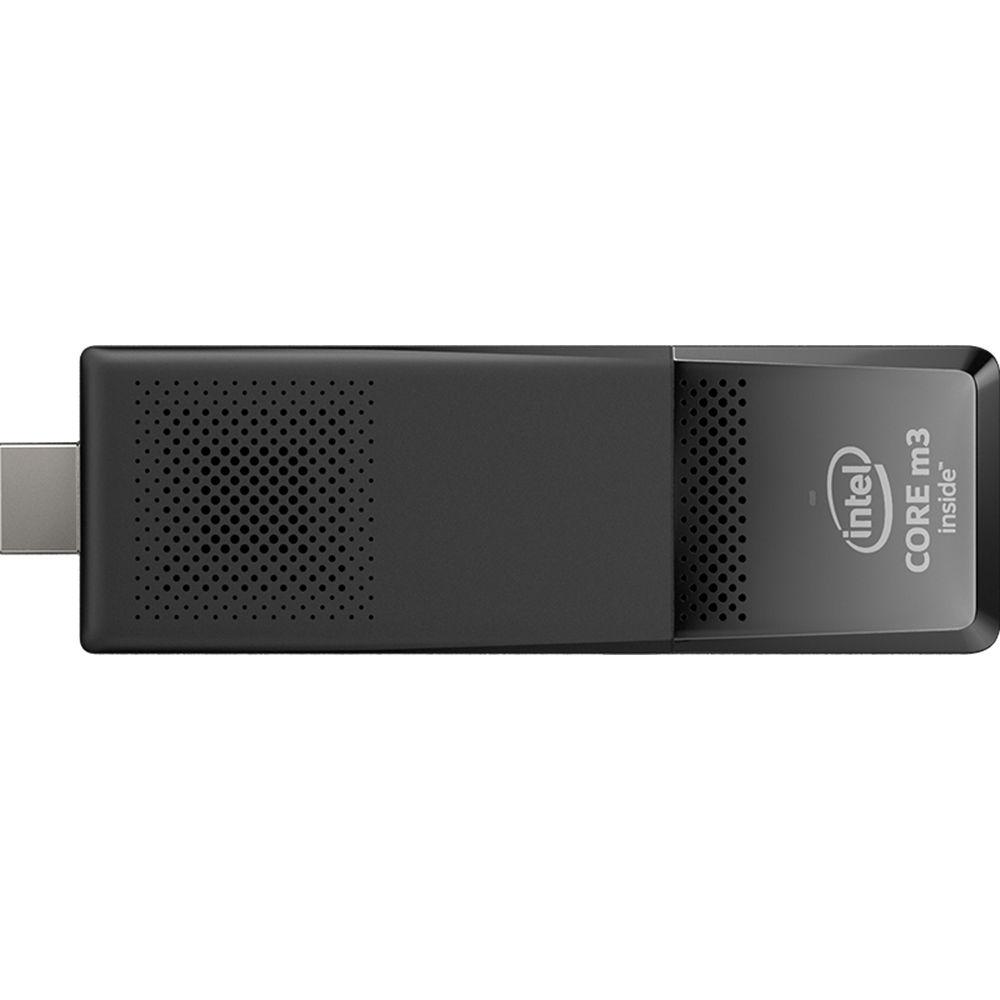

Product description The Compute Stick STK2m364CC from Intel is a pocket-sized and fully-functional Windows PC that uses its HDMI 1.4b port and integrated Intel HD Graphics 515 to deliver desktop-like computing to most HDMI-equipped TV's, displays, or projectors. It provides users the ability to stream media, edit photos and files, or create projects and can be used in mobile worker and healthcare kiosk environments. When paired with Intel's Unite software, it can also be used within office conferences.
The Compute Stick STK2m364CC is powered by a 900 MHz Intel Core m3-6Y30 Dual-Core processor that features a burst speed of up to 2.2 GHz and 4MB of Intel Smart Cache. It also has 4GB of 1866 MHz LPDDR3 RAM and is equipped with 64GB of eMMC storage, while a microSDXC card slot with UHS-I compatibility supports media up to 128GB for additional storage. The Compute Stick has one integrated USB 3.0 Type-A port, while the included 5V / 4A wall-mount AC/DC power adapter has an additional two USB 3.0 Type-A ports, for a system total of three USB 3.0 Type-A ports, which can be used to connect a keyboard, mouse, or peripheral such as an Intel RealSense Camera or an Ethernet adapter. Network connectivity is achieved using 802.11ac Wi-Fi and additional compatible peripherals can be connected using Bluetooth 4.2 technology.
The Intel Compute Stick STK2m364CC does not come pre-installed with an operating system, allowing users to install an OS that best meets their needs, from Windows to Linux. Also included is an HDMI extension cable, which will help to ease any stress put on the system's HDMI port. Protection is provided by a limited 3-year warranty. General Features - Tiny form factor, around the size of a pack of gum
- Stream media, edit photos and files, or create projects
- With 64GB of storage and a microSDXC card slot that supports media up to 128GB, files can be stored locally for quick access
- Three USB 3.0 Type-A ports for connecting devices such as keyboards, mice, cameras, Ethernet adapters, card readers, printers, and more
- 802.11ac Wi-Fi & Bluetooth 4.2 for network & peripheral connectivity
- No pre-installed operating system
UPC: 735858304566 In the Box Intel Compute Stick STK2m364CC HDMI Extension Cable 5 V / 4 A Wall-Mount AC-DC Power Cable and Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel Compute Stick STK2m364CC in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntel Compute Stick Specs | | | Socket | Soldered-down BGA | | # of Internal Drives Supported | 1 | | Embedded Storage | 64 GB eMMC | | Embedded Options Available | No | | Lithography | 14 nm | | DC Input Voltage Supported | 5 VDC | | Pre-Installed Operating System | None | | Processor Included | 900 MHz Intel Core m3-6Y30 Dual-Core
2.2 GHz Max Turbo Frequency
4 MB Intel Smart Cache | | | | Pre-Installed Memory | 4 GB | | Memory Types | LPDDR3-1866 | | Max # of Memory Channels | 2 | | Max Memory Bandwidth | 29.8 GB/s | | Physical Address Extensions | 32-bit | | | | Integrated Graphics | Intel HD Graphics 515 | | Graphics Support | HDMI 1.4b | | # of Displays Supported | 1 | | | | Audio | Intel HD Audio via HDMI, supporting multi-channel digital audio | | | | Removable Memory Card Slot | microSDXC v3.0 slot with UHS-I support (up to 128 GB) | | | | USB Revision | 3.0 | | # of USB Ports | 3 x Type-A | | USB 2.0 Configuration (External + Internal) | 0 | | USB 3.0 Configuration (External + Internal) | 1 + 2 hub (one port on device, two on power adapter) | | Integrated Wi-Fi | Intel Wireless-AC 8260 (Dual-Band 802.11ac) + Bluetooth 4.2 | | Integrated Bluetooth | Yes | | | | Power Requirements | Power cable
5 V / 4 A wall-mount AC-DC power adapter with two USB 3.0 Type-A ports | | | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Storage Temperature | -40 to 140°F / -40 to 60°C | | | | TPM | Yes, 2.0 | | Intel Virtualization Technology (VT-x) | Yes | | | | Intel AES New Instructions | Yes | | | | Dimensions | 4.5 x 1.5 x 0.5" / 114.0 x 38.0 x 12.0 mm | | Weight | Not specified by manufacturer | | | | Package Weight | 1.025 lb | | Box Dimensions (LxWxH) | 6.1 x 5.5 x 2.9" |
