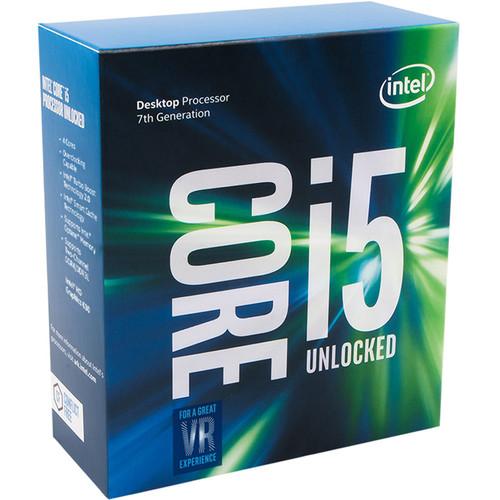

User Manual for Intel Core i5-7600K 3.8 GHz Quad-Core LGA 1151 Processor Click to enlarge the picture
Contents of the user manual for the Intel Core i5-7600K 3.8 GHz Quad-Core
- Product category: CPU Processors Intel
- Brand: Intel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intel CPU Processors
|
User manual for the Intel Core i5-7600K 3.8 GHz Quad-Core contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intel product will considerably shorten its lifespan!
|
Product description The Core i5-7600K 3.8 GHz Quad-Core LGA 1151 Processor from Intel has a base clock speed of 3.8 GHz and comes with features such as Intel Turbo Boost 2.0 technology. With Intel Turbo Boost 2.0 technology, the maximum turbo frequency this processor can achieve is 4.2 GHz. Additionally, this processor features 4 cores with 4 threads in an LGA 1151 socket and has 6MB of cache memory. Having 4 cores allows the processor to run multiple programs simultaneously without slowing down the system, while the 4 threads allow a basic ordered sequence of instructions to be passed through or processed by a single CPU core. This processor also supports up to 64GB of DDR4-2400/2133 and DDR3L 1600/1333 RAM at 1.35V, has AES New Instructions, 14nm lithography, and utilizes 7th Generation (Kaby Lake) technology.
Graphically, the Core i5-7600K 3.8 GHz Quad-Core LGA 1151 Processor uses integrated Intel HD Graphics 630. This processor is also unlocked, meaning that it can be overclocked past its maximum turbo frequency. However, overclocking past the maximum turbo frequency is not recommended. Not only will it cause the processor to run much hotter, it will also void the limited 3-year warranty. UPC: 735858326070 In the Box Intel Core i5-7600K 3.8 GHz Quad-Core LGA 1151 Processor (Retail) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel Core i5-7600K 3.8 GHz Quad-Core LGA 1151 Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntel BX80677I57600K Specs | | | CPU Model | Intel Core i5-7600K | | CPU Socket | LGA 1151 | | Manufacturing Process | 14 nm | | Maximum CPU Configuration | 1S | | Maximum Number of PCIe Lanes | 16 (Revision 3.0) | | Unlocked | Yes | | | | Number of Cores | 4 | | Number of Threads | 4 | | Base Clock Speed | 3.8 GHz | | Maximum Boost Speed | 4.2 GHz | | L3 Cache | 6 MB | | | | Maximum Capacity | 64 GB | | Memory Support | DDR3L 1333, 1600 MHz
DDR4 2133, 2400 MHz | | ECC Memory | No | | Channel Architecture | Dual Channel | | | | Thermal Design Power (TDP) | 91 W | | Thermal Solution | PCG 2015C (65 W) | | Maximum Temperature | 212°F / 100°C | | Thermal Monitoring Technologies | Yes | | | | AES Support | Yes | | Extension | AVX 2.0, SSE 4.1/4.2 | | Instruction Set | 64-Bit | | Virtualization | Yes: Intel VT-d, Intel VT-x, Intel VT-x with Extended Page Tables (EPT) | | | | Graphics Chipset | Intel HD Graphics 630 | | Maximum Resolution Support | 4096 x 2304 at 60 Hz | | Supported APIs | OpenGL: 4.5
DirectX: 12 | | Number of Displays | 3 | | Maximum Shared Video Memory | 64 GB | | Output Support | eDP, DisplayPort, HDMI | | Base Clock Speed | 350 MHz | | Maximum Boost Speed | 1.15 GHz | | | | DMI | DMI3 (8 GT/s) | | Optane Memory Support | Yes | | vPro Support | No | | Performance Technologies | SpeedStep, TSX-NI, Turbo Boost 2.0 | | Security Technologies | Device Protection with Boot Guard, Execute Disable Bit, Identity Protection, MPX (Memory Protection Extensions), OS Guard, Secure Key, Software Guard Extensions | | Video Technologies | Clear Video, Clear Video HD, InTru 3D, Quick Sync Video | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 4.6 x 4.1 x 1.8" |
