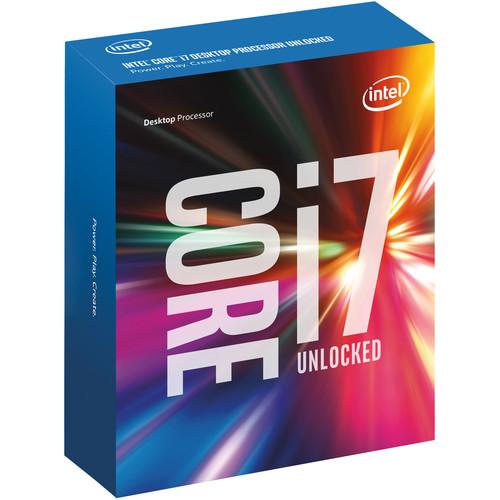

User Manual for Intel Core i7-6700K 4.0 GHz Quad-Core Processor Click to enlarge the picture
Contents of the user manual for the Intel Core i7-6700K 4.0 GHz Quad-Core
- Product category: CPU Processors Intel
- Brand: Intel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intel CPU Processors
|
User manual for the Intel Core i7-6700K 4.0 GHz Quad-Core contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intel product will considerably shorten its lifespan!
|
Product description The Core i7-6700K 4.0 GHz Quad-Core Processor from Intel is the sixth generation of the Core i7 product line that is now built using Skylake architecture. This processor features a base frequency of 4.0 GHz and, as with many Skylake technologies, it comes with features such as Intel Turbo Boost 2.0, Hyper-Threading, and vPro. With Intel Turbo Boost 2.0 technology, the maximum clock rate this processor can achieve is 4.2 GHz. Additionally, this processor also features four cores with eight threads in a FCLGA1151 socket and has 8MB of Intel Smart Cache memory. Having four cores allows the processor to run multiple programs simultaneously without slowing down the system, while the eight threads allow applications to complete tasks sooner by working in parallel. This processor also supports up to 64GB of DDR4-2133/1866 MHz and DDR3L 1600/1333 MHz RAM, has integrated Intel HD Graphics 530, and has SSE 4.1/4.2 & AVX 2.0 Extensions, as well as AES New Instructions.
This Intel Core i7-6700K 4.0 GHz Quad-Core processor is well suited for users who are interested in general-use tasks, such as Internet browsing, checking E-mail, document creation and editing, and multimedia playback, as well as more intensive tasks that are able to benefit from overclocking. This K processor is also unlocked, meaning that it can be overclocked past its maximum turbo frequency . However, overclocking past the maximum turbo frequency is not recommended. Not only will it cause the processor to run much hotter, it will also void the limited 3-year warranty. - Intel Quick Sync Video
- Intel Quick Sync Video delivers fast conversion of video for portable media players, online sharing, and video editing and authoring
- Intel InTru 3D Technology
- Intel InTru 3D Technology provides stereoscopic 3-D Blu-ray playback in full 1080p resolution over HDMI 1.4 and premium audio
- Intel Insider
- Intel Insider delivers premium HD content to an Ultrabook or PC
- Intel Wireless Display
- Intel Wireless Display is technology that enables wireless streaming of movies, photos, websites, and more from an Ultrabook or PC to an HDTV
- Intel Clear Video HD Technology
- Intel Clear Video HD Technology, like its predecessor, Intel Clear Video Technology, is a suite of image decode and processing technologies built into the integrated processor graphics that help improve video playback, delivering cleaner, sharper images with more natural, accurate, and vivid colors, and a clear and stable video picture. Intel Clear Video HD Technology adds video quality enhancements for richer color and more realistic skin tones
- Intel Clear Video Technology
- Intel Clear Video Technology is a suite of image decoding and processing technologies built into the integrated processor graphics that help improve video playback, delivering cleaner, sharper images, more natural, accurate, and vivid colors, and a clear and stable video picture
- Intel Turbo Boost 2.0 Technology
- Intel Turbo Boost Technology increases the processor's frequency as needed, by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don't
- Intel Hyper-Threading Technology
- Intel Hyper-Threading Technology delivers two processing threads per physical core. Highly threaded applications can get more work done in parallel, completing tasks sooner
- Intel Virtualization Technology (VT-x)
- Intel Virtualization Technology allows one hardware platform to function as multiple "virtual" platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions
- Intel Virtualization Technology for Directed I/O (VT-d)
- Intel Virtualization Technology for Directed I/O continues from the existing support for IA-32 (VT-x) and Itanium processor (VT-i) virtualization, adding new support for I/O-device virtualization. Intel VT-d can help end users improve the security and reliability of systems, and also improve performance of I/O devices in virtualized environments
- Intel VT-x with Extended Page Tables (EPT)
- Intel VT-x with Extended Page Tables, also known as Second Level Address Translation (SLAT), provides acceleration for memory-intensive virtualized applications. Extended Page Tables in Intel Virtualization Technology platforms reduce the memory and power overhead costs, and increase battery life through hardware optimization of page table management
- Intel TSX-NI
- Intel Transactional Synchronization Extensions New Instructions (Intel TSX-NI) are a set of instructions focused on multi-threaded performance scaling. This technology helps make parallel operations more efficient via improved control of locks in software
- Intel 64
- Intel 64 architecture delivers 64-bit computing on server, workstation, desktop, and mobile platforms when combined with supporting software. Intel 64 architecture improves performance by allowing systems to address more than 4GB of both virtual and physical memory
- Intel My WiFi Technology
- Intel My WiFi Technology enables the wireless connection of an Ultrabook or laptop to be broadcast to Wi-Fi-enabled devices such as printers, stereos, etc
- Idle States
- Idle States (C-states) are used to save power when the processor is idle. C0 is the operational state, meaning that the CPU is doing useful work. C1 is the first idle state, C2 the second, and so on, where more power saving actions are taken for numerically higher C-states
- Enhanced Intel SpeedStep Technology
- Enhanced Intel SpeedStep Technology is an advanced means of enabling high performance while meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. Enhanced Intel SpeedStep Technology builds upon that architecture using design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery
- Intel Fast Memory Access
- Intel Fast Memory Access is a Graphics Memory Controller Hub (GMCH) backbone architecture that helps improve system performance by optimizing the use of available memory bandwidth and reducing the latency of the memory accesses
- AES New Instructions
- Advanced Encryption Standard New Instructions (AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, such as applications that perform bulk encryption/decryption, authentication, random number generation, and authenticated encryption
- Secure Key
- Intel Secure Key consists of a digital random number generator that creates truly random numbers to strengthen encryption algorithms
- Intel SGX (Software Guard Extensions)
- Intel SGX (Software Guard Extensions) provides applications the ability to create hardware enforced trusted execution protection for their applications' sensitive routines and data. Run-time execution is protected from observation or tampering by any other software (including privileged software) in a system
- Execute Disable Bit
- Execute Disable Bit is a hardware-based security feature that can reduce exposure to viruses and malicious-code attacks, and prevent harmful software from executing and propagating on the server or network
- Anti-Theft Technology
- Intel Anti-Theft Technology (Intel AT) helps keep your laptop safe and secure in the event that it's ever lost or stolen. Intel AT requires a service subscription from an Intel AT-enabled service provider
UPC: 735858301619 In the Box Intel Core i7-6700K 4.0 GHz Quad-Core Processor (Retail) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel Core i7-6700K 4.0 GHz Quad-Core Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntel i7-6700 Specs | | | CPU Model | Intel Core i7-6700K | | CPU Socket | LGA 1151 | | Manufacturing Process | 14 nm | | Maximum CPU Configuration | 1S | | Maximum Number of PCIe Lanes | 16 (Revision 3.0) | | | | Number of Cores | 4 | | Number of Threads | 8 | | Base Clock Speed | 4.0 GHz | | Maximum Boost Speed | 4.2 GHz | | Processor Interconnect | : 0 x Links | | L3 Cache | 8 MB | | | | Maximum Capacity | 64 GB | | Memory Support | DDR3L 1333, 1600 MHz
DDR4 1866, 2133 MHz | | ECC Memory | No | | Channel Architecture | Dual Channel | | Maximum Memory Bandwidth | 34.1 GB/s | | | | Thermal Design Power (TDP) | 91 W | | Included Thermal Solution | PCG 2015D (130 W) | | | | AES Support | Yes | | Extension | AVX 2.0, SSE 4.1/4.2 | | Instruction Set | 64-Bit | | Virtualization | Yes: Intel VT-d, Intel VT-x with Extended Page Tables (EPT) | | | | Graphics Chipset | Intel HD Graphics 530 | | Maximum Resolution Support | 4096 x 2304 at 60 Hz | | Supported APIs | OpenGL: 4.3
DirectX: 11.2 | | Number of Displays | 3 | | Output Support | eDP, DisplayPort, HDMI, DVI, VGA | | Base Clock Speed | 350 MHz | | Maximum Boost Speed | 1.15 GHz | | | | Performance Technologies | Hyper-Threading, SpeedStep, TSX-NI, Turbo Boost 2.0 | | Security Technologies | Anti-Theft Technology, Execute Disable Bit, OS Guard, Secure Key, Software Guard Extensions | | Video Technologies | Clear Video, Clear Video HD, InTru 3D, Insider, Quick Sync Video, Wireless Display | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 5.5 x 4.8 x 1.8" |
