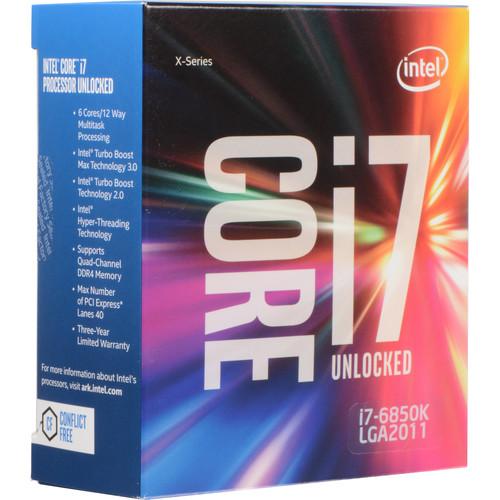

User Manual for Intel Core i7-6850K 3.6 GHz Six-Core LGA 2011-v3 Processor Click to enlarge the picture
Contents of the user manual for the Intel Core i7-6850K 3.6 GHz Six-Core
- Product category: CPU Processors Intel
- Brand: Intel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intel CPU Processors
|
User manual for the Intel Core i7-6850K 3.6 GHz Six-Core contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intel product will considerably shorten its lifespan!
|
Product description Build or Upgrade with the Next Gen Intel Broadwell-E Desktop Processors Read More The Core i7-6850K 3.6 GHz Six-Core LGA 2011-v3 Processor from Intel has a base clock speed of 3.6 GHz and comes with features such as Intel Turbo Boost 2.0 and Intel Hyper-Threading technology. With Intel Turbo Boost 2.0 technology, the maximum turbo frequency this processor can achieve is 4.0 GHz. Additionally, this processor features 6 cores with 12 threads in an LGA 2011-v3 socket and has 15MB of Intel Smart Cache memory. Having 6 cores allows the processor to run multiple programs simultaneously without slowing down the system, while the 12 threads allow a basic ordered sequence of instructions to be passed through or processed by a single CPU core. This processor also supports up to 128GB of DDR4-2400/2133 RAM, has AES New Instructions, 14nm lithography, and utilizes 6th Generation (Skylake) technology.
Graphically, the Intel Core i7-6850K 3.6 GHz Six-Core LGA 2011-v3 Processor does not contain an integrated graphics controller, meaning that users will need to purchase a dedicated graphics card of their choice. This processor is also unlocked, meaning that it can be overclocked past its maximum turbo frequency. However, overclocking past the maximum turbo frequency is not recommended. Not only will it cause the processor to run much hotter, it will also void the limited 3-year warranty. - Intel Turbo Boost Max Technology 3.0
- Intel Turbo Boost Max Technology 3.0 identifies the best performing core(s) on a processor and provides increased performance on those cores through increasing frequency as needed by taking advantage of power and thermal headroom
- Intel Turbo Boost Technology
- Intel Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don't
- Intel Hyper-Threading Technology
- Intel Hyper-Threading Technology (Intel HT Technology) delivers two processing threads per physical core. Highly threaded applications can get more work done in parallel, completing tasks sooner
- Intel Virtualization Technology for Directed I/O (VT-d)
- Intel Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments
- Intel VT-x with Extended Page Tables (EPT)
- Intel VT-x with Extended Page Tables (EPT), also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Extended Page Tables in Intel Virtualization Technology platforms reduces the memory and power overhead costs and increases battery life through hardware optimization of page table management
- Intel 64
- Intel 64 architecture delivers 64-bit computing on server, workstation, desktop, and mobile platforms when combined with supporting software. Intel 64 architecture improves performance by allowing systems to address more than 4GB of both virtual and physical memory
- Idle States
- Idle States (C-states) are used to save power when the processor is idle. C0 is the operational state, meaning that the CPU is doing useful work. C1 is the first idle state, C2 the second, and so on, where more power saving actions are taken for numerically higher C-states
- Enhanced Intel SpeedStep Technology
- Enhanced Intel SpeedStep Technology is an advanced means of enabling high performance while meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. Enhanced Intel SpeedStep Technology builds upon that architecture using design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery
- Intel Smart Response Technology
- Intel Smart Response Technology combines the fast performance of a small solid state drive with the large capacity of a hard disk drive
- Intel AES New Instructions
- Intel AES New Instructions (Intel AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, authentication, random number generation, and authenticated encryption
- Execute Disable Bit
- Execute Disable Bit is a hardware-based security feature that can reduce exposure to viruses and malicious-code attacks and prevent harmful software from executing and propagating on the server or network
In the Box Intel Core i7-6850K 3.6 GHz Six-Core LGA 2011-v3 Processor (Retail) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel Core i7-6850K 3.6 GHz Six-Core LGA 2011-v3 Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntel i7-6850 Specs | | | CPU Model | Intel Core i7-6850K | | CPU Socket | LGA 2011 v3 | | Manufacturing Process | 14 nm | | Maximum CPU Configuration | 1S | | Maximum Number of PCIe Lanes | 40 (Revision 3.0) | | | | Number of Cores | 6 | | Number of Threads | 12 | | Base Clock Speed | 3.6 GHz | | Maximum Boost Speed | 4.0 GHz | | L3 Cache | 15 MB | | | | Maximum Capacity | 128 GB | | Memory Support | DDR4 2133, 2400 MHz | | ECC Memory | No | | Channel Architecture | Quad Channel | | | | Thermal Design Power (TDP) | 140 W | | | | AES Support | Yes | | Instruction Set | 64-Bit | | Virtualization | Yes: Intel VT-d, Intel VT-x with Extended Page Tables (EPT) | | | | Performance Technologies | Hyper-Threading, SpeedStep, Turbo Boost 2.0, Turbo Boost Max 3.0 | | Security Technologies | Execute Disable Bit | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 4.6 x 4.2 x 1.8" |
