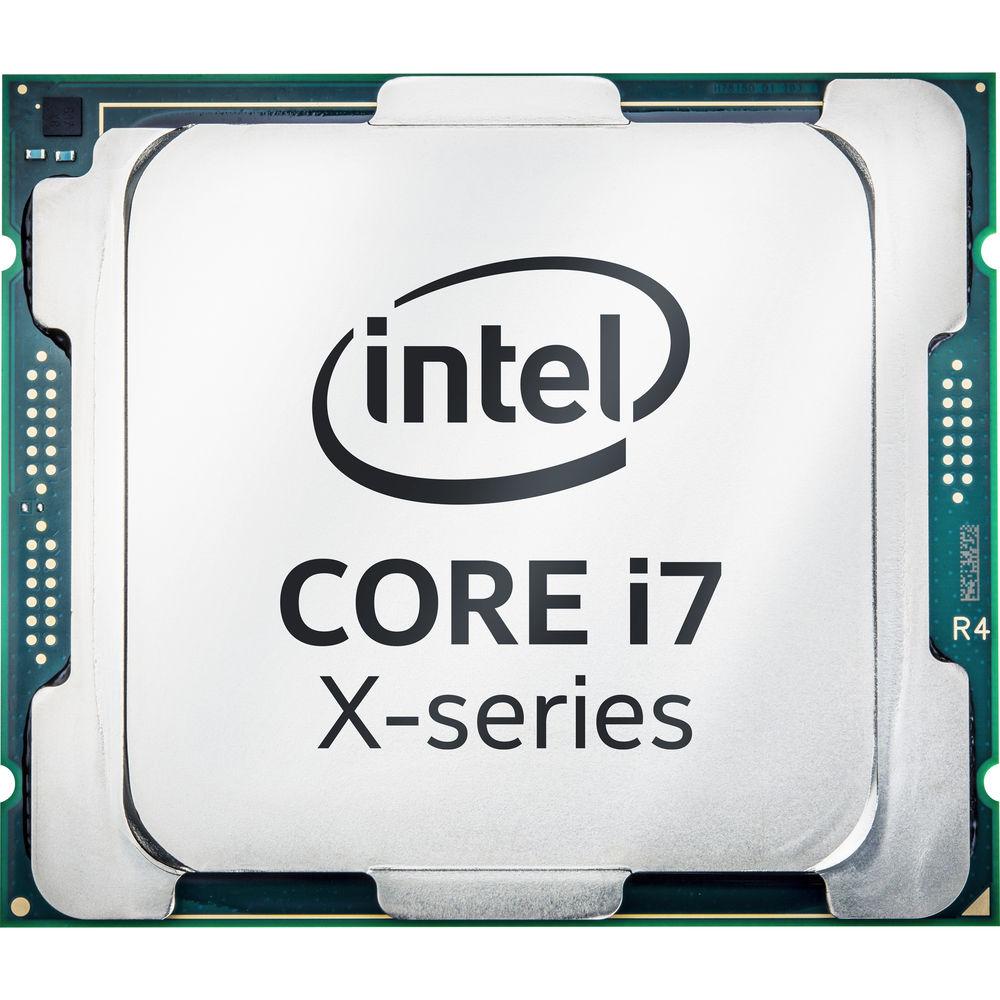

Product description The Intel Core i7-7800X LGA 2066 Processor provides computing performance for a desktop system by offering six cores, which operate at a stock speed of 3.5 GHz, for editing images and running spreadsheets. The six cores can achieve a maximum turbo frequency of up to 4.0 GHz while running intensive tasks. The Core i7-7800X is equipped with Intel Hyper-Threading technology that enables each core to handle two instruction threads, providing a total of twelve threads. If you need even more performance, this Skylake-X processor is unlocked, which lets you overlock the processor over its maximum speed. This Core X-series processor does not include a heatsink or fan and requires a sold-separately CPU cooling solution to function at these levels of performance.
Aside from processing power, the Core i7-7800X provides 28 PCI Express 3.0 lanes to graphics cards and PCIe-based M.2 SSDs. The processor is compatible with motherboards offering an LGA 2066 socket and has an average power requirement of 140W. When installed in a motherboard, the processor supports DDR4 2400 MHz memory modules, running in a quad-, dual-, or single-channel configuration. In addition, a total amount of 8.25MB cache memory is available for its six cores. - Performance

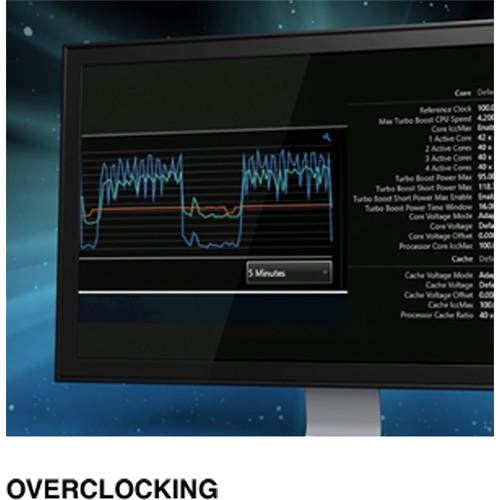

- The Intel Core X-series processor family is unlocked to provide additional headroom. Its features include the ability to overclock each core individually, AVX ratio controls for more stability, and VccU voltage control for extreme scenarios. With tools such as Intel's Extreme Tuning Utility (Intel XTU) and Extreme Memory Profile (Intel XMP), you'll have access to modify the system for maximizing performance.
- Intel Smart Cache
- All cores now have access to the entire last-level cache, pre-fetching data before requests are made. Intel Smart Cache also features a power-saving feature that dynamically flushes memory based on demand or during periods of inactivity, ensuring your applications keep up with your demands.

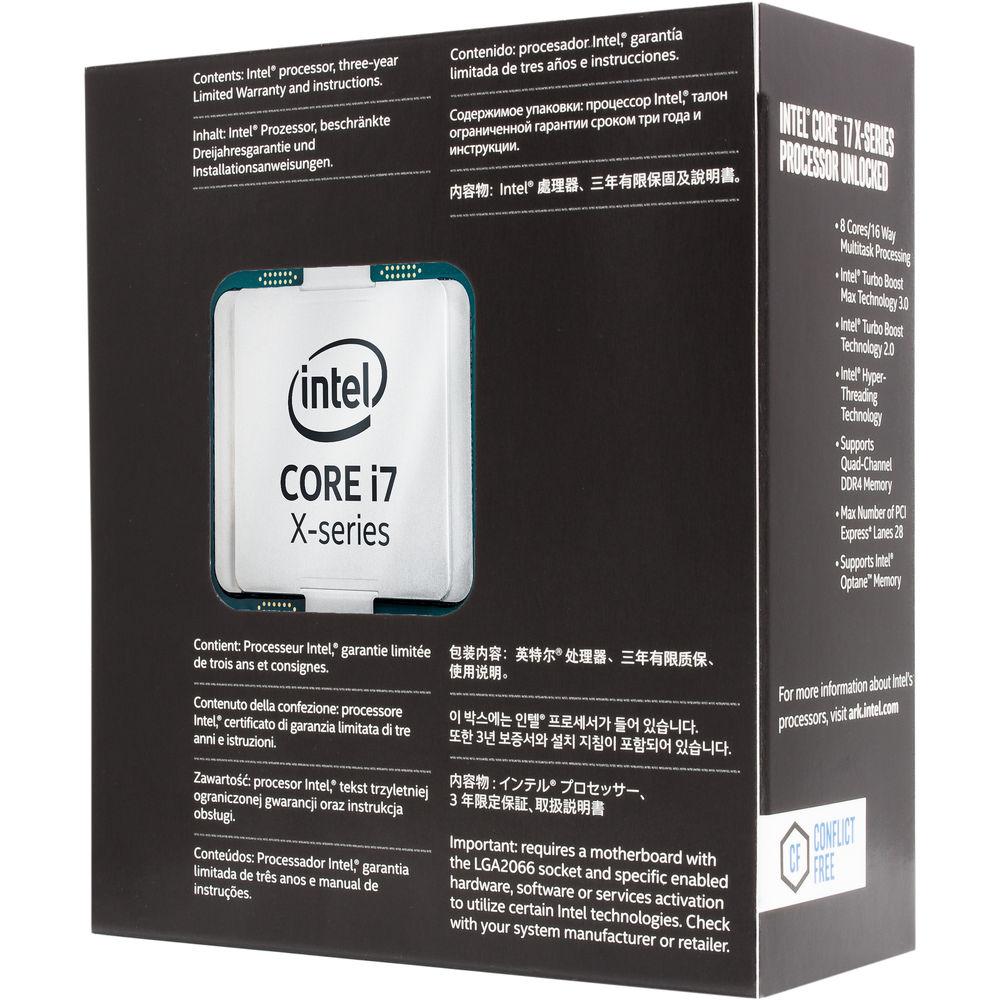

UPC: 735858344302 In the Box Intel Core i7-7800X X-Series 3.5 GHz 6-Core LGA 2066 Processor Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel Core i7-7800X X-Series 3.5 GHz 6-Core LGA 2066 Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntel BX80673I77800X Specs | | | CPU Model | Intel Core i7-7800X | | Manufacturing Process | 14 nm | | Maximum CPU Configuration | 1S | | Maximum Number of PCIe Lanes | 28 (Revision 3.0) | | | | Number of Cores | 6 | | Number of Threads | 12 | | Base Clock Speed | 3.5 GHz | | Maximum Boost Speed | 4.0 GHz | | L3 Cache | 8.25 MB | | | | Maximum Capacity | 128 GB | | Memory Support | DDR4 2400 MHz | | ECC Memory | No | | Channel Architecture | Quad Channel | | | | Thermal Design Power (TDP) | 140 W | | Thermal Solution | PCG 2017X | | | | AES Support | Yes | | Extension | AVX 2.0, AVX-512, SSE 4.1/4.2 | | Instruction Set | 64-Bit | | Virtualization | Yes: Intel VT-d, Intel VT-x | | | | DMI | DMI3 (8 GT/s) | | Optane Memory Support | Yes | | Performance Technologies | Hyper-Threading, SpeedStep, Turbo Boost 2.0 | | Security Technologies | Execute Disable Bit | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 4.6 x 4.2 x 1.8" |
