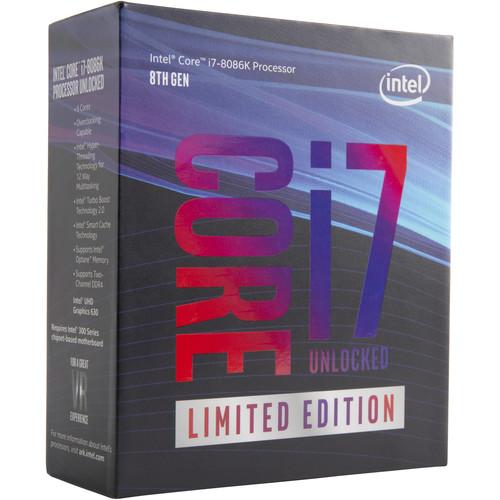

User Manual for Intel Core i7-8086K LGA 1151 Processor Click to enlarge the picture
Contents of the user manual for the Intel Core i7-8086K LGA 1151 Processor
- Product category: CPU Processors Intel
- Brand: Intel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intel CPU Processors
|
User manual for the Intel Core i7-8086K LGA 1151 Processor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intel product will considerably shorten its lifespan!
|
Product description The Core i7-8086K LGA 1151 Processor from Intel features a maximum turbo frequency of 5.0 GHz, an LGA 1151 socket, and a 12MB cache. Protection is provided by a limited 3-year warranty. UPC: 735858381819 In the Box Intel Core i7-8086K LGA 1151 Processor Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel Core i7-8086K LGA 1151 Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntel Core i7-8086K Specs | | | CPU Model | Intel Core i7-8086K | | CPU Socket | LGA 1151 | | Manufacturing Process | 14 nm | | Maximum CPU Configuration | 1S | | Maximum Number of PCIe Lanes | 16 (Revision 3.0) | | Unlocked | Yes | | | | Number of Cores | 6 | | Number of Threads | 12 | | Base Clock Speed | 4 GHz | | Maximum Boost Speed | 5 GHz | | L3 Cache | 12 MB | | | | Maximum Capacity | 64 GB | | Memory Support | DDR4 2666 MHz | | ECC Memory | No | | Channel Architecture | Dual Channel | | Maximum Memory Bandwidth | 41 GB/s | | | | Thermal Design Power (TDP) | 95 W | | Thermal Solution | None | | Maximum Temperature | 212°F / 100°C | | | | AES Support | Yes | | Extension | AVX 2.0, SSE 4.1/4.2 | | Instruction Set | 64-Bit | | Virtualization | Yes: Intel VT-d, Intel VT-x, Intel VT-x with Extended Page Tables (EPT) | | | | Graphics Chipset | Intel UHD Graphics 630 | | Maximum Resolution Support | 4096 x 2304 at 60 Hz | | Supported APIs | DirectX: 12
OpenGL: 4.5 | | Number of Displays | 3 | | Maximum Shared Video Memory | 64 GB | | Output Support | eDP, DisplayPort, HDMI | | Base Clock Speed | 350 MHz | | Maximum Boost Speed | 1.2 GHz | | | | DMI | DMI3 (8 GT/s) | | Optane Memory Support | Yes | | vPro Support | No | | Performance Technologies | Hyper-Threading, SpeedStep, TSX-NI, Turbo Boost 2.0 | | Security Technologies | Device Protection with Boot Guard, Execute Disable Bit, Identity Protection, MPX (Memory Protection Extensions), OS Guard, Secure Key, Software Guard Extensions, Trusted Execution Technology | | Video Technologies | Clear Video, Clear Video HD, InTru 3D, Quick Sync Video | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 4.5 x 4.0 x 1.75" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 97 owners. Add your rating and experience with the product.
