Intel Core i7-9800X 3.8 GHz Eight-Core

Search your instruction manual in PDF to download

User Manual for Intel Core i7-9800X 3.8 GHz Eight-Core LGA 2066 Processor

Click to enlarge the picture
Intel Core i7-9800X 3.8 GHz Eight-Core LGA 2066 Processor Contents of the user manual for the Intel Core i7-9800X 3.8 GHz Eight-Core
  • Product category: CPU Processors Intel
  • Brand: Intel
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Intel CPU Processors

User manual for the Intel Core i7-9800X 3.8 GHz Eight-Core contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Intel product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Intel user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Intel product will considerably shorten its lifespan!



Product description

The Core i7-9800X 3.8 GHz Eight-Core LGA 2066 Processor from Intel has a base clock speed of 3.8 GHz and comes with features such as Intel Optane Memory and SSD support, AES-NI encryption, Intel vPro technology, Intel TXT, and Intel VT-d virtualization technology for directed I/O. This processor features a boost speed of up to 4.4 GHz, or up to 4.5 GHz with Intel Turbo Boost Max 3.0 technology. Additionally, this processor features 8 cores with 16 threads in an LGA 2066 socket, has 16.5MB of cache memory, and supports up to 44 PCIe lanes. Having 8 cores allows the processor to run multiple programs simultaneously without slowing down the system, while the 16 threads allow a basic ordered sequence of instructions to be passed through or processed by a single CPU core. This processor also supports DDR4 RAM and utilizes 9th-generation technology.

Graphically, the Core i7-9800X does not contain any integrated graphics, which means that users will need to purchase a compatible dedicated GPU of their choice. If you need even more performance, this processor is unlocked, which lets you overclock the processor over its maximum speed. However, this is not recommended, as it will void the limited 3-year warranty.

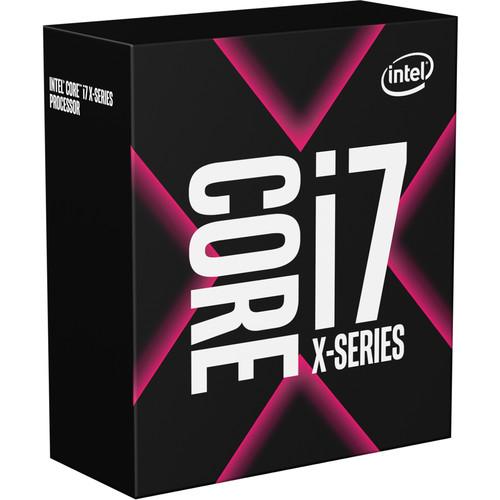

Please note that this processor does not include a heatsink or fan and requires a separately-sold CPU cooling solution. UPC: 735858401678 In the Box Intel Core i7-9800X 3.8 GHz Eight-Core LGA 2066 Processor
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Intel Core i7-9800X 3.8 GHz Eight-Core LGA 2066 Processor in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Intel Core i7-9800X Specs

    CPU Model Intel Core i7-9800X
    CPU Socket LGA 2066
    Manufacturing Process 14 nm
    Maximum CPU Configuration 1S
    Maximum Number of PCIe Lanes 44 (Revision 3.0)
    Unlocked Yes
    Number of Cores 8
    Number of Threads 16
    Base Clock Speed 3.8 GHz
    Maximum Boost Speed 4.5 GHz
    L3 Cache 16.5 MB
    Maximum Capacity 128 GB
    Memory Support DDR4 2666 MHz
    ECC Memory No
    Channel Architecture Quad Channel
    Thermal Design Power (TDP) 165 W
    Thermal Solution None
    Maximum Temperature 203°F / 95°C
    AES Support Yes
    Extension AVX 2.0, AVX-512, SSE 4.1/4.2
    Virtualization Yes: Intel VT-d, Intel VT-x
    Graphics Chipset None
    DMI DMI3 (8 GT/s)
    Optane Memory Support Yes
    vPro Support Yes
    Performance Technologies Hyper-Threading, SpeedStep, Turbo Boost 2.0, Turbo Boost Max 3.0
    Security Technologies Device Protection with Boot Guard, Execute Disable Bit
    Package Weight 0.225 lb
    Box Dimensions (LxWxH) 4.6 x 4.15 x 1.8"
