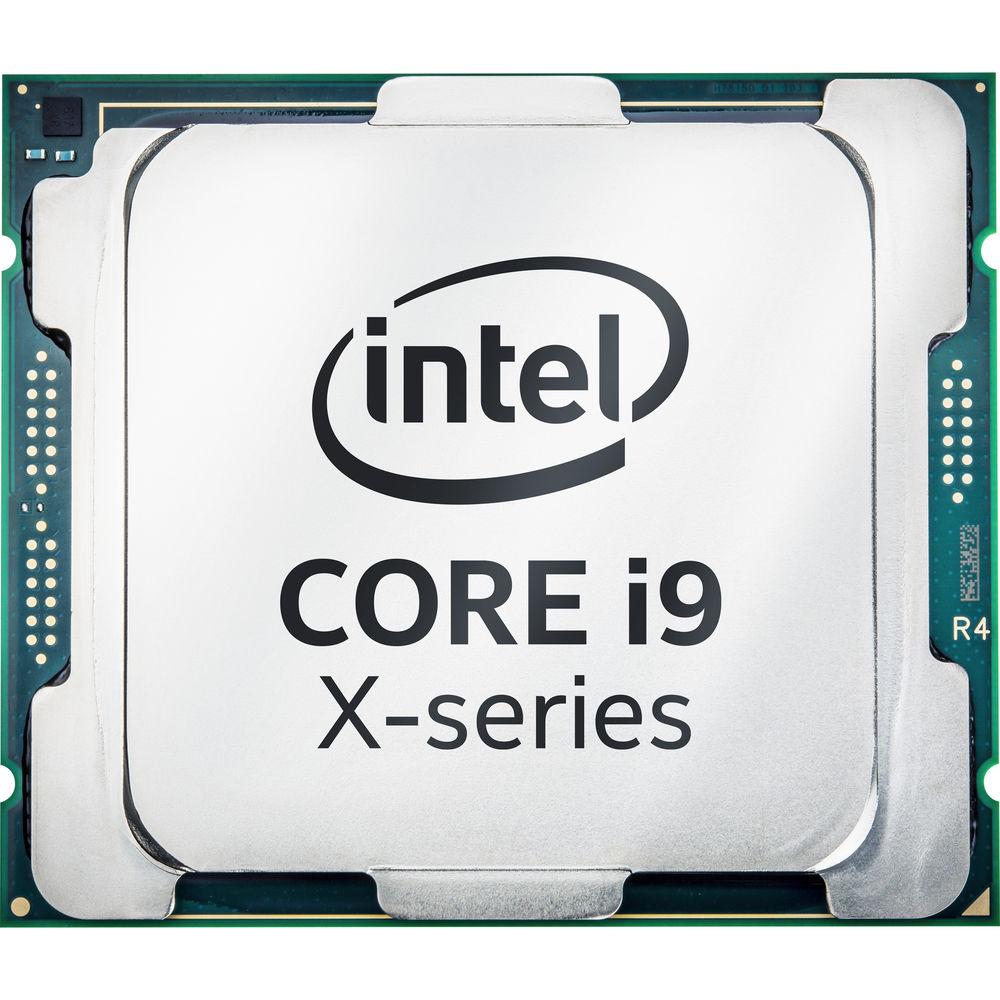

User Manual for Intel Core i9-7920X X-Series 2.9 GHz Twelve-Core LGA 2066 Processor Click to enlarge the picture
Contents of the user manual for the Intel Core i9-7920X X-Series 2.9 GHz
- Product category: CPU Processors Intel
- Brand: Intel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intel CPU Processors
 |
User manual for the Intel Core i9-7920X X-Series 2.9 GHz contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intel product will considerably shorten its lifespan!
|
Product description The Intel Core i9-7920X LGA 2066 Processor provides computing performance for a desktop system by offering twelve cores, which operate at a stock speed of 2.9 GHz, for editing videos, composing soundtracks, and other demanding workloads. The best performing cores can run at speeds of up to 4.4 GHz utilizing Intel Turbo Boost Max Technology 3.0. The Core i9-7920X is equipped with Intel Hyper-Threading technology that enables each core to handle two instruction threads, providing the ability to handle up to twenty-four threads. If you need even more performance, this Skylake-X processor is unlocked, which lets you overlock the processor over its maximum speed. This Core X-series processor does not include a heatsink or fan and requires a sold-separately CPU cooling solution to function at these levels of performance.
Aside from processing power, the Core i9-7920X provides 44 PCI Express 3.0 lanes to multiple graphics cards and PCIe-based M.2 SSDs. The processor is compatible with motherboards offering an LGA 2066 socket and has an average power requirement of 140W. When installed in a motherboard, the processor supports DDR4 2666 MHz memory modules, running in a quad-, dual-, or single-channel configuration. In addition, a total amount of 16.5MB L3 cache memory is available for its twelve cores. - Performance

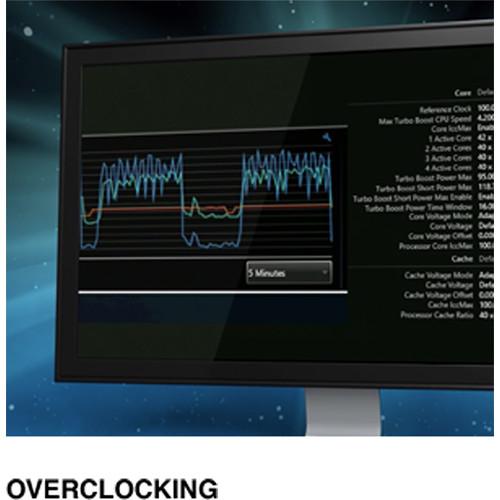

- The Intel Core X-series processor is designed to scale to the desktop's needs by using the fastest cores at higher frequencies when performance is required. The Intel Core X-series processor family is unlocked to provide additional headroom. Its features include the ability to overclock each core individually, AVX ratio controls for more stability, and VccU voltage control for extreme scenarios. With tools such as Intel's Extreme Tuning Utility (Intel XTU) and Extreme Memory Profile (Intel XMP), you'll have access to modify the system for maximizing performance.
- Intel Smart Cache
- All cores now have access to the entire last-level cache, pre-fetching data before requests are made. Intel Smart Cache also offers a power-saving feature that dynamically flushes memory based on demand or during periods of inactivity, ensuring your applications keep up with your demands.
- Intel Turbo Boost Max Technology 3.0
- Intel Turbo Boost Max Technology 3.0 identifies the processor's fastest cores and directs the most critical workloads there. With improved single-threaded performance, you'll get the best performance possible out of your computer.

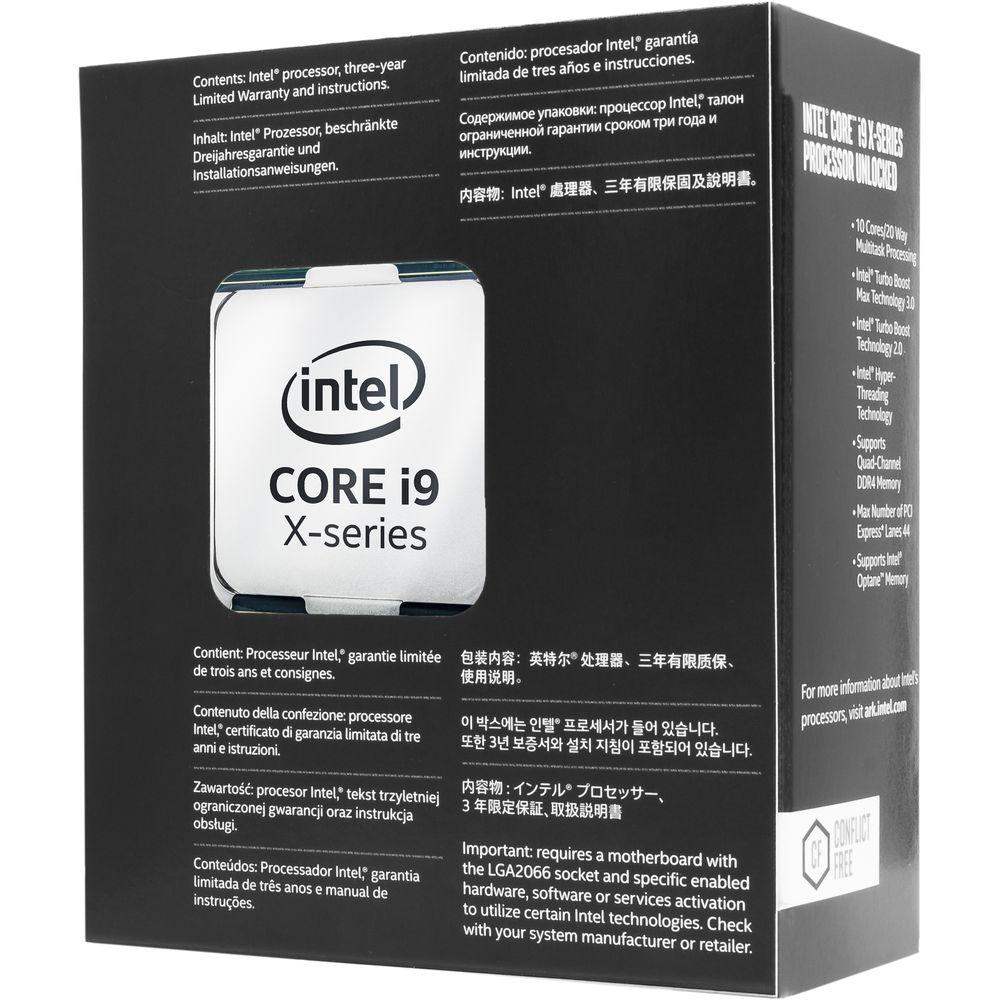

UPC: 735858348669 In the Box Intel Core i9-7920X X-Series 2.9 GHz Twelve-Core LGA 2066 Processor Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel Core i9-7920X X-Series 2.9 GHz Twelve-Core LGA 2066 Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntel Core i9-7920X Specs | | | CPU Model | Intel Core i9-7920X | | Manufacturing Process | 14 nm | | Maximum Number of PCIe Lanes | 44 (Revision 3.0) | | | | Number of Cores | 12 | | Number of Threads | 24 | | Base Clock Speed | 2.9 GHz | | Maximum Boost Speed | 4.4 GHz | | L3 Cache | 16.5 MB | | | | Memory Support | DDR4 2666 MHz | | ECC Memory | No | | Channel Architecture | Quad Channel | | | | Thermal Design Power (TDP) | 140 W | | Thermal Solution | None | | | | Optane Memory Support | Yes | | Performance Technologies | Hyper-Threading, Turbo Boost Max 3.0 | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 4.7 x 4.1 x 1.8" |
