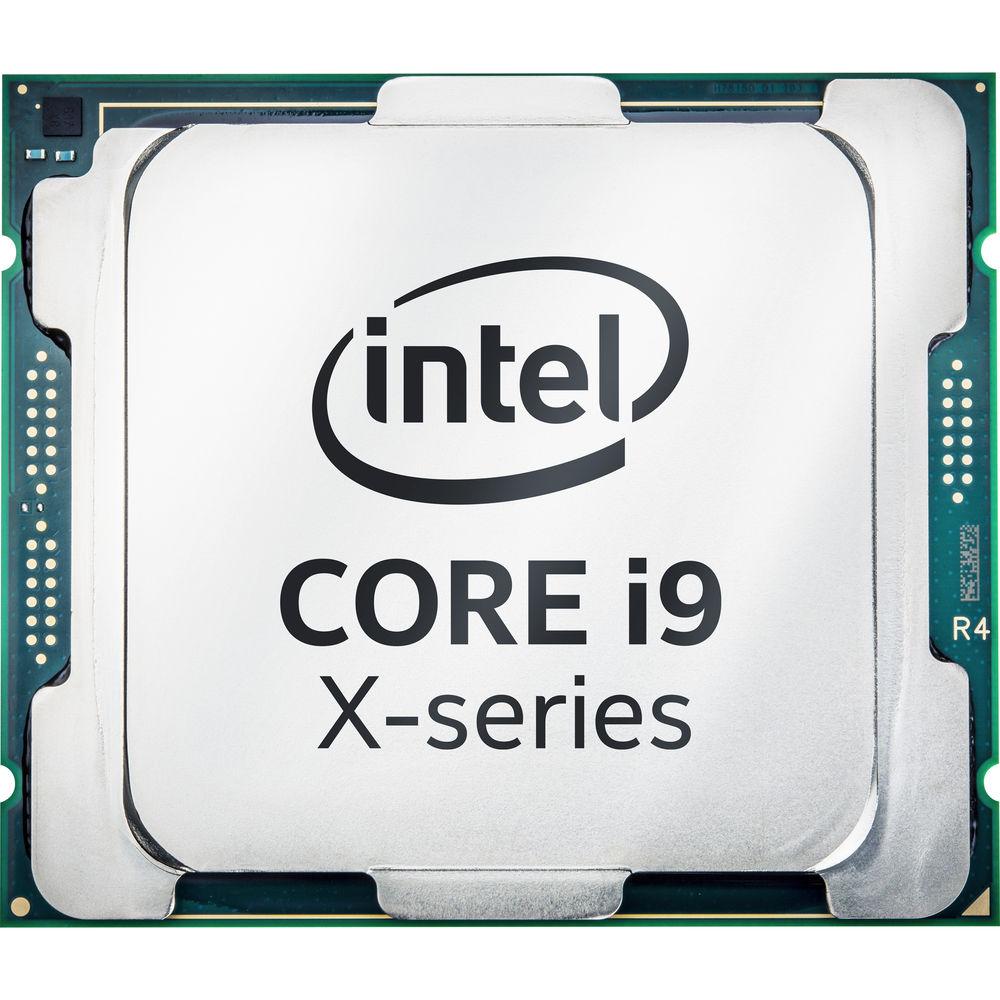

Product description The Intel Core i9-7940X LGA 2066 Processor provides computing performance for a desktop system by offering fourteen cores, which operate at a stock speed of 3.1 GHz, for editing videos, composing soundtracks, and other demanding workloads. Its fourteen cores can achieve a maximum turbo frequency of up to 4.3 GHz while running intensive tasks, and the best performing cores can run at speeds of up to 4.4 GHz utilizing Intel Turbo Boost Max Technology 3.0. The Core i9-7940X is equipped with Intel Hyper-Threading technology that enables each core to handle two instruction threads, providing the ability to handle up to twenty-eight threads. If you need even more performance, this Skylake-X processor is unlocked, which lets you overclock the processor over its maximum speed. This Core X-series processor does not include a heatsink or fan and requires a sold-separately CPU cooling solution to function at these levels of performance.
Aside from processing power, the Core i9-7940X provides 44 PCI Express 3.0 lanes to multiple graphics cards and PCIe-based M.2 SSDs. The processor is compatible with motherboards offering an LGA 2066 socket and has an average power requirement of 165W. When installed in a motherboard, the processor supports DDR4 2666 MHz memory modules, running in a quad-, dual-, or single-channel configuration. In addition, a total amount of 19.25MB of L3 cache memory is available for its fourteen cores. This product comes in retail packaging and includes a 3-year warranty. - Performance

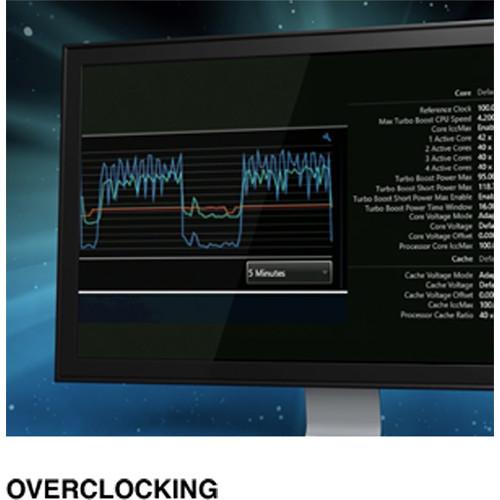

- The Intel Core X-series processor is designed to scale to the desktop's needs by using the fastest cores at higher frequencies when performance is required. The Intel Core X-series processor family is unlocked to provide additional headroom. Its features include the ability to overclock each core individually, AVX ratio controls for more stability, and VccU voltage control for extreme scenarios. With tools such as Intel's Extreme Tuning Utility (Intel XTU) and Extreme Memory Profile (Intel XMP), you'll have access to modify the system for maximizing performance.
- Intel Smart Cache
- All cores now have access to the entire last-level cache, pre-fetching data before requests are made. Intel Smart Cache also features a power-saving feature that dynamically flushes memory based on demand or during periods of inactivity, ensuring your applications keep up with your demands.
- Intel Turbo Boost Max Technology 3.0
- Intel Turbo Boost Max Technology 3.0 identifies your processor's fastest cores and directs your most critical workloads there. With improved single-threaded performance, you'll get the best performance possible out of your computer.

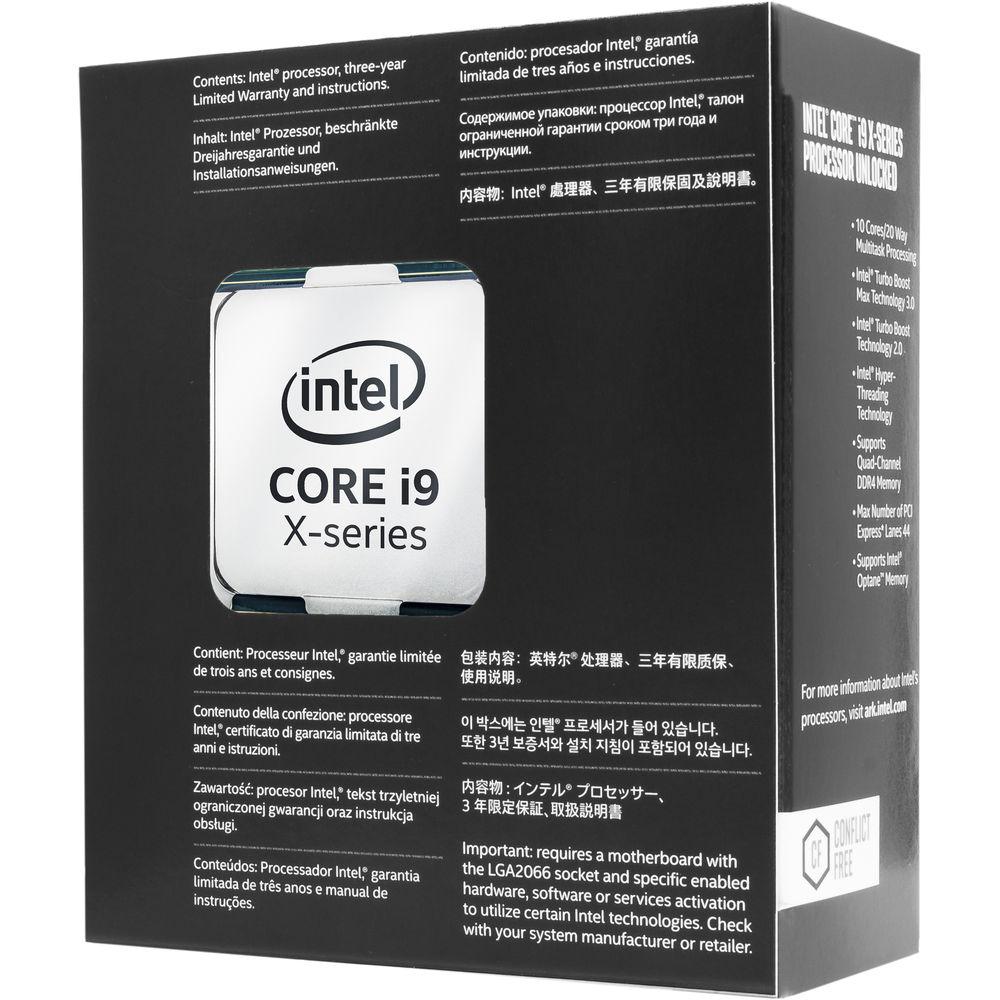

UPC: 675901504225 In the Box Intel Core i9-7940X X-Series 3.1 GHz 14-Core LGA 2066 Processor (Retail) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel Core i9-7940X X-Series 3.1 GHz 14-Core LGA 2066 Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntel BX80673I97940X Specs | | | CPU Model | Intel Core i9-7940X | | Maximum CPU Configuration | 1S | | Maximum Number of PCIe Lanes | 44 (Revision 3.0) | | | | Number of Cores | 14 | | Number of Threads | 28 | | Base Clock Speed | 3.1 GHz | | Maximum Boost Speed | 4.3 GHz | | L3 Cache | 19.25 MB | | | | Maximum Capacity | 128 GB | | Memory Support | DDR4 2666 MHz | | ECC Memory | No | | Channel Architecture | Quad Channel | | | | Thermal Design Power (TDP) | 165 W | | Thermal Solution | PCG 2017X | | Maximum Temperature | 216°F / 102°C | | | | AES Support | Yes | | Extension | AVX 2.0, AVX-512, SSE 4.1/4.2 | | Instruction Set | 64-Bit | | Virtualization | Yes: Intel VT-d, Intel VT-x | | | | DMI | DMI3 (8 GT/s) | | Optane Memory Support | Yes | | Performance Technologies | Hyper-Threading, SpeedStep, Turbo Boost 2.0, Turbo Boost Max 3.0 | | Security Technologies | Execute Disable Bit | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 4.6 x 4.0 x 1.8" |
