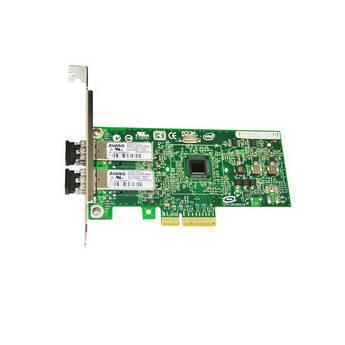

User Manual for Intel EXPI9402 PRO 1000 PF Dual-Port Server Adapter Click to enlarge the picture
Contents of the user manual for the Intel EXPI9402 PRO 1000 PF Dual-Port
- Product category: Network Interface Cards & Adapters Intel
- Brand: Intel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intel Network Interface Cards & Adapters
|
User manual for the Intel EXPI9402 PRO 1000 PF Dual-Port contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intel product will considerably shorten its lifespan!
|
Product description Provided by third party: Conserve valuable PCI Express server slots while adding multi-port fiber-optic connectivity to enhance network performance with the Intel PRO/1000 PF Dual Port Server Adapter. The PRO/1000 PF Dual Port Server Adapter is designed to provide high performance in multi-processor systems by efficiently balancing network loads across multiple Central Processing Units (CPUs) when used with Receive-Side Scaling from Microsoft or Scalable I/O on Linux . -
- Intel lead-free technology
- Plug and play specification support
- Integrated media access control (MAC) and physical layer (PHY)
- Interrupt moderation: Delivers increased performance while significantly reducing CPU utilization
- Compatible with x4, x8, and x16 full-height PCI Express slots
- Bus width: x4 lane PCI Express operable in x4, x8, x16 slots
- Bus speed (x4, encoded rate): 10 Gbps uni-directional; 10 Gbps bi-directional
- EEPROM-SPI and single EEPROM support
Load balancing on multiple CPUs:- Increases performance on multi-processor systems by efficiently balancing network loads across CPU cores when used with Receive-Side Scaling from Microsoft or Scalable I/O on Linux
Advanced Software Features:- Adapter fault tolerance (AFT)
- Switch fault tolerance (SFT)
- Adaptive load balancing (ALB)
- Fast EtherChannel (FEC)
- Gigabit EtherChannel (GEC)
- Teaming support: Scales up to 4 connections
- Test switch configuration
- PCIe Hot Plug/Active peripheral component interconnect (PCI)
UPC: 735858175371 In the Box Intel EXPI9402 PRO/1000 PF Dual-Port Server Adapter (Pack of 5) PRO/1000 PF Dual Port Server Adapter Bracket Intel warrants to the original owner that the adapter product delivered in this package will be free from defects in material and workmanship. This warranty does not cover the adapter product if it is damaged in the process of being installed or improperly used. For more warranty information follow this link: http://www.intel.com/support/network/sb/cs-009721.htm Additional Warranty Information Lifetime Limited Warranty Brochure PDF 126.5kbdwrsuxefur Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel EXPI9402 PRO 1000 PF Dual-Port Server Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntel EXPI9402PFBLK Specs | | | Host Interface | PCI Express | | Total Number of Ports | 2 | | | | Fiber Optic Cable Standard | 50/125 µm
62.5/125 µm | | Data Transfer Rate | 128 MB/s | | | | Network Technology | 1000Base-SX | | | | Form Factor | Plug-in Card | | Height | 4.7" | | Width | 5.1" | | Thickness | 850 mil | | | | Device Supported | PC | | Certifications & Standards | - Hardware Certifications FCC B, UL, CE, VCCI, BSMI, MIC
IEEE Standards:- IEEE 802.3x
- IEEE 802.1Q
- IEEE 802.3z
- IEEE 802.1p
| | Platform Supported | PC | | System Requirements | Operating System: Windows Vista | | Environmentally Friendly | Yes | | Environmental Certification | RoHS | | Country of Origin | Malaysia |
