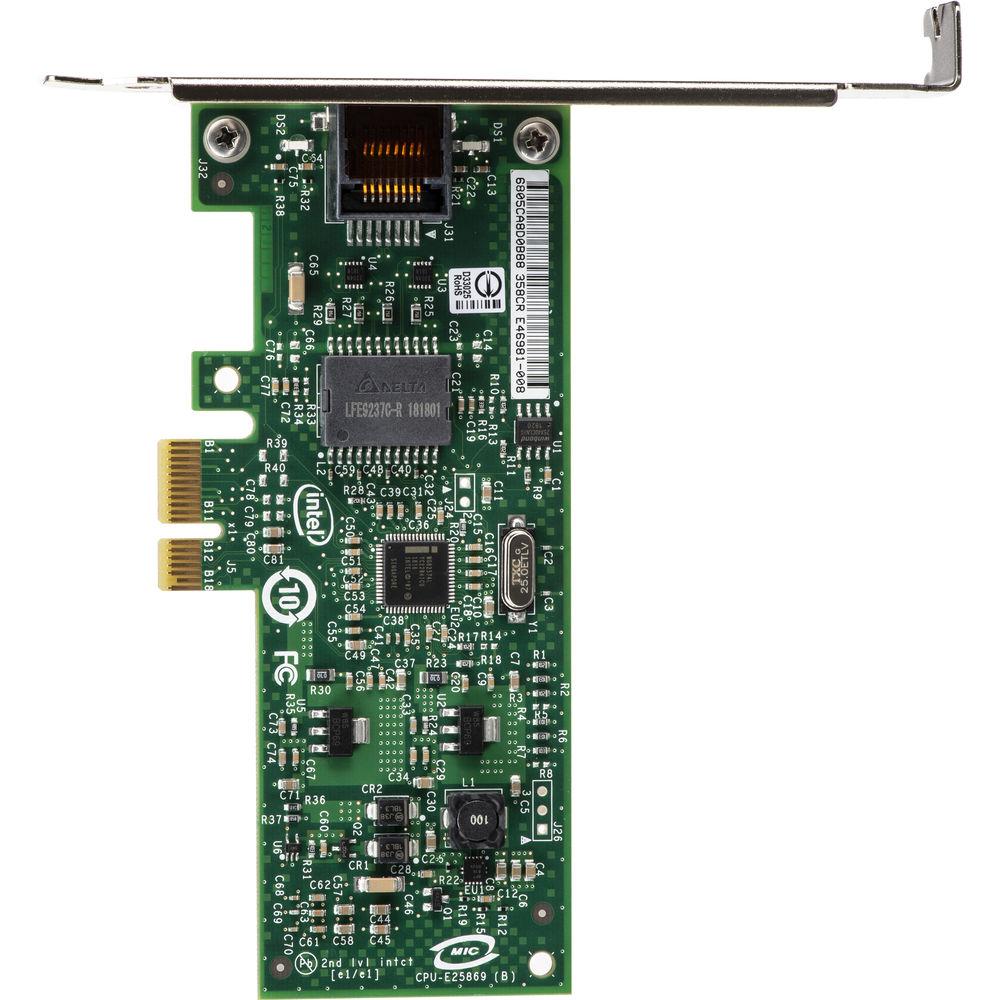

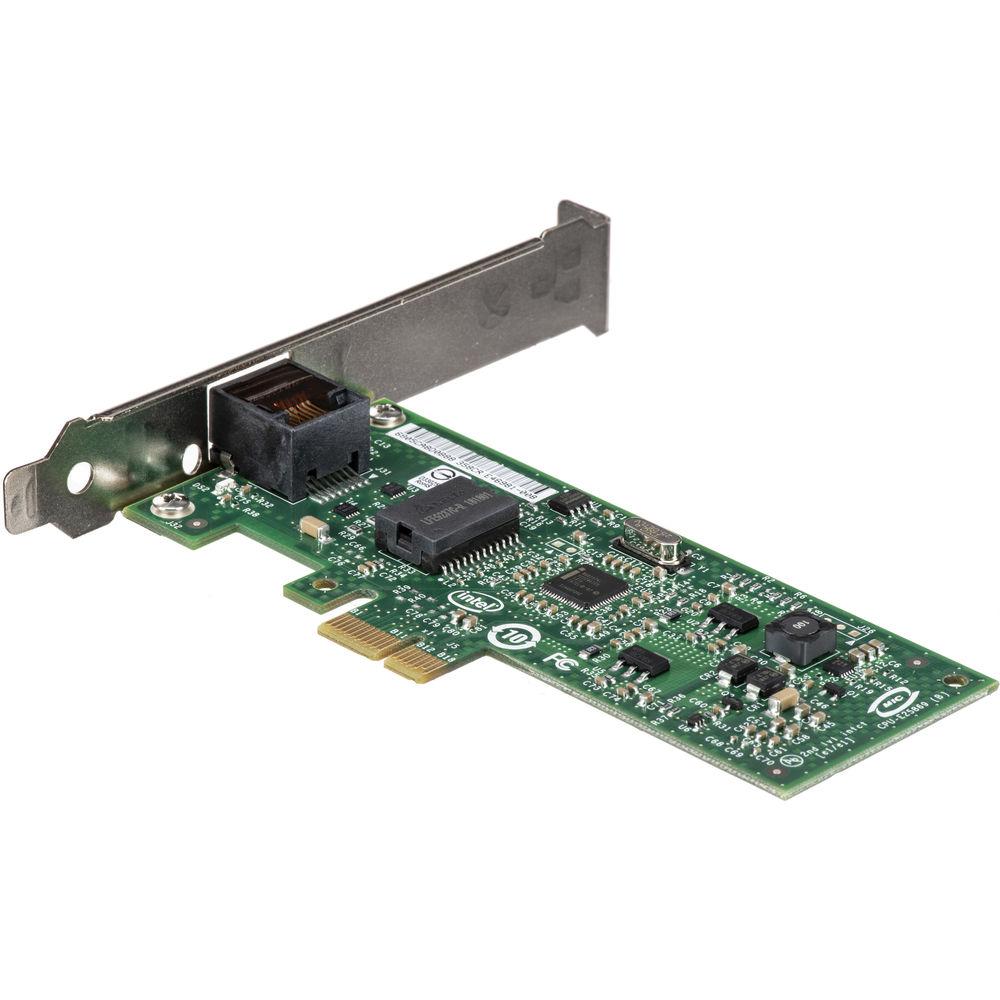

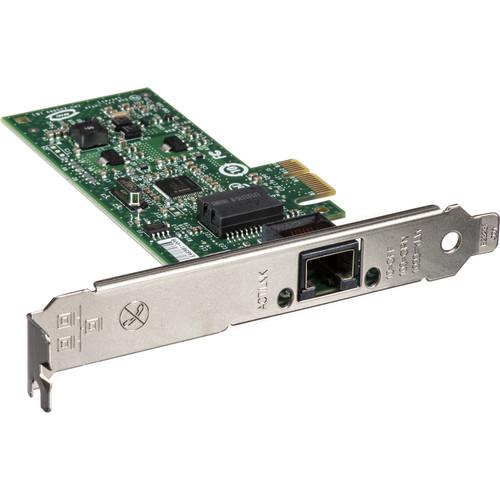

User Manual for Intel Gigabit CT Desktop Adapter Click to enlarge the picture
Contents of the user manual for the Intel Gigabit CT Desktop Adapter
- Product category: Network Interface Cards & Adapters Intel
- Brand: Intel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intel Network Interface Cards & Adapters
 |
User manual for the Intel Gigabit CT Desktop Adapter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intel product will considerably shorten its lifespan!
|
Product description With built-in auto-negotiation, the Gigabit CT Desktop Adapter from Intel is capable of adjusting to data speed fluctuations within the network to maintain a reliable, stable connection. Additionally, this adapter features a PCIe input/output bus to provide enhanced bandwidth capabilities to keep data flowing to and from the host device. Installation of the Gigabit CD Desktop Adapter has been greatly simplified thanks to Intel PROSet Utility for Microsoft Device Manager and Intel PRO Intelligent install. Once installed, built-in remote management support allows for easy remote access while advanced cable diagnostics make it easy to test and diagnose a variety of network problems. - Intel 82574L Gigabit Ethernet controller
- PCI Express x1 slot compatible
- Compatible with Fast Ethernet and Ethernet
- 10/100/1000 Mbps auto-negotiation
- Support for most network operating systems
- Advanced configuration and power interface
- Remote management support
- Intel PROSet Utility for Microsoft Device Manager
- Advanced cable diagnostics
- Optimized queues with 2 transmit (Tx) and 2 receive (Rx)
UPC: 735858202169 In the Box Intel Gigabit CT Desktop Adapter Limited Lifetime Manufacturer Warranty Brochure PDF 153.8kbrcwtfwudrydfcqvwbbcbfyszaqusft Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel Gigabit CT Desktop Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntel EXPI9301CT Specs | Connectors | RJ-45 | | Protocol / Topology | 10/100/1000 Base-T | | Wiring | Category-5 UTP, 4-pair | | Network Management | Wired for management baseline v2.0 enabled for servers
DMI 2.0 support and Windows Management Instrumentation (WMI)
Instrumentation (WMI) and SNMP-Remote Installation Services (RIS)
ACPI 1.0 power management
Wake on LAN support over PCI Express
PXE 2.0 enabled through boot read-only memory (ROM) | | Operating Systems | Network Operating Systems
Windows 2000
Windows Server 2003
Windows Server 2008
Windows Professional XP SP3
Windows Vista SP1
Linux RHEL 4.6
Linux Kernel version 2.6.24
Linux Kernel version 2.4.36.2
RHEK 5.1
SLES 9 SP4
SLES 10 SP1
FREEBSD 7.0
DOS
DOSODI
SCO OpenServer 6 / Unixware 7.1.x
Novell Netware 6.5
Xen
FreeBSD 5.x or later
ESX 3.x support (for VMware) | | Data Rates | 10, 100, and 1000 Mbps per port | | Bus Type | PCI Express 1.1 (2.5 GT/s) | | Bus Width | x1 lane PCI Express operable in x1, x4, x8, and x16 slots | | Bus Speed | 2.5 Gbps uni-directional, 5 Gbps bi-directional | | Interrupt Levels | INTA, MSI, MSI-X | | IEEE Support | 802.3z | | Hardware Certifications | FCC B, UL, CE, VCCI, BSMI, CCTICK, MIC | | Controller-Processor | Intel 82574L | | Power Consumption | 1.9 W (typical) | | Temperature & Humidity | Operating Temperature: 32 to 131°F / 0 to 55°C
Storage Temperature: -40 to 158°F / -40 to 70°C
Storage Humidity: 90% non-condensing (RH) at 95°F / 35°C | | Dimensions | 4.70 x 2.18 x 4.73" / 11.92 x 5.53 x 12.00 cm | | Weight | Not specified by manufacturer | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 6.8 x 5.7 x 1.3" |
