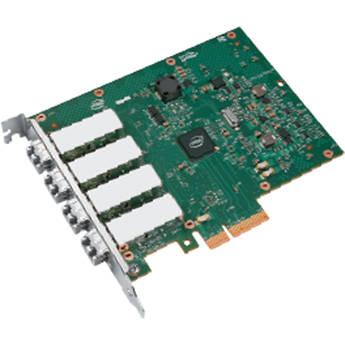

User Manual for Intel Gigabit ET2 Quad Port Server Adapter Click to enlarge the picture
Contents of the user manual for the Intel Gigabit ET2 Quad Port Server
- Product category: Network Interface Cards & Adapters Intel
- Brand: Intel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intel Network Interface Cards & Adapters
|
User manual for the Intel Gigabit ET2 Quad Port Server contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intel product will considerably shorten its lifespan!
|
Product description The Intel Gigabit ET2 Quad Port PCIe Server Adapter is built with the Intel 82576 Gigabit Ethernet Controller. It supports multi-core processors and optimizes server virtualization. Designed for Multi-Core Processors The quad port adapter provides high-performing, multi-port Gigabit connectivity in both multi-core platforms and virtualized environments. In a multi-core platform, the adapter supports various technologies such as multiple queues, receive-side scaling, MSI-X and low-latency interrupts that help accelerate the data across the platform, thereby improving application response times. The I/O technologies on a multi-core platform utilize the multiple queues and multiple interrupt vectors available on the network controller. These queues and interrupt vectors help in load balancing the data and interrupts amongst themselves to reduce the load on the processors and improve overall system performance. For example, depending upon the latency sensitivity of the data, the low-level latency interrupts feature can bypass the time interval for specific TCP ports or for flagged packets to give certain types of data streams the least amount of latency to the application. Optimized for Virtualization Intel Virtualization Technology for Connectivity (Intel VT for Connectivity) is a suite of hardware assists that improve overall system performance by lowering the I/O overhead in a virtualized environment. This optimizes CPU usage, reduces system latency and improves I/O throughput. Intel VT for Connectivity includes the following: • Virtual Machine Device Queues (VMDq) • Intel I/O Acceleration Technology (Intel I/OAT) Use of a multi-port adapter in a virtualized environment is very important to provide redundancy and data connectivity for the applications/workloads in virtual machines. Due to slot limitations and the need for redundancy and data connectivity, it is recommended that a virtualized physical server needs at least six GbE ports to satisfy the I/O requirement demands. Virtual Machine Device queues (VMDq) VMDq reduces I/O overhead created by the hypervisor in a virtualized server by performing data sorting and coalescing in the network silicon. This technology utilizes multiple queues in the network controller. As data packets enter the network adapter, they are sorted and packets traveling to the same destination (or virtual machine) get grouped together in a single queue. The packets are then sent to the hypervisor, which directs them to their respective virtual machines. Relieving the hypervisor of packet filtering and sorting improves overall CPU usage and throughput levels. The PCIe Intel Gigabit adapter provides improved performance with the next-generation VMDq technology, which includes features like loop-back functionality for inter-VM communication, priority-weighted bandwidth management and doubling the number of data queues per port from four to eight. It also supports multicast and broadcast data on a virtualized server. Intel I/O Acceleration Technology Intel I/O Acceleration Technology (Intel I/OAT) provides a set of features that improve data acceleration across the platform, from networking devices to the chipset and processors, which help improve system performance and application response times. These features include multiple queues, Direct Cache Access (DCA), MSI-X, Low-Latency Interrupts, Receive-Side Scaling (RSS) and others. Using multiple queues and receive-side scaling, a DMA engine moves data using the chipset instead of the CPU. DCA enables the adapter to pre-fetch data from the memory cache, thereby avoiding cache misses and improving application response times. MSI-X helps in load-balancing I/O interrupts across multiple processor cores and low-latency interrupts can provide certain data streams a non-modulated path directly to the application. RSS directs the interrupts to a specific processor core based on the application's address. Single-Root I/O Virtualization (SR-IOV) For mission-critical applications, where dedicated I/O is required for maximum network performance, users can assign a dedicated virtual function port to a VM. The controller provides direct VM connectivity and data protection across VMs using SR-IOV. SR-IOV technology enables the data to bypass the software virtual switch and delivers near-native performance. It assigns either physical or virtual I/O ports to individual VMs directly. This technology is best suited for applications that demand the maximum I/O throughput and deliver lowest latency performance such as database, storage and financial applications. The PCI-SGI SR-IOV capability is a mechanism for devices to advertise their ability to be directly assigned to multiple machines. This technology enables the partitioning of a PCI function into many virtual interfaces for the purpose of sharing the resources of a PCIe device in a virtual environment. These virtual interfaces are called virtual functions. Each virtual function can support a unique and separate data path for I/O related functions within the PCI Express hierarchy. Use of SR-IOV with a networking device allows bandwidth of a single port(function) to be partitioned into smaller slices that can be allocated to specific VMs or guests via a standard interface. End-to-End Wired Security The Intel adapter provides authentication and encryption for IPsec and LinkSec. LinkSec is already designed into the network adapter hardware. The adapter is future-proof and prepared to provide LinkSec functionality to devices that support the technology. IPsec provides data protection between the end point devices of a network communication session. The IPsec offload feature is designed to offload authentication and encryption of certain types of IPsec traffic and still delivers near line-rate throughput and reduces CPU utilization LinkSec is an IEEE standard feature that provides data protection in the network. The IEEE 802.3ae and IEEE 802.3af protocols provide hop-to-hop data protection between two network devices in the transaction line between the host and destination. The two network devices must support the LinkSec technology. The network devices could be servers, switches and routers. - Intel Gigabit Ethernet Controller
- • Energy-efficient design for the next-generation Gigabit performance and multi-core processors
- Low Profile
- • Enables higher bandwidth and throughput from standard and low-profile PCIe slots and servers
- iSCSI Remote Boot Support
- • Provides centralized storage area network (SAN) management at a low cost
- Load Balancing on Multiple CPUs
- • Increases performance on multi-processor systems by efficiently balancing network loads across CPU cores when used with Scalable I/O on Linux
- Compatible with x4, x8, x16 Standard & Low-Profile PCIe Slots
- • Enables quad-port operation in almost any PCIe server slot, except x1 slots
- Multi-Port Design
- • Allows each port to operate without interfering with others
- Support for Most Network Operating Systems
- • Enables widespread deployment
- RoHS Compliant
- • Compliant with the European Union directive 2002/95/EC to reduce use of hazardous materials
- Intel PROSet Utility for Windows Device Manager
- • Provides point-and-click management of individual adapters, advanced adapter features, connection teaming and virtual local area network (VLAN) configuration
I/O Features - Multiple Queues & Receive-Side Scaling
- • DMA Engine: enhances data acceleration across the platform(network, chipset, processor), thereby lowering CPU usage • Direct Cache Access: enables the adapter to pre-fetch the data from memory, avoiding cache misses and improving application response time
- MSI-X Support
- • Minimizes the overhead of interrupts • Allows load balancing of interrupt handling between multiple cores/CPUs
- Low-Latency Interrupts
- • Based on the sensitivity of the incoming data, the adapter can bypass the automatic moderation of time intervals between the interrupts
- Header Splits & Replication in Receive
- • Helps the driver focus on the relevant part of the packet without the need to parse it
- Multiple Queues: 8 Queues per port
- • Network packet handling without waiting or buffer overflow, thus providing efficient packet prioritization
- Tx/Rx IP, SCTP, TCP & UDP Checksum Offloading (IPv4, IPv6) Capabilities
- • Lower processor usage • Checksum and segmentation capability extended to new standard packet type
- Tx TCP Segmentation Offload (IPv4, IPv6)
- • Increased throughput and lower processor usage • Compatible with large-send offload feature (in Microsoft Windows Server OS)
- Receive-Side Scaling for Windows & Scalable I/O for Linux Environments (IPv4, IPv6, TCP/UDP)
- • Directs interrupts to the processor cores in order to improve the CPU usage rate
- IPsec Offload
- • Offloads IPsec capability onto the adapter of the software to significantly improve I/O throughput and CPU utilization
- LinkSec
- • A Layer 2 data protection solution that provides encryption and authentication ability between two individual devices (routers, switches) • These adapters are prepared to provide LinkSec functionality to devices that support this technology
Virtualization Features - VMDq
- • Offloads the data-sorting functionality from the hypervisor to the network silicon, improving data throughput and CPU usage • Provides QoS feature on the Tx data by providing round-robin servicing and preventing head-of-line blocking • Sorting based on MAC addresses and VLAN tags
- Next-Generation VMDq Technology
- • Enhances QoS feature by providing weighted round-robin servicing for the Tx • Provides loop-back functionality, where data transfer between the virtual machines within the same physical server need not go out to the wire and come back in. This improves throughput and CPU usage • Supports replication of multicast and broadcast data
- IPv6 Offloading
- • Checksum and segmentation capability extended to new standard packet type
- Advanced Packet Filtering
- • 24 exact-matched packets (unicast or multicast) • 4096-bit hash filter for unicast and multicast frames • Lower processor usage • Promiscuous (unicast or multicast) transfer mode support • Optional filtering of invalid frames
- VLAN Support with VLAN Tag Insertion
- • Stripping and packet filtering for up to 4096 tags • Ability to create multiple VLAN segments
- PC-SIG SR-IOV Implementation
- • Implements PCI-SIG standard for I/O Virtualization1. The physical configuration of each port is divided into multiple virtual ports. Each virtual port is assigned to an individual virtual machine directly by passing the virtual switch in the hypervisor, resulting in near-native performance. 1
Please Note: 1Requires a virtualization operating system and server platform that supports SR-IOV and VT-d close Manageability Features - On-board Microcontroller
- • Implements pass-through manageability via a sideband interface to a Board Management Controller (BMC) via SMBus
- Advanced Filtering Abilities
- • Supports extended L2, L3 and L4 filtering for traffic routing to BMC • Supports MAC address, VLAN, ARP, IPv4, IPv6, RMCP UDP ports and UDP/TCP filtering • Supports flexible header filtering • Enables the BMC to share the MAC address with the host OS
- Preboot eXecution Environment (PXE) Support
- • Enables system boot up via the LAN (32-bit and 64-bit) • Flash interface for PXE image
- Simple Network Management Protocol (SNMP) & Remote Network Monitoring (RMON) Statistic Counters
- • Easy monitoring with industry-standard consoles
- Wake-on-LAN Support
- • Packet recognition and wake-up for LAN on motherboard applications without software configuration
- iSCSI Boot
- • Enables system boot up via iSCSI • Provides additional network management capability
- Watchdog Timer
- • Gives an indication to the manageability firmware or external devices that the chip or the driver is not functioning
- IEEE 1588 Precision Time Control Protocol
- • Time synch capability synchronizes internal clocks according to a network master clock
UPC: 735858214605 In the Box Intel Gigabit ET2 Quad Port Server Adapter Low-Profile Bracket Lifetime Limited Warranty Brochure PDF 841.4kbusvvrcvffxdbsutx Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel Gigabit ET2 Quad Port Server Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntel E1G44ET2 Specs | Connectors | RJ-45 | | Cabling Type | Cat-5, unshielded twisted pair (UTP) | | Data Rate Supported Per Port | 10/100/1000 Mbps | | Bus Type | PCI Express 2.0 (2.5 GT/s) | | Bus Width | 4-lane PCIe, operable in x4, x8 and x16 slots | | IEEE Standards/Network Topology | IEEE 802.3 10BASE-T, 100BASE-TX, 1000BASE-T | | Interrupt Levels | INTA, MSI, MSI-X | | Hardware Certifications | FCC B, UL, CE, VCCI, BSMI, CTICK, MIC | | Power Consumption | 8.4 W | | Distance Information | 100 m in Cat-5 for 100/1000 Mbps 10 Mbps for Cat-3 | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Storage Temperature | -40 to 158°F (-40 to 70°C) | | Humidity | 90% non-condensing relative humidity at 95°F (35°C) | | LED Indicator | Solid: LINK Blinking: ACTIVITY | | Advanced Software Features | Adapter fault tolerance (AFT) Switch fault tolerance (SFT) Adaptive load balancing (ALB) Teaming support IEEE 802.3ad (link aggregation control protocol) Test switch configuration, tested with major switch original equipment manufacturers (OEMs) PCIe hot plug/ active peripheral component interconnect IEEE 802.1Q VLANs IEEE 1588 precision time control, time synch capability synchronizes internal clocks according to a network master clock IEEE 802.3 2005 flow control support Tx/Rx IP (Internet protocol), TCP (Transmission control protocol) & UDP (user datagram protocol) checksum offloading (IPv4, IPv6) capabilities IEEE 802.1p TCP segmentation/ large send offload MSI-X supports multiple independent queues IPv6 offloading, checksum and segmentation capability extended to new standard type | | NOS Software Support | • Windows Vista SP1 IA32, x64 • Windows Vista SP1 IA32, X64, IPF • Windows Server 2003 SP2 IA32, X64, IPF • Windows Unified Storage Solution 2003 IA32, X64, IPF • Windows Server 2008 IA32, X64, IPF • Linux Stable Kernel version 2.6 IA32, X64, IPF • Linux RHEL 4 IA32, X64, IPF • Linux RHEL 5 IA32, X64, IPF • Linux SLES 9 IA32, X64, IPF • Linux SLES 10 IA32, X64, IPF • FreeBSD 7.0 IA32, X64, IPF • UEFI 1.1 IA32, X64, IPF • VMware ESX 3.x IA32, X64, IPF • VMware ESX 4.x | | Dimensions | L x W: 6.59 x 2.733" (16.74 x 6.94 cm) Low-profile end bracket: 3.12" (7.92 cm) Full-height end bracket: 4.725" (12 cm) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 9.1 x 5.7 x 1.2" |
