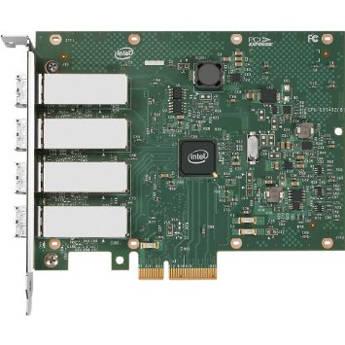

User Manual for Intel I350-F4 Quad-Port Full Height 1GbE Ethernet Server Adapter Click to enlarge the picture
Contents of the user manual for the Intel I350-F4 Quad-Port Full Height 1GbE
- Product category: Network Interface Cards & Adapters Intel
- Brand: Intel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intel Network Interface Cards & Adapters
|
User manual for the Intel I350-F4 Quad-Port Full Height 1GbE contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intel product will considerably shorten its lifespan!
|
Product description Provided by third party: The Intel Ethernet Server Adapter I350-F4 builds on Intel's extended history of excellence in Ethernet products. Intel continues its market leadership with this generation of PCIe GbE network adapters. Built with the bridgeless Intel I350 Ethernet Controller, these adapters represent the next step in the GbE networking evolution for the enterprise and data center by introducing new levels of performance through industry-leading enhancements for both virtualized and iSCSI Unified Networking environments. This family of adapters also includes power management technologies such as Energy Efficient Ethernet (EEE) and DMA Coalescing (DMAC).
- Key Features
-
- Halogen-free dual- or quad-port Gigabit Ethernet adapters
- Power management features including Energy Efficient
- Ethernet (EEE) and DMA Coalescing for increased efficiency and reduced power consumption
- Flexible I/O virtualization for port partitioning and quality of service (QoS)
- Scalable iSCSI performance delivering cost-effective SAN connectivity
- High-performing bridgeless design supporting PCI Express
- Reliable and proven Gigabit Ethernet technology
- Industry-leading smallest non-bridged PCIe Gen2 quad-port 1 GbE controller
- Enables customers to take full advantage of 1 GbE by providing maximum bi-directional throughput per port on a single quad-port adapter
- Enables higher bandwidth and throughput from standard and low-profile PCIe slots and servers. * For more information refer to the product brief
- Compatible with all major server brands
- Limited Lifetime
- Flexible I/O Virtualization
- The Intel Ethernet I350 adapter includes Intel Virtualization technology for connectivity to deliver I/O virtualization and Quality of Service (QoS) features designed directly into the I350 controller on the adapter. I/O virtualization advances network connectivity models used in the servers to more efficient models by providing Flexible Port Partitioning (FPP), multiple Rx/Tx queues, and on-controller QoS functionality that can be used in both virtual and non-virtual server deployments.
- Scalable iSCSI performance
- Intel Ethernet I350 Server Adapter with native iSCSI initiators provides a simple, dependable, cost-effective way to connect to LANs and iSCSI SANs. These native initiators are broadly tested using multiple generations of operating systems, storage systems, and OS tools to help ensure reliability and ease of use. Standardizing on Intel Ethernet for iSCSI allows administrators to use a single initiator, TCP/IP stack, and a common set of management tools and IT policies.
- Energy Efficient Ethernet (EEE)
- The Intel Ethernet I350 Server Adapter family supports the IEEE802.3az Energy Efficient Ethernet (EEE) standard so that, during periods of low network activity, EEE reduces the power consumption of an Ethernet connection by negotiating with a compliant EEE switch port to transition to a low power idle (LPI) state. This reduces the controller power to approximately 50% of its normal operating power, saving power on the network port and the switch port. As soon as increased network traffic is intelligently detected, the controller on the platform and the switch quickly come back to full power to handle the increased network traffic.
- DMA coalescing
- Another power management technology that can reduce power on the server platform is DMA Coalescing (DMAC). Typically, when a packet arrives at a server, DMA calls are made to transfer the packet within the server. These calls wake up the processor, memory and other system components from a lower power state in order to perform the tasks required to handle the incoming packet. Based on the configurable DMAC settings, incoming packets are buffered momentarily before any DMA calls are made. This enables the controller to intelligently identify opportunities to batch multiple packets together so that when components are wakened from lower power states they can efficiently handle the batched packets at the same time. This enables platform components to remain in lower power states longer, which can dramatically reduce platform energy consumption.
UPC: 735858224567 In the Box Intel I350-F4 Quad-Port Full Height 1GbE Ethernet Server Adapter 5) Adapters, Adapter CD & Low Profile Brackets Brochure PDF 666.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel I350-F4 Quad-Port Full Height 1GbE Ethernet Server Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntel I350F4BLK Specs | | | Device Type | Network adapter | | Form Factor | Plug-in card | | Interface (Bus) Type | PCI Express 2.0 x4 | | PCI Specification Revision | PCIe 2.0 | | | | Ports | 1000Base-SX x 4 | | Connectivity Technology | Wired | | Cabling type | Ethernet 1000Base-SX | | Data Link Protocol | Gigabit Ethernet | | Data Transfer Rate | 1 Gbps | | Max Transfer Distance | 1000 ft | | Network / Transport Protocol | TCP/IP, UDP/IP | | Features | Virtual Machine Device Queues (VMDq) | | Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1as, IEEE 802.3az | | | | Processor | 1 x I350 - Intel | | | | Interfaces | 4 x 1000Base-SX - LC multi-mode - x 2 | | Compatible Slots | 1 x PCI Express 2.0 x4 | | | | Compatible with Windows 7 | "Compatible with Windows 7" software and devices carry Microsoft's assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. | | Compliant Standards | FCC Class B certified, UL, VCCI, C-Tick, BSMI, KCC | | Package Type | Bulk | | | | Width | 4.4 in | | Depth | 5.3 in | | | | Min Operating Temperature | 32
