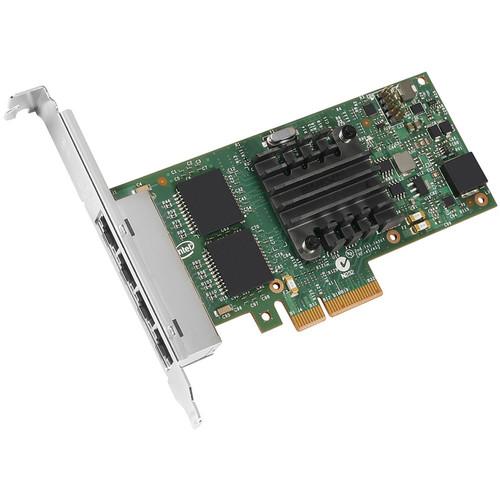

User Manual for Intel I350-T4V2 Ethernet Server Adapter Click to enlarge the picture
Contents of the user manual for the Intel I350-T4V2 Ethernet Server Adapter
- Product category: Network Interface Cards & Adapters Intel
- Brand: Intel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intel Network Interface Cards & Adapters
|
User manual for the Intel I350-T4V2 Ethernet Server Adapter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intel product will considerably shorten its lifespan!
|
Product description The I350-T4V2 Ethernet Server Adapter from Intel is a Windows, Linux, FreeBSD, and VMWare compatible Gigabit Ethernet adapter for servers that will provide wired network access. This is a four port adapter that supports a PCIe v2.1 system interface, 5.0 GT/s speed, and a x4 lane slot width. It uses an Intel I350 controller, supports low profile and full height brackets, uses a copper cabling medium, supports Cat 5 cables up to 100m, and has a TDP of 5W.
This Gigabit Ethernet adapter also supports Intel Ethernet Power Management, Intelligent Offloads, and iSCSI and NFS Storage over Ethernet. Additionally, a host of Intel Virtualization Technology options are supported, such as On-chip QoS and Traffic Management, Flexible Port Partitioning, Virtual Machine Device Queues (VMDq), and PCI-SIG SR-IOV capabilities. - Intel Ethernet Power Management
- Intel Ethernet Power Management Technology helps provide solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed
- Flexible Port Partitioning
- Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to help efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth
- Virtual Machine Device Queues (VMDq)
- Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq helps reduce overhead associated with I/O switching in the VMM which helps improve throughput and overall system performance
- PCI-SIG SR-IOV Capable
- Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices
UPC: 735858286343 Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel I350-T4V2 Ethernet Server Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntel I350T4V2 Specs | | | Number of Ports | Quad | | System Interface Type | PCIe v2.1 (5.0 GT/s) | | Intel Virtualization Technology (VT-c) | Yes | | Speed & Slot Width | 5.0 GT/s, x4 Lane | | Controller | Intel I350 | | | | iWARP/RDMA | No | | Intel Ethernet Power Management | Yes | | Intelligent Offloads | Yes | | Storage Over Ethernet | iSCSI, NFS | | | | On-chip QoS and Traffic Management | Yes | | Flexible Port Partitioning | Yes | | Virtual Machine Device Queues (VMDq) | Yes | | PCI-SIG SR-IOV Capable | Yes | | | | Vertical Segment | Server | | Cable Medium | Copper | | Cabling Type | Cat 5 up to 100 m | | Bracket Height | Low Profile and Full Height | | TDP | 5 W | | | | Supported Operating Systems | Windows Server 2012 R2, Windows Server 2012, Windows 8, Windows Server 2008 R2, Windows 7, Windows Server 2008, Windows Vista, Windows Server 2003 R2, Windows Server 2003, Windows XP Professional, Linux Stable Kernel version 3.x, and 2.6.x, Red Hat Enterprise Linux 5 and 6, SUSE Linux Enterprise Server 10 and 11, FreeBSD 9, VMware ESX/ESXi | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 8.9 x 5.7 x 1.2" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 78 owners. Add your rating and experience with the product.
