User Manual for Intel NUC 7 Enthusiast NUC7i7BNHXG Mini PC Click to enlarge the picture
Contents of the user manual for the Intel NUC 7 Enthusiast NUC7i7BNHXG Mini
- Product category: Desktop Computers Intel
- Brand: Intel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intel Desktop Computers
 |
User manual for the Intel NUC 7 Enthusiast NUC7i7BNHXG Mini contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intel product will considerably shorten its lifespan!
|

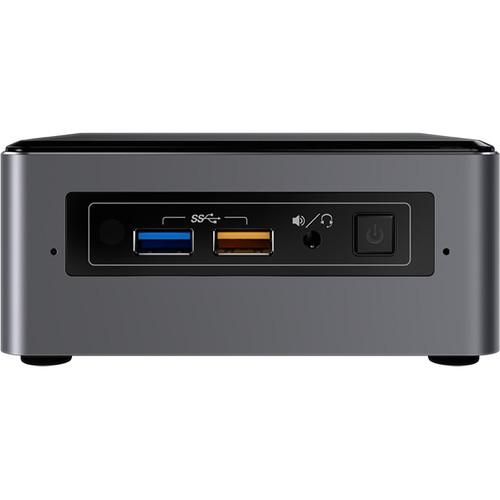

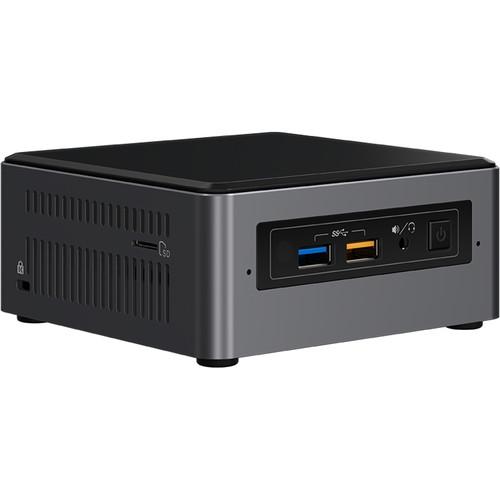

Product description The Intel NUC 7 Enthusiast NUC7i7BNHXG Mini PC comes equipped with an Intel Core i7-7567U processor, 8GB of DDR4 memory, and 2TB HDD to run the preinstalled Windows 10 Home operating system. Intel has enhanced the access times of the 2TB hard drive with a 32GB Optane M.2 module that delivers SSD cache performance. Furthermore, Intel has designed this mini PC with a compact form factor so you can mount it behind a VESA-compatible monitor with an included mounting bracket, letting you maximize desktop space.
The Intel Core i7-7567U processor features two cores that operate at a stock speed of 3.5 GHz for handling everyday apps. For demanding software programs, each of the cores can run at speeds of up to 4.0 GHz. In addition to the speeds, the Intel Core i7-7567U processor is equipped with 4MB of cache memory and has a thermal design power of 28W.

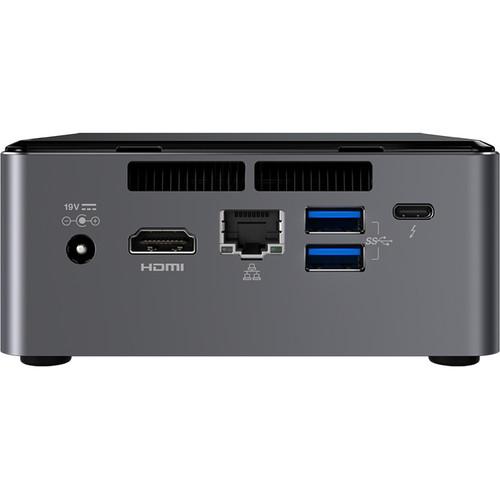

Intel's NUC 7 Enthusiast utilizes an onboard Intel HD Graphics 650 chipset that delivers up to 4K visuals to your monitors utilizing a built-in HDMI 2.0 port as well as a Thunderbolt 3 port that offers daisy-chaining capabilities with up to six devices, including monitors, DAS storage systems, and external graphics cards. The Thunderbolt 3 connection transmits data at a rate of up to 40 Gb/s and utilizes a convenient USB Type-C design, letting you connect with a USB-C or Thunderbolt 3 cable on the first try. To complete the multimedia experience, 7.1-channel surround sound is provided through the video connections and a combo headphone/microphone jack. Other notable connections include four USB 3.0 ports for a keyboard, mouse, printer, and external storage drive. For accessing networks, the NUC7i7BNHXG is equipped with a Gigabit Ethernet port and 802.11ac Wi-Fi. There's also Bluetooth 4.2 on board, so the system can wirelessly connect to speakers, mice, and other Bluetooth-enable devices.
On the exterior, the mini PC is outfitted a built-in microphone along with a multi-colored LED ring, so you can personalize it with a color you want. There's also an integrated card slot for reading and writing to microSDXC memory cards. In addition, Intel includes an external 65W wall-mountable power adapter for powering the compact system. Intel NUC 7 Enthusiast Features - One of the front-facing USB 3.0 ports is designed to charge battery-powered devices
- Support for user-replaceable third-party lids
- Fan sensor inputs used to monitor fan activity

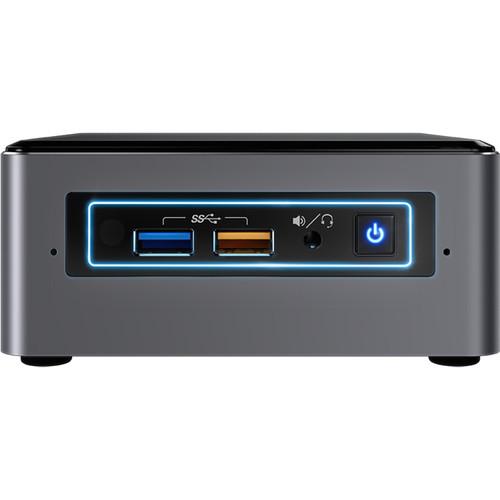

- Multi-color selectable front panel LED ring
- Kensington lock slot with base security
Windows 10 Home Features - Start Menu
- After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
- Cortana
- Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills.
- Microsoft Edge
- After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
- Windows Store
- For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
- Windows Continuum
- Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
- Xbox on Windows 10
- Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift.
UPC: 735858351188 In the Box Intel NUC 7 Enthusiast NUC7i7BNHXG Mini PC VESA Mount Bracket Wall-Mountable Power Adapter with Multi-Country Plugs Processor Badge Limited 3-Year Warranty Spec sheet PDF 530.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel NUC 7 Enthusiast NUC7i7BNHXG Mini PC in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntel Enthusiast Specs | Operating System | Windows 10 Home | | | | CPU | 3.5 GHz Intel Core i7-7567U Dual-Core | | Maximum Boost Speed | 4 GHz | | L3 Cache | 4 MB | | Memory Type | 2400 MHz DDR4 | | Total Installed Memory | 8 GB | | Memory Configuration | 1 x 8 GB (User-Replaceable) | | Maximum Memory Capacity | 32 GB | | Memory Slot Type | 260-Pin SO-DIMM | | Available Memory Slots | 1 | | Intel Optane Memory | 32 GB (M.2) | | Graphics Type | Integrated | | GPU | Intel HD Graphics 650 | | | | Hard Disk Storage | 1 x 2 TB 2.5" SATA (rpm unspecified) | | Optical Drive | None | | | | Ports | 4 x USB Type-A (USB 3.1 Gen 1) | | USB Type-C Ports | 1 x Thunderbolt 3 | | Display | 1 x HDMI 2.0 | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | | Built-In Microphones | Yes | | Media Card Slots | 1 x microSDXC | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | Bluetooth | 4.2 | | | | Keyboard | None | | Pointing Device | None | | | | Power Supply | 65 W | | Dimensions | 4.5 x 4.4 x 2" / 114.3 x 111.8 x 50.8 mm | | | | Package Weight | 2.95 lb | | Box Dimensions (LxWxH) | 5.6 x 5.1 x 4.6" |
