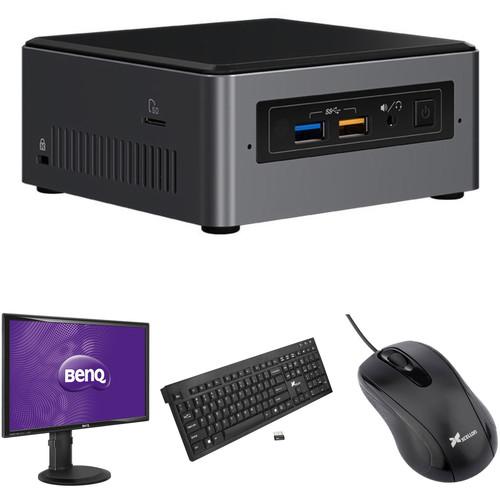

User Manual for Intel NUC 7 Home NUC7i3BNHXF Mini PC Kit with Monitor, Keyboard, and Mouse Click to enlarge the picture
Contents of the user manual for the Intel NUC 7 Home NUC7i3BNHXF Mini
- Product category: Desktop Computers Others
- Brand: Others
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Others Desktop Computers
|
User manual for the Intel NUC 7 Home NUC7i3BNHXF Mini contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Others product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Others user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Others product will considerably shorten its lifespan!
|
Product description This Kit provides you with the Intel NUC 7 Home NUC7i3BNHXF Mini PC along with a 27" monitor, keyboard, and mouse, making this setup a complete desktop system. The monitor connects to the NUC 7 via HDMI, while the keyboard and mouse occupy the system's two USB ports. Once connected, you can utilize the computing performance coming from an Intel Core i3-7100U dual-core processor and 4GB of RAM. - Intel NUC 7 Home NUC7i3BNHXF Mini PC The Intel NUC 7 Home NUC7i3BNHXF Mini PC comes equipped with a 2.4 GHz Intel Core i3-7100U dual-core processor, 4GB of DDR4 memory, and 1TB HDD to run the preinstalled Windows 10 Home operating system. Intel has enhanced the access times of the 1TB hard drive with a 16GB Optane M.2 module that delivers SSD cache performance. Furthermore, Intel has designed this mini PC with a compact form factor so you can mount it behind a VESA-compatible monitor with an included mounting bracket, letting you maximize desktop space.
Intel's NUC7i3BNHXF mini PC utilizes an onboard Intel HD Graphics 620 chipset that delivers up to 4K visuals to your monitors utilizing a built-in HDMI 2.0 port or a user-supplied mini-DisplayPort-to-USB-C adapter connected to the NUC's USB 3.1 Type-C port, which offers speeds of up to 10 Gb/s. To complete the multimedia experience, 7.1-channel surround sound is provided through the video connections and a combo headphone/microphone jack. Other notable connections include four USB 3.0 ports for a keyboard, mouse, printer, and external storage drive. Aside from wired connections, Bluetooth 4.2 is on board so the system can wirelessly connect to speakers, mice, and other Bluetooth-enable devices.
On the exterior, the NUC 7 Home is outfitted a built-in microphone along with a multi-colored LED ring, so you can personalize it with a color you want. There's also an integrated card slot for reading and writing to microSDXC memory cards. For accessing networks, the NUC7i3BNHXF is equipped with a Gigabit Ethernet port and 802.11ac Wi-Fi. In addition, Intel includes an external 65W wall-mountable power adapter for powering the NUC. Intel NUC 7 Home Features - One of the front-facing USB 3.0 ports is designed to charge battery-powered devices
- Support for user-replaceable third-party lids
- Fan sensor inputs used to monitor fan activity
- Multi-color selectable front panel LED ring
- Kensington lock slot with base security
Windows 10 Home Features - Start Menu
- After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
- Cortana
- Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills.
- Microsoft Edge
- After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
- Windows Store
- For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
- Windows Continuum
- Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
- Xbox on Windows 10
- Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift.
UPC: 735858351102 - BenQ GW2765HT 27" 16:9 IPS Monitor The GW2765HT 27" 16:9 IPS Monitor from BenQ features a 27" display complete with a 2560 x 1440 resolution, a 4 ms response time, a 1,000:1 contrast ratio, and a brightness rating of 300 cd/m². The display can also be viewed from nearly any angle as it supports 178° horizontal and 178° vertical viewing angles and support for up to 1.07 billion colors. The HD display is designed to suit a variety of needs as it comes equipped with features like reading mode, an enhanced dynamic contrast ratio, and multimedia HDMI connectivity.
- IPS Technology
- The 27" widescreen IPS (In-Plane Switching) display panel lets you enjoy a wide 178°/178° viewing angle.
- Display
- The 27" panel displays 109 pixels per inch (ppi) allowing images to look crisper.
- RevolutionEyes Technology
- The RevolutionEyes technology offers incredible eye comfort features allowing you to watch movies, read, and work on documents or surf the web for hours on end without causing eye strain.
- ZeroFlicker Backlight
- The ZeroFlicker technology eliminates flickering at all brightness levels and effectively provides long lasting comfortable viewing.
- Low Blue Light Technology
- With adjustable low blue light levels, users can increase their viewing comfort while preventing any damages caused by blue lights. In addition, users no longer need to purchase additional yellow tinted glasses because the low blue light technology is built-in.
- HDMI Multimedia Interface
- The HDMI high-speed multimedia interface makes this monitor convenient to use, allowing you to enjoy digital entertainment even with additional multimedia equipment in the future.
- Integrated Speakers
- Whether you're listening to music or watching your favorite film, the dual 1W speakers provide an enhanced audio experience.
- Ergonomic Monitor Positioning
- Extensive monitor adjustments - height, tilt, pivot, and swivel - allow you to position the display as per your height and viewing preferences.
- Senseye 3 Visual Solution
- With the help of its six proprietary calibration techniques, Senseye 3 delivers enhanced viewing quality in each of its pre-set viewing modes - Standard, Movie, Game, Photo, sRGB, Reading, M-book, and Eco - with the Eco Mode especially designed to save power and money.
- Windows 8/8.1 Compatible
- The GW2765HT has passed Windows 8/8.1 certification and is fully compatible with both color systems. Plug in the GW2765HT to your computer, and Windows 8/8.1 will recognize it instantly, making setup and connection.
UPC: 840046030742 - Xcellon KW-A300B Wireless Aluminum Keyboard Type in style with KW-A300B Wireless Aluminum Keyboard. This keyboard is constructed from sleek brushed aluminum and connects wirelessly to your computer via the included nano-receiver. It can transmit from up to 23' away from the receiver and runs on a pair of AAA batteries (included).
- To set up, simply plug the nano-receiver into your computer's USB port and connect the keyboard using the included instructions. Plug-and-play design removes the need to bother with installation software.
- A pair of feet under the keyboard can be extended, raising the back of the keyboard for comfort.
- Scissor keycaps reduce noise while remaining low in profile.
- A dedicated My Computer key lets you see your computer's drives at a glance.
- This keyboard is compatible with Windows XP and newer, including Windows Vista, 7, 8, and 10.
UPC: 847628585003 - Xcellon MCO-A300B Wired Optical Mouse The 800 dpi resolution found on the MCO-A300B Wired Mouse from Xcellon makes this optical mouse suitable for use with a variety of applications on Windows-, Mac-, Google Chrome-, and Linux-based computers. Simply plug the mouse into an available USB port and begin navigating through programs with ease thanks to the 3-button configuration, complete with a rubberized scroll wheel. Left-handed or right-handed, this ambidextrously designed mouse can be used by just about anyone.
- Optical sensor with 800 dpi resolution
- Smooth and accurate tracking
- Rubberized scroll wheel with middle click
- Textured, comfortable grip
UPC: 847628588288 In the Box NUC 7 Home NUC7i3BNHXF Mini PC zdzcfaqbsxfrwdvrfxtyxs VESA Mount Bracket Wall-Mountable Power Adapter with Multi-Country Plugs Processor Badge Limited 3-Year Warranty - BenQ - GW2765HT 27" 16:9 IPS Monitor
- Xcellon - KW-A300B Wireless Aluminum Keyboard
- Xcellon - MCO-A300B Wired Optical Mouse
Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel NUC 7 Home NUC7i3BNHXF Mini PC Kit with Monitor, Keyboard, and Mouse in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Intel NUC 7 Home NUC7i3BNHXF Mini PC
Operating System | Windows 10 Home | | CPU | 2.4 GHz Intel Core i3-7100U Dual-Core | L3 Cache | 3 MB | Memory Type | 2400 MHz DDR4 | Total Installed Memory | 4 GB | Memory Configuration | 1 x 4 GB (User-Replaceable) | Maximum Memory Capacity | 32 GB | Memory Slot Type | 260-Pin SO-DIMM | Available Memory Slots | 1 | Intel Optane Memory | 16 GB (M.2) | Graphics Type | Integrated | GPU | Intel HD Graphics 620 | | Hard Disk Storage | 1 x 1 TB 2.5" SATA (rpm unspecified) | PCI Expansion | None | Optical Drive | None | | Ports | 4 x USB Type-A (USB 3.1 Gen 1) | USB Type-C Ports | 1 x USB 3.1 Gen 2 1 x USB 3.1 Gen 2 (Supports DisplayPort) | Display | 1 x HDMI 2.0 | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | Built-In Microphones | Yes | Media Card Slots | 1 x microSDXC | | Ethernet | 1 x RJ45 (Gigabit) | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | Bluetooth | 4.2 | | Keyboard | None | Pointing Device | None | | Power Supply | 65 W | Dimensions | 4.5 x 4.4 x 2" / 114.3 x 111.8 x 50.8 mm | | Box Dimensions (LxWxH) | 5.6 x 5.2 x 4.6" | - BenQ GW2765HT 27" 16:9 IPS Monitor
| Size | 27" | Panel Type | IPS-Type LCD | Touchscreen | No | Resolution | 2560 x 1440 | Aspect Ratio | 16:9 | Maximum Brightness | 350 cd/m2 | Contrast Ratio | 1000:1 | Dynamic Contrast Ratio | 20,000,000:1 | Adaptive Sync Technology | None | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | Color Gamut | 100% sRGB | Response Time | 4 ms (GtG) | Viewing Angle | Horizontal: 178° Vertical: 178° | Dot Pitch | 0.2331 x 0.2331 mm | | Connectivity | 1 x 3.5 mm Input/Output 1 x 3.5 mm Output 1 x DVI-D 1 x DisplayPort Input 1 x HDMI 1 x VGA | Built-In Speakers | Yes, 2 x 1 W | | Power Consumption | 0.5 W (Standby) 32 W (Typical) | AC Input Power | 90 to 264 VAC, 50 / 60 Hz | Power Adapter Type | Internal | | Height Adjustment | 5.1" / 13 cm | Swivel Adjustment | 320° (-160 to 160°) | Tilt Adjustment | -5 to 20° | Mounting-Hole Pattern | 100 x 100 mm | Dimensions (W x H x D) | 25.2 x 21.8 x 9.6" / 64.1 x 55.5 x 24.4 cm 25.2 x 14.9 x 2.2" / 64.1 x 37.9 x 5.6 mm (Without Stand) | Weight | 15.2 lb / 6.9 kg | | Box Dimensions (LxWxH) | 29.0 x 19.0 x 9.0" | - Xcellon KW-A300B Wireless Aluminum Keyboard
| Number of Keys | 104 | Switch Type | Scissor | | Connection Type | Wireless | Wireless Connectivity | 2.4 GHz RF | Wireless Range | 23' / 7 m | Full-Functionality OS Support | Windows | | Built-In Control Device | None | | Battery Requirements | 2 x AAA | Maximum Current Consumption | 100 mA | | Material of Construction | Aluminum | Dimensions (L x W x H) | 17.5 x 6.3 x 0.7" / 445.0 x 160.0 x 18.0 mm | Weight | 2.0 lb / 0.9 kg | | Box Dimensions (LxWxH) | 18.8 x 7.2 x 1.4" | - Xcellon MCO-A300B Wired Optical Mouse
Sensor | Optical | dpi | 800 | Scroll Type | Scroll Wheel | Number of Buttons | 3 | Hand Orientation | Ambidextrous | Connector | USB Type-A | Cable Length | 5' / 1.5 m | Full-Functionality OS Support | Mac, Windows, Linux | Dimensions (L x W x H) | 1.4 x 2.5 x 4.4" / 35.5 x 63.5 x 114.3 mm | Weight | 3.0 oz / 85.0 g | | Box Dimensions (LxWxH) | 7.2 x 5.0 x 1.8" |
