User Manual for Intel NUC 8 Business Mini Desktop Computer Click to enlarge the picture
Contents of the user manual for the Intel NUC 8 Business Mini Desktop
- Product category: Desktop Computers Intel
- Brand: Intel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intel Desktop Computers
 |
User manual for the Intel NUC 8 Business Mini Desktop contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intel product will considerably shorten its lifespan!
|

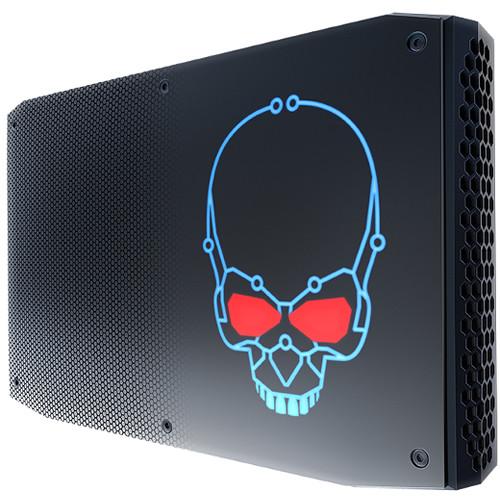

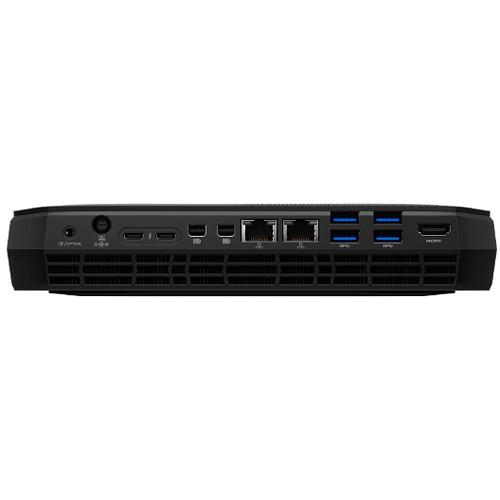

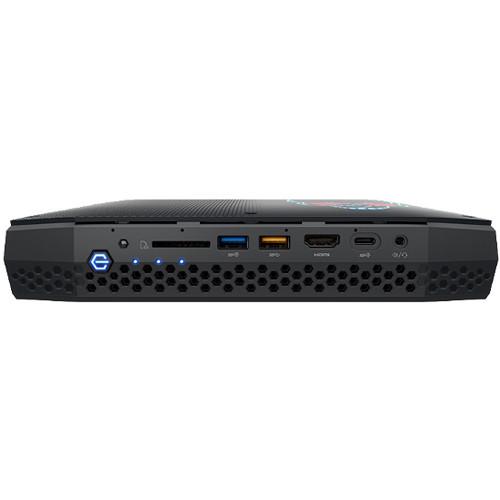

Product description The NUC 8 Business Mini Desktop Computer from Intel is a compact computing solution designed for users who may be working with limited space or require something portable. NUC kits are usually barebones systems and require additional components; however, this is a complete unit with a 3.1 GHz Intel Core i7-8705G quad-core processor, 16GB of DDR4 RAM, a 512GB NVMe PCIe SSD, and AMD Radeon RX Vega M GL graphics. Users still have the option of upgrading its RAM and storage capacity if needed. Other integrated features include an SDXC card reader, dual Gigabit Ethernet ports, 802.11ac Wi-Fi, Bluetooth 4.2, a variety of video connectivity options, multiple USB ports, Thunderbolt 3, and audio in/out jacks. The operating system installed is Windows 10 Pro. - Thunderbolt 3
- Thunderbolt 3 is a hardware interface that utilizes the reversible USB Type-C connector. Doubling the speed of its predecessor, Thunderbolt 3 features a maximum throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB 3.1 at up to 10 Gb/s, and dual-bandwidth DisplayPort 1.2 allows you to connect up to two 4K displays simultaneously. Additionally, you can daisy chain up to six devices from a single Thunderbolt 3 port.
- USB Ports
- If you need to connect more peripherals, there are internal headers for another two USB 2.0 and 3.0 ports when needed.
Windows 10 Pro - Start Menu
- After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
- Cortana
- Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills.
- Microsoft Edge
- After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
- Windows Store
- For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
- Windows Continuum
- Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
- Xbox on Windows 10
- Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift.
- Windows 10 Pro
- The Pro version of Windows 10 includes all of the features of Windows 10 Home plus many designed specifically for business users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications.
UPC: 735858391825 In the Box Intel NUC 8 Business Mini Desktop Computer Power Cable & Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel NUC 8 Business Mini Desktop Computer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntel Business Specs | Operating System | Windows 10 Pro (64-Bit) | | | | CPU Socket | BGA 2270 | | CPU | 3.1 GHz Intel Core i7-8705G Quad-Core | | Maximum Boost Speed | 4.1 GHz | | L3 Cache | 8 MB | | Memory Type | 2400 MHz DDR4 | | Total Installed Memory | 16 GB | | Memory Configuration | 2 x 8 GB (User-Replaceable) | | Maximum Memory Capacity | 32 GB | | Memory Slot Type | 260-Pin SO-DIMM | | Available Memory Slots | None | | Buffered Memory | No | | ECC Memory | No | | Graphics Type | Dedicated | | GPU | AMD Radeon RX Vega M GL | | | | Total Drive Bays | None | | SSD Slots | 1 x M.2 2280 PCIe x4 (Available)
1 x M.2 2280 PCIe x4 (In Use) | | Total Installed Capacity | 512 GB | | Solid State Storage | 1 x 512 GB M.2 NVMe PCIe | | Optical Drive | None | | | | Ports | 5 x USB Type-A (USB 3.1 Gen 1)
1 x USB Type-A (USB 3.1 Gen 2) | | USB Type-C Ports | 2 x Thunderbolt 3
1 x USB 3.1 Gen 2 | | Display | 2 x Mini DisplayPort 1.2
1 x HDMI 2.0a | | Audio | 4 x 1/8" / 3.5 mm Line Output
1 x 1/8" / 3.5 mm Microphone Input
1 x TOSLINK S/PDIF Output | | Built-In Speakers | None | | Built-In Microphones | None | | Media Card Slots | 1 x SDXC | | | | Ethernet | 2 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | MU-MIMO Support | Yes | | Bluetooth | 4.2 | | NFC | No | | | | Keyboard | None | | Pointing Device | None | | | | Package Weight | 6.615 lb | | Box Dimensions (LxWxH) | 11.8 x 9.1 x 4.1" |
