User Manual for Intel NUC 8 VR NUC8I7HVK Gaming Mini PC Click to enlarge the picture
Contents of the user manual for the Intel NUC 8 VR NUC8I7HVK Gaming
- Product category: Barebone PCs Intel
- Brand: Intel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intel Barebone PCs
 |
User manual for the Intel NUC 8 VR NUC8I7HVK Gaming contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intel product will considerably shorten its lifespan!
|

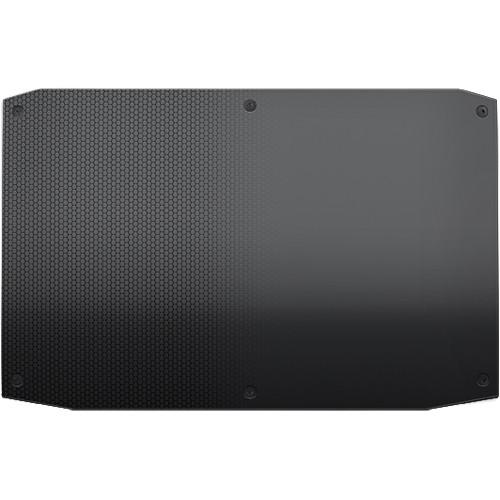

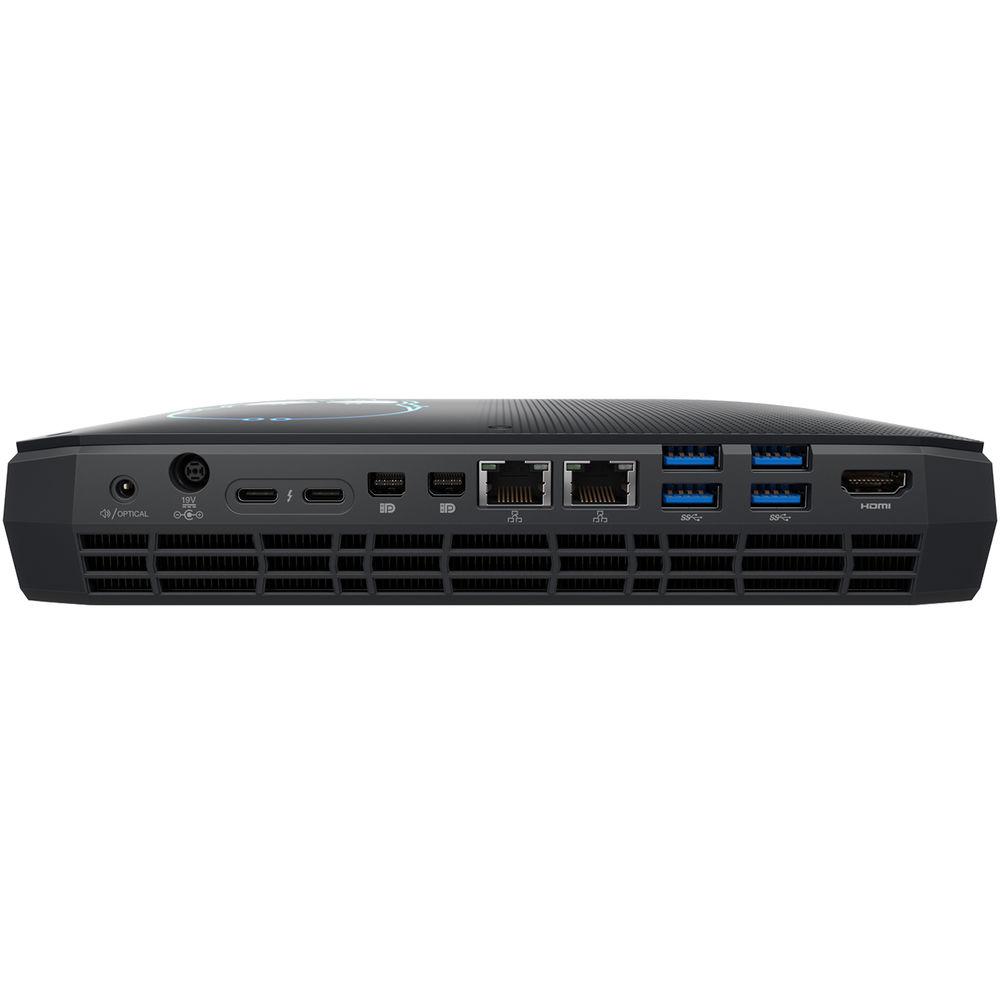

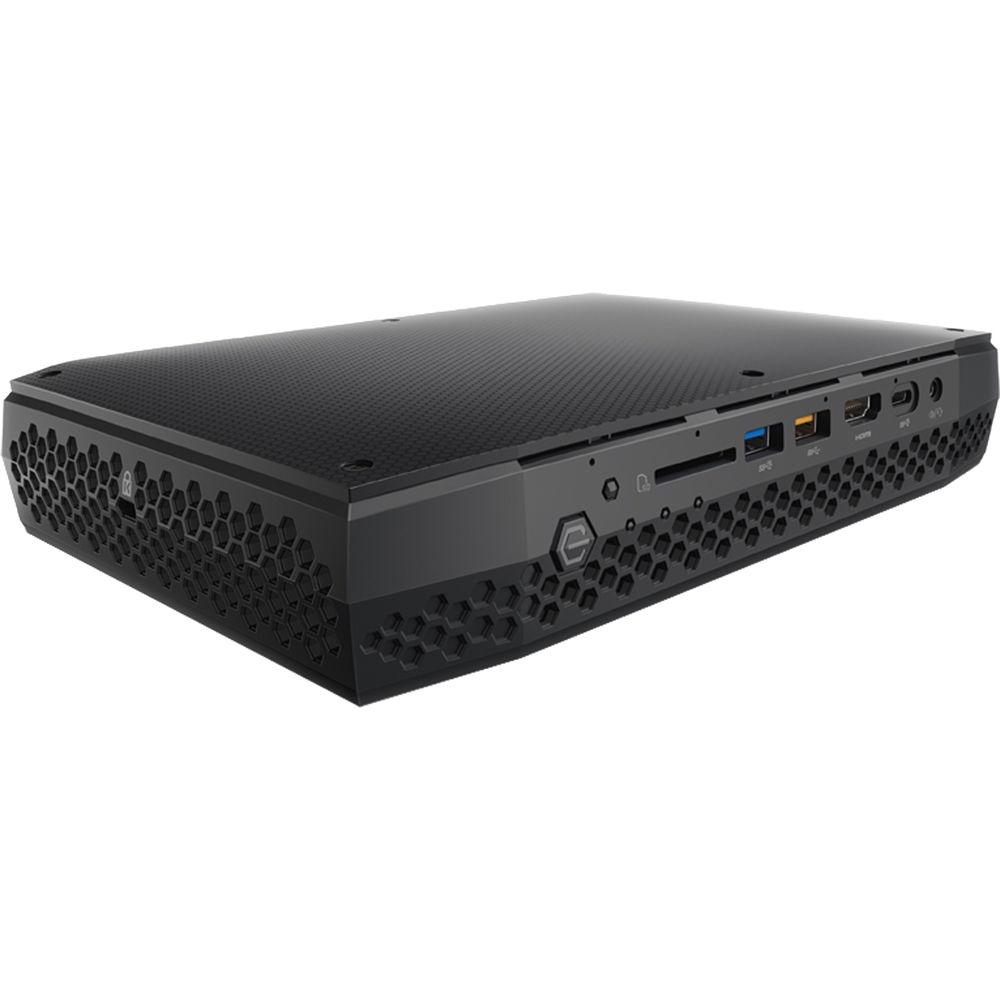

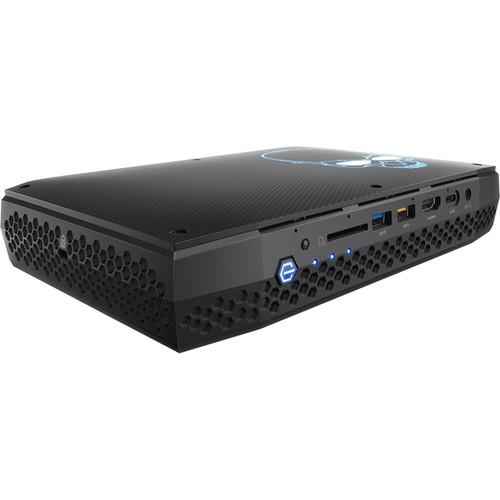

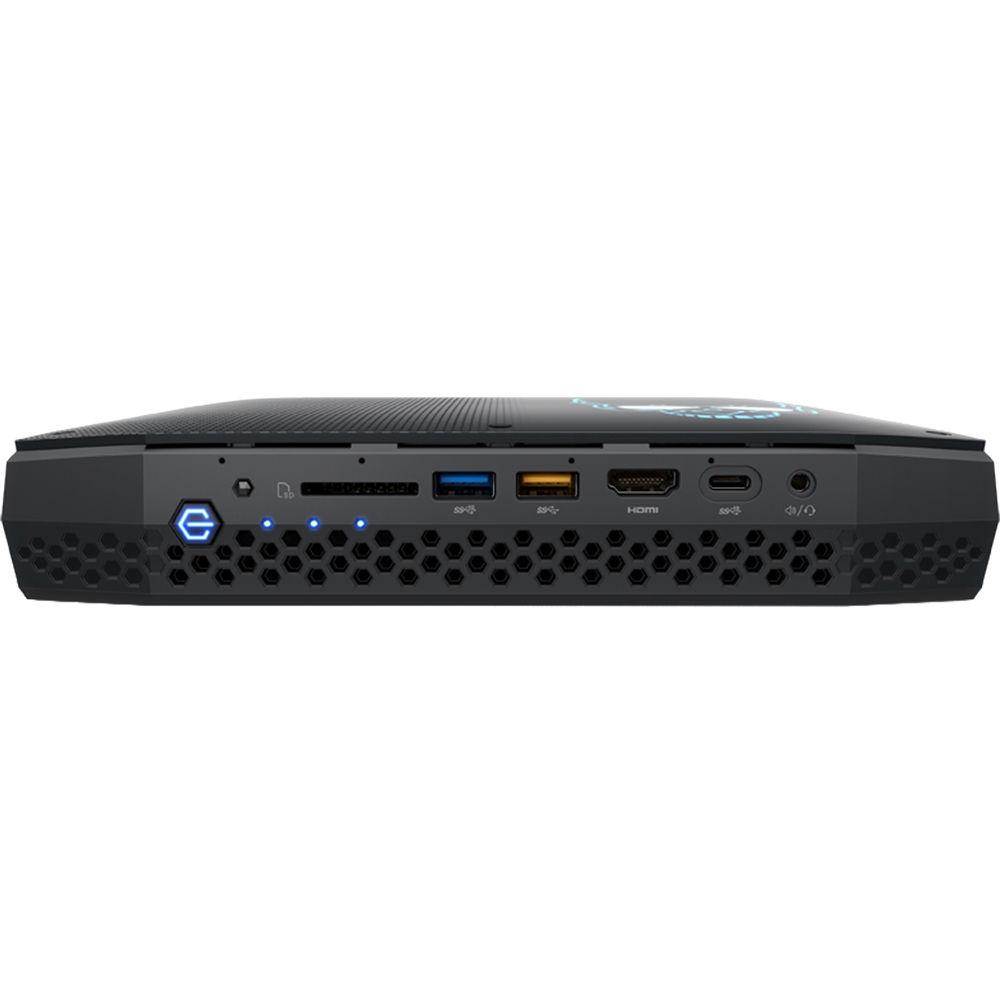

Product description The NUC 8 VR NUC8I7HVK Gaming Mini PC from Intel is a compact, barebones system equipped with a 3.1 GHz Intel Core i7-8809G quad-core processor and AMD Radeon RX Vega M GH graphics. It has two DDR4 SO-DIMM slots, supporting up to 32GB of 2400 MHz RAM, and two M.2 slots for storage drives. Unlike other NUC systems, this system's dedicated AMD Radeon RX Vega graphics is powerful enough to run VR applications and play graphically demanding games. Moreover, there are six video ports that you can use to connect displays. Other integrated features include 802.11ac Wi-Fi, two Gigabit Ethernet ports, Bluetooth 4.2, an SDXC card reader, and multiple USB ports. Included with this system is a VESA bracket, which you can use for alternate mounting solutions. - Barebones System
- The Intel NUC is a barebones system and does not include RAM, storage, or an operating system. Please note that you will have to install these on your own for it to function.
- Multi-Display Support
- This system has a total of six video ports including: two HDMI, two mini-DisplayPort, and two Thunderbolt 3 ports.
- Thunderbolt 3
- Thunderbolt 3 is a hardware interface that utilizes the reversible USB Type-C connector. Doubling the speed of its predecessor, Thunderbolt 3 features a maximum throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB 3.1 at up to 10 Gb/s, and dual-bandwidth DisplayPort 1.2 allows you to connect up to two 4K displays simultaneously. Additionally, you can daisy chain up to six devices from a single Thunderbolt 3 port.
- Infrared Capability
- As the NUC was designed especially for home theaters, this system features a front panel infrared sensor, which allows wireless communication with infrared-compatible devices, such as remote controls, keyboards, and other devices.
UPC: 735858351423 In the Box Intel NUC 8 VR NUC8I7HVK Gaming Mini PC VESA Mounting Plate Power Adapter Limited 3-Year Warranty User Manual PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel NUC 8 VR NUC8I7HVK Gaming Mini PC in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntel BOXNUC8I7HVK1 Specs | | | CPU Socket | BGA 2270 | | CPU | 3.1 GHz Intel Core i7-8809G Quad-Core | | Maximum Boost Speed | 4.2 GHz | | L3 Cache | 8 MB | | Memory Type | 2400 MHz DDR4 | | Total Installed Memory | None | | Maximum Memory Capacity | 32 GB | | Memory Slot Type | 260-Pin SO-DIMM | | Available Memory Slots | 2 | | Graphics Type | Dedicated | | GPU | AMD Radeon RX Vega M GH | | | | SSD Slots | 2 x M.2 | | Hard Disk Storage | None | | Optical Drive | None | | | | Ports | 1 x USB Type-A (USB 3.1 Gen 2)
4 x USB Type-A (USB 3.1 Gen 1) | | USB Type-C Ports | 1 x USB 3.1 Gen 2
2 x Thunderbolt 3 | | Display | 2 x Mini DisplayPort 1.2
2 x HDMI | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output
1 x 1/8" / 3.5 mm S/PDIF Output | | Media Card Slots | 1 x SDXC | | | | Ethernet | 2 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac) | | Bluetooth | 4.2 | | | | Power Supply | 230 W | | Dimensions | 8.7 x 5.5 x 1.5" / 221 x 139.7 x 38.1 mm | | Weight | 3 lb / 1.4 kg | | | | Package Weight | 6.85 lb | | Box Dimensions (LxWxH) | 10.8 x 7.7 x 4.8" |
