User Manual for Intel NUC Kit Mini PC NUC7I3DNH1E Click to enlarge the picture
Contents of the user manual for the Intel NUC Kit Mini PC NUC7I3DNH1E
- Product category: Barebone PCs Intel
- Brand: Intel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intel Barebone PCs
 |
User manual for the Intel NUC Kit Mini PC NUC7I3DNH1E contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intel product will considerably shorten its lifespan!
|

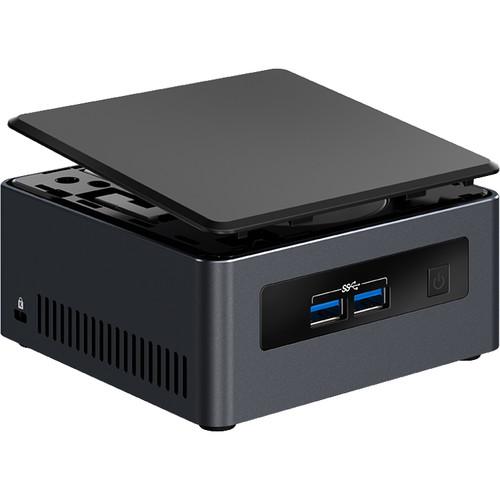

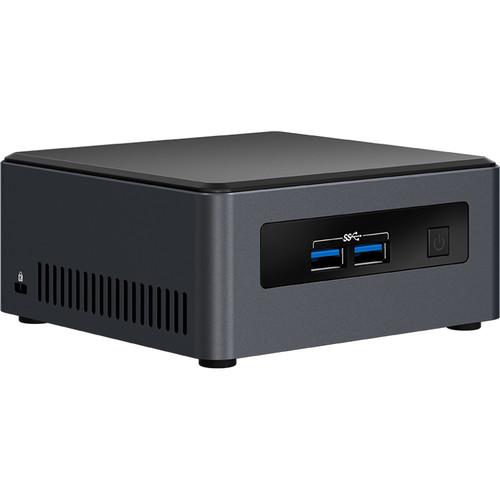

Product description The NUC Mini PC Kit from Intel is a partially equipped barebones system that comes preinstalled with a 7th-generation Intel Core i3-7100U dual-core processor. In addition to speedy performance, the processor is loaded with 3MB of cache memory and has a thermal design power of 15W. This mini PC has two SO-DIMM slots that can accommodate DDR4-2133 MHz memory modules up to 32GB, which allows the system to run multiple applications at the same time. Additionally, the NUC Mini PC has space for a single 2.5" storage drive, and is compatible with Intel Optane Memory, which is used as a cache to enhance a hard drive's performance. Once the storage drive of your choice is installed, you must install an operating system such as Windows 10 or Linux.

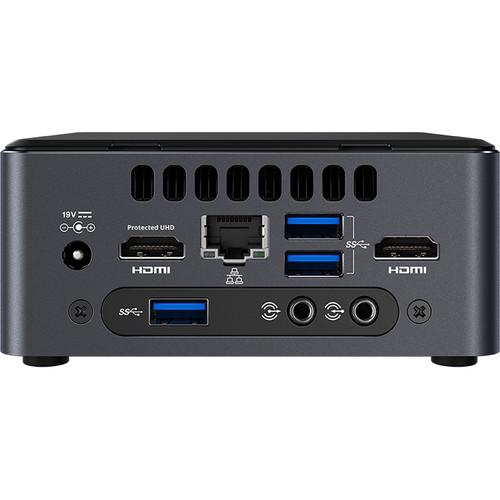

Intel's NUC Mini PC Kit utilizes an integrated Intel HD Graphics 620 chipset that delivers a resolution up to 4K. Extending the system's display to an external monitor is possible with one of the two available HDMI 2.0a ports. To complement your visuals, the NUC Mini PC supports 7.1-channel surround sound and has an integrated headphone/microphone jack. Other notable connections include five USB 3.0 Type-A ports and three USB 2.0 Type-A ports for access to wired peripherals like keyboards, printers, and external storage drives. If you run out of USB ports, this mini PC has Bluetooth 4.2 on board, so the system can sync with wireless peripherals.
For accessing networks, the NUC Mini PC is equipped with a Gigabit Ethernet port and 802.11ac Wi-Fi. Intel packs the rest of this kit with a VESA mount bracket, so you can attach the mini PC behind a VESA-compatible monitor. There's also a mountable power adapter for powering the NUC anywhere you choose to place it. -
- Compatible with Microsoft Windows 10 and various Linux operating systems

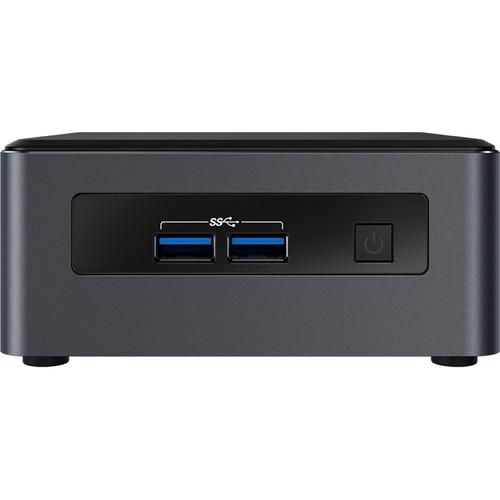

- One of the front-facing USB 3.0 ports is designed to charge battery-powered devices
- Fan sensor inputs used to monitor fan activity
- Mountable design allows the system to be secured on a wall or other surfaces
- Intel Optane Memory
- Intel Optane Memory in your PC delivers improved responsiveness, so you can start up quickly, search and find files more efficiently, and save large files with virtually no lag. Experience faster email application launches and rev up your gameplay with an improvement in next-level loading.
UPC: 735858349826 In the Box Intel NUC Kit Mini PC NUC7I3DNH1E VESA Mount Bracket 4 x Screws Wall-Mountable Power Adapter with Multi-Country Plugs Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel NUC Kit Mini PC NUC7I3DNH1E in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntel NUC Kit Mini PC Specs | | | CPU | 2.4 GHz Intel Core i3-7100U Dual-Core | | L3 Cache | 3 MB | | Memory Type | 2133 MHz DDR4 | | Total Installed Memory | None | | Memory Configuration | None | | Maximum Memory Capacity | 32 GB | | Memory Slot Type | 260-Pin SO-DIMM | | Available Memory Slots | 2 | | Buffered Memory | No | | ECC Memory | No | | Graphics Type | Integrated | | GPU | Intel HD Graphics 620 | | | | Total Drive Bays | 1 x 2.5" (Internal) | | SSD Slots | 1 x M.2 | | Hard Disk Storage | None | | Optical Drive | None | | | | Ports | 4 x USB Type-A (USB 3.1 Gen 1) | | Display | 2 x HDMI 2.0 | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | Bluetooth | 4.2 | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 5.7 x 4.9 x 4.5" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 47 owners. Add your rating and experience with the product.
