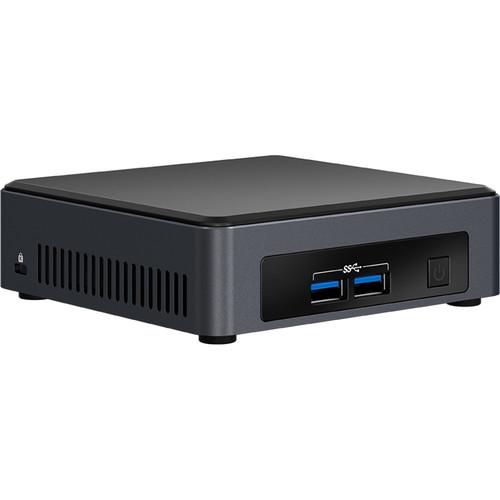

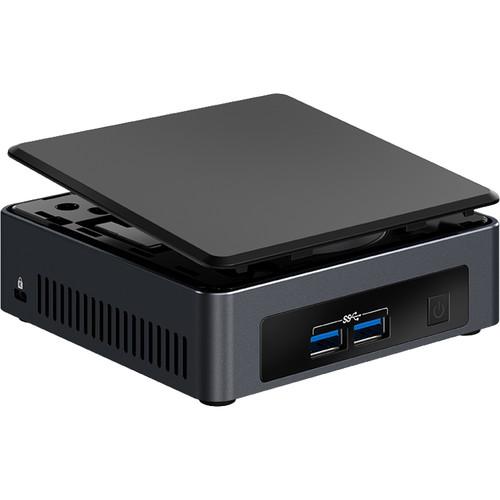

Product description The NUC Mini PC Kit from Intel is a partially equipped barebones system that comes preinstalled with a 7th-generation Intel Core i5-7300U dual-core processor. In addition to speedy performance, the processor is loaded with 3MB of cache memory and has a thermal design power of 15W. This mini PC has two SO-DIMM slots that can accommodate DDR4-2133 MHz memory modules up to 32GB, which allows the system to run multiple applications at the same time. Additionally, the NUC Mini PC has space for a single M.2 solid-state drive. Once the storage drive of your choice is installed, you must install an operating system such as Windows 10 or Linux.

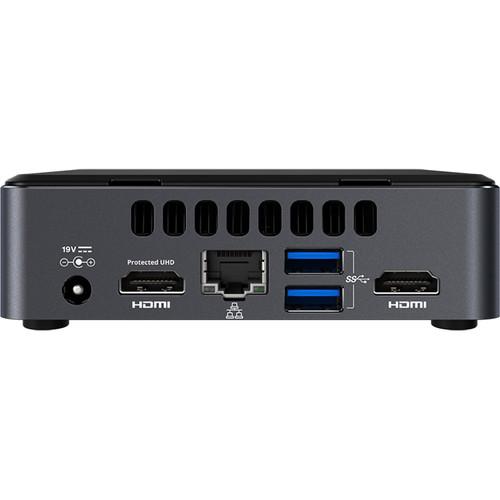

Intel's NUC Mini PC Kit utilizes an integrated Intel HD Graphics 620 chipset that delivers a resolution up to 4K. Extending the system's display to an external monitor is possible with one of the two available HDMI 2.0a ports, or with its alternative four-lane embedded DisplayPort 1.4 port. To complement your visuals, the NUC Mini PC supports 7.1-channel surround sound has an integrated headphone/microphone jack. Other notable connections include four USB 3.0 Type-A ports, along with two USB 2.0 Type-A and a single USB 3.0 Type-A internal header ports for access to wired peripherals like keyboards, printers, and external storage drives. If you run out of USB ports, this mini PC has Bluetooth 4.2 on board, so the system can sync with wireless peripherals.
For accessing networks, the NUC Mini PC is equipped with a Gigabit Ethernet port and 802.11ac Wi-Fi. Intel packs the rest of this kit with a VESA mount bracket, so you can attach the mini PC behind a VESA-compatible monitor. There's also a mountable power adapter for powering the NUC anywhere you choose to place it. - NUC Mini PC Kit Features
-
- Compatible with Microsoft Windows 10 and various Linux operating systems
- One of the front-facing USB 3.0 ports is designed to charge battery-powered devices
- Fan sensor inputs used to monitor fan activity
- Mountable design allows the system to be secured on a wall or other surfaces
- USB 3.1 Gen 1
- USB 3.1 Gen 1 features a maximum throughput of 5 Gb/s. USB 3.1 Gen 1 and USB 3.0 are synonymous.
UPC: 735858349581 In the Box Intel NUC Mini PC Kit NUC7i5DNKE VESA Mount Bracket 4 x Screws Wall-Mountable Power Adapter with Multi-Country Plugs Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel NUC Mini PC Kit NUC7i5DNKE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntel BLKNUC7I5DNK1E Specs | CPU | 2.6 GHz Intel Core i5-7300U Dual-Core | Maximum Boost Speed | 3.5 GHz | L3 Cache | 3 MB | Memory Type | 2133 MHz DDR4 | Total Installed Memory | None | Memory Configuration | None | Maximum Memory Capacity | 32 GB | Memory Slot Type | 260-Pin SO-DIMM | Available Memory Slots | 2 | Buffered Memory | No | ECC Memory | No | Graphics Type | Integrated | GPU | Intel HD Graphics 620 | | SSD Slots | 1 x M.2 | Hard Disk Storage | None | PCI Expansion | 1 x PCIe Gen 3 1 x PCIe x4 1 x PCIe x1 | Optical Drive | None | | Ports | 5 x USB Type-A (USB 3.1 Gen 1) 2 x USB Type-A (USB 2.0) | Display | 2 x HDMI 2.0 1 x DisplayPort 1.4 | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | | Ethernet | 1 x RJ45 (Gigabit) | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | Bluetooth | 4.2 | | Package Weight | 2.15 lb | Box Dimensions (LxWxH) | 5.5 x 5.0 x 4.0" |
