User Manual for Intel NUC5CPYH Mini PC NUC Kit Click to enlarge the picture
Contents of the user manual for the Intel NUC5CPYH Mini PC NUC Kit
- Product category: Barebone PCs Intel
- Brand: Intel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intel Barebone PCs
 |
User manual for the Intel NUC5CPYH Mini PC NUC Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intel product will considerably shorten its lifespan!
|

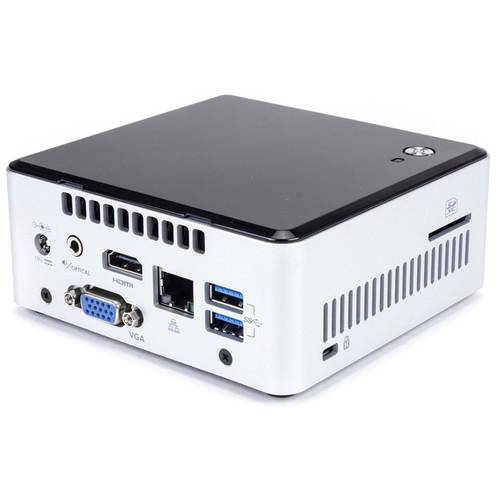

Product description The NUC5CPYH Mini PC NUC Kit from Intel is a do-it-yourself barebones kit that starts with a dual-core 1.6 GHz Intel Celeron processor that can achieve up to 2.16 GHz with Intel Turbo Boost. It has one vacant SODIMM slot that can accept up to 8GB of DDR3L 1333/1600 MHz of RAM. For storage, the Mini PC can hold a SATA III 2.5" hard drive or SSD. The NUC5CPYH features an HDMI and a VGA port for video output to a monitor or TV (sold separately). For Internet connectivity, it also has 802.11ac Wi-Fi and a Gigabit Ethernet jack. For additional connectivity this system has Bluetooth 4.0 for peripherals and other external devices.There's also an SD/SDXC card slot for storage flexibility, front and rear audio jacks, and four USB 3.0 ports. One of the front USB ports can quickly charge your tablet, smartphone, or USB device. To save desk space, this system is VESA-compatible for mounting and comes with a bracket and screws. For security, it is equipped with a Kensington lock. The NUC is suitable for entry-level consumers or organizations looking for a value-oriented mini-PC. Included with this system are an AC/DC power adapter and multi-country AC plugs. - Processing and Graphics
- This NUC is equipped with a 1.6 GHz dual core Intel Celeron N3050 processor featuring Intel HD Graphics to provide enhanced performance and graphics for casual gaming, video playback, and web browsing. With Intel Turbo Boost Technology 2.0, this processor can achieve a maximum clock rate of 2.16 GHz. Having two cores allows the system to run multiple programs at the same time without slowing down the computer.
- Intel Visual BIOS
- The BIOS has a configuration-friendly, easy-to-use interface that lets you customize settings while reducing the risk of damaging your system. Whether you want to prioritize boot order, change the BIOS password, enable overclocking, or set fan speed, Intel Visual BIOS gives you total control.
- Compatible with Linux
- Linux can be installed, either as the primary OS or as a separate partition alongside Windows.
- Audio Out and Microphone-In Port
- The two 1/8" (3.5mm) headphone/microphone jacks, one in front, and one on the rear on the device, let you connect headphones, speakers, or headsets to the Intel NUC.
- Quiet Cooling
- The system features active cooling with minimal noise through the use of one fan.
- Kensington Lock Support
- Features a slot for a Kensington lock to be used in order to deter theft.
UPC: 735858293167 In the Box Intel NUC5CPYH Mini PC NUC Kit VESA Mount Bracket, with Screws Wall-Mount AC/DC Power Adapter Multi-Country AC Plugs (IEC Types A/C/GI) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel NUC5CPYH Mini PC NUC Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntel NUC5CPYH Specs | | | CPU | 1.6 GHz Intel Celeron N3050 Dual-Core | | Maximum Boost Speed | 2.16 GHz | | Memory Type | 1600 MHz DDR3L | | Total Installed Memory | None | | Maximum Memory Capacity | 8 GB | | Memory Slot Type | 204-Pin SO-DIMM | | Available Memory Slots | 1 | | Graphics Type | Integrated | | GPU | Intel HD Graphics | | | | Total Drive Bays | 1 x 2.5" (Internal) | | Hard Disk Storage | None | | Optical Drive | None | | | | Ports | 4 x USB Type-A (USB 3.1 Gen 1)
2 x USB Type-A (USB 2.0) | | Display | 1 x HDMI
1 x VGA | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | | Media Card Slots | 1 x SDXC | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac) | | Bluetooth | 4.0 | | | | Power Supply | 65 W | | Dimensions | 4.5 x 4.4 x 2" / 115 x 111 x 51.6 mm | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 5.4 x 5.1 x 4.9" |
