User Manual for Intel NUC6CAYH Mini PC NUC Kit Click to enlarge the picture
Contents of the user manual for the Intel NUC6CAYH Mini PC NUC Kit
- Product category: Barebone PCs Intel
- Brand: Intel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intel Barebone PCs
 |
User manual for the Intel NUC6CAYH Mini PC NUC Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intel product will considerably shorten its lifespan!
|

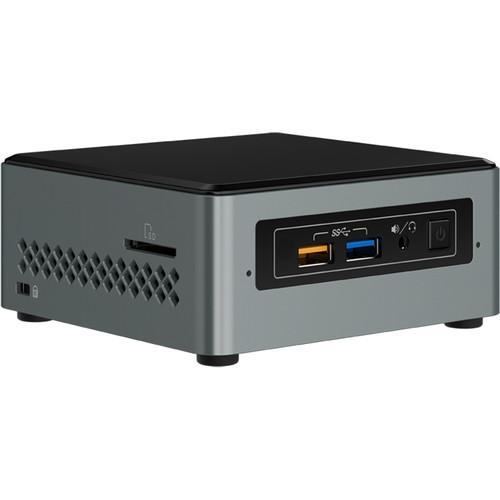

Product description Build a mini-sized PC system with the Intel NUC6CAYH Mini PC NUC Kit, which comes preinstalled with an Intel Celeron J3455 processor and supports up to 8GB of DDR3L memory as well as a 2.5" hard drive or SSD. The Intel Celeron J3455 processor sports four cores that operate at a stock speed of 1.5 GHz and can achieve speeds of up to 2.3 GHz while running demanding apps. The 2.5" drive bay can hold SATA-based storage drives up to 9.5mm high. Once a drive is mounted, you will need to install an operating system such as Windows 10, which is sold separately. On the exterior, the NUC comes with a built-in microphone along with a multi-colored LED ring, so you can personalize it with a color you want. There's also an integrated card slot for reading and writing to SD, SDHC, and SDXC memory cards.

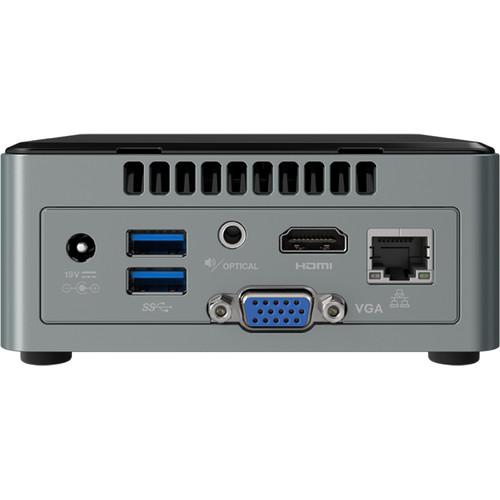

Intel has equipped the NUC6CAYH with an HDMI 2.0 port along with an Intel HD Graphics 500 chipset to deliver up to 4K visuals to your TV or monitor. For supporting older monitors, it has a VGA port. To complete the multimedia experience, 7.1-channel surround sound is provided through its HDMI port, optical port, and combo audio jack.

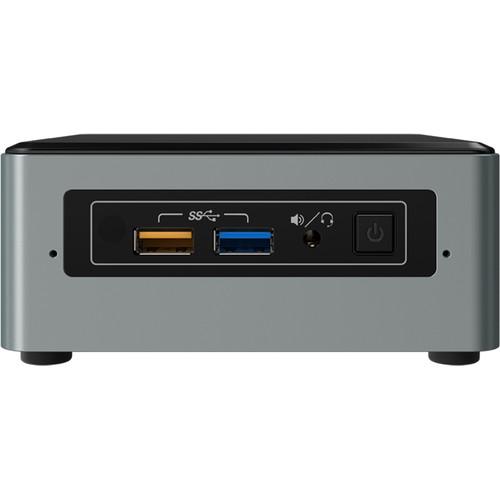

Aside from multimedia, the NUC6CAYH provides four USB 3.0 ports, letting the system access printers, keyboards, external storage drives, and other useful peripherals. Additionally, one of the USB 3.0 ports can charge a battery-powered device while the system is turned off. If you need more USB ports, there's a USB 2.0 header to support an optional adapter with two USB 2.0 ports. Other notable connections include a Gigabit Ethernet port as well as 802.11ac Wi-Fi for accessing the Internet wired or wirelessly. Moreover, Bluetooth 4.2 is on board for wireless connections to headsets, speakers, and other Bluetooth-enabled devices. For powering the NUC, Intel includes an external 65W wall-mountable power adapter. - Compatible with Microsoft Windows 10 and various Linux distros

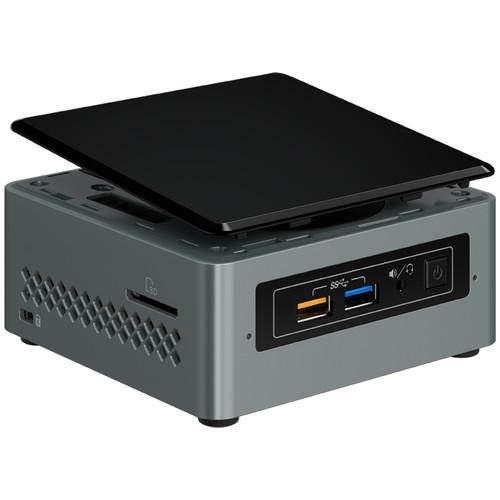

- Support for user-replaceable third-party lids
- Fan sensor inputs used to monitor fan activity
- Multi-color selectable front panel LED ring
- Kensington lock slot with base security
UPC: 735858320344 In the Box Intel NUC6CAYH Mini PC NUC Kit VESA Mount Bracket Wall-Mountable Power Adapter with Multi-Country Plugs Processor Badge Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel NUC6CAYH Mini PC NUC Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntel NUC6CAYH Specs | | | CPU | 1.5 GHz Intel Celeron J3455 Quad-Core | | Maximum Boost Speed | 2.3 GHz | | L3 Cache | 2 MB | | Memory Type | 1866 MHz DDR3L | | Total Installed Memory | None | | Maximum Memory Capacity | 8 GB | | Memory Slot Type | 204-Pin SO-DIMM | | Available Memory Slots | 2 | | Graphics Type | Integrated | | GPU | Intel HD Graphics 500 | | | | Total Drive Bays | 1 x 2.5" (Internal) | | Hard Disk Storage | None | | PCI Expansion | None | | Optical Drive | None | | | | Ports | 4 x USB Type-A (USB 3.1 Gen 1) | | Display | 1 x HDMI 2.0
1 x VGA | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output
1 x 1/8" / 3.5 mm Line Output | | Built-In Microphones | Yes | | Media Card Slots | 1 x SDXC | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | Bluetooth | 4.2 | | Webcam | None | | | | Keyboard | None | | Pointing Device | None | | | | Power Supply | 65 W | | Dimensions | 4.5 x 4.4 x 2" / 114.3 x 111.8 x 50.8 mm | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 5.6 x 5.1 x 4.6" |
