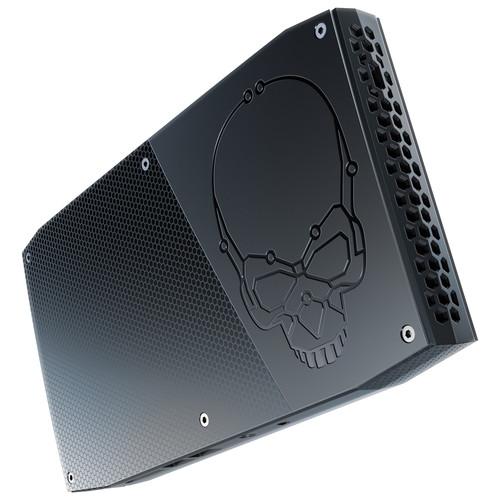

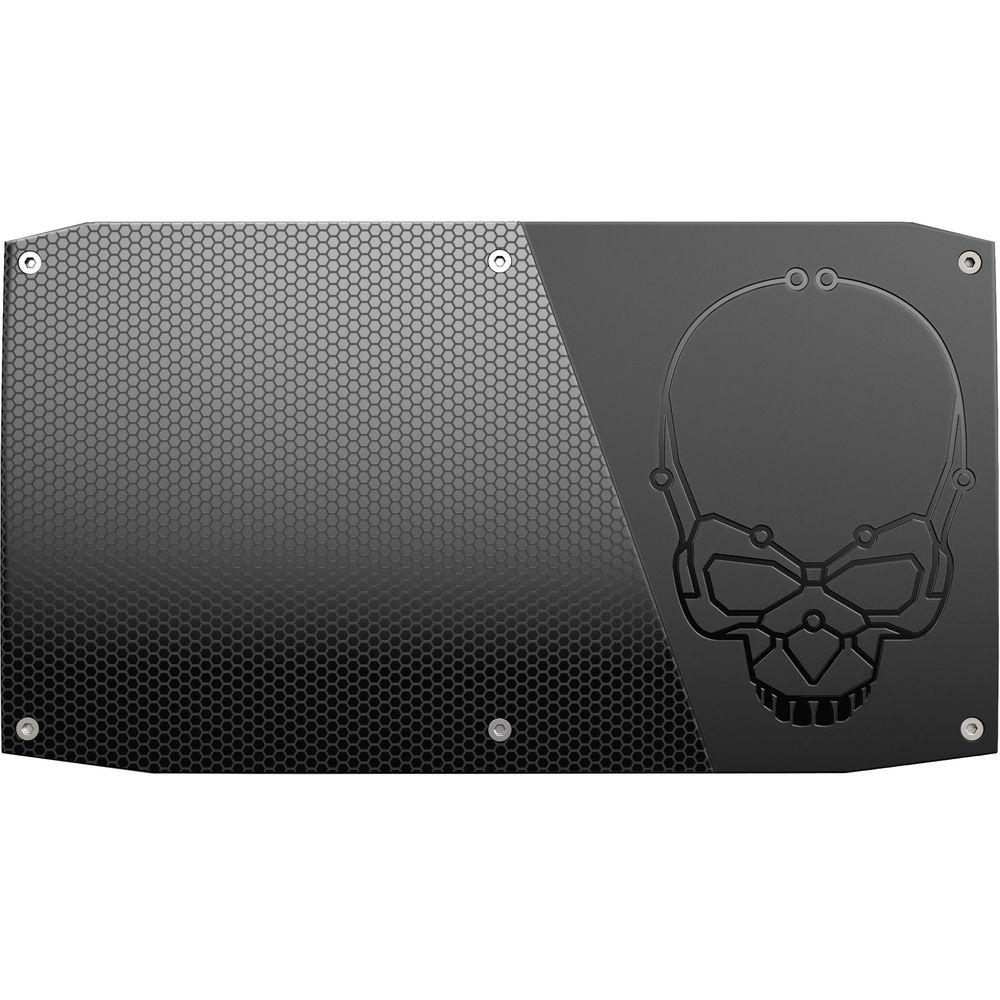

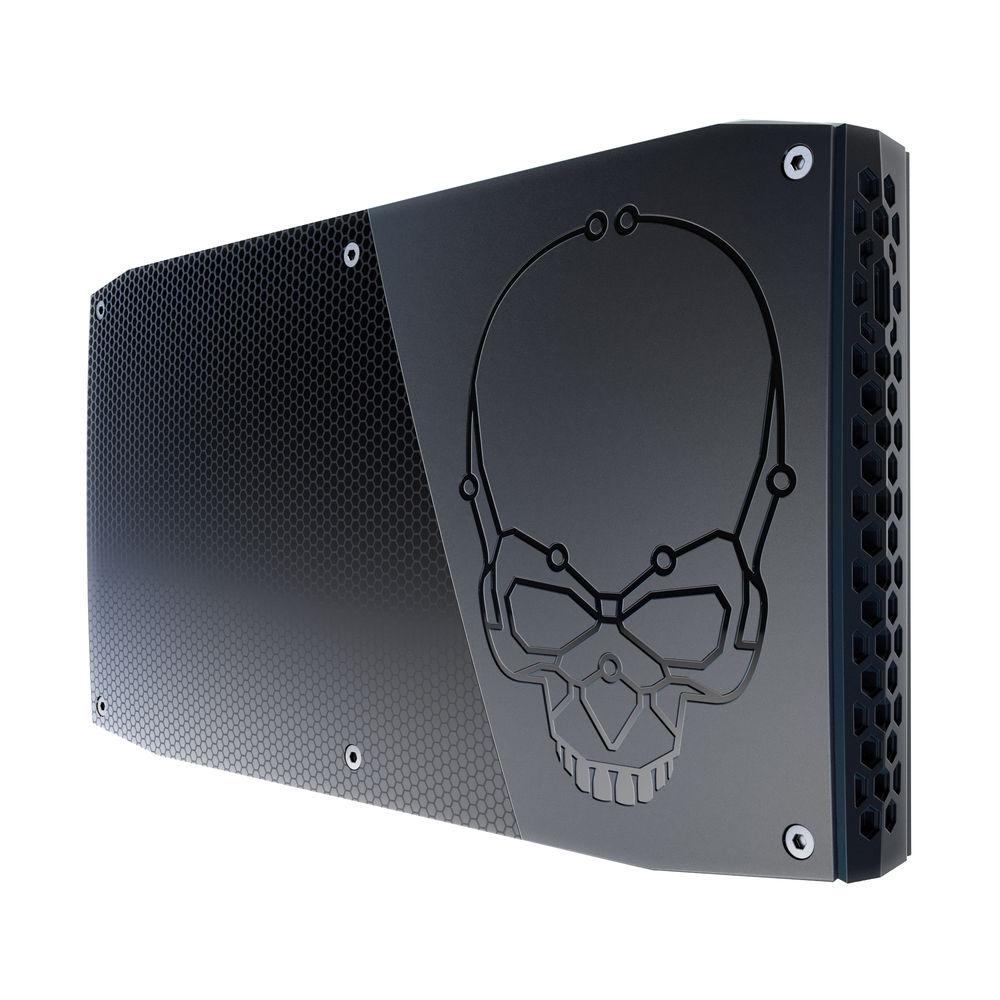

User Manual for Intel NUC6i7KYK Mini PC NUC Kit Click to enlarge the picture
Contents of the user manual for the Intel NUC6i7KYK Mini PC NUC Kit
- Product category: Barebone PCs Intel
- Brand: Intel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intel Barebone PCs
 |
User manual for the Intel NUC6i7KYK Mini PC NUC Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intel product will considerably shorten its lifespan!
|
Product description Latest Intel NUC Gets Upgraded with Intel Core i7-6770HQ, Thunderbolt 3 Read More The Intel NUC6i7KYK Mini PC NUC Kit features an Intel Core i7-6770HQ processor and the capabilities you need to build a powerful portable system that you can take with you or fit neatly behind the monitor. The 2.6 GHz 6th-generation Intel Core i7-6770HQ processor comes armed with four cores for multitasking as well as offering speed bursts of up to 3.5 GHz while handling demanding apps. For memory capabilities, this NUC can support up to 32GB of DDR4 SO-DIMM memory modules as well as house two M.2 2242/80 SSDs that have a SATA- or PCIe-based interface. Moreover, it sports an integrated Intel Iris Pro Graphics 580 chipset so you can experience 4K visuals as well as smooth frame rates.

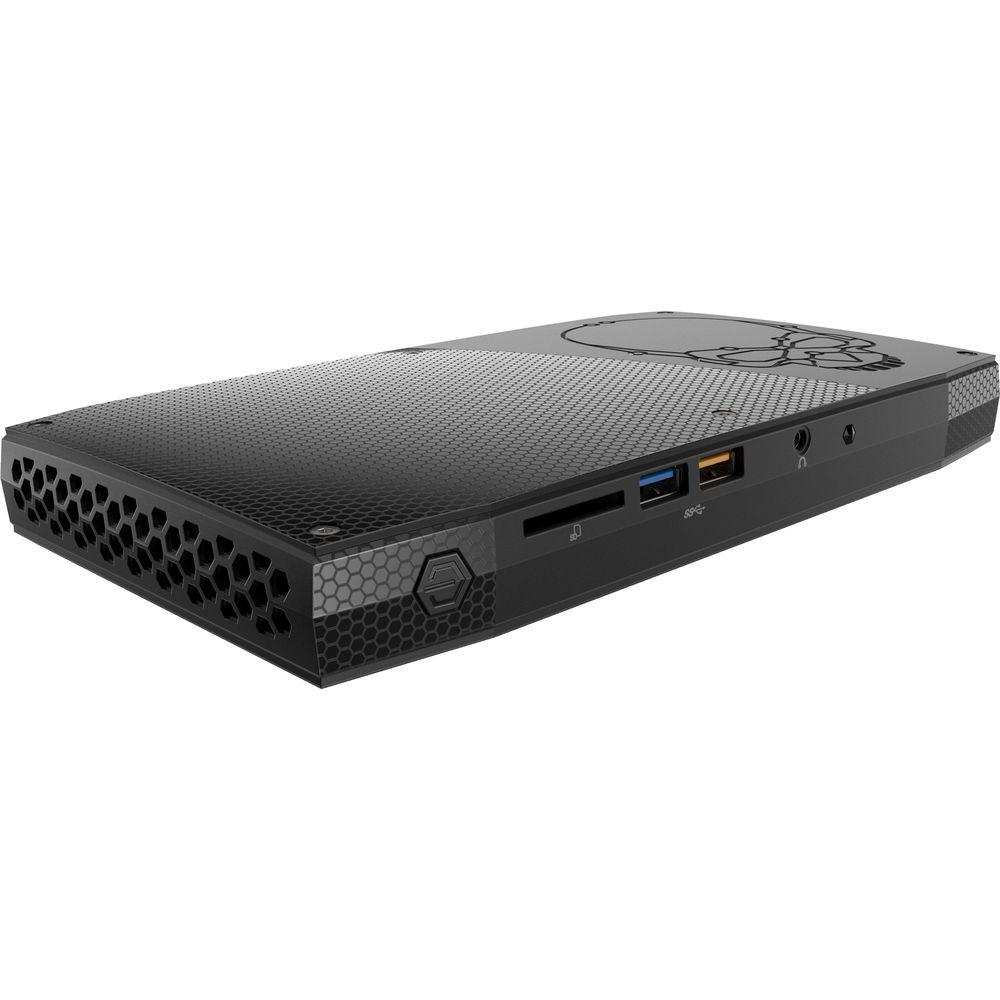

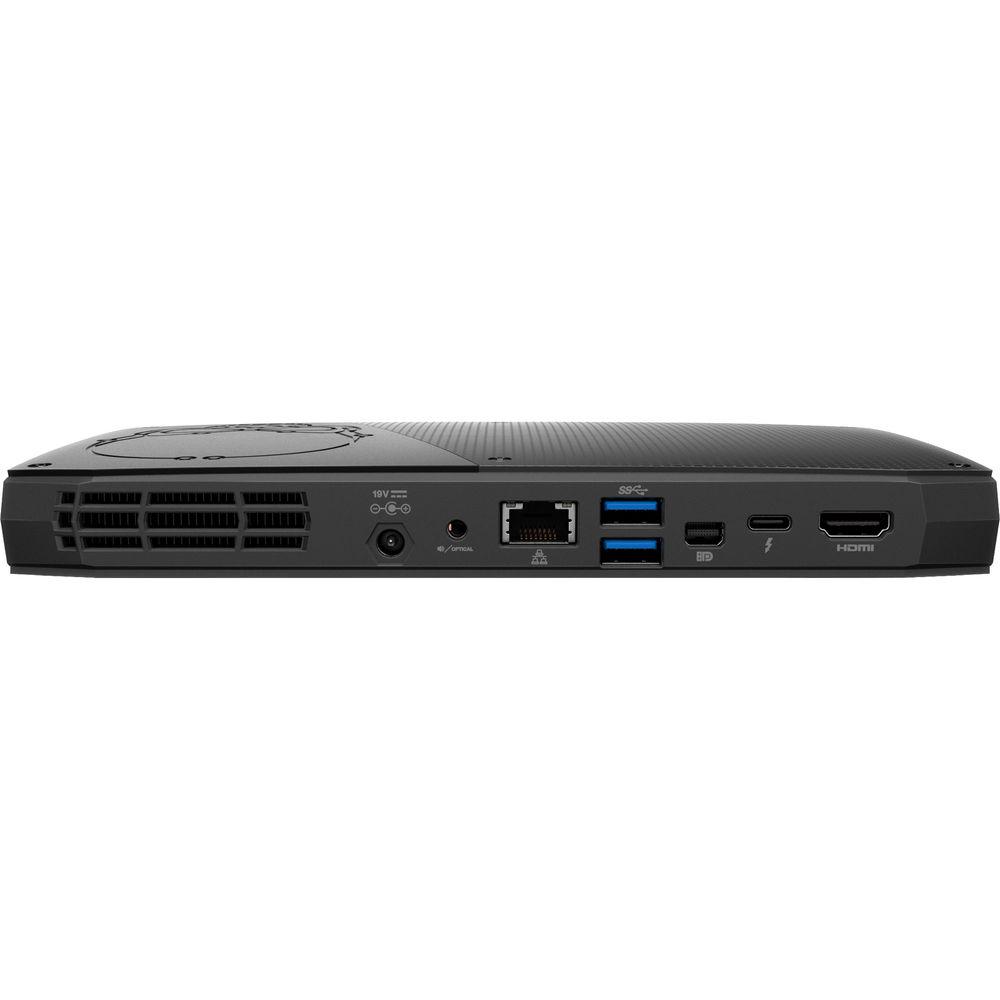

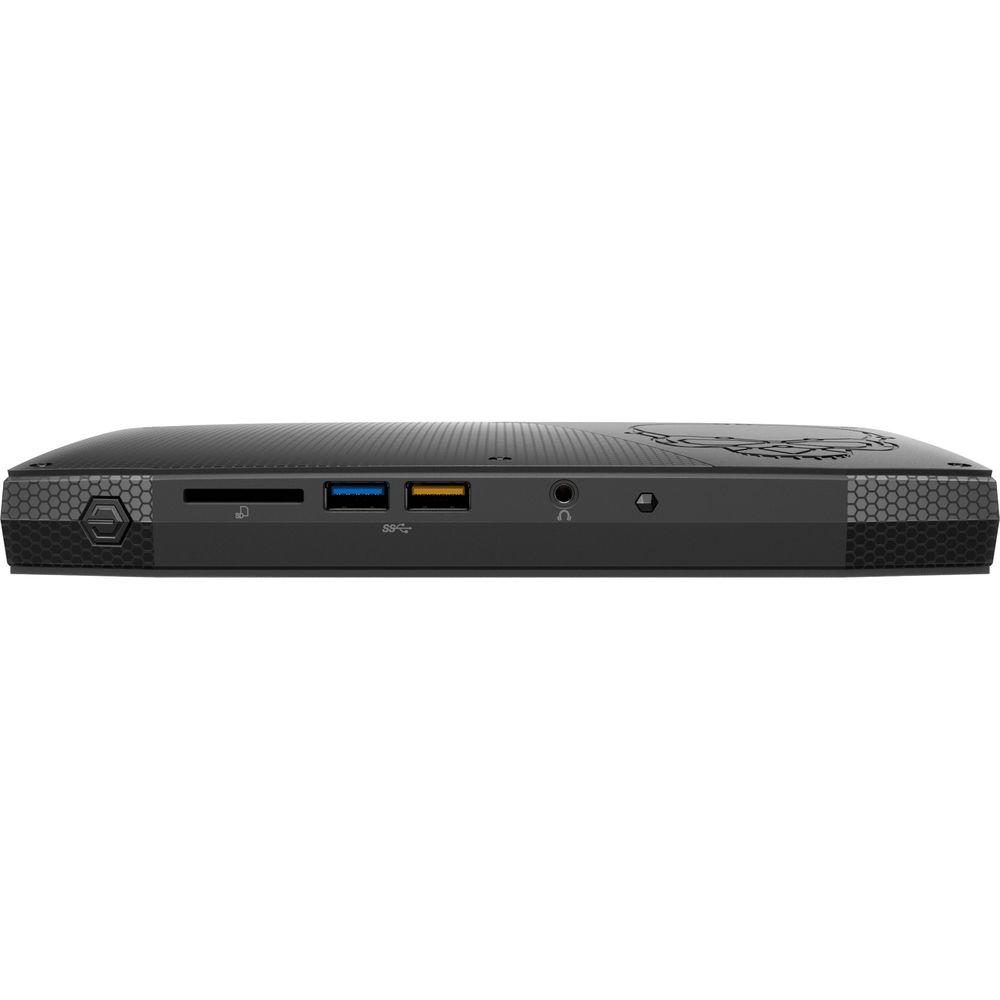

Intel has outfitted this NUC with a feature you do not normally find with most other NUCs by equipping it with a Thunderbolt 3 port that lets you daisy chain multiple devices such as monitors and storage drives. You can also enhance the graphics capabilities of this NUC by utilizing a dedicated graphics card, which is housed in a Thunderbolt enclosure. Other notable ports included with this NUC are four USB 3.0 ports and two audio jacks along with an HDMI 2.0 port, mini-DisplayPort 1.2, and Gigabit Ethernet port. Aside from ports, an SDXC slot, 802.11ac Wi-Fi, and Bluetooth 4.2 wireless are on board. Included along with the NUC are an external power adapter and a VESA mount that attaches the NUC6i7KYK behind your display. - Quad-Core Skylake Intel Core i7 Performance
- This NUC features a 2.6 GHz 6th-generation Skylake Intel Core i7-6770HQ processor, with 6MB of L3 cache. The Skylake processor uses less energy when compared to previous Intel processors. With Intel Turbo Boost Technology, the maximum clock rate this processor can achieve is 3.5 GHz. Having four cores also allows the NUC to run multiple programs at the same time without slowing down the system.
- Intel Iris Pro Graphics
- The Intel Iris Pro Graphics chipset with 4K display capabilities allows you to edit photos and videos like a professional or immerse yourself in seamless 3D gameplay, all in 4K on three monitors at once. With Intel Iris Pro graphics, the NUC can quickly convert media files and provide fast frame rates.
- Wireless
- The NUC6i7KYK comes with Intel 802.11ac wireless, so you can connect out-of-the-box to access files, movies, and music in the cloud. Furthermore, Bluetooth 4.2 is onboard, so you can connect wireless peripherals such as headsets and keyboards.
- Additional Features
- This NUC supports up to 32GB of RAM, so you can install the memory you need for fast map load times and app switching. The four USB 3.0 ports enable you to connect a keyboard, a mouse, and an Intel RealSense camera to the NUC. Additionally, one of these four USB 3.0 ports supports USB charging.
UPC: 735858303439 In the Box Intel NUC6i7KYK Mini PC NUC Kit Power Adapter VESA Mount Additional Lid (No Skull) Limited 3-Year Warranty Brochure PDF 3.7mbbbsufdsrrxzcbactuyyzwtwvrbttvb Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel NUC6i7KYK Mini PC NUC Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntel BOXNUC6I7KYK1 Specs | | | CPU | 2.6 GHz Intel Core i7-6770HQ Quad-Core | | Maximum Boost Speed | 3.5 GHz | | L3 Cache | 6 MB | | Memory Type | 2133 MHz DDR4 | | Total Installed Memory | None | | Memory Slot Type | 260-Pin SO-DIMM | | Available Memory Slots | 2 | | Graphics Type | Integrated | | GPU | Intel Iris Pro 580 | | | | Ports | 4 x USB Type-A (USB 3.1 Gen 1) | | USB Type-C Ports | 1 x Thunderbolt 3 | | Display | 1 x HDMI
1 x Mini DisplayPort | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output
1 x 1/8" / 3.5 mm S/PDIF Output | | Media Card Slots | 1 x SDXC | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | Bluetooth | 4.2 | | | | Power Supply | 120 W | | Dimensions | 8.3 x 4.6 x 1.1" / 210.8 x 116.8 x 27.9 mm | | | | Package Weight | 3.5 lb | | Box Dimensions (LxWxH) | 9.3 x 5.8 x 4.7" |
