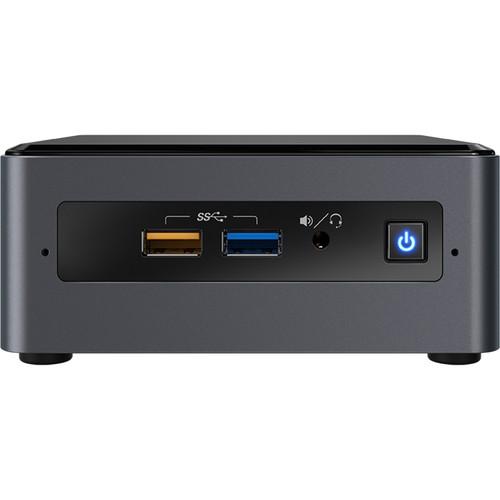

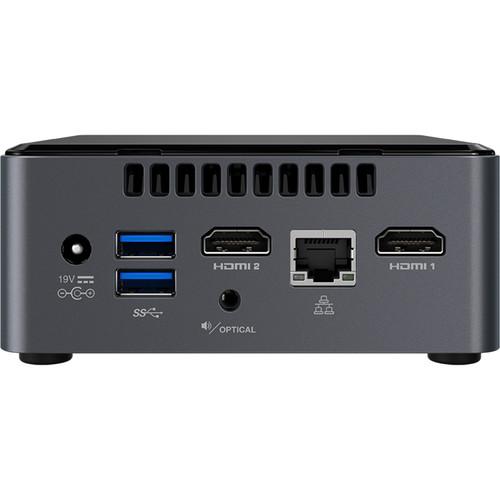

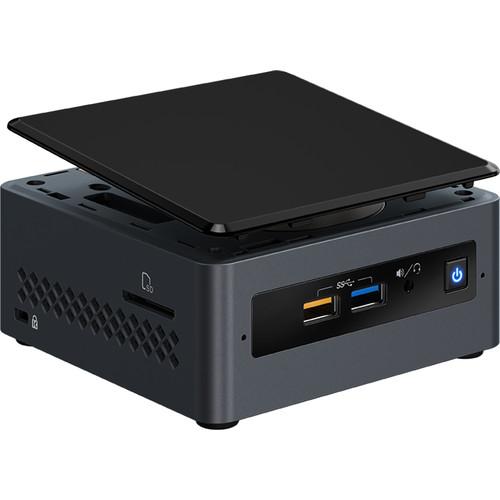

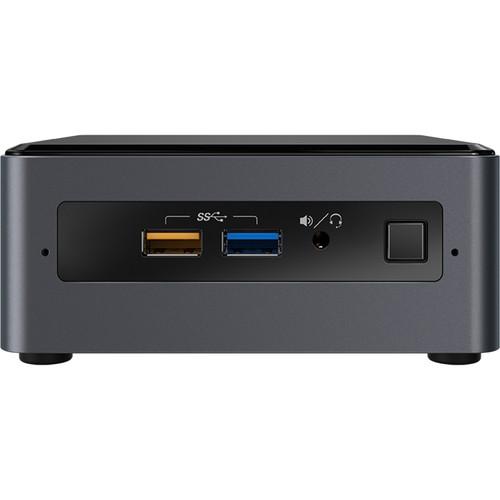

User Manual for Intel NUC7CJYH Mini PC NUC Kit Click to enlarge the picture
Contents of the user manual for the Intel NUC7CJYH Mini PC NUC Kit
- Product category: Barebone PCs Intel
- Brand: Intel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intel Barebone PCs
 |
User manual for the Intel NUC7CJYH Mini PC NUC Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intel product will considerably shorten its lifespan!
|
Product description Build your own compact desktop with the Intel NUC7CJYH Mini PC NUC Kit. This NUC kit comes with a 2.0 GHz Intel Celeron J4005 dual-core processor, which can be boosted up to 2.8 GHz. Visuals are handled by integrated Intel UHD Graphics 600. You can customize the NUC, thanks to its two SO-DIMM slots with support for DDR4-2400 RAM and a 2.5" SATA III 6.0 Gb/s drive bay. You can also install your version of Windows. There are also dual HDMI 2.0a ports, four USB 3.1 Gen 1 Type-A ports, a 3.5 mm headphone/microphone jack, a 3.5mm + S/PDIF output, and a Kensington lock slot. There is also a SDXC media card reader with UHS-I support. Connect to the internet wirelessly with 802.11ac Wi-Fi or wired with the Gigabit Ethernet jack. Integrated Bluetooth 5.0 technology allows you to connect wirelessly to peripherals and accessories. - Intel Celeron J4005 Performance
- The Intel NUC kit features an Intel Celeron J4005 processor. Its dual cores reach a stock speed of 2.0 GHz and can be boosted up to 2.7 GHz.
- HDMI
- There are two HDMI 2.0a ports, which can support 4K at 60 Hz.
- 802.11ac Wi-Fi
- Featuring 802.11ac Wi-Fi, the Intel NUC kit delivers faster internet access, broader coverage, and longer battery life than was available with previous Wi-Fi standards. The Intel NUC kit is also backwards compatible with 802.11a/b/g/n Wi-Fi networks. The Intel NUC kit also comes with Bluetooth 5.0, so you'll be able to connect wirelessly to Bluetooth-compatible peripherals and accessories.
UPC: 735858364874 In the Box Intel NUC7CJYH Mini PC NUC Kit Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel NUC7CJYH Mini PC NUC Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntel BOXNUC7CJYH1 Specs | | | CPU | 2 GHz Intel Celeron J4005 Dual-Core | | Maximum Boost Speed | 2.7 GHz | | L3 Cache | 4 MB | | Memory Type | 2400 MHz DDR4 | | Total Installed Memory | None | | Maximum Memory Capacity | 8 GB | | Available Memory Slots | 2 | | Graphics Type | Integrated | | GPU | Intel UHD Graphics 600 | | | | Total Drive Bays | 1 x 2.5" (Internal) | | Hard Disk Storage | None | | Optical Drive | None | | | | Ports | 4 x USB Type-A (USB 3.1 Gen 1) | | Display | 2 x HDMI 2.0 | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output
1 x 1/8" / 3.5 mm S/PDIF Output | | Media Card Slots | 1 x SDXC | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac) | | Bluetooth | 5.0 | | | | Power Supply | 65 W | | Dimensions | 4.6 x 4.6 x 2" / 116.8 x 116.8 x 50.8 mm | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 5.0 x 5.0 x 5.0" |
