Product description The Intel NUC7i3BNK Mini PC NUC Kit sports a 7th-generation 2.4 GHz Intel Core i3-7100U dual-core processor as well as storage and memory slots, letting you build a compact system with the performance to handle entry-level applications. The NUC7i3BNK comes with two SODIMM slots that can hold up to 32GB of DDR4 2133 MHz memory chips. For internal storage, it is armed with an M.2 slot that can accept SATA- or PCIe-based SSDs with a length of up to 80mm. Once an optional M.2 SSD is mounted, you will need to install an operating system such as Windows 10 or Linux. Furthermore, Intel has designed this NUC with a slim design so you can mount it behind a VESA-compatible monitor with an included mounting bracket, letting you maximize desktop space.

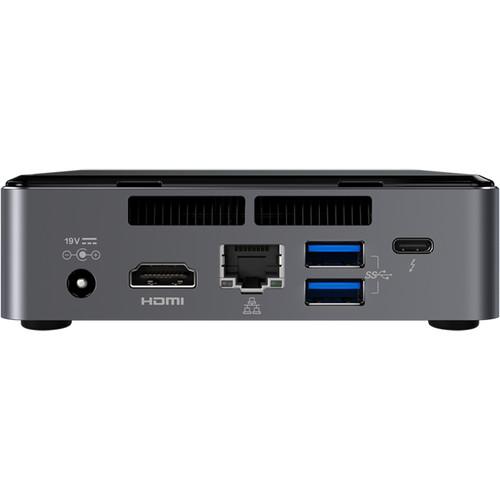

Intel's NUC7i3BNK Mini PC NUC kit utilizes an onboard Intel HD Graphics 620 chipset that delivers up to 4K visuals to your monitors utilizing a built-in HDMI 2.0 port and a user-supplied miniDisplayPort to USB-C adapter connected to the NUC's USB 3.1 Type-C port, which offers speeds of up to 10 Gb/s. To complete the multimedia experience, 7.1-channel surround sound is provided through the video connections and a combo headphone/microphone jack. Other notable connections include four USB 3.0 ports for a keyboard, mouse, printer, and external storage drive. If you need more USB ports, there's a USB 2.0 header to support an optional adapter with two USB 2.0 ports. Aside from wired connections, Bluetooth 4.2 is on board so the system can wirelessly connect to speakers, mice, and other Bluetooth-enable devices.

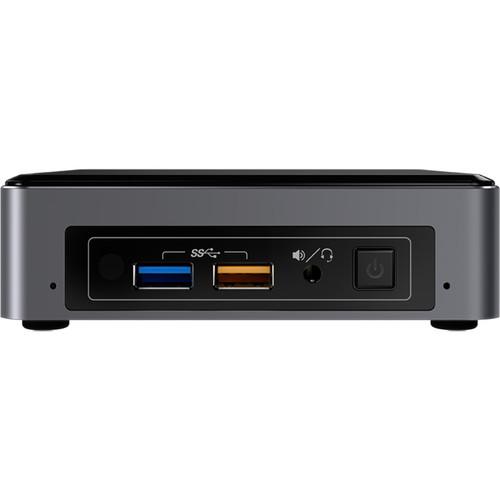

On the exterior, the NUC is outfitted a built-in microphone along with a multi-colored LED ring, so you can personalize it with a color you want. There's also an integrated card slot for reading and writing to microSDXC memory cards. For accessing networks, the NUC7i3BNK is equipped with a Gigabit Ethernet port and 802.11ac Wi-Fi. In addition, Intel includes an external 65W wall-mountable power adapter for powering the NUC. - Compatible with Microsoft Windows 10 and various Linux distros
- One of the front-facing USB 3.0 ports is designed to charge battery-powered devices
- Support for user-replaceable third-party lids
- Fan sensor inputs used to monitor fan activity
- Multi-color selectable front panel LED ring
- Kensington lock slot with base security
UPC: 735858320108 In the Box Intel NUC7i3BNK Mini PC NUC Kit VESA Mount Bracket Wall-Mountable Power Adapter with Multi-Country Plugs Processor Badge Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel NUC7i3BNK Mini PC NUC Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntel NUC7i3BNK Specs | | | CPU | 2.4 GHz Intel Core i3-7100U Dual-Core | | L3 Cache | 3 MB | | Memory Type | 2133 MHz DDR4 | | Total Installed Memory | None | | Maximum Memory Capacity | 32 GB | | Memory Slot Type | 260-Pin SO-DIMM | | Available Memory Slots | 2 | | Graphics Type | Integrated | | GPU | Intel HD Graphics 620 | | | | SSD Slots | 1 x M.2 | | Hard Disk Storage | None | | PCI Expansion | None | | Optical Drive | None | | | | Ports | 4 x USB Type-A (USB 3.1 Gen 1) | | USB Type-C Ports | 1 x USB 3.1 Gen 2 (Supports DisplayPort) | | Display | 1 x HDMI 2.0 | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | | Built-In Microphones | Yes | | Media Card Slots | 1 x microSDXC | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | Bluetooth | 4.2 | | | | Keyboard | None | | Pointing Device | None | | | | Power Supply | 65 W | | Dimensions | 4.5 x 4.4 x 1.4" / 114.3 x 111.8 x 35.6 mm | | | | Package Weight | 2.1 lb | | Box Dimensions (LxWxH) | 10.079 x 5.512 x 5.039" |
