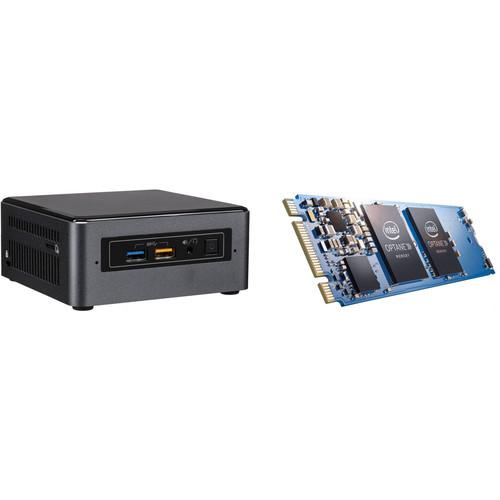

User Manual for Intel NUC7i5BNH Mini PC NUC Kit with 16GB Optane PCIe M.2 Memory Module Click to enlarge the picture
Contents of the user manual for the Intel NUC7i5BNH Mini PC NUC Kit
- Product category: Barebone PCs Intel
- Brand: Intel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intel Barebone PCs
|
User manual for the Intel NUC7i5BNH Mini PC NUC Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intel product will considerably shorten its lifespan!
|
Product description This Kit combines the Intel NUC7i5BNH Mini PC NUC and 16GB Optane PCIe M.2 Memory Module, so you can build a compact computer system offering large amounts of storage while providing SSD-like performance. The kit is designed to enhance your drive's read and write performance by utilizing 3D XPoint memory media, Intel memory, storage controllers, and more. Without compromising the drive's storage capacity, this enhancement assists a drive in delivering and writing of data to accelerate commonly-used tasks and boot times. - Intel NUC7i5BNH Mini PC NUC Kit The Intel NUC7i5BNH Mini PC NUC Kit sports a 7th-generation 2.2 GHz Intel Core i5-7260U dual-core processor as well as the ability of accommodating up to two storage drives and up to 32GB of memory modules, letting you build a compact system with the performance to handle mid-level applications. The NUC7i5BNH comes with two SODIMM slots that can hold up to 32GB of DDR4 2133 MHz memory chips. For internal storage, it is armed with two storage options, allowing you to install an ultra-fast M.2 SSD along with a high-capacity 2.5" hard drive. It has a drive bay for holding 2.5" SSDs and HDDs up to 9.5mm tall as well as an M.2 slot that can accept SATA- or PCIe-based SSDs with a length of up to 80mm. Once an optional storage drive is mounted, you will need to install an operating system such as Windows 10 or Linux. Furthermore, Intel has designed this NUC with a compact form factor so you can mount it behind a VESA-compatible monitor with an included mounting bracket, letting you maximize desktop space.
The Intel Core i5-7260U processor features two cores that operate at a stock speed of 2.2 GHz for handling everyday apps. For demanding software programs, each of the cores can run at speeds of up to 3.4 GHz. In addition to the speeds, the Intel Core i5-7260U processor is equipped with 4MB of cache memory and has a thermal design power of 15W.
Intel's NUC7i5BNH Mini PC NUC kit utilizes an onboard Intel HD Graphics 640 chipset that delivers up to 4K visuals to your monitors utilizing a built-in HDMI 2.0 port as well as a Thunderbolt 3 port that offers daisy-chaining capabilities with up to six devices, including monitors, external storages, and external graphics cards. The Thunderbolt 3 connection transmits data at a rate of up to 40 Gb/s and utilizes a reversible USB Type-C design, letting you connect with USB-C or Thunderbolt 3 cable the first try. To complete the multimedia experience, 7.1-channel surround sound is provided through the video connections and a combo headphone/microphone jack. Other notable connections include four USB 3.0 ports for a keyboard, mouse, printer, and external storage drive. If you need more USB ports, there's a USB 2.0 header to support an optional adapter with two USB 2.0 ports. Aside from wired connections, Bluetooth 4.2 is on board so the system can wirelessly connect to speakers, mice, and other Bluetooth-enable devices.
On the exterior, the NUC is outfitted a built-in microphone along with a multi-colored LED ring, so you can personalize it with a color you want. There's also an integrated card slot for reading and writing to microSDXC memory cards. For accessing networks, the NUC7i5BNH is equipped with a Gigabit Ethernet port and 802.11ac Wi-Fi. In addition, Intel includes an external 65W wall-mountable power adapter for powering the NUC. - Compatible with Microsoft Windows 10 and various Linux distros
- One of the front-facing USB 3.0 ports is designed to charge battery-powered devices
- Support for user-replaceable third-party lids
- Fan sensor inputs used to monitor fan activity
- Multi-color selectable front panel LED ring
- Kensington lock slot with base security
UPC: 735858320160 - Intel 16GB Optane Series PCIe M.2 Memory Module The 16GB Optane Series PCIe M.2 Memory Module from Intel lets you accelerate your system with faster speeds and responsiveness without compromising larger storage capacities. Intel Optane technology is a combination of 3D XPoint memory media, Intel Memory and Storage Controllers, Intel Interconnect IP, and Intel software. When combined, these building blocks deliver improved system latencies and accelerations for workloads that require large capacities and fast storage.
Compatible with select 7th Gen Intel Core i7, i5, and i3 processors, this 16GB memory module has been built with an M.2 2280 form factor and a PCIe NVMe 3.0 x2 interface. It delivers sequential write speeds up to 145 MB/s, sequential reads up to 900 MB/s, random writes up to 35,000 IOPS, random reads up to 190,000 IOPS, an MTBF rating of up to 1.6 million hours, and lifetime writes (endurance rating) of up to 182.5TB. General Features - Intelligent System Acceleration
- Optimize your computer's responsiveness with faster boots, faster web browser launches, and faster game launches. Intel Optane memory is a smart and adaptable system accelerator that adjusts to your computing tasks, helping to make everything you do faster, smoother, and easier. Its intelligent software automatically learns your computing behaviors to accelerate frequent tasks and customize your computer experience.
- Wait Less, Do More
- Intel Optane memory in your PC delivers improved responsiveness so you can start up quickly, search and find files more efficiently, and save large files with virtually no lag. Experience faster email application launches and rev up your gameplay with an improvement in next-level loading.
- Speed Up Your Storage
- A high-capacity storage device coupled with Intel Optane memory offers the best of both worlds: high-speed acceleration and affordable, large storage capacity.
Compatibility 7th Gen Intel Core i7 Processors - Supported Processors
- Intel Core i7-7700
Intel Core i7-7700K
Intel Core i7-7700T - Supported Chipsets
- Intel Z270
Intel Q270
Intel H270
Intel Q250
Intel B250 7th Gen Intel Core i5 Processors - Supported Processors
- Intel Core i5-7400T
Intel Core i5-7400
Intel Core i5-7500
Intel Core i5-7500T
Intel Core i5-7600T
Intel Core i5-7600K
Intel Core i5-7600 - Supported Chipsets
- Intel Z270
Intel Q270
Intel H270
Intel Q250
Intel B250 7th Gen Intel Core i3 Processors - Intel Core i3-7101E
Intel Core i3-7101TE
Intel Core i3-7100T
Intel Core i3-7100
Intel Core i3-7350K
Intel Core i3-7320
Intel Core i3-7300
Intel Core i3-7300T - Supported Chipsets
- Intel Z270
Intel Q270
Intel H270
Intel Q250
Intel B250
Intel C236 UPC: 735858337076 In the Box - NUC7i5BNH Mini PC NUC Kit fzqftffsxtyavfrx
- VESA Mount Bracket
- Wall-Mountable Power Adapter with Multi-Country Plugs
- Processor Badge
- Limited 3-Year Warranty
- 16GB Optane Series PCIe M.2 Memory Module
Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel NUC7i5BNH Mini PC NUC Kit with 16GB Optane PCIe M.2 Memory Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Intel NUC7i5BNH Mini PC NUC Kit
| | | CPU | 2.2 GHz Intel Core i5-7260U Dual-Core | | Maximum Boost Speed | 3.4 GHz | | L3 Cache | 4 MB | | Memory Type | 2133 MHz DDR4 | | Total Installed Memory | None | | Maximum Memory Capacity | 32 GB | | Memory Slot Type | 260-Pin SO-DIMM | | Available Memory Slots | 2 | | Graphics Type | Integrated | | GPU | Intel HD Graphics 640 | | | | Total Drive Bays | 1 x 2.5" (Internal) | | SSD Slots | 1 x M.2 | | Hard Disk Storage | None | | PCI Expansion | None | | Optical Drive | None | | | | Ports | 4 x USB Type-A (USB 3.1 Gen 1) | | USB Type-C Ports | 1 x Thunderbolt 3 | | Display | 1 x HDMI 2.0 | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | | Built-In Microphones | Yes | | Media Card Slots | 1 x microSDXC | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | Bluetooth | 4.2 | | | | Keyboard | None | | Pointing Device | None | | | | Power Supply | 65 W | | Dimensions | 4.5 x 4.4 x 2" / 114.3 x 111.8 x 50.8 mm | | | | Box Dimensions (LxWxH) | 5.6 x 5.1 x 4.6" | - Intel 16GB Optane Series PCIe M.2 Memory Module
| | | Drive Capacity | 16.00 GB | | Cache Memory | None | | | | Interface | PCIe 3.0 x2 | | Random Read Speed | 190,000 IOPS (SPAN) | | Random Write Speed | 35,000 IOPS (SPAN) | | Sequential Read Speed | 900 MB/s | | Sequential Write Speed | 145 MB/s | | Latency | 7.0
