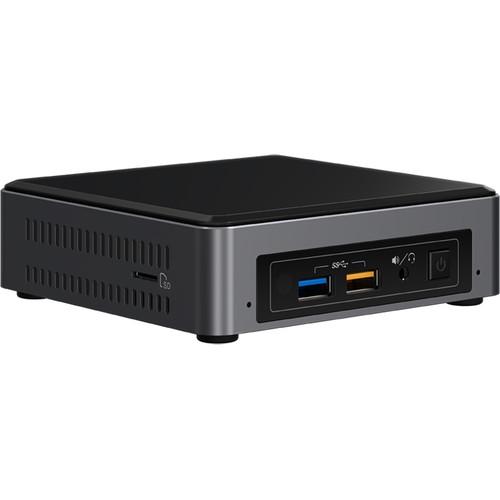

Product description The Intel NUC7i5BNK Mini PC NUC Kit sports a 7th-generation 2.2 GHz Intel Core i5-7260U dual-core processor as well as storage and memory slots, letting you build a compact system with the performance to handle mid-level applications. The NUC7i5BNK comes with two SODIMM slots that can hold up to 32GB of DDR4 2133 MHz memory chips. For internal storage, it is armed with an M.2 slot that can accept SATA- or PCIe-based SSDs with a length of up to 80mm. Once an optional M.2 SSD is mounted, you will need to install an operating system such as Windows 10 or Linux. Furthermore, Intel has designed this NUC with a slim design so you can mount it behind a VESA-compatible monitor with an included mounting bracket, letting you maximize desktop space.
The Intel Core i5-7260U processor features two cores that operate at a stock speed of 2.2 GHz for handling everyday apps. For demanding software programs, each of the cores can run at speeds of up to 3.4 GHz. In addition to the speeds, the Intel Core i5-7260U processor is equipped with 4MB of cache memory and has a thermal design power of 15W.

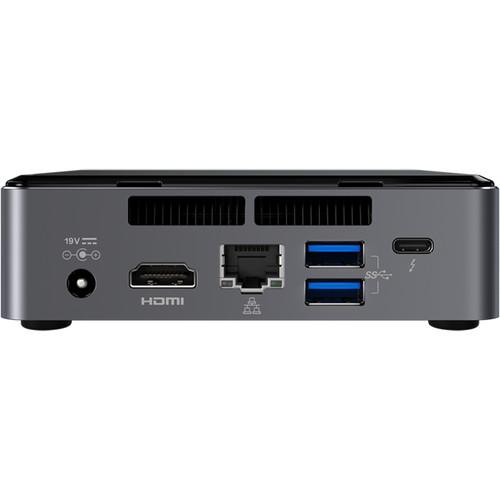

Intel's NUC7i5BNK Mini PC NUC kit utilizes an onboard Intel HD Graphics 640 chipset that delivers up to 4K visuals to your monitors utilizing a built-in HDMI 2.0 port as well as a Thunderbolt 3 port that offers daisy-chaining capabilities with up to six devices, including monitors, external storages, and external graphics cards. The Thunderbolt 3 connection transmits data at a rate of up to 40 Gb/s and utilizes a reversible USB Type-C design, letting you connect with USB-C or Thunderbolt 3 cable the first try. To complete the multimedia experience, 7.1-channel surround sound is provided through the video connections and a combo headphone/microphone jack. Other notable connections include four USB 3.0 ports for a keyboard, mouse, printer, and external storage drive. If you need more USB ports, there's a USB 2.0 header to support an optional adapter with two USB 2.0 ports. Aside from wired connections, Bluetooth 4.2 is on board so the system can wirelessly connect to speakers, mice, and other Bluetooth-enable devices.

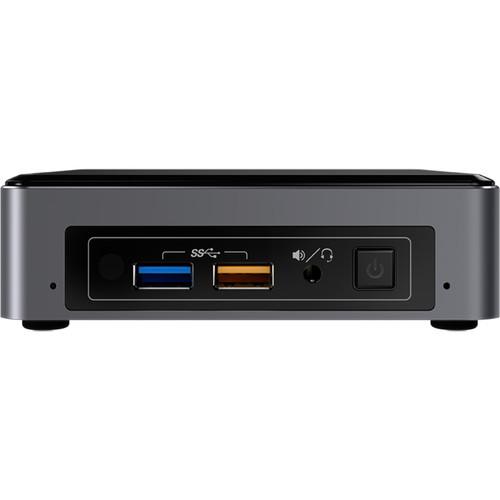

On the exterior, the NUC is outfitted a built-in microphone along with a multi-colored LED ring, so you can personalize it with a color you want. There's also an integrated card slot for reading and writing to microSDXC memory cards. For accessing networks, the NUC7i5BNK is equipped with a Gigabit Ethernet port and 802.11ac Wi-Fi. In addition, Intel includes an external 65W wall-mountable power adapter for powering the NUC. - Compatible with Microsoft Windows 10 and various Linux distros
- One of the front-facing USB 3.0 ports is designed to charge battery-powered devices
- Support for user-replaceable third-party lids
- Fan sensor inputs used to monitor fan activity

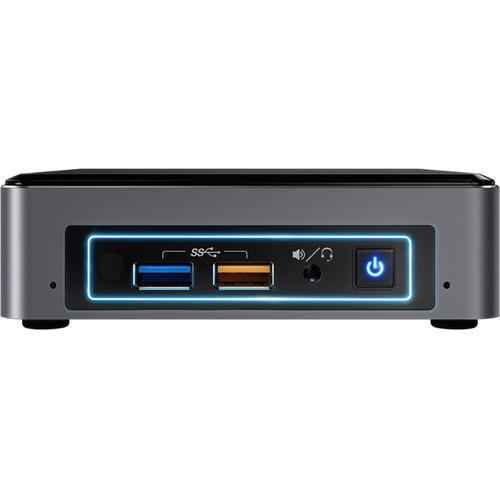

- Multi-color selectable front panel LED ring
- Kensington lock slot with base security
UPC: 735858320221 In the Box Intel NUC7i5BNK Mini PC NUC Kit VESA Mount Bracket Wall-Mountable Power Adapter with Multi-Country Plugs Processor Badge Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel NUC7i5BNK Mini PC NUC Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntel BOXNUC7I5BNK Specs | | | CPU | 2.2 GHz Intel Core i5-7260U Dual-Core | | Maximum Boost Speed | 3.4 GHz | | L3 Cache | 4 MB | | Memory Type | 2133 MHz DDR4 | | Total Installed Memory | None | | Maximum Memory Capacity | 32 GB | | Memory Slot Type | 260-Pin SO-DIMM | | Available Memory Slots | 2 | | Graphics Type | Integrated | | GPU | Intel HD Graphics 640 | | | | SSD Slots | 1 x M.2 | | Hard Disk Storage | None | | PCI Expansion | None | | Optical Drive | None | | | | Ports | 4 x USB Type-A (USB 3.1 Gen 1) | | USB Type-C Ports | 1 x Thunderbolt 3 | | Display | 1 x HDMI 2.0 | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | | Built-In Microphones | Yes | | Media Card Slots | 1 x microSDXC | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | Bluetooth | 4.2 | | | | Keyboard | None | | Pointing Device | None | | | | Power Supply | 65 W | | Dimensions | 4.5 x 4.4 x 1.4" / 114.3 x 111.8 x 35.6 mm | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 5.591 x 5.118 x 3.937" |
