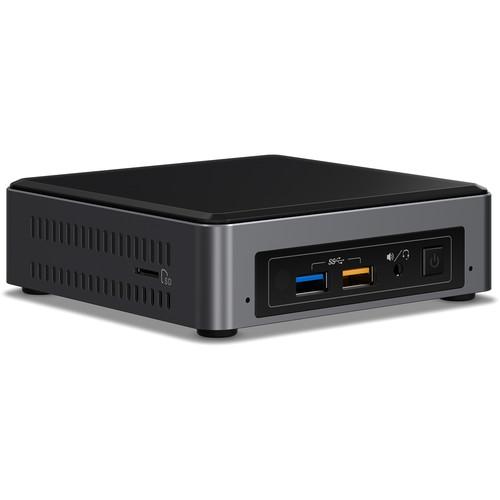

User Manual for Intel NUC7I5BNKP Home Mini PC NUC Kit Click to enlarge the picture
Contents of the user manual for the Intel NUC7I5BNKP Home Mini PC NUC
- Product category: Desktop Computers Intel
- Brand: Intel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intel Desktop Computers
|
User manual for the Intel NUC7I5BNKP Home Mini PC NUC contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intel product will considerably shorten its lifespan!
|

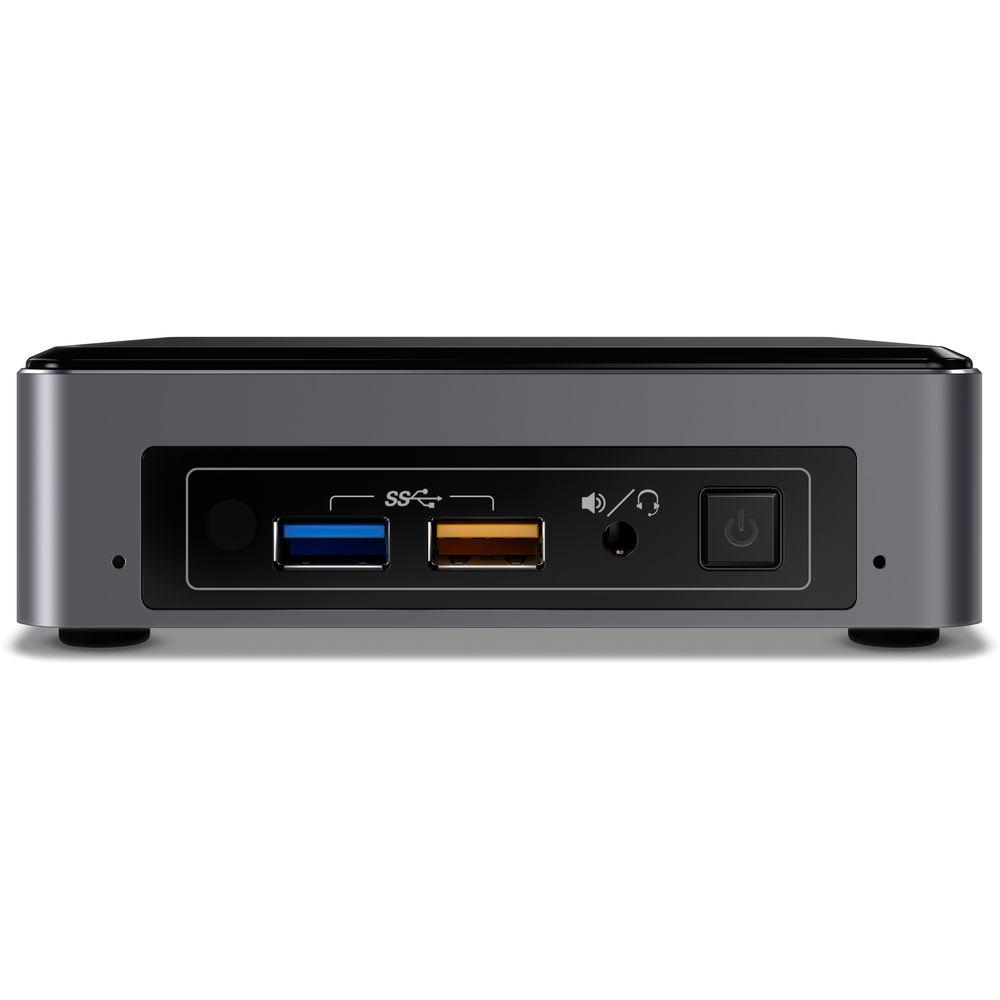

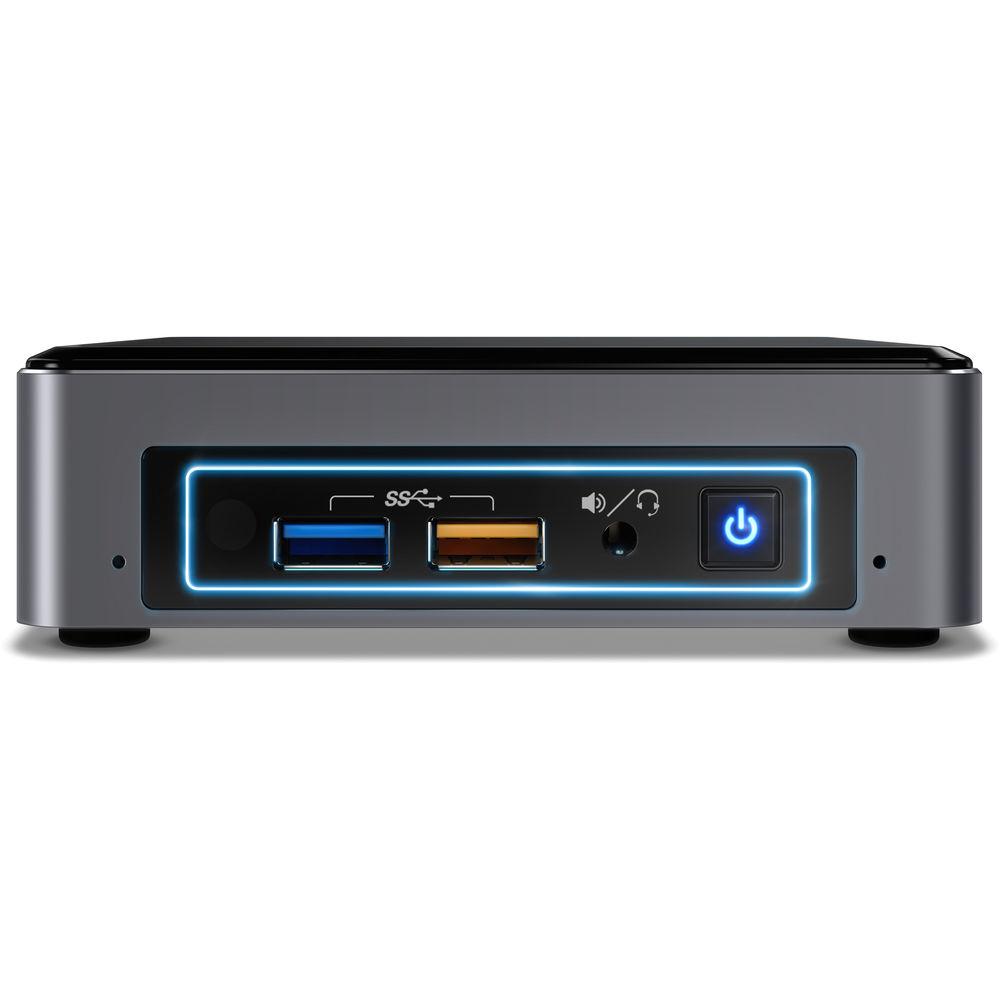

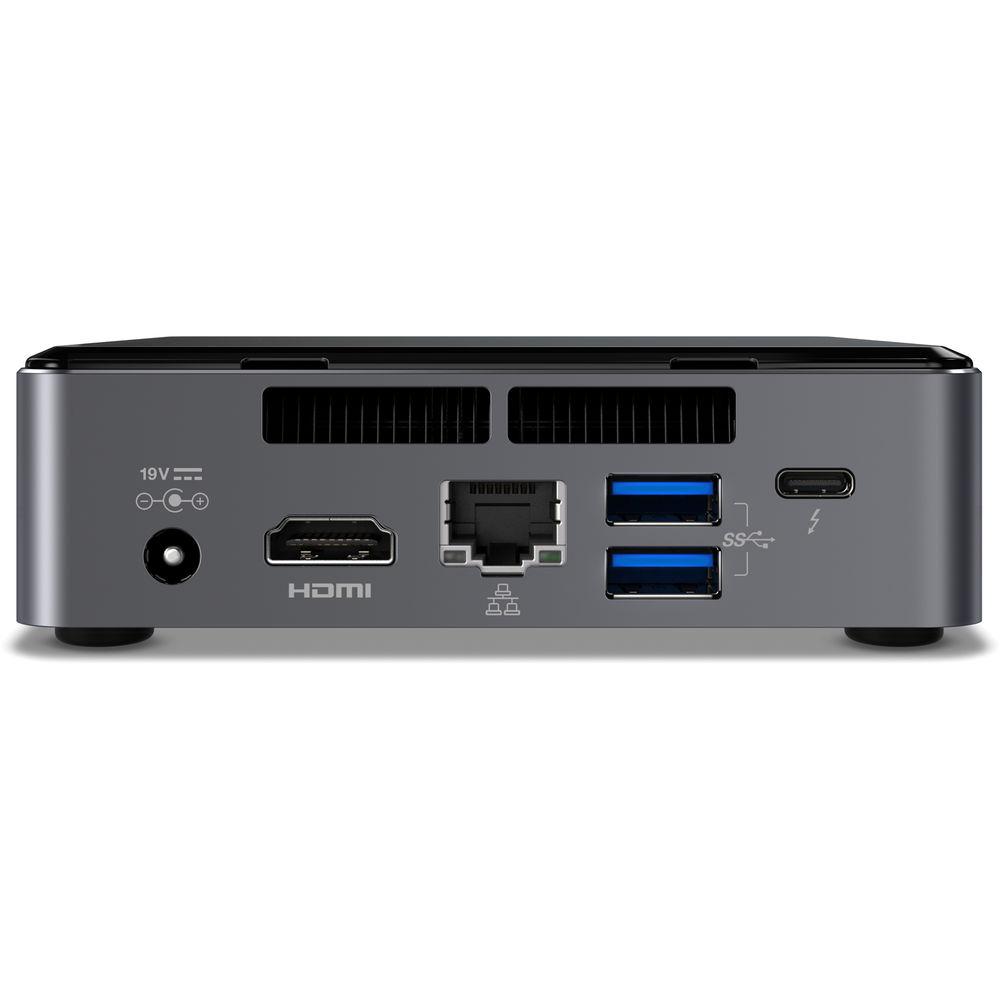

Product description This NUC7I5BNKP Home Mini PC NUC Kit from Intel is a fully complete system that's ready to work right out of the box. Due to its compact size, it's ideal for space-limited environments and can be used as a HTPC. Specs-wise, it's powered by a 2.2 GHz Intel Core i5-7260U dual-core processor, 8GB of DDR4 RAM, integrated Intel Iris Pro graphics, and a 256GB M.2 NVMe solid-state drive. Thanks to its NVMe SSD and integrated graphics, this system will be able to boot and load applications quickly, as well as tackle most media-related tasks with ease. Connect to the Internet via 802.11ac Wi-Fi or the Gigabit LAN jack and pair compatible peripherals with Bluetooth 4.2. Other integrated features include a Thunderbolt 3 port, USB Type-A ports, an HDMI port, an SDXC media card reader, and a combo audio jack. The operating system installed is Windows 10 Home (64-Bit). - Thunderbolt 3
- Thunderbolt 3 is a hardware interface that utilizes the reversible USB Type-C connector. Doubling the speed of its predecessor, Thunderbolt 3 features a maximum throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB 3.1 at up to 10 Gb/s, and dual-bandwidth DisplayPort 1.2 allows you to connect up to two 4K displays simultaneously. Additionally, you can daisy chain up to six devices from a single Thunderbolt 3 port.
Windows 10 - Start Menu
- After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
- Cortana
- Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills.
- Microsoft Edge
- After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
- Windows Store
- For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
- Windows Continuum
- Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
- Xbox on Windows 10
- Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift.
UPC: 735858360852 In the Box Intel NUC7I5BNKP Home Mini PC NUC Kit Limited 3-Year Warranty User Manual PDF 914kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel NUC7I5BNKP Home Mini PC NUC Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntel NUC7I5BNKP Specs Operating System | Windows 10 Home (64-Bit) | | CPU Socket | LGA 1356 | CPU | 2.2 GHz Intel Core i5-7260U Dual-Core | Maximum Boost Speed | 3.4 GHz | L3 Cache | 4 MB | Memory Type | 2400 MHz DDR4 | Total Installed Memory | 8 GB | Memory Configuration | 2 x 4 GB (User-Replaceable) | Maximum Memory Capacity | 32 GB | Memory Slot Type | 260-Pin SO-DIMM | Available Memory Slots | None | ECC Memory | No | Graphics Type | Integrated | GPU | Intel Iris Plus 620 | | SSD Slots | 1 x M.2 | Solid State Storage | 1 x 256 GB M.2 NVMe PCIe | PCI Expansion | None | Optical Drive | None | | Ports | 4 x USB Type-A (USB 3.1 Gen 1) | USB Type-C Ports | 1 x Thunderbolt 3 (Supports DisplayPort) | Display | 1 x HDMI 2.0 | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | Media Card Slots | 1 x SDXC | | Ethernet | 1 x RJ45 (Gigabit) | Wi-Fi | Wi-Fi 5 (802.11ac) | Bluetooth | 4.2 | | Package Weight | 2.0 lb | Box Dimensions (LxWxH) | 6.0 x 5.0 x 4.0" |
