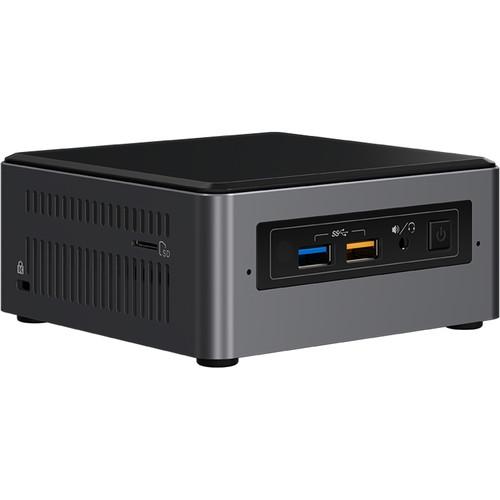

Product description The Intel NUC7i7BNHX1 Mini PC NUC Kit is a partially equipped barebones system that comes preinstalled with a 7th-generation Intel Core i7-7567U dual-core processor and an Intel Optane M.2 SSD, which enhances your hard drive's performance with 16GB of cache memory. This NUC7i7BNHX1 NUC can accommodate a single 2.5" storage drive and up to 32GB of memory modules, letting you build a compact system with the performance to handle demanding applications. The NUC7i7BNHX1 comes with two SODIMM slots that can hold up to 32GB of DDR4 2133 MHz memory chips. Once an optional storage drive is mounted, you will need to install an operating system such as Windows 10 or Linux. Furthermore, Intel has designed this NUC with a compact form factor so you can mount it behind a VESA-compatible monitor with an included mounting bracket, letting you maximize desktop space.
The Intel Core i7-7567U processor features two cores that operate at a stock speed of 3.5 GHz for handling everyday apps. For demanding software programs, each of the cores can run at speeds of up to 4 GHz. In addition to the speeds, the Intel Core i7-7567U processor is equipped with 4MB of cache memory and has a thermal design power of 28W.

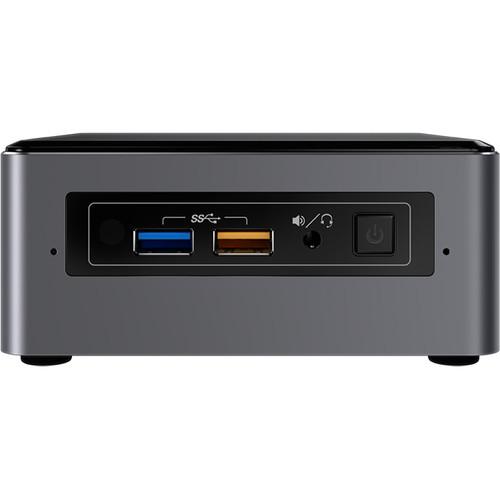

Intel's NUC7i7BNHX1 Mini PC NUC kit utilizes an onboard Intel HD Graphics 650 chipset that delivers up to 4K visuals to your monitors utilizing a built-in HDMI 2.0 port as well as a Thunderbolt 3 port that offers daisy-chaining capabilities with up to six devices, including monitors, external storage drives, and external graphics cards. To complete the multimedia experience, 7.1-channel surround sound is provided through the video connections and a combo headphone/microphone jack. Other notable connections include four USB 3.0 ports for a keyboard, mouse, printer, and external storage drive. If you need more USB ports, there's a USB 2.0 header to support an optional adapter with two USB 2.0 ports. Aside from wired connections, Bluetooth 4.2 is on board so the system can wirelessly connect to speakers, mice, and other Bluetooth-enabled devices.

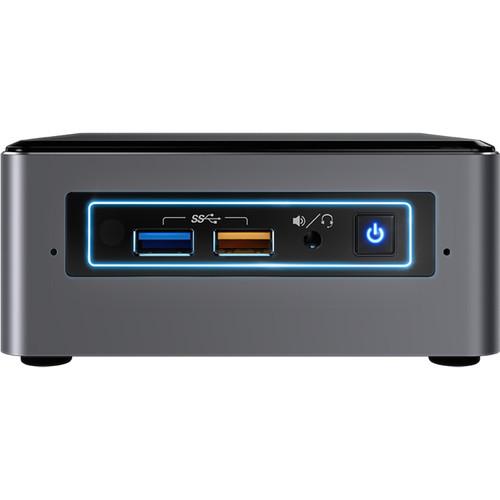

On the exterior, the NUC is outfitted a built-in microphone along with a multi-colored LED ring, so you can personalize it with a color you want. There's also an integrated card slot for reading and writing to microSDXC memory cards. For accessing networks, the NUC7i7BNHX1 is equipped with a Gigabit Ethernet port and 802.11ac Wi-Fi. In addition, Intel includes an external 65W wall-mountable power adapter for powering the NUC. - Full Potential with Windows 10
- The Intel NUC7i7BNHX1 comes with dual-array microphones, so you can take advantage of Cortana's capabilities when Windows 10 is installed. There's also a front power button and a multi-color LED ring, allowing you to personalize the NUC with the look you want. With 7.1 surround sound via the HDMI port, you can be immersed in multimedia content. You can also listen with user-supplied headphones connected to the front microphone/headphone jack.
- Intel Iris Plus Graphics and Thunderbolt 3
- Intel's Iris Plus graphics chipset provides 4K visuals and sharp text. The Intel NUC7i7BNHX1 can connect with up to three 4K monitors, so you can spread your work out across screens. The kit also comes with Thunderbolt 3 that supports up to 40 Gb/s transfer speeds for your intensive data needs and has built-in 10 GbE for networking with another Thunderbolt 3 system.
- Wireless
- The Intel NUC7i7BNHX1 is outfitted with Intel 802.11ac Wi-Fi, which provides fast wireless access to the Internet. This feature makes it simple to access files in the cloud, and with Bluetooth 4.2, you can connect wireless peripherals, such as headsets and keyboards.
UPC: 735858338882 In the Box Intel NUC7i7BNHX1 Mini PC NUC Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel NUC7i7BNHX1 Mini PC NUC Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

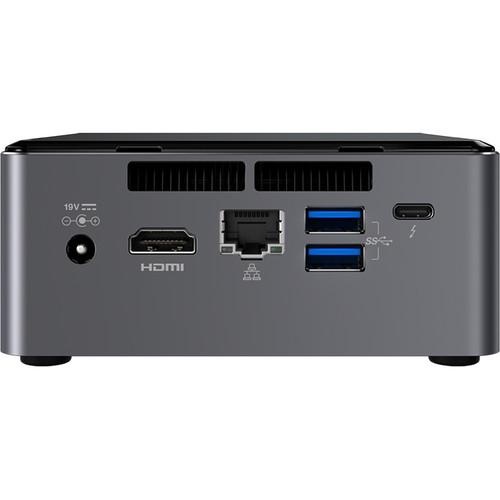

Technical parametersIntel NUC7i7BNHX1 Specs | | | CPU | 3.5 GHz Intel Core i7-7567U Dual-Core | | Maximum Boost Speed | 4.0 GHz | | L3 Cache | 4 MB | | Memory Type | 2133 MHz DDR4 | | Total Installed Memory | None | | Maximum Memory Capacity | 32 GB | | Memory Slot Type | 260-Pin SO-DIMM | | Available Memory Slots | 2 | | Intel Optane Memory | 16 GB (M.2) | | Graphics Type | Integrated | | GPU | Intel HD Graphics 650 | | | | Total Drive Bays | 1 x 2.5" (Internal) | | PCI Expansion | None | | Optical Drive | None | | | | Ports | 4 x USB Type-A (USB 3.1 Gen 1) | | USB Type-C Ports | 1 x Thunderbolt 3 | | Display | 1 x HDMI 2.0 | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | | Built-In Microphones | Yes | | Media Card Slots | 1 x microSDXC | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | Bluetooth | 4.2 | | | | Keyboard | None | | Pointing Device | None | | | | Power Supply | 65 W | | Dimensions | 4.5 x 4.4 x 2" / 114.3 x 111.8 x 50.8 mm | | | | Package Weight | 2.75 lb | | Box Dimensions (LxWxH) | 5.5 x 5.2 x 4.7" |
