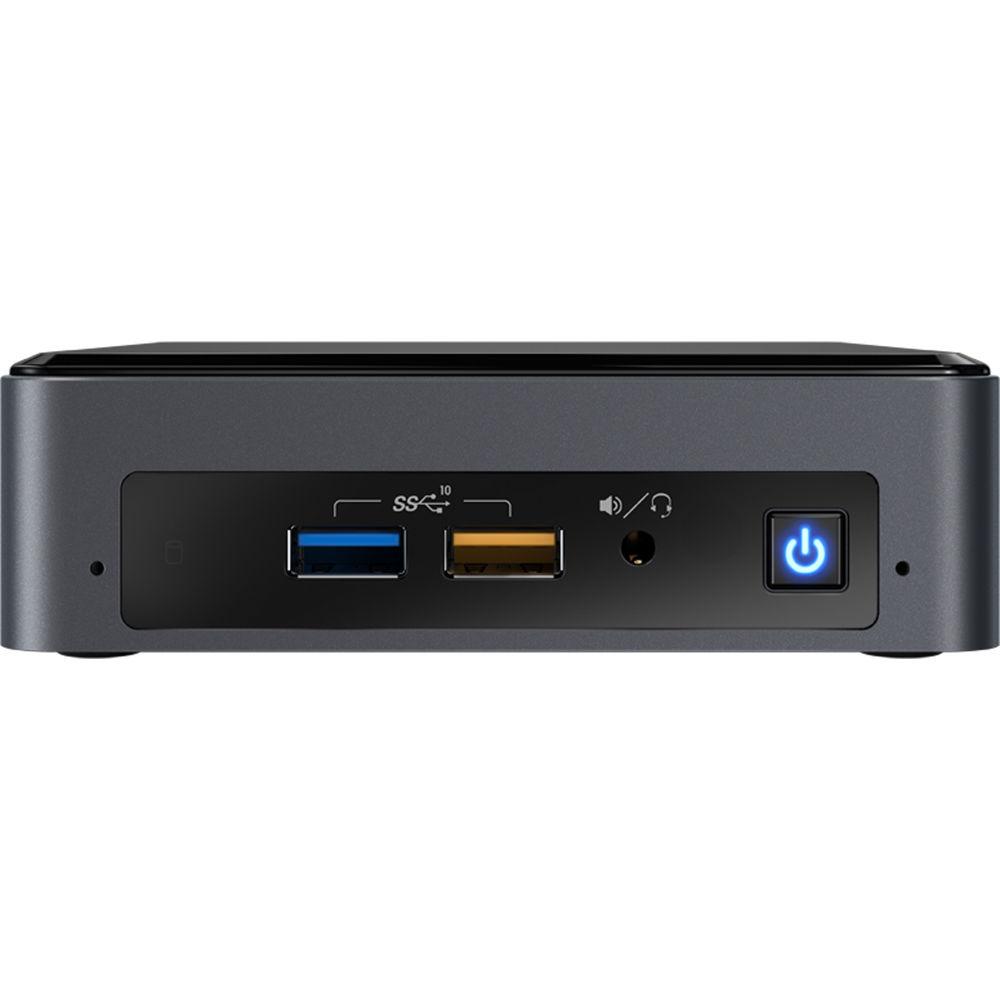

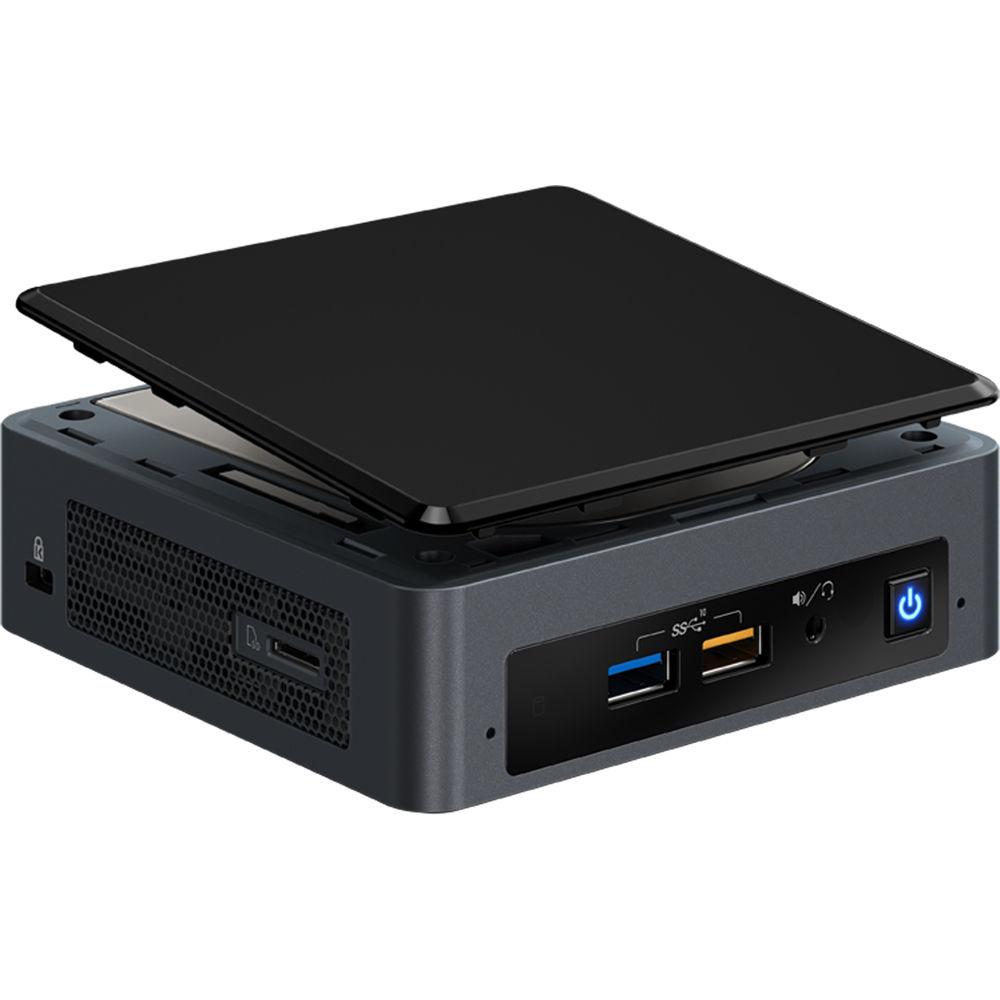

User Manual for Intel NUC8I5BEK Mini PC NUC Kit Click to enlarge the picture
Contents of the user manual for the Intel NUC8I5BEK Mini PC NUC Kit
- Product category: Barebone PCs Intel
- Brand: Intel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intel Barebone PCs
 |
User manual for the Intel NUC8I5BEK Mini PC NUC Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intel product will considerably shorten its lifespan!
|
Product description The NUC8I5BEK Mini PC NUC Kit from Intel is a partially equipped barebones system that comes pre-installed with a 2.3 GHz Intel Core i5-8259U quad-core processor and two SO-DIMM slots that can hold up to 32GB of DDR4 2400 MHz memory chips. In terms of storage, the NUC8I5BEK Mini PC NUC features a single MicroSDXC slot, and can accommodate an M.2 SSD, which lets you build a compact system with the performance to handle mid-level applications. Moreover, this short mini PC's processor is equipped with 4MB of cache memory. Aside from installing the storage drive of your choice, you will need to install the operating system of your choice to use the NUC8I5BEK.

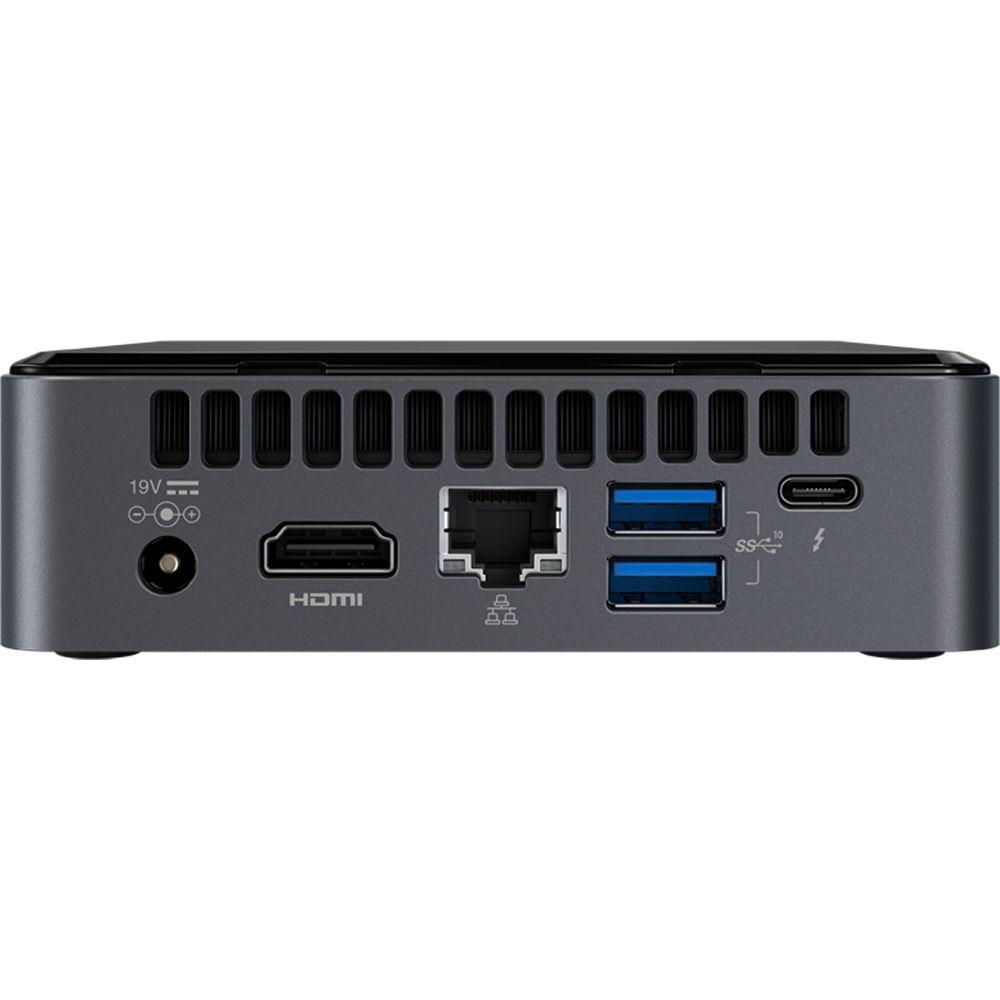

Intel's NUC8I5BEK Mini PC NUC utilizes integrated Intel Iris Plus Graphics 655 to deliver visuals to your monitor. If you wish to extend your display or transfer high resolution content, you can do so via the HDMI 2.0a, DisplayPort 1.2, and Thunderbolt 3 ports. To complete the multimedia experience, 7.1-channel surround sound is provided through the video connections, along with dual-array microphones, and a combo headphone/microphone jack. Other notable connections include four USB 3.1 ports for wired peripherals like keyboards, mice, printers, and external storage drives. If you need more USB ports, an internal USB 2.0 header supports an optional adapter with two USB 2.0 ports.
For accessing wireless networks and peripherals, the NUC8I5BEK mini PC is equipped with Wi-Fi 5 (802.11ac) and Bluetooth 5.0. In addition, Intel has outfitted the NUC8I5BEK with a thermal design power of 28W. UPC: 735858383905 In the Box Intel NUC8I5BEK Mini PC NUC Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel NUC8I5BEK Mini PC NUC Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntel BOXNUC8I5BEK1 Specs | | | CPU | 2.3 GHz Intel Core i5-8259U Quad-Core | | Maximum Boost Speed | 3.8 GHz | | L3 Cache | 6 MB | | Memory Type | 2400 MHz DDR4 | | Total Installed Memory | None | | Memory Configuration | None | | Maximum Memory Capacity | 32 GB | | Available Memory Slots | 2 | | Buffered Memory | No | | ECC Memory | No | | Graphics Type | Integrated | | GPU | Intel Iris Plus 655 | | | | SSD Slots | 1 x M.2 | | Hard Disk Storage | None | | PCI Expansion | None | | Optical Drive | None | | | | Ports | 4 x USB Type-A (USB 3.1 Gen 2) | | USB Type-C Ports | 1 x Thunderbolt 3 (Supports DisplayPort) | | Display | 1 x HDMI 2.0 | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | | Built-In Microphones | 2 | | Media Card Slots | 1 x SDXC | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | Bluetooth | 5.0 | | | | Power Supply | 28 W | | Dimensions | 4.6 x 4.4 x 1.4" / 116.8 x 111.8 x 35.6 mm | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 6.0 x 5.0 x 4.0" |
Rating92% users recommend this product to others. And what about you?
This product has already been rated by 87 owners. Add your rating and experience with the product.
