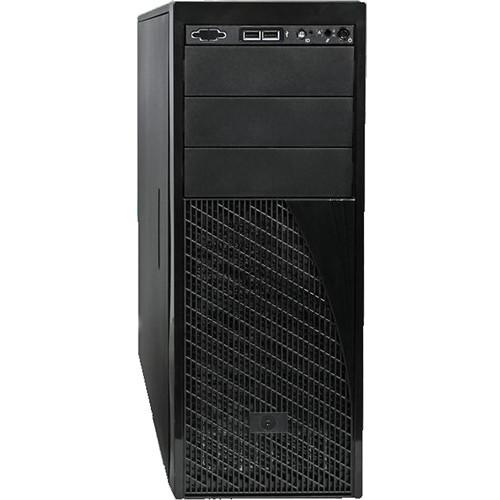

User Manual for Intel P4304BTSSFCNR Server System Click to enlarge the picture
Contents of the user manual for the Intel P4304BTSSFCNR Server System
- Product category: Server Systems Intel
- Brand: Intel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intel Server Systems
|
User manual for the Intel P4304BTSSFCNR Server System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intel product will considerably shorten its lifespan!
|
Product description The P4304BTSSFCNR Server System from Intel is based on the Intel Server Board S1200BTSR integrated into a 4U pedestal chassis with four fixed hard disk drive carriers and a 365W non-redundant power supply. The newly designed 4U pedestal chassis features high-efficiency power supply and office-friendly acoustics. The server system supports advanced technologies such as Intel Server Customization technology, Intel Build Assurance technology and more. It is ideal for small and medium-sized business applications, including web servers, file and print servers, e-mail servers, storage servers and vertical-specific business applications as well as embedded applications. - Processor Support
- The server system supports Intel Xeon E3-1200, E3-1200 V2, 2nd and 3rd Generation Core i3 processors
- Hard Drive Support
- It supports up to four fixed 2.5" or 3.5" SAS/SATA drives
- Memory Support
- The server system supports highly-scalable DDR3 memory (up to four DIMMs)
- PCIe Support
- This server system supports three PCIe Gen2 slots (1 x8, 1 x4, 1 x16) and one PCI 32/33 slot for smooth I/O flexibility
- Intel Server Customization Technology
- Intel Server Customization technology enables resellers and system builders to offer end customers a customized branded experience, SKU configuration flexibility, flexible boot options and maximum I/O options
- Intel Build Assurance Technology
- Intel Build Assurance technology provides advanced diagnostic features to ensure the most comprehensively tested, thoroughly debugged and stable systems are available to customers
- Target Applications
- It is suitable for small and medium-sized business applications including web servers, file and print servers, e-mail servers, storage servers and vertical-specific business applications as well as embedded applications
UPC: 735858243964 In the Box Intel P4304BTSSFCNR Server System 4 x Fixed 3.5" HDD Carriers Rear Chassis Fan 365W Power Supply 4 x SATA Cables Power Cable Adapter Resource DVD with Utilities, Drivers, Documentation and Technical Information 3 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel P4304BTSSFCNR Server System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntel P4304BTSSFCNR Specs | | | Drive Expansion | 42.5/3.5" (External) | | Storage Drive | None | | Drive Connections | 6 x SATA (Unspecified Version) | | PCI Expansion | 1 x PCI
1 x PCIe Gen 2 x4
1 x PCIe Gen 2 x8
1 x PCIe Gen 2 x16 | | | | Processor | None | | Chipset | Socket: H2
Type: LGA 1155 | | Chipset Model | Intel C202 | | Total Installed Memory | None | | Maximum Memory Capacity | 32 GB | | Memory Support | DDR3 MHz | | Available Memory Slots | 4 | | ECC Memory | Yes | | | | Network | 2 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | Ports | 2 x DE-9 Serial
7 x USB (Unspecified Version) Type-A | | Display | None | | Audio | None | | | | Power Supply | 1 x 365 W 80 PLUS Silver | | Dimensions (W x H x D) | 17.2 x 21.5 x 6.9" / 43.8 x 54.6 x 17.5 cm |
