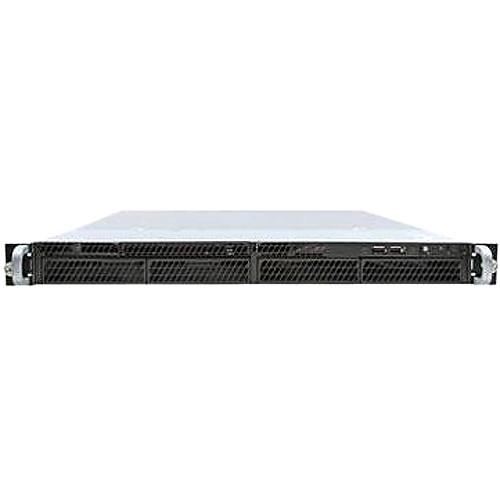

User Manual for Intel R1304BTLSFANR Server System Click to enlarge the picture
Contents of the user manual for the Intel R1304BTLSFANR Server System
- Product category: Server Systems Intel
- Brand: Intel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intel Server Systems
|
User manual for the Intel R1304BTLSFANR Server System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intel product will considerably shorten its lifespan!
|
Product description The R1304BTLSFANR Server System from Intel is designed to support the Intel Server Board S1200BTLR integrated into a 1U rack chassis with four fixed hard disk drive carriers and a 250W non-redundant power supply. It provides higher flexibility in data storage and security, including scalable and affordable upgrade options for Intel Remote Management Module, SAS controllers and Intel Trusted Platform Module. The server system comes with Intel Server Management software to build, deploy and manage servers with ease. Furthermore, the server system features advanced technologies such as Intel Remote Management Module support, Integrated BMC with IPMI 2.0, Intel Server Customization technology, Intel Build Assurance technology and more. It is ideal for small business applications including web servers, file and print servers, e-mail servers, storage servers and vertical-specific business applications. In addition, it can be used for embedded applications. - Processor Support
- The R1304BTLSFANR Server System supports Intel Xeon E3-1200, E3-1200 V2, as well as 2nd and 3rd Generation Core i3 processors.
- Memory Support
- The server system supports highly-scalable DDR3 memory (up to four DIMMs).
- Hard Drive Support
- It supports up to four fixed 2.5" or 3.5" SATA drives.
- PCIe Support
- This server system supports one PCIe Gen2 slot (1 x8) for smooth I/O flexibility.
- Intel Server Management Software
- The server system comes with Intel Server Management software to build, deploy and manage servers with ease.
- Intel Remote Management Module Support
- The Intel Remote Management Module allows you to securely gain access and control servers and other devices from any machine on the network. Remote access comprises remote management capabilities, including power control, KVM and media redirection, with a dedicated management network interface card.
- Intel Server Customization Technology
- Intel Server Customization technology enables resellers and system builders to offer end customers a customized and branded experience, SKU configuration flexibility, flexible boot options and maximum I/O options.
- Intel Build Assurance Technology
- Intel Build Assurance technology provides advanced diagnostic features that ensure the most comprehensively tested, thoroughly debugged and stable systems are available to customers.
- Target Applications
- It is ideal for small business applications including web servers, file and print servers, e-mail servers, storage servers and vertical-specific business applications. It can be used for embedded applications as well.
UPC: 735858243995 In the Box Intel R1304BTLSFANR Server System 4 x Fixed 3.5" HDD Sleds 3 x Non-Redundant Non-Hot Swappable Fans Low-Profile Riser with One PCIe 2.0 x8 Wired Slot (One x8 Connector) Bronze Efficient 250W Power Supply Cable for Optical Drive Bay 4 x SATA Cables for 3.5" HDD Bays Processor Heat Sink Resource DVD with Utilities, Drivers, Documentation 2 x Chassis Front Handles in the Box (Ears) 3 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel R1304BTLSFANR Server System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntel R1304BTLSFANR Specs | | | Drive Expansion | 42.5/3.5" (External) | | Storage Drive | None | | Drive Connections | 6 x SATA (Unspecified Version) | | RAID Modes | RAID 0, 1, 10, 5 | | PCI Expansion | 1 x PCIe Gen 2 x8 | | | | Processor | None | | Chipset | Socket: H2
Type: LGA 1155 | | Chipset Model | Intel C204 | | Total Installed Memory | None | | Maximum Memory Capacity | 32 GB | | Memory Support | DDR3 MHz | | Available Memory Slots | 4 | | ECC Memory | Yes | | | | Network | 2 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | Ports | 2 x DE-9 Serial
9 x USB (Unspecified Version) Type-A | | Display | None | | Audio | None | | | | Rack Form Factor | 1 RU | | Power Supply | 1 x 250 W | | Dimensions (W x H x D) | 17.2 x 21.8 x 1.8" / 437.9 x 553.7 x 44.5 mm |
