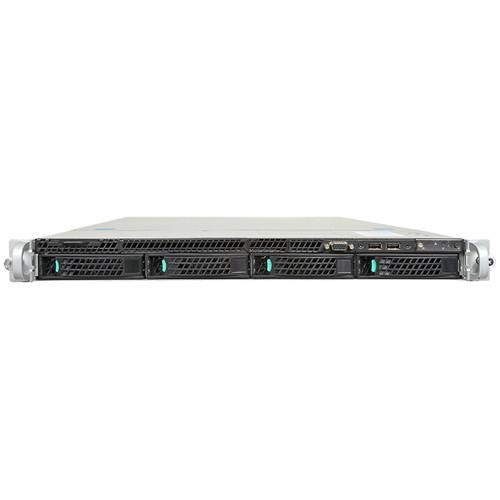

User Manual for Intel R1304GL4DS9 Server System Click to enlarge the picture
Contents of the user manual for the Intel R1304GL4DS9 Server System
- Product category: Server Systems Intel
- Brand: Intel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intel Server Systems
|
User manual for the Intel R1304GL4DS9 Server System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intel product will considerably shorten its lifespan!
|
Product description Take your small or medium-sized business to the next level with a 1U rack mount R1304GL4DS9 Server System from Intel. This system features two R type sockets that can support up to two Intel Xeon E5-2600 v2 processors to provide multi-tasking performance for your business. With 16 DIMM slots, it can hold up to 512GB of DDR3 1066, 1333, 1600, or 1866 memory. In addition, it utilizes ECC memory technology that detects and corrects internal data corruption. To store all your critical files, you can install up to four 2.5" or 3.5" storage drives in its bays.
Intel offers you I/O flexibility by offering this server system with two PCIe x16 Gen 3 slots as well as connectors for an Intel I/O expansion module x8 Gen 3 and an Intel integrated RAID module. Additionally, it comes equipped with six USB 3.0 ports, ten SATA ports, two serial ports, and connects to your network with four 1 GbE LAN ports. To help keep the system always-available, Intel has included redundant fans and a redundant 460W power supply with an optional to add a second PSU. In addition, you are offered advanced technologies to help it run more efficiently and secure. - Intel Remote Management Module
- The Intel Remote Management Module allows you to securely gain access and control servers and other devices from any machine on the network. Remote access includes remote management capability, including power control, KVM, and media redirection, with a dedicated management network interface card (NIC).
- Integrated BMC with IPMI 2.0
- IPMI (Intelligent Platform Management Interface) is a standardized interface used for out-of-band management of computer systems. The integrated BMC (Baseboard Management Controller) is a specialized microcontroller that enables IPMI.
- Trusted Platform Module (TPM)
- Trusted Platform Module is a component that provides hardware level security upon system boot-up via stored security keys, passwords, encryption, and hash functions.
- Intel Intelligent Power Node Manager
- Intel Intelligent Power Node Manager is a platform resident technology that enforces power and thermal policies for the platform. It enables data center power and thermal management by exposing an external interface to management software through which platform policies can be specified. It also enables specific datacenter power management usage models such as power limiting.
- Intel Advanced Management Technology
- Intel's Advanced Management Technology features an isolated, independent, secure, and highly reliable network connection, with an Integrated Baseboard Management Controller (Integrated BMC) configuration from within BIOS. Also includes an embedded web user interface that launches key platform diagnostic capabilities over the network, an out-of-band (OOB) platform inventory, failsafe firmware updates, and an automatic Integrated BMC stall detection and reset.
- Intel Server Customization Technology
- Intel Server Customization technology enables resellers and system builders to offer end customers a customized experience, SKU configuration flexibility, flexible boot options, and maximum I/O options.
- Intel Build Assurance Technology
- Intel Build Assurance technology provides advanced diagnostic features ensuring that the most comprehensively tested, thoroughly debugged, and stable systems are available to customers.
- Intel Efficient Power Technology
- Intel Efficient Power Technology is a series of improvements within Intel power supplies and voltage regulators to increase power delivery efficiency and reliability. The technology is included in all common redundant power supplies (CRPS). CRPS includes the following technologies; 80 PLUS Platinum (92% efficient at 50% load) efficiency, cold redundancy, closed loop system protection, smart ride through, dynamic redundancy detection, black box recorder, compatibility bus, and auto firmware updates to provide more efficient power delivery to the system.
- Intel Quiet Thermal Technology
- Intel Quiet Thermal Technology is a series of thermal and acoustic management innovations that reduce unnecessary acoustic noise and provide cooling flexibility while maximizing efficiency. The technology includes capabilities such as advanced thermal sensory arrays, advanced cooling algorithms, and built in fail-safe shutdown protection.
- Intel Virtualization Technology
- Intel Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium processor (VT-i) virtualization adding support for I/O-device virtualization. Intel VT-d can help you improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.
- Intel Rapid Storage Technology Enterprise
- Intel Rapid Storage Technology enterprise (Intel RSTe) provides performance and reliability for supported systems equipped with Serial ATA (SATA) devices, Serial Attached SCSI (SAS) devices, and/or solid state drives (SSDs) to enable an optimal enterprise storage solution.
UPC: 735858249430 In the Box Intel R1304GL4DS9 Server System 4 x 3.5" Hot-Swap Drive Carriers Cable Kit 2 x Processor Heatsinks 2 x Risers Optical Disk Drive Bay Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel R1304GL4DS9 Server System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntel R1304GL4DS9 Specs | | | Drive Expansion | 42.5/3.5" (External)
1Slim Optical Drive (External) | | Storage Drive | None | | Drive Connections | 10 x SATA (Unspecified Version) | | RAID Modes | RAID 0, 1, 10 | | PCI Expansion | 2 x PCIe Gen 3 x16 | | | | Processor | None | | Chipset | Socket: 2 x R
Type: LGA 2011 | | Chipset Model | Intel C602 | | Total Installed Memory | None | | Maximum Memory Capacity | 512 GB | | Memory Support | DDR3 1066, 1333, 1600, 1866 MHz | | Available Memory Slots | 16 | | ECC Memory | Yes | | | | Network | 4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | Ports | 2 x DE-9 Serial
6 x USB (Unspecified Version) Type-A | | Display | None | | Audio | None | | | | Rack Form Factor | 1 RU | | Power Supply | 1 x 460 W (Supports Redundancy) | | Dimensions (W x H x D) | 1.8 x 16.9 x 28.0" / 4.4 x 43.0 x 71.0 cm |
