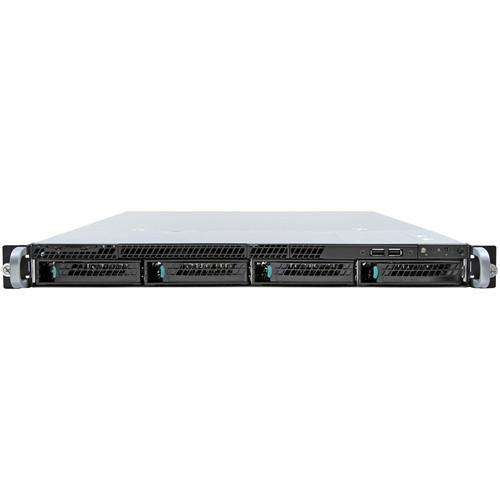

User Manual for Intel R1304RPMSHOR Barebones Server System Click to enlarge the picture
Contents of the user manual for the Intel R1304RPMSHOR Barebones Server System
- Product category: Server Systems Intel
- Brand: Intel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intel Server Systems
|
User manual for the Intel R1304RPMSHOR Barebones Server System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intel product will considerably shorten its lifespan!
|
Product description The R1304RPMSHOR Barebones Server System from Intel lets you build a server that is designed for environments such as a small or a medium-sized business. It features an LGA1150 socket that supports the family of Xeon E3-1200 v3 processors to deliver performance in running your applications. This 1U rackmount server system provides 4 DDR3L DIMM slots, which can accept speeds of 1333 or 1600 MHz. Additionally, it uses ECC memory that detects and corrects internal data corruption. For long-term storage options, you can install up to four 2.5" or 3.5" drives in its hot-swap bays. Furthermore, utilizing an Intel S1200V3RPM server board lets you further customize it with a PCIe Gen 3 card.
This system comes equipped with 6 x USB 3.0 ports, 6 x SATA ports, 1 x serial port, and connects to your network with dual 1 GbE LAN ports. To help keep the system always-available, Intel has included redundant 450W power supplies. In addition, you are offered advanced technologies to help it run more efficiently and secure. - Intel Remote Management Module
- The Intel Remote Management Module allows you to securely gain access and control servers and other devices from any machine on the network. Remote access includes remote management capability, including power control, KVM, and media redirection, with a dedicated management network interface card (NIC).
- Intelligent Platform Management Interface (IPMI 2.0)
- The standardized interface is used for out-of-band management of computer systems. The integrated BMC (Baseboard Management Controller) is a specialized microcontroller that enables IPMI.
- Trusted Platform Module (TPM)
- Trusted Platform Module is a component that provides hardware level security upon system boot-up via stored security keys, passwords, encryption, and hash functions.
- Intel Intelligent Power Node Manager
- Intel Intelligent Power Node Manager is a platform resident technology that enforces power and thermal policies for the platform. It enables data center power and thermal management by exposing an external interface to management software through which platform policies can be specified. It also enables specific data center power management usage models such as power limiting.
- Intel Advanced Management Technology
- Intel's Advanced Management Technology features an isolated, independent, secure, and highly reliable network connection, with an Integrated Baseboard Management Controller (Integrated BMC) configuration from within BIOS. Also includes an embedded web user interface that launches key platform diagnostic capabilities over the network, an out-of-band (OOB) platform inventory, failsafe firmware updates, and an automatic Integrated BMC stall detection and reset.
- Intel Server Customization Technology
- Intel Server Customization technology enables resellers and system builders to offer end customers a customized experience, SKU configuration flexibility, flexible boot options, and maximum I/O options.
- Intel Build Assurance Technology
- Intel Build Assurance technology provides advanced diagnostic features ensuring that the most comprehensively tested, thoroughly debugged, and stable systems are available to customers.
- Intel Virtualization Technology
- Intel Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium processor (VT-i) virtualization adding support for I/O-device virtualization. Intel VT-d can help you improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.
- Intel Rapid Storage Technology enterprise
- Intel Rapid Storage Technology enterprise (Intel RSTe) provides performance and reliability for supported systems equipped with Serial ATA (SATA) devices, Serial Attached SCSI (SAS) devices, and/or solid state drives (SSDs) to enable an optimal enterprise storage solution.
UPC: 735858266918 In the Box Intel R1304RPMSHOR Barebones Server System 4 x Hot-Swap Drive Carriers 3 x Cooling Fans Optical Drive Bay Cable 4 x SATA Cables Passive Processor Heatsink Riser Rack Handle Set Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel R1304RPMSHOR Barebones Server System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntel R1304RPMSHOR Specs | | | Drive Expansion | 42.5/3.5" (External)
1Slim Optical Drive (External) | | Storage Drive | None | | Drive Connections | 6 x SATA (Unspecified Version) | | RAID Modes | RAID 0, 1, 10, 5 | | PCI Expansion | 1 x PCIe Gen 3 x8 | | | | Processor | None | | Chipset | Socket: H3
Type: LGA 1150 | | Total Installed Memory | None | | Maximum Memory Capacity | 32 GB | | Memory Support | DDR3L 1333, 1600 MHz | | Available Memory Slots | 4 | | ECC Memory | Yes | | | | Network | 2 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | Ports | 1 x DE-9 Serial
6 x USB (Unspecified Version) Type-A | | Display | None | | Audio | None | | | | Rack Form Factor | 1 RU | | Power Supply | 2 x 450 W (Supports Redundancy) | | Dimensions (W x H x D) | 17.2 x 21.8 x 1.8" / 437.9 x 553.7 x 44.5 mm |
