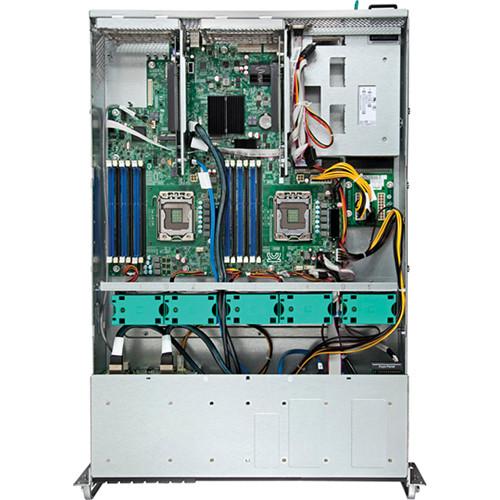

User Manual for Intel R2312BB4GS9 Server System Click to enlarge the picture
Contents of the user manual for the Intel R2312BB4GS9 Server System
- Product category: Server Systems Intel
- Brand: Intel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intel Server Systems
|
User manual for the Intel R2312BB4GS9 Server System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intel product will considerably shorten its lifespan!
|
Product description The R2312BB4GS9 Server System from Intel is a rack server system designed to support the Intel Server Board S2400BB4. It features 12 hot-swappable HDD carriers and a 750W redundant power supply. The server system comes with Intel Server Management software to build, deploy and manage servers with ease. It provides the expansion and flexibility to meet the needs of a majority of data center, cloud and hosting applications. Furthermore, the server system features advanced technologies such as Intel Advance Management technology, Intel Server Customization technology, Intel Build Assurance technology, Intel Efficient Power technology, Intel Quiet Thermal technology and more. - Memory Support
- The server system provides 12 memory sockets that support LR/U/R-DIMMs, delivering up to 384GB of memory capacity.
- Hard Drive Support
- It supports up to 12 hot-swappable 2.5" or 3.5" hard drives (6G SATA/SAS options).
- PCIe Support
- It supports six PCIe Gen3 slots (4 x8, 2 x4) that provide optimal I/O flexibility.
- Intel Server Management Software
- The server system comes with Intel Server Management software to build, deploy and manage servers with ease.
- Intel Remote Management Module Support
- The Intel Remote Management Module allows you to securely gain access and control servers and other devices from any machine on the network. Remote access comprises remote management capabilities, including power control, KVM and media redirection, with a dedicated management network interface card.
- Intel Node Manager
- Intel Intelligent Power Node Manager is a platform resident technology that enforces power and thermal policies for the platform. It enables data center power and thermal management by exposing an external interface to management software through which platform policies can be specified. It also enables specific data center power management usage models such as power limiting.
- Intel Advanced Management Technology
- Intel Advanced Management technology features an isolated, independent, secure and highly reliable network connection, with an Integrated Baseboard Management Controller configuration from within BIOS. It also includes an embedded web user interface that launches key platform diagnostic capabilities over the network, an out-of-band platform inventory, failsafe firmware updates and an automatic Integrated BMC stall detection and reset.
- Intel Server Customization Technology
- Intel Server Customization technology enables resellers and system builders to offer end customers a customized branded experience, SKU configuration flexibility, flexible boot options and maximum I/O options.
- Intel Build Assurance Technology
- Intel Build Assurance technology provides advanced diagnostic features ensuring the most comprehensively tested, thoroughly debugged and stable systems are available to customers.
- Intel Efficient Power Technology
- Intel Efficient Power technology is a series of improvements within Intel power supplies and voltage regulators to increase power delivery efficiency and reliability. The technology is included in all common redundant power supplies (CRPS). CRPS includes the following technologies; 80 PLUS Platinum (92% efficient at 50% load) efficiency, cold redundancy, closed loop system protection, smart ride through, dynamic redundancy detection, black box recorder, compatibility bus and auto firmware updates to provide more efficient power delivery to the system.
- Intel Quiet Thermal Technology
- Intel Quiet Thermal technology is a series of thermal and acoustic management innovations that reduce unnecessary acoustic noise and provide cooling flexibility while maximizing efficiency. The technology includes capabilities such as advanced thermal sensory arrays, advanced cooling algorithms and built-in failsafe shutdown protection.
- Target Applications
- It provides the expansion and flexibility to meet the needs of a majority of data center, cloud and hosting applications.
UPC: 735858248129 In the Box Intel R2312BB4GS9 Server System Rack Ear Control Panel 3 x SFF8087 to SFF8087 Cables 2 x CPU Heat Sinks 5 x Redundant and Hot Swappable Cooling Fans 2 x Risers with 3 x8, 1 x16 Slots 750W AC Power Supply 3 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel R2312BB4GS9 Server System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntel R2312BB4GS9 Specs | | | Drive Expansion | 122.5/3.5" (External) | | Storage Drive | None | | Drive Connections | 10 x SATA (Unspecified Version) | | RAID Modes | RAID 0, 1, 10 | | PCI Expansion | 2 x PCIe Gen 3 x4
4 x PCIe Gen 3 x8 | | | | Processor | None | | Chipset | Socket: 2 x B2
Type: LGA 1356 | | Chipset Model | Intel C602 | | Total Installed Memory | None | | Maximum Memory Capacity | 384 GB | | Memory Support | DDR3 1333, 1600 MHz | | Available Memory Slots | 12 | | ECC Memory | Yes | | | | Network | 4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | Ports | 2 x DE-9 Serial
5 x USB (Unspecified Version) Type-A | | Display | None | | Audio | None | | | | Power Supply | 1 x 750 W 80 PLUS Platinum (Supports Redundancy) | | Dimensions (W x H x D) | 3.5 x 17.2 x 24.8" / 8.9 x 43.7 x 62.9 cm |
