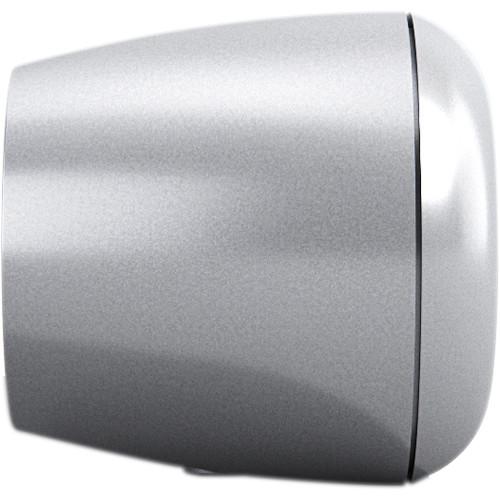

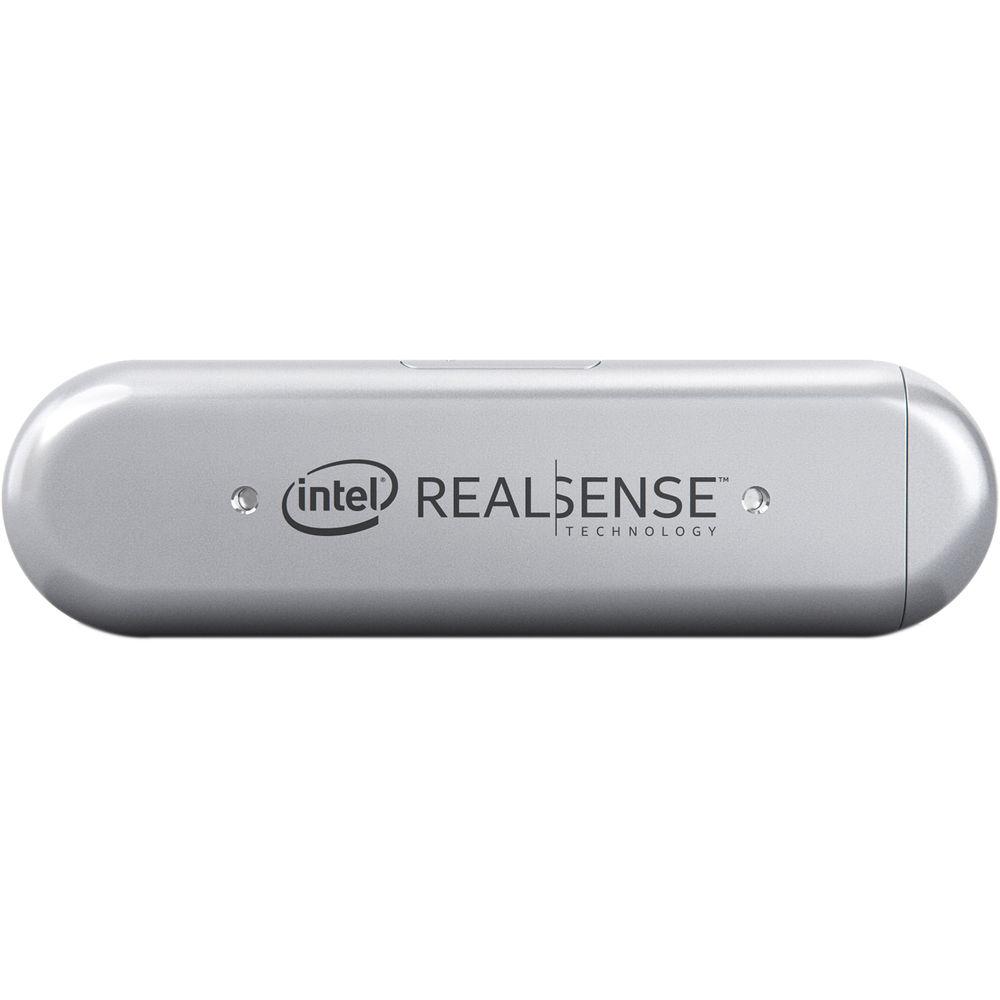

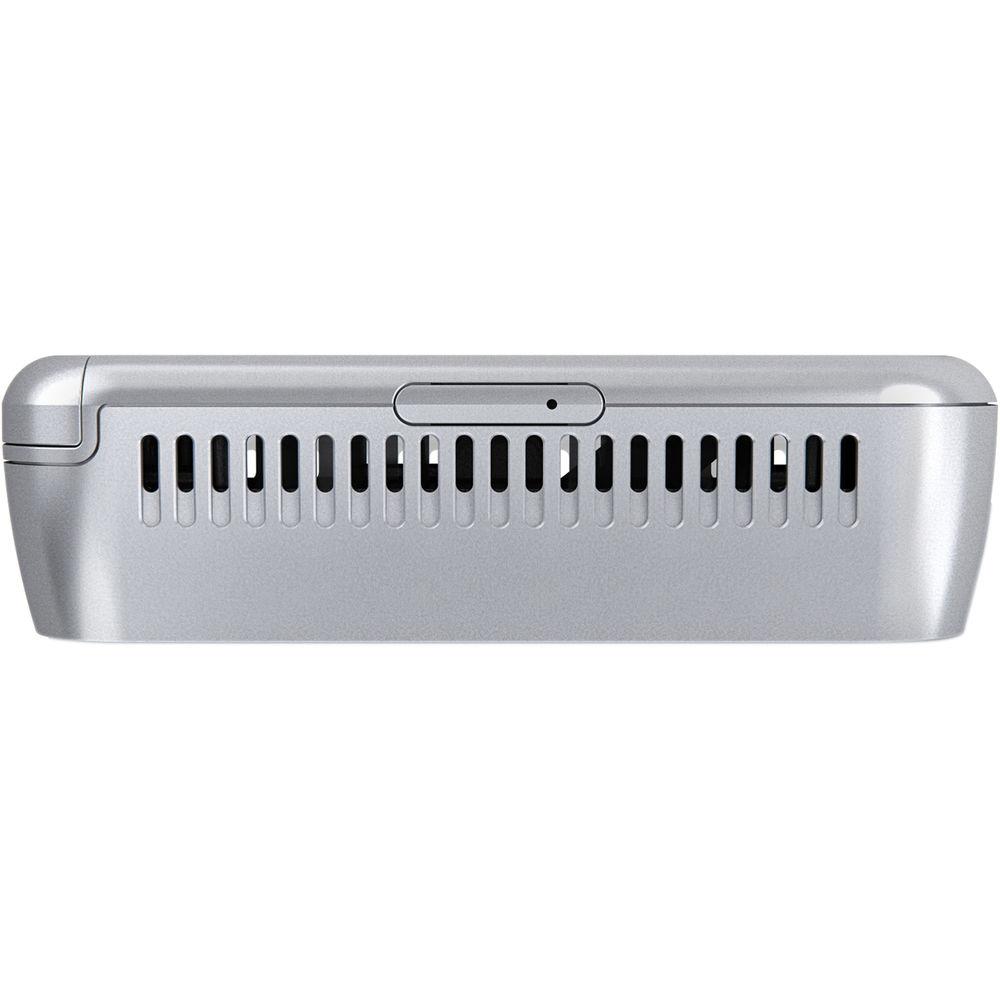

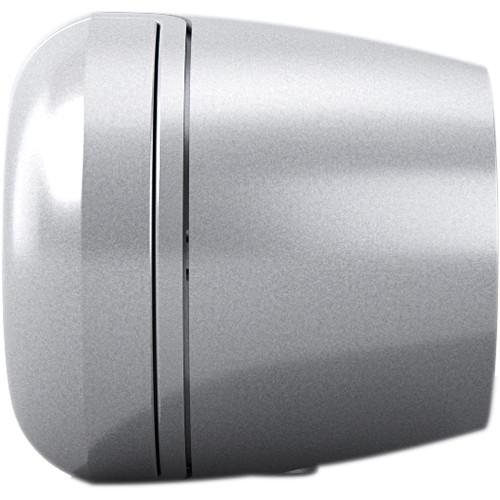

User Manual for Intel RealSense Depth Camera D435 Click to enlarge the picture
Contents of the user manual for the Intel RealSense Depth Camera D435
- Product category: All 360 Video Cameras Intel
- Brand: Intel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intel All 360 Video Cameras
 |
User manual for the Intel RealSense Depth Camera D435 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intel product will considerably shorten its lifespan!
|

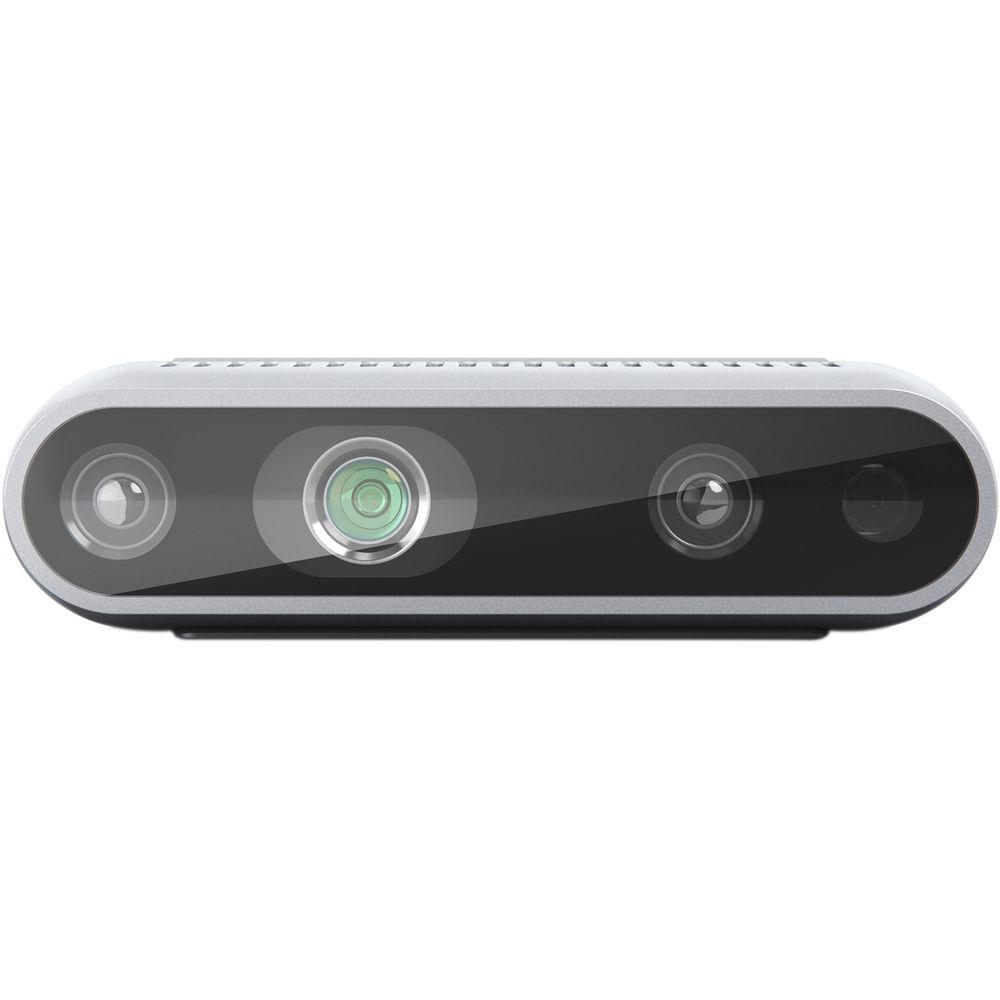

Product description The Intel RealSense Depth Camera D435 extracts 3D information from a scene to let developers add 3D depth to robotics navigation, object recognition, and other applications. It is a USB-powered depth camera and features a pair of depth sensors, an RGB sensor, and an infrared projector. The D435 is an indoor/outdoor solution designed to best fit developers' prototypes. It has a wide field of view and global shutter combination that offers accurate depth perception when an object is moving or a device is in motion, and it covers more area, minimizing blind spots. - Stereo Depth
- Stereo image sensing technologies use two cameras to calculate depth. Intel RealSense stereo depth technology brings 3D to devices and machines that only see 2D. Designed for easy setup and portability, the RealSense D435 features long-range capabilities and high depth resolution and includes active infrared (IR) stereo. The D435 is a wide field of view solution using global shutter sensors. The wide view/global shutter combination makes the D435 ideal for applications such as robotic navigation and object recognition. The wider field of view allows a single camera to cover more area, resulting in less blind spots. The global shutter sensors provide great low-light sensitivity, allowing robots to navigate spaces with the lights off.
- Key Features
-
- Vision processor with 28 nanometer (nm) process technology supports up to 5 MIPI Camera Serial Interface 2 lanes to compute real-time depth images and accelerate output
- Advanced stereo depth algorithm for accurate depth perception and long range
- Image sensors that enable capturing of disparity between images up to 1280 x 720 resolution
- Support for cross-platform and open-source Intel RealSense SDK 2.0
- Dedicated color image signal processor for image adjustments and scaling color data
- Active infrared projector to illuminate objects to enhance the depth data
- Depth Stream Output: Up to 1280 x 720 at up to 90 fps
- Minimum Depth Distance: 4.3"
- Maximum Range: Approx 33' (accuracy varies depending on calibration, scene, and lighting condition)
- RGB Sensor Resolution & Frame Rate: 1920 x 1080 at 30 fps
- RGB Sensor FOV (Horizontal x Vertical): 69.4 x 42.5° (±3°)

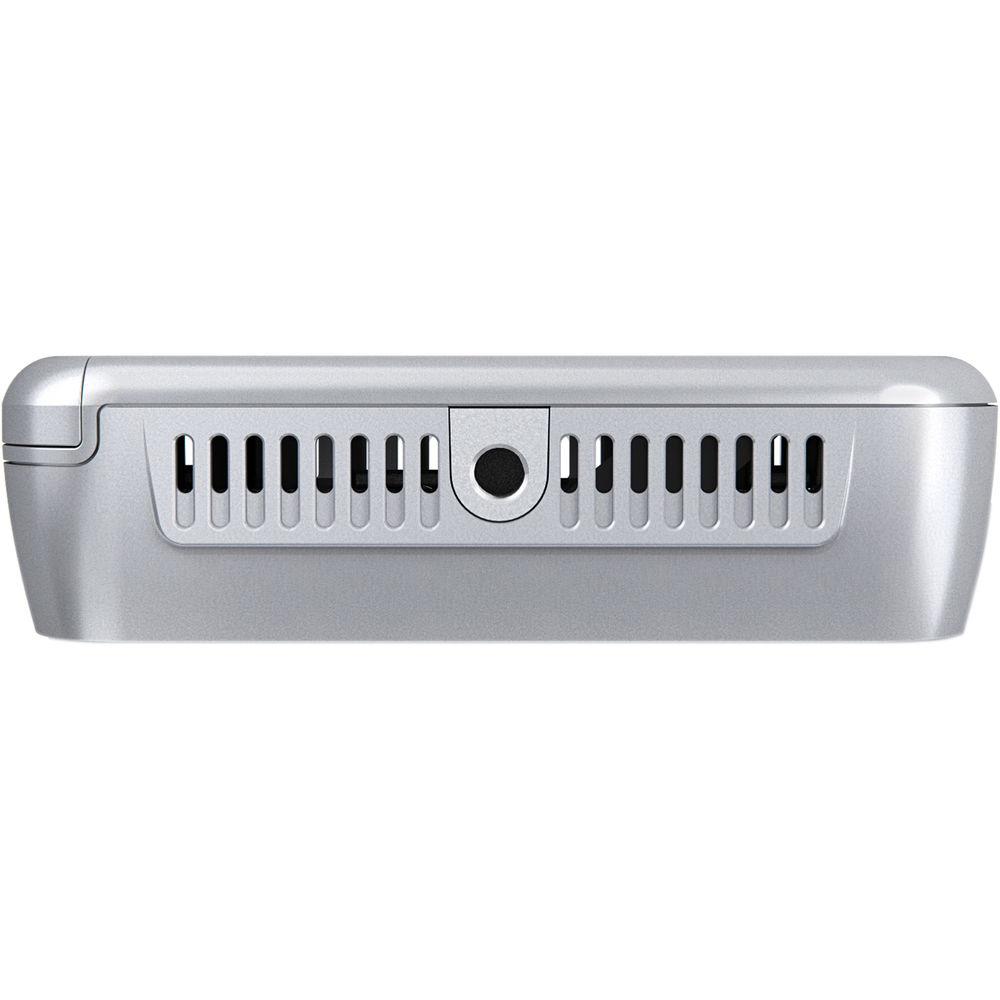

- One 1/4"-20 mounting thread and two M3 mounting threads
UPC: 735858352352 In the Box Intel RealSense Depth Camera D435 Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel RealSense Depth Camera D435 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntel RealSense D435 Specs | Environment | Indoor/Outdoor | | Connector | USB 3.0 Type-C | | Depth Technology | Active IR Stereo | | Inertial Measurement Unit (IMU) | No | | Image Sensor Technology | Global Shutter; 3 x 3 um Pixel Size | | Depth Field of View | Horizontal × Vertical for HD 16:9: 85.2 x 58° (±3°) | | Depth Stream Output | Up to 1280 x 720 at 90 fps | | Minimum Depth Distance | 4.3" / 11 cm | | Maximum Range | 32.8' / 10 m (Accuracy Varies Depending on Calibration, Scene, and Lighting Condition) | | RGB Sensor Resolution & Frame Rate | 1920 x 1080 at 30 fps | | RGB Sensor FOV | Horizontal x Vertical: 69.4 x 42.5° (±3°) | | Mount Type | 1 x 1/4"-20 Thread, 2 x M3 Threads | | Dimensions | 3.5 x 1 x 1" / 9 x 2.5 x 2.5 cm | | | | Package Weight | 0.58 lb | | Box Dimensions (LxWxH) | 5.65 x 3.65 x 2.05" |
