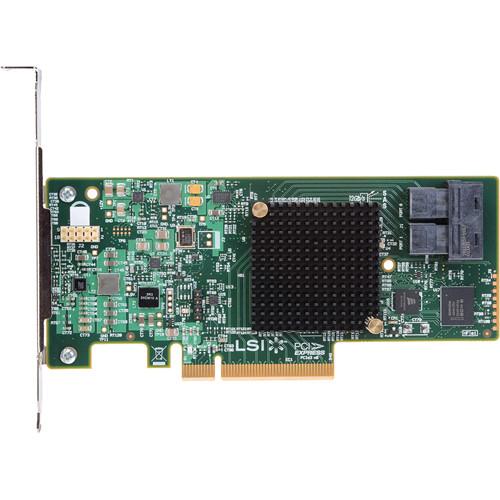

User Manual for Intel RS3WC080 12 Gb s PCIe 3.0 SAS SATA RAID Controller Card Click to enlarge the picture
Contents of the user manual for the Intel RS3WC080 12 Gb s PCIe
- Product category: Controller Cards Intel
- Brand: Intel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intel Controller Cards
|
User manual for the Intel RS3WC080 12 Gb s PCIe contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intel product will considerably shorten its lifespan!
|
Product description The RS3WC080 12 Gb/s PCIe 3.0 SAS/SATA RAID Controller Card from Intel is a mainstream RAID controller card with internal mini-SAS HD SFF8643 SAS/SATA connectors for connectivity inside the server. This controller card provides performance and scalability, without relying on system resources for RAID 0, 1, 10, 5, and 50. It uses the embedded CPU in an LSI 3008 ASIC to perform RAID 0, 1 and 10 operations. The ultra-thin driver uses low RAID overhead for high host CPU offload, with optimal read and write performance. The RAID controller also offers backwards compatibility, which can enhance the performance of 3 Gb/s and 6 Gb/s infrastructures. It supports up to 128 physical devices, multiple RAID arrays, and industry-leading interoperability. The 12 Gb/s SAS-3 technology doubles the available bandwidth of current 6 Gb/s SAS solutions, unlocking the full potential of PCIe 3.0-based systems, and solid-state storage solutions. The throughput and I/O processing capabilities maximize link utilization, thereby supporting high performance SSDs and increased scaling of traditional hard disk drives. - Over 1 Million IOPS
- LSI SAS 3108 I/O processor supports 1 million+ IOPS 1
Please Note: Performance tests/ratings are measured using specific computer systems and/or components, and reflect the approximate performance of Intel products as measured by those tests. close - mini-SAS Connectors
- Two internal high-density mini-SAS connectors with four ports of 12 Gb/s bandwidth per connector
- PCIe Connector
- PCIe x8 connector with support for Generation 3 protocol
- LED
- "Heartbeat" LED for visual verification that the card is functioning properly
- Internal Connectivity
- Internal ports allow a RAID array within a system
- Hybrid RAID 5
- The RAID controller design is based on LSI MegaRAID technology that offers RAID 5 capability, with many of the same features as Intel's mainstream RAID products 2
Please Note: RAID 5 is firmware based but utilizes system resources, which makes it hybrid. close - SAS or SATA Storage
- Connect SAS or SATA devices within the array for speed, reliability and scalability, and use high-capacity SATA drives for budget-friendly storage
- Compatible Server Boards, Systems, and JBODs
- Compatible with most Intel Server Boards and Systems supporting the Intel Xeon e5 and e3 processors, Intel Storage Systems (JBODs) and a wide number of third party-based servers and JBODs
- Mainstream RAID Controller
- This RAID Controller is a Mainstream RAID product that offers better performance and features compared to entry-level products
It features RAID 6/60, SSD cache, advanced management, and maintenance-free cache backup UPC: 735858267656 In the Box Intel RS3WC080 12 Gb/s PCIe 3.0 SAS/SATA RAID Controller Card RAID Adapter with Full and Low Profile Brackets Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel RS3WC080 12 Gb s PCIe 3.0 SAS SATA RAID Controller Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntel RS3WC080 Specs | Form Factor | Low profile MD2 | | Data Transfer Rate | 12 Gb/s | | Drive Type | SAS 12 Gb
SAS and SATA 6 Gb
SAS and SATA 3 Gb | | PCI Interface | PCIe x8 Generation 3 | | Connectors | Up to 2 internal high density mini-SAS connectors with up to eight ports of 12 Gb/s bandwidth per port | | Connector Orientation | Side | | Raid Levels | RAID 0, 1, 10, 5, and 50 | | I/O Processor Model | LSI SAS3008 IOC | | Data Protection Feature | Distributed sparing
Hot-Spare support
Expander support
Background consistency checking
Enclosure management/S.M.A.R.T. support
RAID support before operating system is loaded | | Intel RAID Software | Intel RAID Web Console 2
Intel RAID Command Line Tool
Intel RAID Flash Utilities | | Maximum Devices/Drives | Non-RAID: 64
RAID 0: 16 per volume
RAID 1: 2 per volume plus hot-spare
RAID 10: 16 per volume
RAID 5/50: 16 per volume | | No. of Devices Supported | 128 | | Operating Voltage | +12 V ±10% | | Operating Temperature | Maximum Ambient: 131°F (55°C) with 200 LFM airflow | | Supported Operating Systems | Windows, Linux (SuSE, Red Hat), Solaris, VMware, freeBSD | | Compatibility | Intel Server System P4308CP4MHEN
Intel Server System P4308CP4MHGC | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 9.0 x 5.8 x 2.3" |
