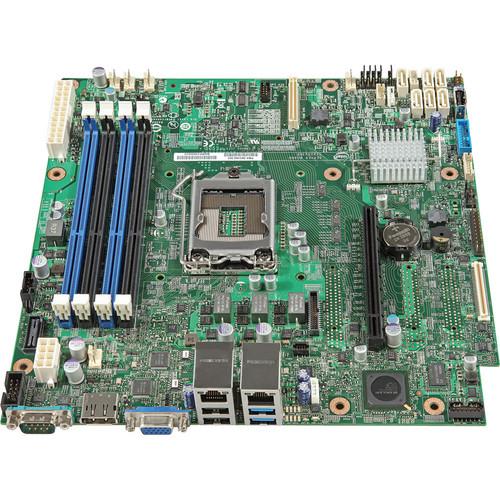

Product description The S1200V3RPM Intel Server Motherboard from Intel is a general purpose, single socket board supporting an Intel Xeon E3 processor and four DIMMs. It is equipped with two USB 2.0 and two USB 3.0 ports, six SATA ports, two LAN ports and one LGA 1150 socket. These hardware features are accompanied by a 32GB maximum memory capacity with a maximum memory bandwidth of 25.6 GB/s, ensuring fast, efficient flow of data. This server motherboard also features integrated graphics support with a VGA output. Expansion options include PCIe x8 generation three slot and an I/O expansion module to easily connect compatible peripherals. - Quick Path Interconnect (QPI) Links
- QPI is a high-speed, point-to-point interconnect bus between the processor and chipset.
- Integrated BMC with Intelligent Platform Management Interface (IPMI)
- IPMI is a standardized interface used for out-of-band management of computer systems. The integrated BMC (Baseboard Management Controller) is a specialized microcontroller that enables IPMI.
- ECC Memory Support
- The processor supports ECC (Error-Correcting Code) memory. ECC memory is a type of system memory that can detect and correct common kinds of internal data corruption. 1
Please Note: Note ECC memory support requires both processor and chipset support. close - Integrated Graphics
- Integrated graphics allows for incredible visual quality, faster graphics performance and flexible display options without the need for a separate graphics card.
- Advanced Encryption Standard New Instructions (AES-NI)
- Advanced Encryption Standard New Instructions are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, including those that perform bulk encryption/decryption, authentication, random number generation and authenticated encryption.
- Connector for Intel I/O Expansion Module
- I/O expansion indicates a mezzanine connector on Intel Server Boards that supports a variety of Intel I/O Expansion Modules using a PCIe interface. These modules typically have external ports that are accessed on the rear I/O panel.
- RAID (Redundant Array of Independent Disks) Configuration
- This is a storage technology that combines multiple disk drive components into a single logical unit and distributes data across the array defined by RAID levels, indicative of the level of redundancy and performance required.
- Intel Virtualization Technology for Directed I/O (VT-d)
- The VD-d technology continues the existing support for IA-32 (VT-x) and Itanium processor (VT-i) virtualization, while adding support for I/O-device virtualization. Intel VT-d helps to improve not only the security and reliability of systems but also the performance of I/O devices in virtualized environments.
- Intel Matrix Storage Technology
- Intel Matrix Storage technology, the predecessor to Intel Rapid Storage technology, provides protection, performance and expandability for desktop and mobile platforms. Whether using one or multiple hard drives, you can benefit from enhanced performance and lower power consumption. When using more than one drive, you can have additional protection against data loss in the event of a hard drive failure.
- Trusted Platform Module (TPM)
- Trusted Platform Module is a component on the desktop board that is specifically designed to enhance platform security above and beyond the capabilities of today's software by providing a protected space for key operations and other security critical tasks. Using both hardware and software, the TPM protects encryption and signature keys at their most vulnerable stages - operations when the keys are being used unencrypted in plain-text form.
- Intel Advanced Management Technology
- Intel Advanced Management technology features an isolated, independent, secure and highly reliable network connection, with an Integrated Baseboard Management Controller (Integrated BMC) configuration from within BIOS. Also included is an embedded web user interface that launches key platform diagnostic capabilities over the network, an out-of-band (OOB) platform inventory, failsafe firmware updates and an automatic Integrated BMC stall detection and reset.
- Intel Server Customization Technology
- Intel Server Customization technology enables resellers and system builders to offer end customers a customized experience, SKU configuration flexibility, flexible boot options and maximum I/O options.
UPC: 735858266581 In the Box Intel S1200V3RPM Intel Server Motherboard 4 x SATA Cables Intel Server Deployment and Management DVD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel S1200V3RPM Intel Server Motherboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntel S1200V3RPM Specs | | | Number of QPI Links | 1 | | Board Form Factor | uATX | | Chassis Form Factor | Rack | | Socket | LGA 1150 | | Sockets Supported | 4 UDIMM | | Integrated BMC with IPMI | Yes | | Integrated Systems Available | Yes | | Rack-Friendly Board | Yes | | Embedded Options Available | Yes | | TDP | 95 W | | Target Market | Small business/1st server | | | | Max Memory Size | 32 GB (dependent on memory type) | | Memory Type | DDR3L ECC UDIMM 1333/1600 MT/s | | Number of Memory Channels | 2 | | Max Memory Bandwidth | 25.6 GB/s | | DIMMs | 4 | | ECC Memory Support | Yes | | | | Integrated Graphics | Yes | | Graphics Output | VGA | | # of Displays Supported | 2 | | Chipset | Intel C226 | | | | PCIe Revision | 3.0 | | Maximum Number of PCIe Lanes | 16 | | PCIe Support | PCIe x8 Gen 3:1 | | Connector for I/O Expansion Module | 1 | | Connector for Integrated RAID Module | 1 | | | | USB Revision | USB 3.0 | | Number of USB 2.0 Ports | 2 | | Number of USB 3.0 Ports | 2 | | SATA Ports | 6 | | RAID Configuration | Intel RST (0, 1, 10, 5) | | Serial Port | 1 | | LAN Ports | 2 | | Integrated LAN | 2 x 1 GbE | | Embedded USB (eUSB) Solid State Drive Option | Yes | | | | Advanced Technologies | AES New Instructions
Intel Virtualization Technology for Directed I/O (VT-d)
Intel Remote Management Module Support
Intel Matrix Storage Technology
Intel Advanced Management Technology
TPM 1.2
Intel Server Customization Technology | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 13.1 x 10.8 x 2.9" |
