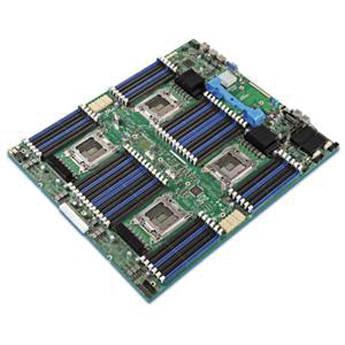

Intel S4600LH2 Server Board

User Manual for Intel S4600LH2 Server Board

• Product category: Motherboards Intel
• Brand: Intel
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Intel Motherboards

Product description

ECC Memory Supported*
• This processor supports ECC (Error-Correcting Code) memory. ECC memory is a type of system memory that can detect and correct common kinds of internal data corruption.

Integrated Graphics*
• Integrated graphics allow for incredible visual quality, faster graphics performance and flexible display options, without the need for a separate graphics card.

Embedded USB (eUSB) Solid State Drive Option
• Embedded USB (eUSB) supports small USB flash storage devices which can be plugged directly into the board as well as used for mass storage or a boot device.

Intel Virtualization Technology for Directed I/O (VT-d)*
• Intel Virtualization technology for Directed I/O (VT-d) continues the existing support for IA-32 (VT-x) and Itanium processor (VT-i) virtualization, adding new support for I/O-device virtualization. Intel VT-d helps improve security and reliability of systems as well as performance of I/O devices in virtualized environments.

Intel Remote Management Module Support
• The Intel Remote Management Module (Intel RMM) allows you to securely gain access and control servers and other devices from any machine on the network. Remote access includes remote management capability, including power control, KVM, and media redirection, with a dedicated management network interface card (NIC).

Intel Node Manager
• Intel Intelligent Power Node Manager is a platform resident technology that enforces power and thermal policies for the platform. It enables data center power and thermal management by exposing an external interface to management software through which platform policies can be specified. It also enables specific data center power management usage models, such as power limiting.

TPM Version 1.2
• TPM (Trusted Platform Module) is a component that provides hardware level security upon system boot-up via stored security keys, passwords, encryption, and hash functions.

Intel Rapid Storage Technology Enterprise
• Intel Rapid Storage Technology enterprise (Intel RSTe) provides performance and reliability for supported systems equipped with Serial ATA (SATA) devices, Serial Attached SCSI (SAS) devices, and/or solid state drives (SSDs) to enable an optimal enterprise storage solution.

Intel Fast Memory Access
• Intel Fast Memory Access is an updated Graphics Memory Controller Hub (GMCH) backbone architecture that improves system performance, by optimizing the use of available memory bandwidth and reducing the latency of memory accesses.

Intel Flex Memory Access
• Intel Flex Memory Access facilitates easier upgrades by allowing different memory sizes to be populated and remain in dual-channel mode.

Intel I/O Acceleration Technology
• Internal I/O expansion module indicates a mezzanine connector on Intel Server Boards, which supports a variety of Intel(r) I/O expansion modules using a x8 PCIe interface. These modules are either RoC (RAID-on-Chip) or SAS (Serial Attached SCSI) modules that are not used for external connectivity through the rear I/O panel.

Intel Advanced Management Technology
• Intel Advanced Management technology features an isolated, independent, secure, and reliable network connection with an Integrated Baseboard Management Controller (Integrated BMC) configuration, from within BIOS. It also includes an embedded Web user interface that launches key platform diagnostic capabilities over the network, an out-of-band (OOB) platform inventory, failsafe firmware updates and an automatic Integrated BMC stall detection and reset.

Intel Server Customization Technology
• Intel Server Customization technology enables Resellers and System Builders to offer end-customers a customized branded experience, SKU configuration flexibility, flexible boot options, and maximum I/O options.

Intel Build Assurance Technology
• Intel Build Assurance technology provides advanced diagnostic features, ensuring comprehensively tested, most thoroughly debugged, and most stable systems possible are shipped to customers.

Intel Efficient Power Technology
• Intel Efficient Power technology is a series of improvements within Intel power supplies and voltage regulators to increase power delivery efficiency and reliability. This technology is included in all common redundant power supplies (CRPS). CRPS includes the following technologies: 80 PLUS Platinum (92% efficient at 50% load) efficiency, cold redundancy, closed loop system protection, smart ride-through, dynamic redundancy detection, black box recorder, compatibility bus and auto firmware updates to provide more efficient power delivery to the system.

Intel Quiet Thermal Technology
• Intel Quiet Thermal technology is a series of thermal and acoustic management innovations that reduce unnecessary acoustic noise and provide cooling flexibility, while maximizing efficiency. The technology includes capabilities such as advanced thermal sensory arrays, advanced cooling algorithms, and built-in failsafe shutdown protection.

AES New Instructions
• Advanced Encryption Standard New Instructions (AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI is valuable for a wide range of cryptographic applications, including applications that perform bulk encryption/decryption, authentication, random number generation, and authenticated encryption.

Intel Trusted Execution Technology*
• Intel Trusted Execution technology for safer computing is a versatile set of hardware extensions to Intel processors and chipsets that enhance the digital office platform with security capabilities such as measured launch and protected execution. It enables an environment where applications can run within their own space, protected from all other software on the system.
