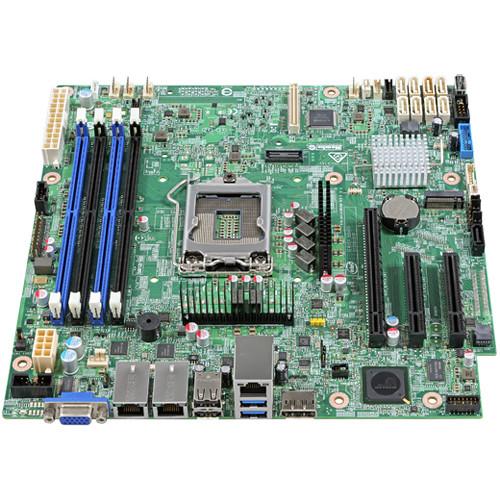

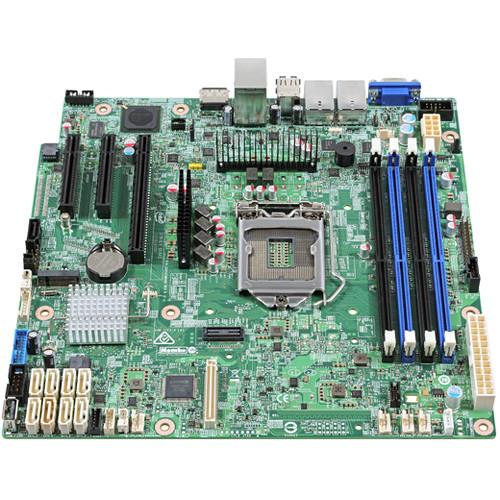

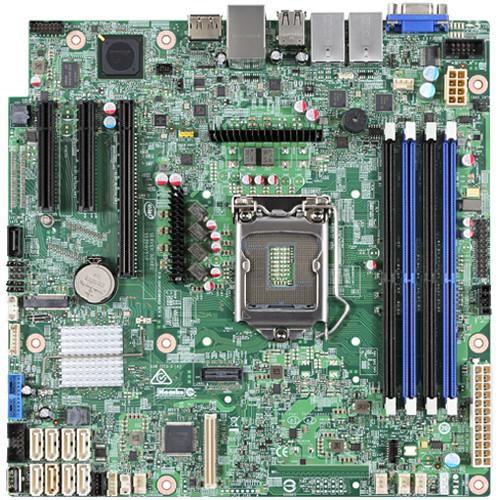

User Manual for Intel Single-Socket Server Motherboard with C236 Chipset Click to enlarge the picture
Contents of the user manual for the Intel Single-Socket Server Motherboard with C236
- Product category: Motherboards Intel
- Brand: Intel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intel Motherboards
 |
User manual for the Intel Single-Socket Server Motherboard with C236 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intel product will considerably shorten its lifespan!
|
Product description Provided by third party: A flexible, feature-rich, microATX, single-socket server board supporting the Intel Xeon E3 processor, the Intel Server Board S1200SP is ideal for small and medium businesses (SMB), web hosting, content delivery, storage, and security.
- Key Features
-
- Supports one Intel Xeon processor E3-1200 v5 and v6 with dual 1GBase-T connectivity
- Supports Intel's industry-leading cryptographic isolation technology, Intel Software Guard Extensions (Intel SGX), reducing expenses associated with cypto-processor based HSMs
- Four DDR4 ECC UDIMM sockets, up to 64 GB maximum
UPC: 735858332767 In the Box Intel Single-Socket Server Motherboard with C236 Chipset Intel Server Board S1200SPLR 4 x SATA Express cable I/O back plate Software Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel Single-Socket Server Motherboard with C236 Chipset in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntel DBS1200SPLR Specs | | | Product Type | Motherboard - micro ATX | | Chipset Type | Intel C236 | | Processor Socket | LGA1151 Socket | | Max Processors Qty | 1 | | Compatible Processors | Xeon E3-1200 v5 series (Maximum TDP 80 Watt) | | | | Max Size | 64 GB | | Technology | DDR4 | | Bus Clock | 2133 MHz | | Supported RAM Integrity Check | ECC | | Registered or Buffered | Unbuffered | | Features | Dual channel memory architecture | | | | Network Controller | Intel I210 | | Network Interfaces | 2 x Gigabit Ethernet | | | | Expansion Slots | 1 x CPU
4 x DIMM 288-pin
1 x PCIe 3.0 x16 (x8 mode)
1 x PCIe 3.0 x8 (x8 mode)
1 x PCIe 3.0 x8 (x4 mode)
1 x M.2 socket (x4 mode) | | Storage Interfaces | SATA-600 -connectors: 8 x 7pin Serial ATA - 8 devices - RAID 0 / RAID 1 / RAID 10 | | RAID Features | Intel Rapid Storage Technology | | Interfaces | 4 x USB 3.0
5 x USB 2.0
2 x LAN (Gigabit Ethernet)
1 x VGA
1 x serial
1 x DisplayPort | | Internal Interfaces | 2 x USB 2.0 - header
2 x USB 3.0 - header
2 x USB 2.0
2 x USB 3.0
1 x USB 2.0 - Type A | | | | BIOS Type | Intel | | BIOS Features | DMI 2.0 support, IPMI 2.0 support | | Sleep / Wake Up | RTC (real-time clock) wake up | | Hardware Features | Trusted Platform Module (TPM) 1.2 | | | | Included Accessories | I/O back plate | | Cables Included | 4 x SATA Express cable | | Software Included | Drivers & utilities | | Width | 9.6 in | | Depth | 9.6 in | | | | Package Weight | 2.75 lb | | Box Dimensions (LxWxH) | 13.1 x 10.7 x 3.0" |
