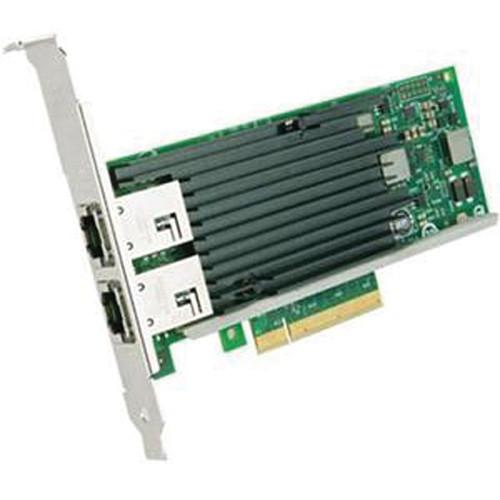

User Manual for Intel X540T2 Dual Port Ethernet Converged Network Adapter Click to enlarge the picture
Contents of the user manual for the Intel X540T2 Dual Port Ethernet Converged
- Product category: Network Interface Cards & Adapters Intel
- Brand: Intel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intel Network Interface Cards & Adapters
|
User manual for the Intel X540T2 Dual Port Ethernet Converged contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intel product will considerably shorten its lifespan!
|
Product description The black Intel X540T2 Dual Port Ethernet Converged Network Adapter simplifies migration to 10 GbE, provides iSCSI, FCoE, virtualization, and flexible port partitioning. The adapter works with legacy Gigabit Ethernet (GbE) switches and Cat 6A cabling. By simply installing the adapter into a server, the auto-negotiation between 1 and 10 GbE provides the necessary backwards compatibility that most customers require for a smooth transition and easy migration to 10 GbE. The X540T2 allows you to deploy 10 GbE in your existing data center. The adapter uses Cat6 and Cat 6A cabling. Thanks to this controller, the MAC and the PHY are integrated into a single-chip solution. A single-chip solution uses less power than two separate components. This means no more active heat sink and reduces the per-port power consumption. The X540T2 adapter provides bandwidth-intensive applications with an efficient 10 GbE network performance and reliable RJ-45 connectivity for distances up to 328' (100 m). Virtualization changes the way server resources are deployed and managed by running multiple applications and operating systems independently on a single server. The adapter includes Virtualization Technology for connectivity (Intel VT-c) delivers I/O virtualization and Quality of Service (QoS) features designed directly into the controller. The I/O virtualization advances network connectivity by providing FPP, multiple Rx/Tx queues, and on-controller QoS functionality that can be used in both virtual and non-virtual server deployments. With FPP, virtual controllers can be used by the Linux host directly and/or assigned to virtual machines. FPP allows you to use the functionality of SR-IOV to assign up to 63 processes per port to virtual functions in Linux. This enables an administrator to partition their 10 GbE bandwidth across multiple processes, ensuring a QoS by giving each assigned process equal bandwidth. Network administrators may also rate-limit each of these services to control how much of the 10 GbE pipe is available to each process. Unified Networking solutions on the adapter let you combine the traffic of multiple data center networks like LAN and SAN onto a single efficient network fabric. You can choose NFS, iSCSI, or Fibre Channel over Ethernet (FCoE) to carry both network and storage traffic at speeds of up to 10 Gb/s. The adapter combines support for all of these traffic types in one adapter at no additional cost and with no additional licensing fees for the adapter. Unified networking is available on every server either through LAN-on-Motherboard (LOM) implementation or via an add-on Network Interface Card (NIC). iSCSI uses Ethernet to carry storage traffic, extending the familiarity and simplicity of Ethernet to storage networking, without the need for SAN-specific adapters or switches. The X540 is a reliable and effective method of connecting servers to iSCSI SANs. The Open-FCoE architecture uses a combination of FCoE initiators in Microsoft Windows and Linux operating systems and in the VMware ESXi hypervisor to deliver high-performance FCoE solutions using standard 10 GbE Ethernet adapters. This approach enables IT managers to simplify the data center and standardize on a single adapter for LAN and SAN connectivity. The adapter is designed to fully offload the FCoE data path to deliver full-featured converged network adapter (CNA) functionality without compromising on power efficiency and interoperability. Note: Network Interface Card is sold separately. - Integrated dual port MAC+PHY adapter reduces cost and power
- Low-profile enables higher bandwidth and throughput from standard and low-profile PCIe slots and servers
- Load balancing on multiple CPUs increases performance on multi-processor systems by efficiently balancing network loads across CPU cores when used with Receive-Side Scaling from Microsoft or Scalable I/O on Linux
- Remote boot iSCSI and FCoE supports remote booting to an iSCSI or FCoE drive
- Support for most Network Operating Systems (NOS) enables widespread deployment
- RoHS compliant lead-free technology is compliant with the European Union directive (July 2006) to reduce hazardous materials
- MSI-X support minimizes the overhead of interrupts and allows load balancing of interrupt handling between different cores/CPUs
- Based on the sensitivity of the incoming data, the adapter can bypass the automatic moderation of time intervals between the interrupts
- Header splits and replication in receive helps the driver focus on the relevant part of the packet without the need to parse it
- Packet handling without waiting/buffer overflow provides efficient packet prioritization
- Lower processor usage and checksum and segmentation capability extended to new standard packet type
- Increased throughput and lower processor usage
- Compatible with large-send offload feature (in Microsoft Windows Server operating systems)
- Offloads IPsec capability to adapter instead of software to significantly improve throughput and CPU usage (for Windows 7, Windows 2008 Server R2, Windows 2008 Server, and Windows Vista)
- Compatible with x8 and x16 standard and low-profile PCI Express slots enables each slot port to operate without interfering or competing with other ports
- Receive/Transmit Side Scaling for Windows and Scalable I/O for Linux (IPv4, IPv6, TCP/ UDP) enables direction of the interrupts to the processor cores in order to improve the CPU usage rate
- RJ-45 connections over CAT-6a cabling ensures compatibility with cable lengths up to 328' (100 m)
- Virtual Machine Device Queues (VMDq)
- Offloads data-sorting from the Hypervisor to silicon, improving data throughput and CPU usage
QoS feature for Tx data by providing round-robin servicing and preventing head-of-line blocking
Sorting based on MAC addresses and VLAN tags - Next-Generation VMDq (64 queues per port)
- Enhanced QoS feature by providing weighted round-robin servicing for the Tx data
Provides loopback functionality, data transfer between the virtual machines within the same physical server don't go out to the wire and back in, improving throughput and CPU usage
Supports replication of multicast and broadcast data - PCI-SIG SR-IOV Implementation (64 virtual functions per port)
- The physical configuration of each port is divided into multiple virtual ports. Each virtual port is assigned to an individual virtual machine directly by bypassing the virtual switch in the Hypervisor, resulting in near-native performance
I integrated with Intel Virtualization Technology for Directed I/O (Intel VT-d) to provide data protection between virtual machines by assigning separate physical addresses in the memory to each virtual machine - Advanced Packet Filtering
- 24 exact-matched addresses (unicast or multicast)
4096-bit hash filter for unicast and multicast frames
Lower processor usage
Promiscuous (unicast and multicast) transfer mode support
Optional filtering of invalid frames - Ability to create multiple VLAN segments
UPC: 735858260817 In the Box Intel X540T2 Dual Port Ethernet Converged Network Adapter (Black) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel X540T2 Dual Port Ethernet Converged Network Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntel X540T2BLK Specs | | | Connector | RJ-45 Copper | | Cabling type | 10GBASE-T: 328' (100 m) on Cat 6A, 180.4' (55.0 m) on Cat 6
1000BASE-T: 328' (100 m) on Cat 5e, Cat 6 or Cat 6A
100BASE-T: 328' (100 m) on Cat 5e, Cat 6 or Cat 6A | | Power Usage | 10 Gb/s: 17.4 W
1 Gb/s: 9.5 W
100 Mb/s: 6.6 W
LFM: 200 W | | Network Management | Wired for Management (WfM) baseline v2.0 enabled for servers
DMI 2.0 support, Windows Management Instrumentation (WMI) and SNMP
Remote Installation Services (RIS)
PXE 2.0 enabled through boot Read-Only Memory (ROM) | | NOS Software Support | Windows 7 (IA32 and X64)
Windows Server 2008 (x64 and IPF)
Windows Server 2008 Core (x64 and IPF)
Windows Server 2008 R2 (x64 and IPF)
Windows Server 2008 R2 Core (x64 and IPF)
Linux SLES 11 SP1
Microsoft Windows Server 2003
Microsoft Vista
SUSE SLES 10 or later, Professional 9.2 or later
Microsoft Windows Virtual Server 2005
Red Hat Enterprise 4 or later
FreeBSD 5.x or later support
VMware ESX 4.0/4.1, ESXi 5.0 support
Fedora
EFI 1.1 | | Data Rate Supported Per Port | 100 Mb/s, 1 Gb/s, 10 Gb/s | | Bus Type | PCI Express 2.1 (5.0 GT/s) | | Bus Width | x8 lane PCI Express, operable in x8 and x16 slots | | Bus Speed | x8, encoded rate 20 Gb/s uni-directional; 40 Gb/s bi-directional | | Interrupt Levels | INTA, MSI, MSI-X | | Hardware Certifications | FCC A, UL, CE, VCCI, BSMI, CTICK, KCC | | Controller-Processor | Intel Ethernet Controller X540 | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 7.8 x 5.2 x 0.7" |
