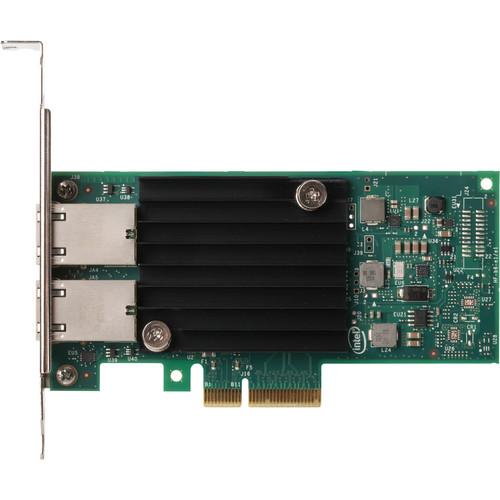

User Manual for Intel X550-T2 Dual Port Ethernet Converged Network Adapter Click to enlarge the picture
Contents of the user manual for the Intel X550-T2 Dual Port Ethernet Converged
- Product category: Network Interface Cards & Adapters Intel
- Brand: Intel
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intel Network Interface Cards & Adapters
|
User manual for the Intel X550-T2 Dual Port Ethernet Converged contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intel product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intel user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intel product will considerably shorten its lifespan!
|
Product description Provided by third party: With 10GBASE-T, migration to 10 GbE is dramatically simplified with backward compatibility for your existing GbE network infrastructure. Install an X550 adapter into a server and the auto-negotiation between 1 GbE and 10 GbE provides the necessary backwards compatibility that most customers require for a smooth transition and easy migration to 10 GbE. When time and budget allows, 10GBASE-T switches can be added any time to experience the full benefits of 10 GbE.
10GBASE-T uses the copper twisted-pair cables that are very familiar to IT professionals today. It is all you know and love about 1000BASE-T. The knowledge, training, and investment in BASE-T are preserved. 10GBASE-T is the easiest and most versatile 10 GbE interface that can be deployed anywhere in your data center. Its flexible reach from 1 meter to 100 meters supports the latest network architectures including Top of Rack (ToR), Middle of Row (MoR), and End of Row (EoR).
- Key Features
-
- Low-cost, low-power, 10-GbE performance for the entire datacenter
- Intel's 10GBASE-T controller with integrated MAC and PHY
- Standard CAT 6a cabling with RJ-45 connectors
- Backward compatibility with existing 1000BASE-T networks simplifies the transition to 10 GbE
- Unified networking delivering LAN, iSCSI and FCoE in one low-cost CNA
- Flexible I/O virtualization for port partitioning and Quality of Service
- Simplify the transition to 10 GbE
- With 10GBASE-T, migration to 10 GbE is dramatically simplified with backward compatibility for your existing GbE network infrastructure. Install an X550 adapter into a server and the autonegotiation between 1 GbE and 10 GbE provides the necessary backwards compatibility that most customers require for a smooth transition and easy migration to 10 GbE. When time and budget allows, 10GBASE-T switches can be added any time to experience the full benefits of 10 GbE. 10GBASE-T uses the copper twisted-pair cables. It is all you know and love about 1000BASE-T. 10GBASE-T is an easy and versatile 10 GbE interface that can be deployed anywhere in your data center. Its flexible reach supports the advanced network architectures including Top of Rack (ToR), Middle of Row (MoR), and End of Row (EoR).
- 10 GbE performance at low cost and low power
- The Intel Ethernet Converged Network Adapter X550 is low-cost way to deploy 10 GbE in your data center. The Intel X550 uses low-cost Cat6 and Cat6a cabling. Chances are this cabling already exists in the data center. A way for Intel to reduce cost and power is to integrate components into a single-chip solution. Why is integration important? First, integration translates to lower power. This means no active heat sink and reduces the per-port power consumption. Second, integration also means a lower cost per port, because two separate components are not needed. When cabling is accounted for, cost efficiencies realized from a single part mean 10GBASE-T is low-cost media to deploy. With lower cost and power, 10GBASE-T is ideal for broad deployment. 10GBASE-T is a solution for every rack and tower server in the data center.
- A complete unified network solution
- Converging data and storage onto one fabric eliminates the need for multiple adapters and cables per server. Furthermore, 10 GbE provides the bandwidth to converge these multiple fabrics into a single wire. A key capability that makes all this possible is traffic class separation provided by Data Center Bridging (DCB). DCB provides a collection of standards for additional QoS functionality such as lossless delivery, congestion notification, priority-based flow control, and priority groups. This enables the CNA X550 family to provide a one-wire solution with virtual pipes for the different classes of traffic.
- Great choice for server virtualization
- Virtualization changes server resource deployment and management by running multiple applications and operating systems on a single physical server. With Intel Virtualization Technology for connectivity, the CNA X550 family delivers outstanding I/O performance and QoS in virtualized data centers and cloud environments. I/O virtualization advances network connectivity used in servers to more efficient models by providing FPP, multiple Tx/Rx queues, Tx queue rate-limiting, and on-controller QoS functionality that is useful for both virtual and non-virtual server deployments.
UPC: 735858307352 In the Box Intel X550-T2 Dual Port Ethernet Converged Network Adapter Intel Ethernet Converged Network Adapter X550-T2 Low-profile bracket Table of Contents
|
Upload User Manual
Have you got an user manual for the Intel X550-T2 Dual Port Ethernet Converged Network Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntel X550T2 Specs | | | Device Type | Network adapter | | Form Factor | Plug-in card - low profile | | Interface (Bus) Type | PCI Express 3.0 | | PCI Specification Revision | PCIe 3.0 | | | | Ports | 10Gb Ethernet x 2 | | Connectivity Technology | Wired | | Cabling type | Ethernet 10GBase-T | | Data Link Protocol | 10 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE), iSCSI | | Data Transfer Rate | 10 Gbps | | Capacity | QoS virtual ports: up to 64
VLAN tags: up to 4096 | | Network / Transport Protocol | TCP/IP, UDP/IP, IPSec, iSCSI, SMB, NFS, SCTP | | Remote Management Protocol | SNMP, DMI 2.0 | | Features | MAC address filtering, IPv6 support, Quality of Service (QoS), Virtual Machine Device Queues (VMDq), IPv4 support, Single Root I/O Virtualization (SR-IOV), TCP Segmentation Offload (TSO), PXE 2.0 support, Extended Message-Signaled Interrupts (MSI-X), Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), Intel Flow Director, Flexible Port Partitioning (FPP), multi-mode I/O virtualization operations, VLAN filtering, intelligent offloads | | Compliant Standards | IEEE 802.1Q, IEEE 802.1Qbg | | | | Interfaces | 2 x 10GBase-T - RJ-45 | | | | Included Accessories | Low-profile bracket | | Compliant Standards | Plug and Play, RoHS | | | | OS Required | Linux Kernel 2.6 or later, Microsoft Windows 7 64-bit Edition SP1, Microsoft Windows Server 2008 R2 (64-bits), VMware ESXi 5.5, Red Hat Enterprise Linux 7.1, Microsoft Windows Server 2012 (64-bit), Microsoft Windows Server 2012 R2 (64-bit), SuSE Linux Enterprise Server 12, Red Hat Enterprise Linux 6.7, SuSE Linux Enterprise Server 11 SP4, Windows 8 / 8.1 / 10 (64 bits), FreeBSD 10.2, VMware ESXi 6.0 | | | | Service & Support | Limited warranty - lifetime | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 8.9 x 5.6 x 1.2" |
