Intel Xeon Phi 7230F 1.3 GHz

Search your instruction manual in PDF to download

User Manual for Intel Xeon Phi 7230F 1.3 GHz 64-Core LGA 3647 Processor

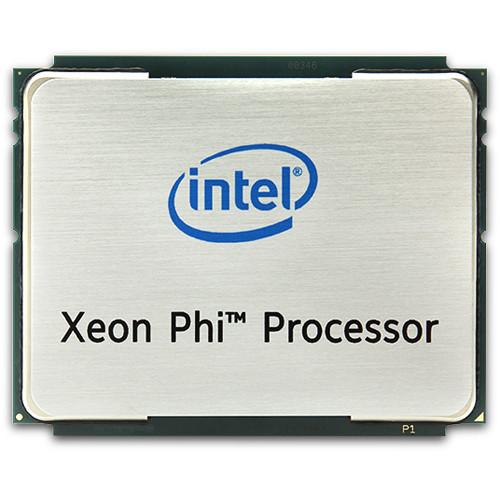

Click to enlarge the picture
Intel Xeon Phi 7230F 1.3 GHz 64-Core LGA 3647 Processor Contents of the user manual for the Intel Xeon Phi 7230F 1.3 GHz
  • Product category: CPU Processors Intel
  • Brand: Intel
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Intel CPU Processors

User manual for the Intel Xeon Phi 7230F 1.3 GHz contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Intel product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Intel user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Intel product will considerably shorten its lifespan!



Product description

The Xeon Phi 7230F 1.3 GHz 64-Core LGA 3647 Processor from Intel has a base clock speed of 1.3 GHz and comes with features such as Intel Turbo Boost 2.0 technology. With Intel Turbo Boost 2.0 technology, the maximum turbo frequency this processor can achieve is 1.5 GHz. Additionally, this processor features 64 cores in an LGA 3647 socket and has 32MB of L2 cache memory. Having 64 cores allows the processor to run multiple programs simultaneously without slowing down the system. This processor also supports up to 384GB of DDR4-2400 RAM, supports PCIe 3.0, has AES New Instructions and AVX-512 Instruction Set Extensions, and 14nm semiconductor technology.

Graphically, the Intel Xeon Phi 7230F 1.3 GHz 64-Core LGA 3647 Processor does not contain integrated graphics, meaning that users will need to purchase a dedicated graphics card of their choice. This CPU is protected by a limited 3-year warranty and includes a CPU cooler. In the Box Intel Xeon Phi 7230F 1.3 GHz 64-Core LGA 3647 Processor
  • CPU Cooler
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Intel Xeon Phi 7230F 1.3 GHz 64-Core LGA 3647 Processor in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Intel Phi 7230F Specs

    Product Collection Intel Xeon Phi Product Family x200
    Code Name Products formerly Knights Landing
    Vertical Segment Server
    Processor Number 7230F
    Lithography 14 nm
    # of Cores 64
    Processor Base Frequency 1.3 GHz
    Max Turbo Frequency 1.5 GHz
    Cache 32 MB L2
    TDP 230 W
    VID Voltage Range 0.550 to 1.125 V
    Embedded Options Available No
    Virtualization Intel Xeon Phi processors do not currently support Virtualization. Intel is working with interested OEMs, customers, and the virtualization developer community in providing them with Virtualization feature at a later date.
    Conflict Free Yes
    Max Memory Size 384 GB
    Memory Types DDR4-2400
    Max # of Memory Channels 6
    Max Memory Bandwidth 115.2 GB/s
    ECC Memory Supported Yes
    PCI Express Revision 3.0
    PCI Express Configurations x16 port (Port and 3) may negotiate down to x8, x4, x2, or x1. x4 port (Port1) may negotiate down to x2 or x1
    Max # of PCI Express Lanes 4
    Sockets Supported SVLCLGA3647
    Intel Turbo Boost Technology 2.0
    Intel Virtualization Technology (VT-x) No
    Intel Virtualization Technology for Directed I/O No
    Intel VT-x with Extended Page Tables (EPT) No
    Intel 64 Yes
    Instruction Set 64-bit
    Instruction Set Extensions Intel AVX-512
    Idle States Yes
    Thermal Monitoring Technologies Yes
    Intel AES New Instructions Yes
    Intel Software Guard Extensions (Intel SGX) No
    Intel Memory Protection Extensions (Intel MPX) No
    Trusted Execution Technology No
    Execute Disable Bit Yes
    Intel Device Protection Technology with Boot Guard No
