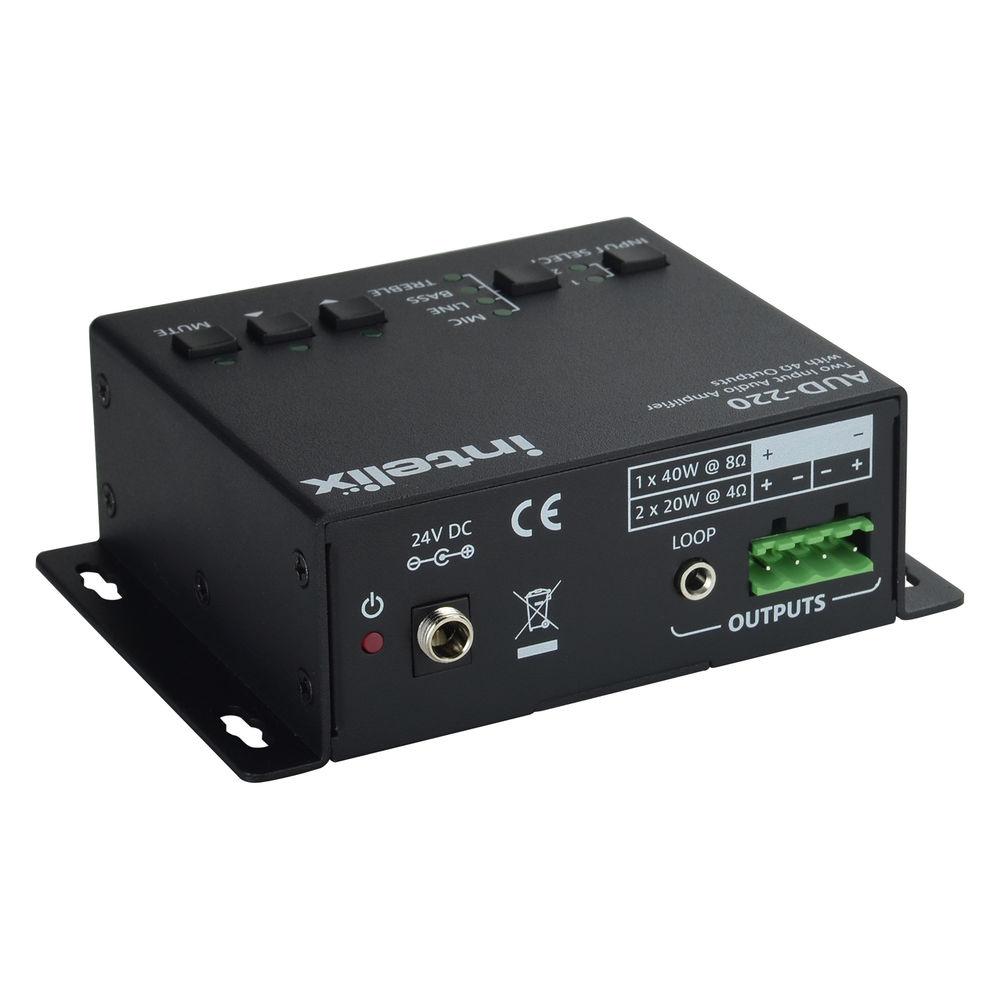

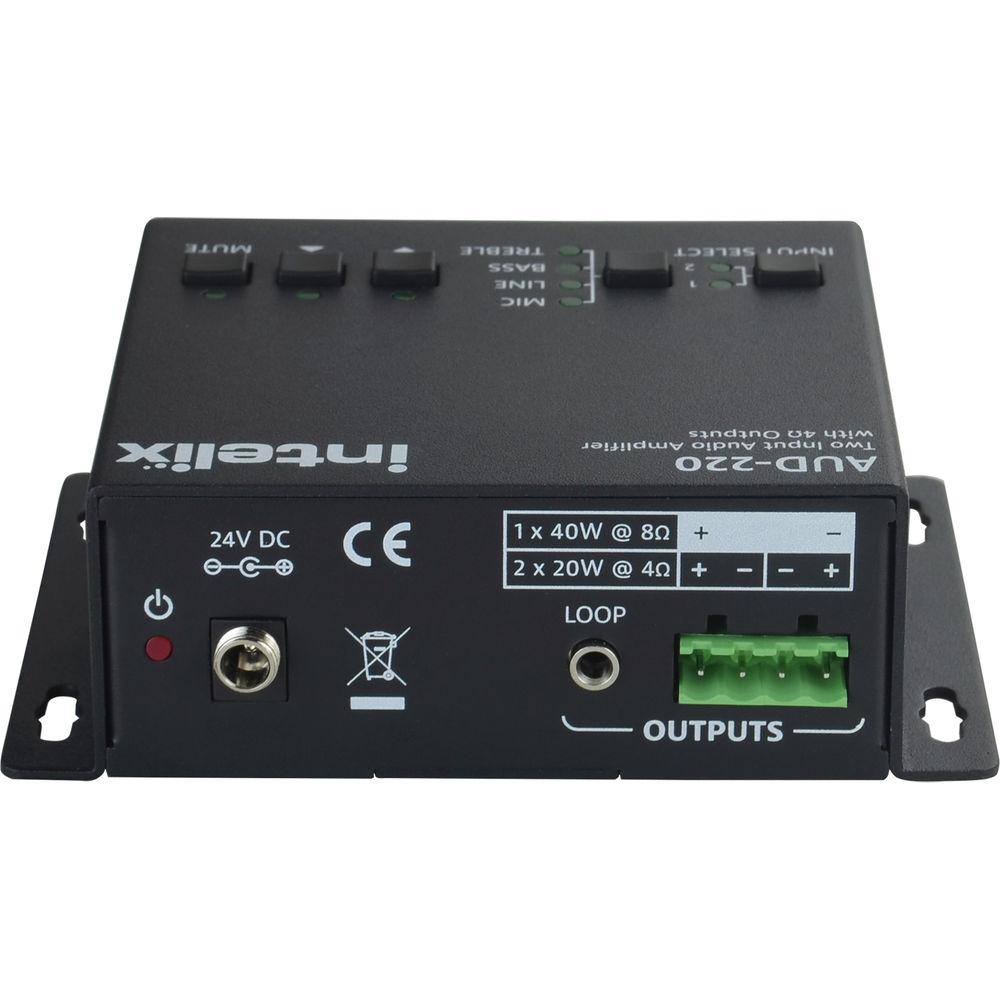

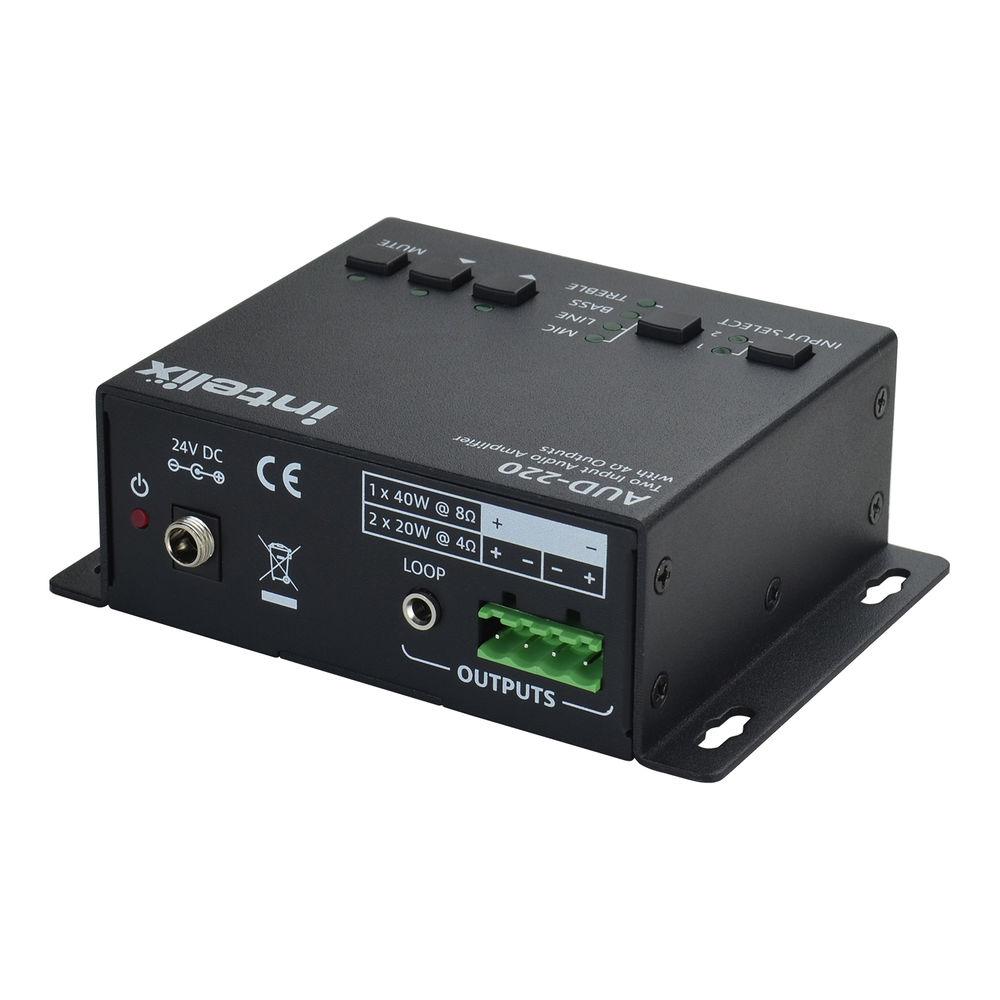

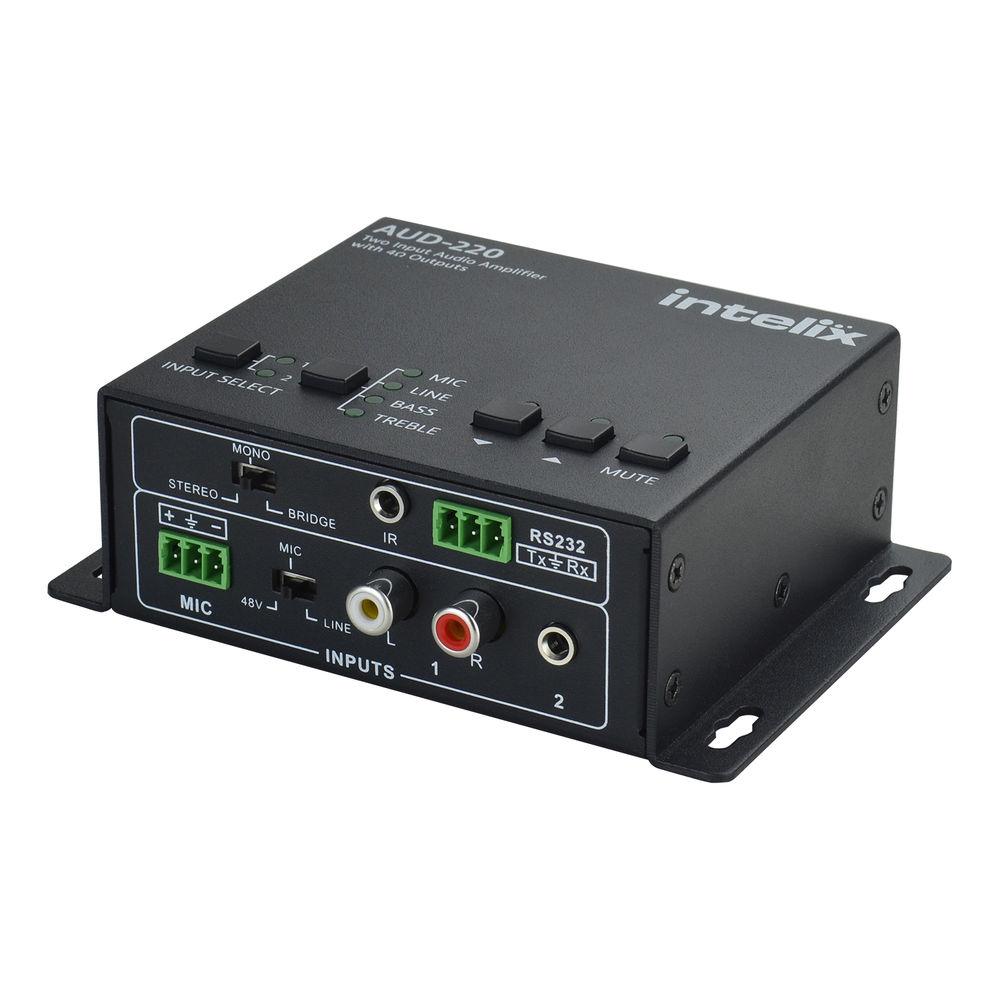

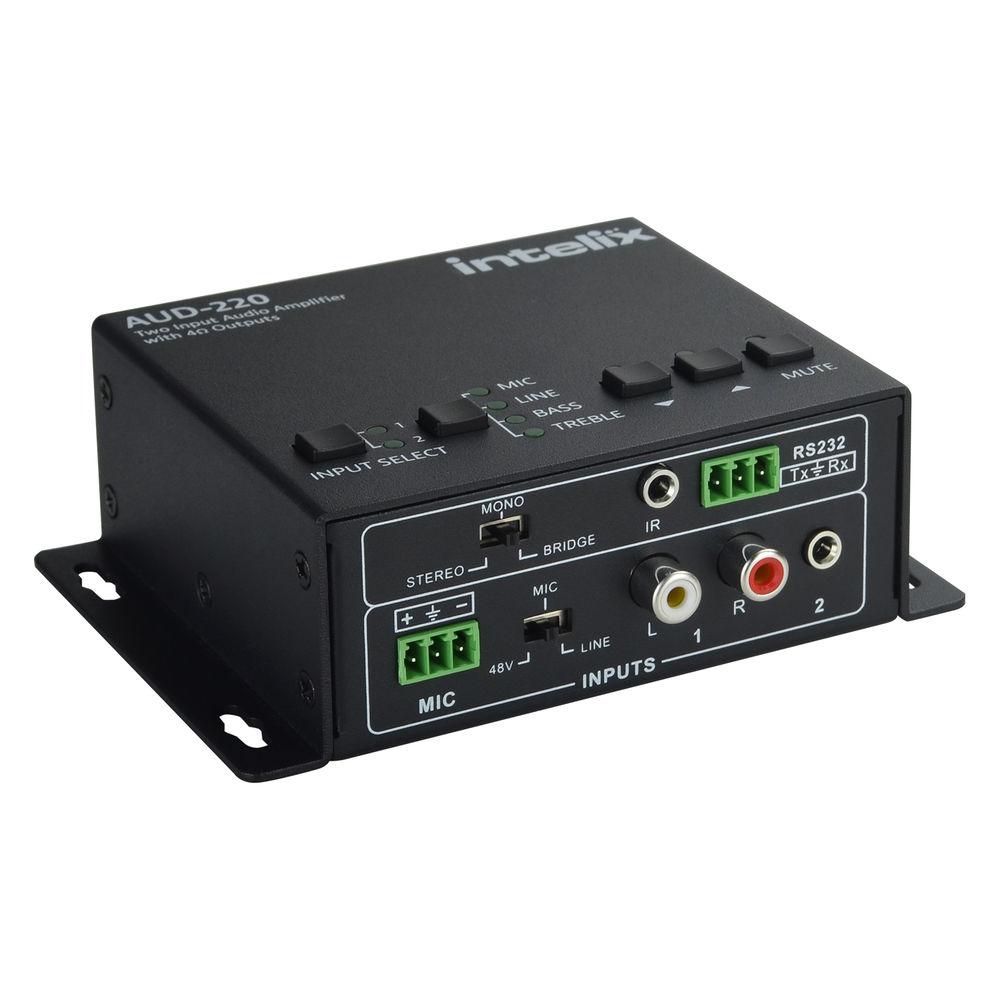

Product description The 2-Input 2x 20W Class-D Speaker Amplifier from Intelix features two analog audio inputs and a balanced microphone input with ducking functions. Additional features of the amplifier include input and microphone volume control, bass, and treble adjustments, microphone mixing with source audio, and three modes of microphone input support (48 dB gain, 48 dB gain with 48V phantom power, and line level). The speaker amplifier has three methods of control: push button, RS232, and IR with the AUD-220-IR accessory kit (sold separately). UPC: 601446001943 In the Box Intelix 2-Input 2x 20W Class-D Speaker Amplifier Power Supply AC Adapter RS-232 Cable Rubber Feet Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Intelix 2-Input 2x 20W Class-D Speaker Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntelix AUD-220 Specs | | | Analog Inputs | 2x RCA connectors
1x 3.5 mm TRS connector | | Microphone Input | 1x 3-Pole / 3.5 mm Euroblock | | Control | Front Panel: Push button
Rear Panel: RS232 via 1x 3-Pole / 3.5 mm Euroblock, IR via 1 x 3.5 mm TRS connector | | Signal Type | Microphone Selector: 1x 3-position slider switch | | Output Signal Formats | Selector: 1x 3-position slider switch | | Loop Output Connector | Analog: 1x 3-Pole / 3.5 mm Euroblock | | Speaker Output | 1x 3-Pole / 3.81 mm Euroblock | | Power | 24 VDC: 1x Locking barrel (5.5 mm OD, 2.1 mm ID) | | | | Input Impedance | > 10 kOhms | | Output Impedance | 50 Ohms analog output
4/8 Ohms speaker output | | Maximum Power Output | 40 W | | Frequency Response | 120 Hz to 20 kHz | | Common Mode Rejection Ratio | >70 dB at 20 Hz to 20 kHz | | Signal to Noise Ratio (SNR) | 80 dB maximum | | THD+N | 1% at 1 kHz; 0.3% at 20 kHz at nominal level | | Voltage Gain | 32 dB | | | | Power Consumption | Minimum: 5 W
Maximum: 45 W | | Power Supply Input Voltage | 100 to 240 VAC at 50/60 Hz at 0.5 A | | Power Supply Output | 24 VDC at 2 A | | | | ESD Protection | 15 kV | | Regulatory | Device: CE, RoHS
Power Supply: CE, RoHS, TUV, UL, SGS | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 20 to 90%, non-condensing | | Storage Temperature | 14 to 140°F (-10 to 60°C) | | Storage Humidity | 20 to 90%, non-condensing | | Enclosure | Painted aluminum | | Dimensions (H x W x D) | 1.6 x 4.8 x 3.5" (4 x 12 x 8.9 cm) | | Weight | Not Specified by Manufacturer | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 10.4 x 7.9 x 2.8" |
