Intelix 3-Input 40W Class-D Speaker Amplifier

Search your instruction manual in PDF to download

User Manual for Intelix 3-Input 40W Class-D Speaker Amplifier

Click to enlarge the picture
Intelix 3-Input 40W Class-D Speaker Amplifier Contents of the user manual for the Intelix 3-Input 40W Class-D Speaker Amplifier
  • Product category: 70-Volt Amplifiers Intelix
  • Brand: Intelix
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Intelix 70-Volt Amplifiers

Intelix 3-Input 40W Class-D Speaker Amplifier Intelix 3-Input 40W Class-D Speaker Amplifier Intelix 3-Input 40W Class-D Speaker Amplifier Intelix 3-Input 40W Class-D Speaker Amplifier Intelix 3-Input 40W Class-D Speaker Amplifier
User manual for the Intelix 3-Input 40W Class-D Speaker Amplifier contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Intelix product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Intelix user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Intelix product will considerably shorten its lifespan!



Product description

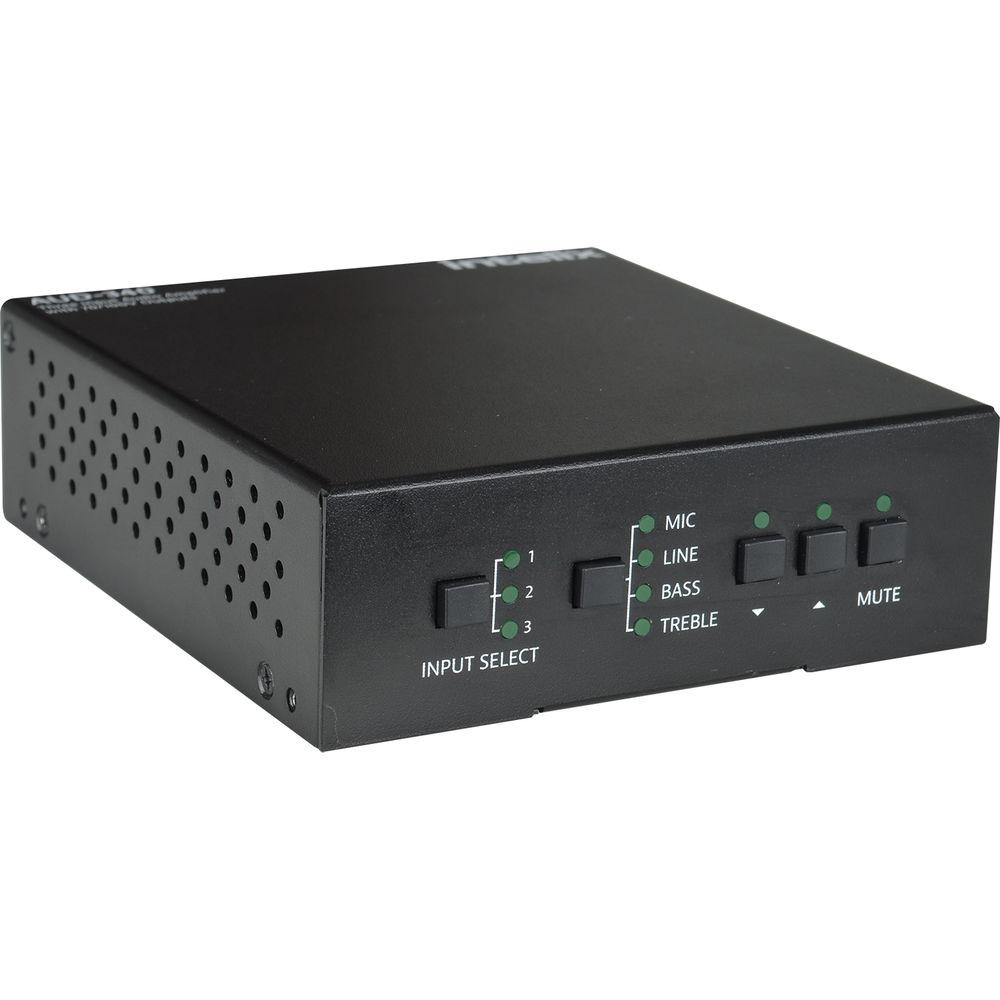

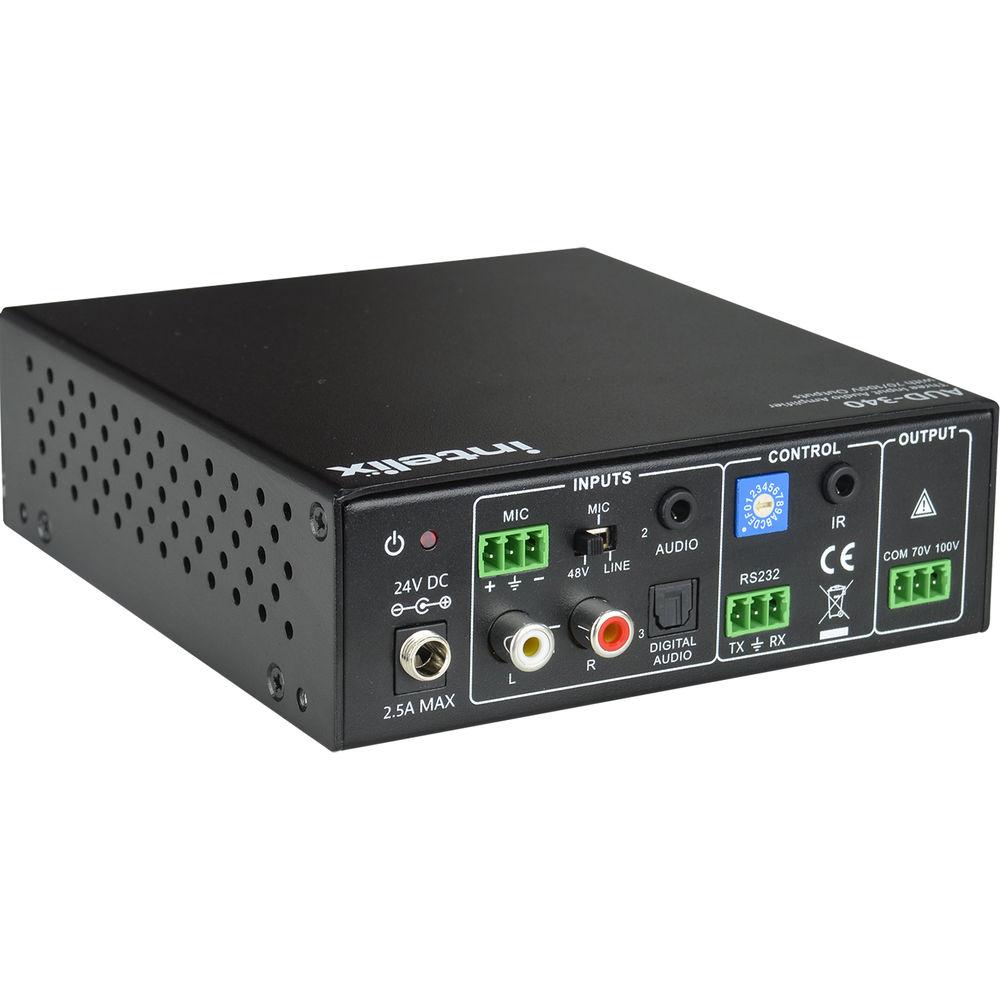

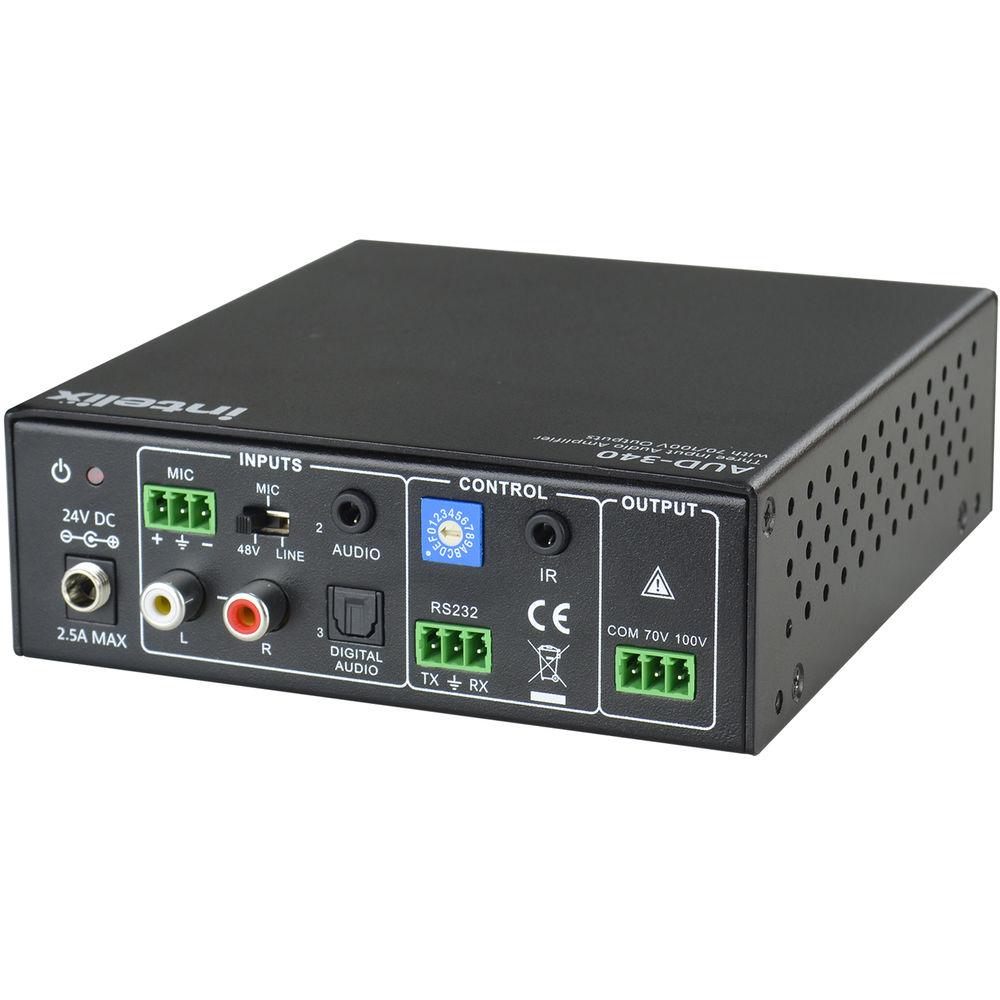

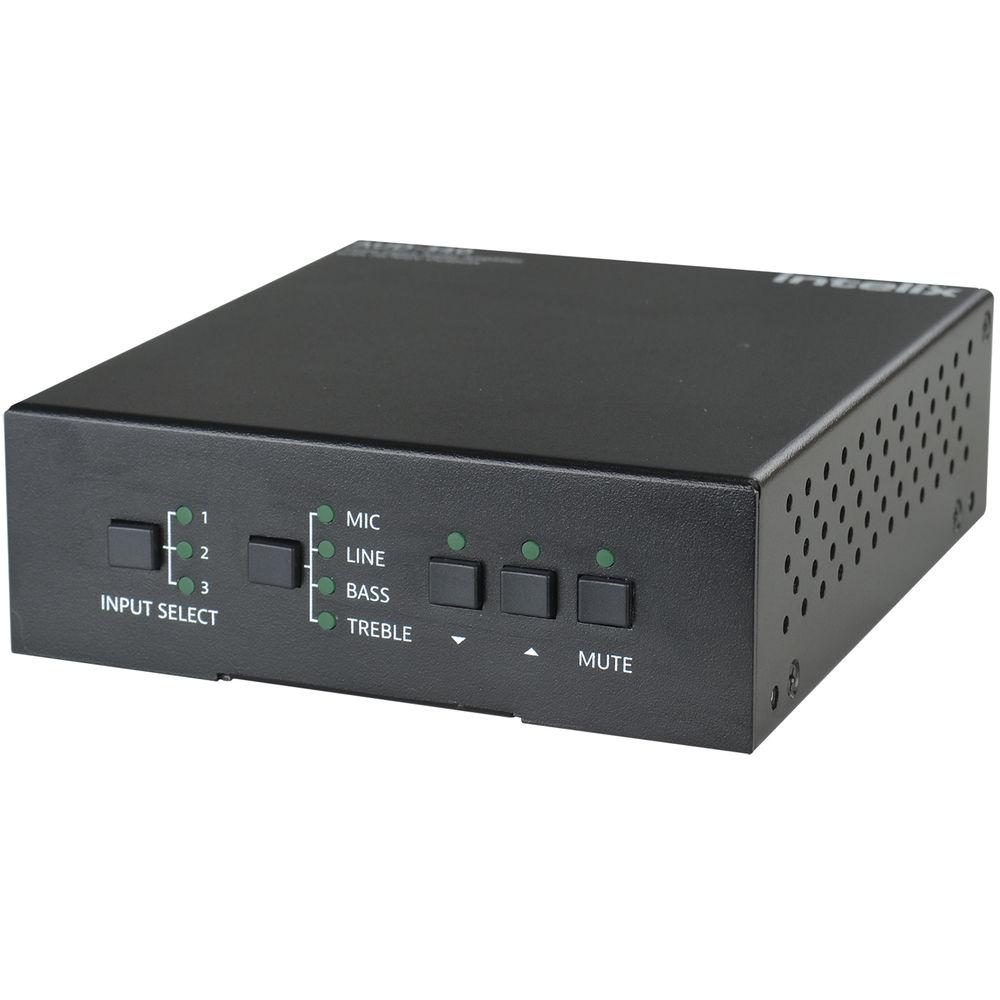

The 3-Input 40W Class-D Speaker Amplifier from Intelix features 70 or 100V outputs. The amplifier features two analog audio inputs, one digital audio input, and a balanced microphone input with ducking functions. Additional features of the amplifier includes input and microphone volume control, bass and treble adjustments, microphone mixing with source audio, and three modes of microphone input support (48 dB gain, 48 dB gain with 48V phantom power, and line level). The speaker amplifier has three methods of control such as push button, RS-232, and IR with the AUD-340-IR accessory kit (sold separately). In the Box Intelix 3-Input 40W Class-D Speaker Amplifier
  • Power Supply
  • AC Adapter
  • RS-232 Cable
  • Rubber Feet
  • 2 x Mounting "L" Bracket
  • Mounting Hardware
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Intelix 3-Input 40W Class-D Speaker Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Intelix AUD-340 Specs

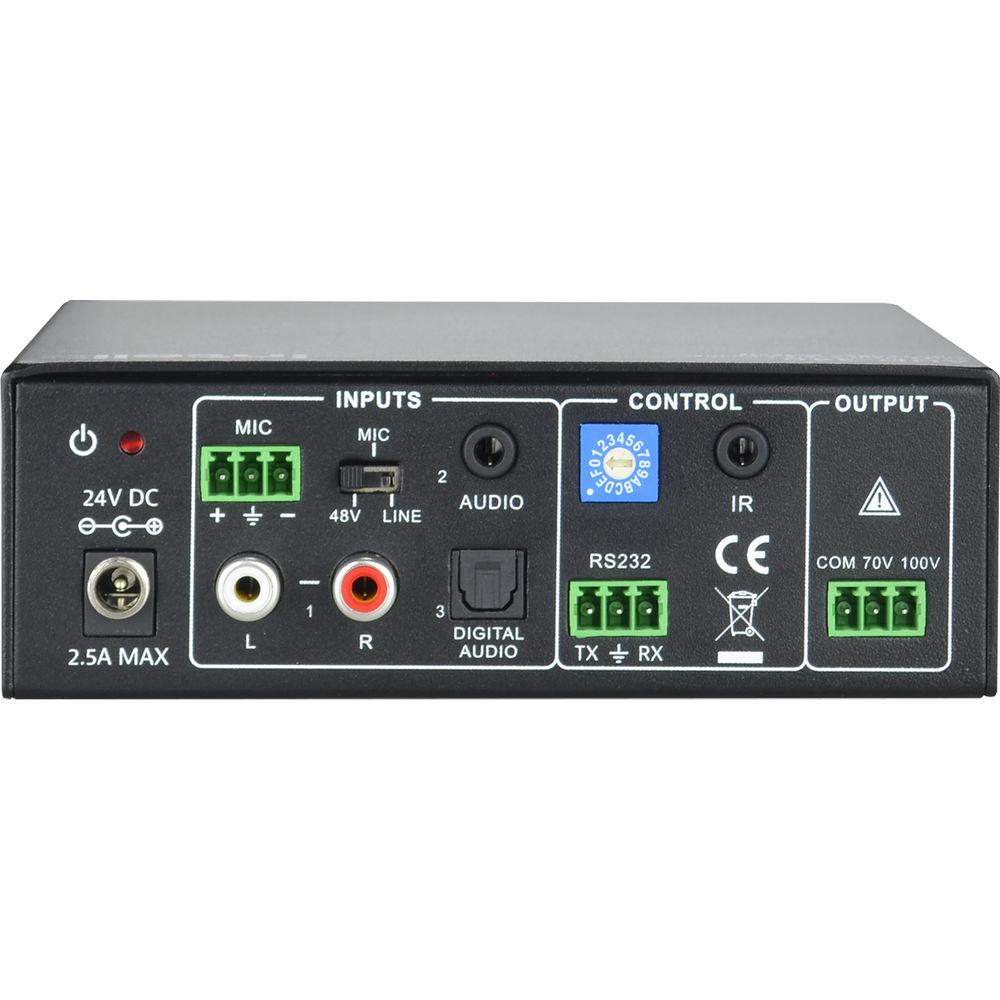

    Analog Inputs 2 x RCA connectors
    1 x 3.5 mm TRS connector
    Digital Input 1 x EIAJ optical connector
    Microphone Input 1 x 3-Pole / 3.5 mm Euroblock
    Control Front Panel: Push button
    Rear Panel: RS232 via 1 x 3-Pole / 3.5 mm Euroblock, IR via 1 x 3.5 mm TRS connector
    RS232 ID Selector: 1 x 16-position rotary switch
    Signal Type Selector: 1 x 3-position slider switch
    Speaker Output 70 or 100 V: 1 x 3-Pole / 3.5 mm Euroblock
    Power 1 x Locking barrel (5.5 mm OD, 2.1 mm ID)
    Analog Input Impedance > 10 kOhms
    Output Type Constant voltage at 70 or 100 V
    Maximum Power Output 40 W
    Frequency Response 120 Hz to 20 kHz
    Common Mode Rejection Ratio >70 dB at 20 Hz to 20 kHz
    Signal to Noise Ratio (SNR) 80 dB maximum
    THD+N 1% at 1 kHz; 0.3% at 20 kHz at nominal level
    Voltage Gain 26 dB
    Power Consumption Minimum: 5 W
    Maximum: 45 W
    Power Supply Input Voltage 100 to 240 VAC at 50/60 Hz at 0.5 A
    Power Supply Output 24 VDC at 2 A
    ESD Protection 15 kV
    Regulatory Device: CE, RoHS
    Power Supply: CE, RoHS, TUV, UL, SGS
    Operating Temperature 32 to 104°F (0 to 40°C)
    Operating Humidity 20 to 90%, non-condensing
    Storage Temperature 14 to 140°F (-10 to 60°C)
    Storage Humidity 20 to 90%, non-condensing
    Enclosure Painted aluminum
    Dimensions (H x W x D) 1.7 x 5.12 x 5.7" (4.3 x 13 x 14 cm)
    Weight Not Specified by Manufacturer
