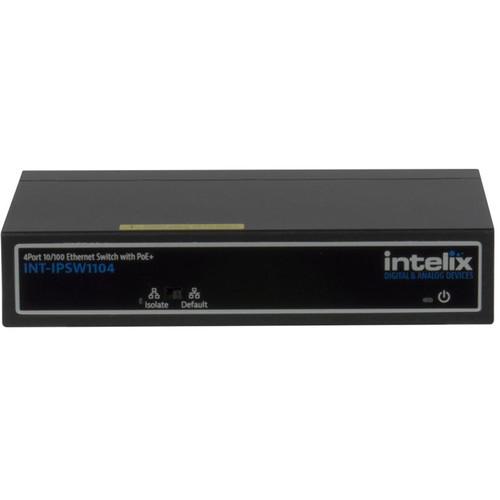

User Manual for Intelix 4-Port 10 100 BaseT Ethernet Switch with Uplink and PoE Ports Click to enlarge the picture
Contents of the user manual for the Intelix 4-Port 10 100 BaseT Ethernet
- Product category: Network Switches, Bridges & Hubs Intelix
- Brand: Intelix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Intelix Network Switches, Bridges & Hubs
 |
User manual for the Intelix 4-Port 10 100 BaseT Ethernet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Intelix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Intelix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Intelix product will considerably shorten its lifespan!
|

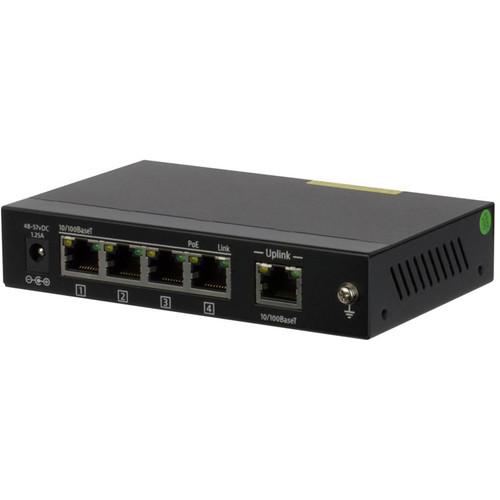

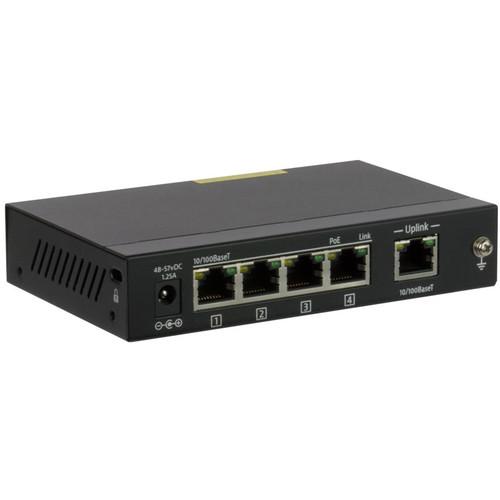

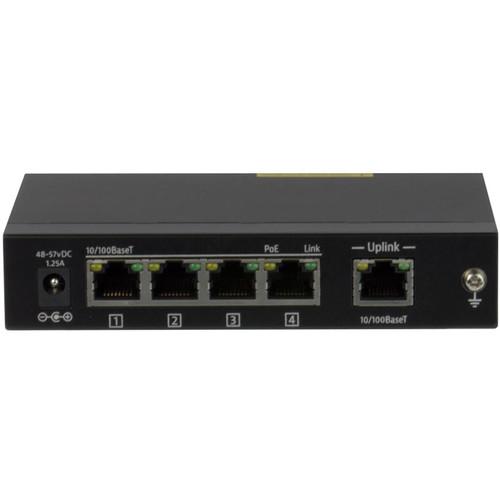

Product description Provided by third party: The Intelix INT-IPSW1104 is a four port 10/100BaseT Ethernet switch with PoE+ (up to 15w per downlink port). The switch features two operation modes: Default and Isolate. In Default mode, the switch will pass data between all downlink and uplink ports, similar to a standard Ethernet switch. In Isolate mode, downlink ports will only communicate with the uplink port. The INT-IPSW1104 includes a Kensington lock slot to prevent theft.
- Key Features
-
- PoE+ (IEEE 802.3af/at (Type 1)) on 4 downlink ports
- Uplink port
- 1 Gbps backplane bandwidth
- 10/100 Mbps bandwidth per port (including uplink)
- Isolation mode switch to direct distributed traffic
In the Box Intelix 4-Port 10/100 BaseT Ethernet Switch with Uplink and PoE+Ports Intelix INT-IPSW1104 4 rubber feet, 2 mounting brackets Table of Contents
|
Upload User Manual
Have you got an user manual for the Intelix 4-Port 10 100 BaseT Ethernet Switch with Uplink and PoE Ports in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersIntelix INT-IPSW1104 Specs | | | Device Type | Switch - 4 ports | | Enclosure Type | Desktop | | Subtype | Fast Ethernet | | Ports | 4 x 10/100 (PoE+) + 1 x 10/100 (uplink) | | Power Over Ethernet (PoE) | PoE+ | | Performance | Backplane speed: 1 Gbps
Packet forwarding rate: 0.75 Mpps | | Features | 768KB packet buffer, 15KV ESD Protector, security lock slot (cable lock sold separately), metal housing | | Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at | | Status Indicators | Power, PoE, LAN, uplink | | | | Interfaces | 4 x 100Base-TX RJ-45 PoE+
1 x 100Base-TX RJ-45 uplink | | | | Power Device | External power adapter | | Voltage Required | AC 120/230 V (50/60 Hz) | | Power Consumption Operational | 60 Watt | | | | Included Accessories | 4 rubber feet, 2 mounting brackets | | Compliant Standards | FCC, RoHS | | Localization | United States | | | | Width | 5.3 in | | Depth | 4.1 in | | Height | 1.1 in | | | | Service & Support | Limited warranty - 2 years | | | | Min Operating Temperature | 32
